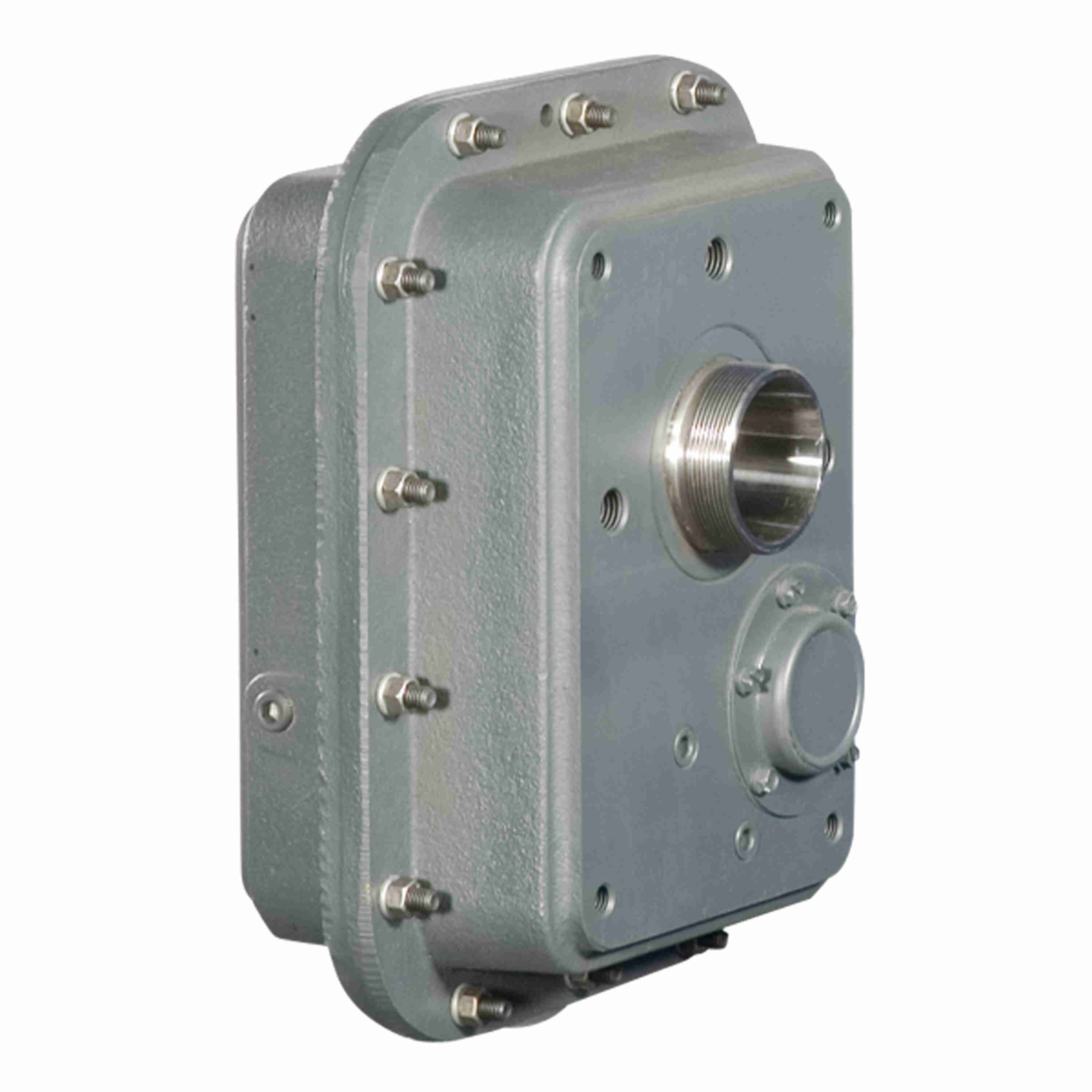

Falk 5215J14A 0794384 - 0794384
Part #:10286825
Catalog #:0794384
KEY FEATURES
- Size 5215 shaft mounted parallel helical gear drive with a 14:1 ratio. Heavy duty tapered roller bearings and high temperature grease purgeable Viton seals provide maximum protection in extreme environments. Standard Shaft Mounted (JR), Screw Conveyor (JSC) and Flanged Mounted (JF) units are built up from a Basic Unit (J)
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product: | Basic Drives | Width Through Housing (in): | 8.68 in |
| Recommended Driven Shaft Length [Nom] (in): | 7.125 in | Vertical Distance from High Speed Shaft (HSS) Centerline to Low Speed Shaft (LSS) Centerline: | 5.59 in |
| Lip Seal Material: | Viton | Exact Ratio: | 13.6 |
| High Speed Shaft Diameter (in): | 1.875 in | Nominal Ratio: | 14 |
| High Speed Shaft Speed [Max] (rpm): | 1,700 rpm | Low Speed Shaft Diameter (in): | 2.9375 in |
| Series: | Quadrive Accessories | Type of Auxiliary Cooling Supplied with Gear Drive: | None |
| High Speed Shaft Length (in): | 4.25 in |
General Specifications
| UPC: | 782934259142 | Weight: | 354.00 LB |
| HTC: | 8483405010 | Country of Origin: | United States of America |
