Falk 5407JF05 0794394 - 0794394

Name: Falk 5407JF05 0794394 - 0794394
Brand: Falk
Availability: InStock

Part #:10286700

Catalog #:0794394

Key Features Product Specs

Add to Compare

Weight:594.00 LB

UOM:EA

Where to Buy

Compare Product

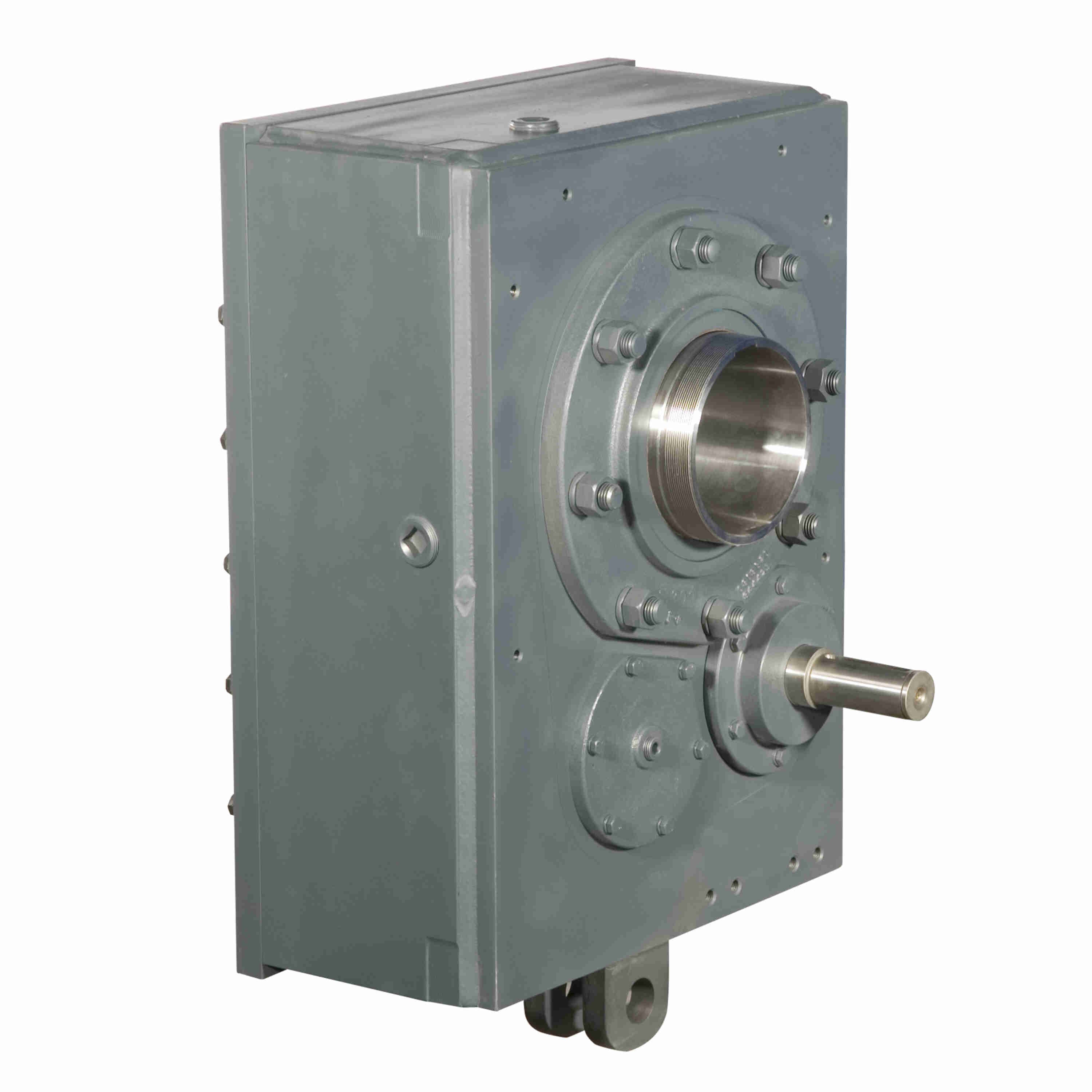

Size 5407 shaft mounted parallel helical gear drive with a 5:1 ratio. Standard mounting achieved with factory installed flange. A TA (torque-assist) tapered bushing is required but sold separately.

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Nominal Ratio:	5	Drive Type:	Flange Mounted (JF)
Width Through Housing (in):	8.3 in	High Speed Shaft Length (in):	6.04 in
Series:	Quadrive Accessories	Exact Ratio:	4.938
High Speed Shaft Diameter (in):	2.5 in	Recommended Driven Shaft Length [Nom] (in):	8.5 in
Type of Auxiliary Cooling Supplied with Gear Drive:	None	Lip Seal Material:	Viton
Unit Size:	5407	Vertical Distance from High Speed Shaft (HSS) Centerline to Low Speed Shaft (LSS) Centerline:	8.03 in
Low Speed Shaft Diameter (in):	4.4375 in	High Speed Shaft Speed [Max] (rpm):	1,728 rpm
Product:	Basic Drives

UPC:	782934268946	Weight:	594.00 LB
HTC:	8483405010	Country of Origin:	United States of America
