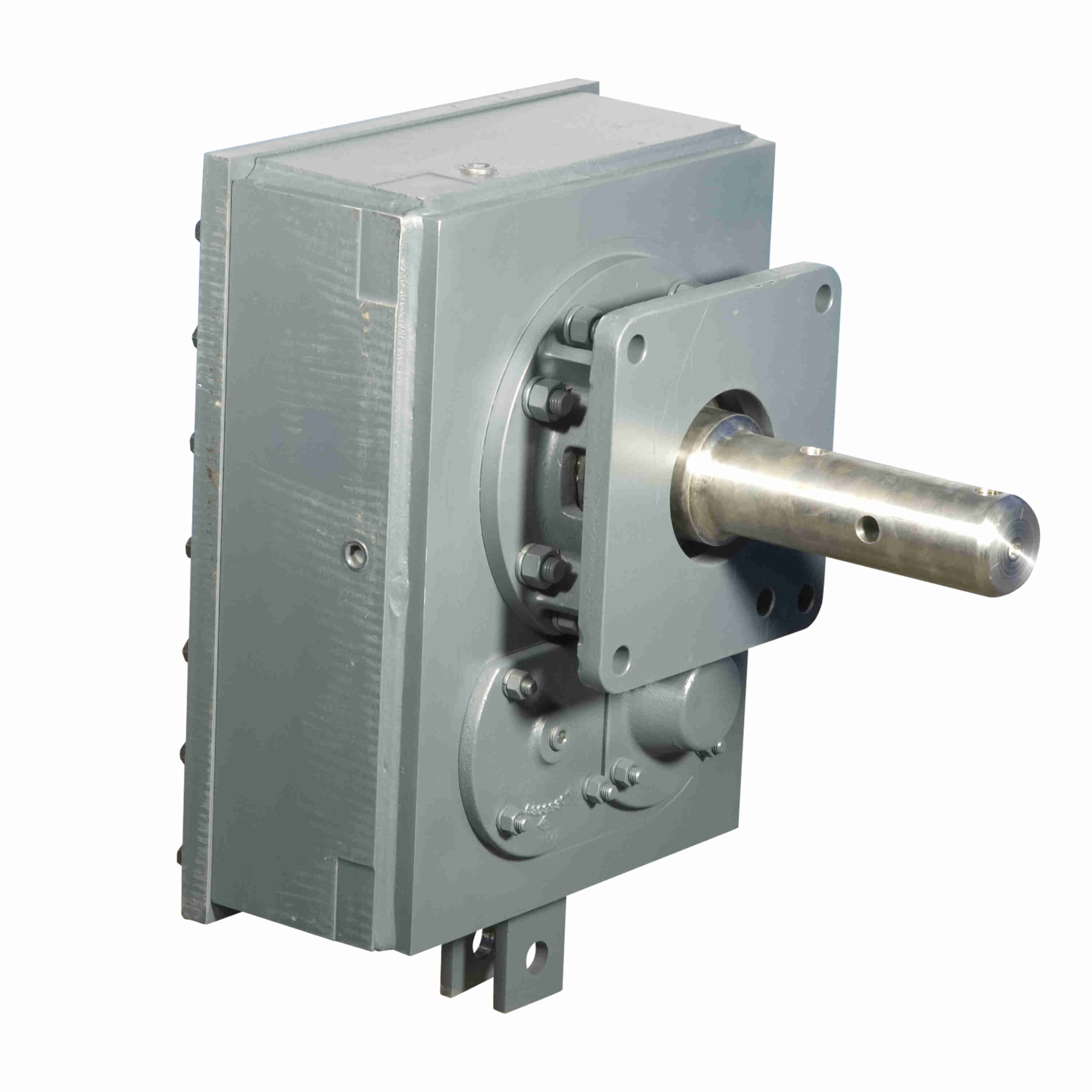

Falk 5407JSC05 0795257 - 0795257
Part #:10615454
Catalog #:0795257
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Vertical Distance from High Speed Shaft (HSS) Centerline to Low Speed Shaft (LSS) Centerline: | 8.03 in | Unit Size: | 5407 |
| High Speed Shaft Speed [Max] (rpm): | 1,728 rpm | Screw Conveyor Drive Shaft Length (in): | 9.875 in |
| Screw Conveyor Drive Shaft Diameter (in): | 3 in | Product: | 5407J |
| Type of Auxiliary Cooling Supplied with Gear Drive: | Forced Air Over Housing - Fan Driven by High Speed Shaft | Series: | Quadrive Gear Drives |
| Nominal Ratio: | 5 | High Speed Shaft Length (in): | 3.24 in |
| High Speed Shaft Diameter (in): | 2.5 in | Drive Type: | Screw Conveyor (JSC) |
| Lip Seal Material: | Viton | Width Through Housing (in): | 8.3 in |
General Specifications
| UPC: | 782934983689 | Weight: | 656.00 LB |
| HTC: | 8483405010 | Country of Origin: | United States of America |
