Falk 5608JF25 0795518 - 0795518
Part #:10615629
Catalog #:0795518
KEY FEATURES

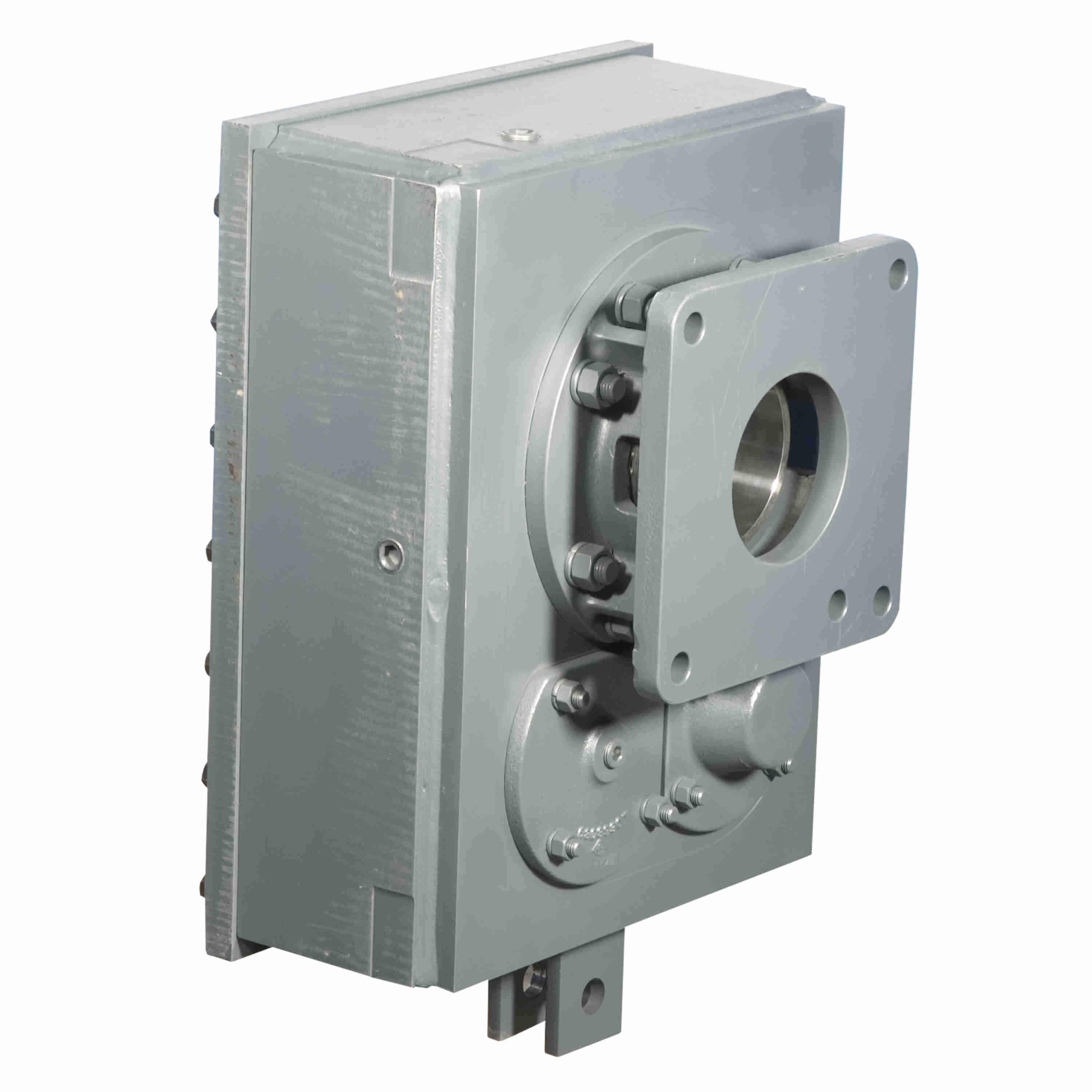

- Size 5608 shaft mounted parallel helical gear drive with a 25:1 ratio and cooling fan assembly. Standard mounting achieved with factory installed flange. A tapered shaft, drive shaft, TA (torque-assist) tapered bushing, or Taper Conversion Bushing will also be required to mount the drive.
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Type of Auxiliary Cooling Supplied with Gear Drive: | Forced Air Over Housing - Fan Driven by High Speed Shaft | Width Through Housing (in): | 12.4 in |
| Product: | 5608J | Lip Seal Material: | Viton |
| High Speed Shaft Speed [Max] (rpm): | 1,773 rpm | High Speed Shaft Length (in): | 4.8 in |
| High Speed Shaft Diameter (in): | 3 in | Vertical Distance from High Speed Shaft (HSS) Centerline to Low Speed Shaft (LSS) Centerline: | 10.66 in |
| Unit Size: | 5608 | Nominal Ratio: | 25 |
| Drive Type: | Flange Mounted (JF) | Recommended Driven Shaft Length [Nom] (in): | 13 in |
| Series: | Quadrive Gear Drives |
General Specifications
| UPC: | 782934982057 | Weight: | 1,805.00 LB |
| HTC: | 8483405010 | Country of Origin: | United States of America |
