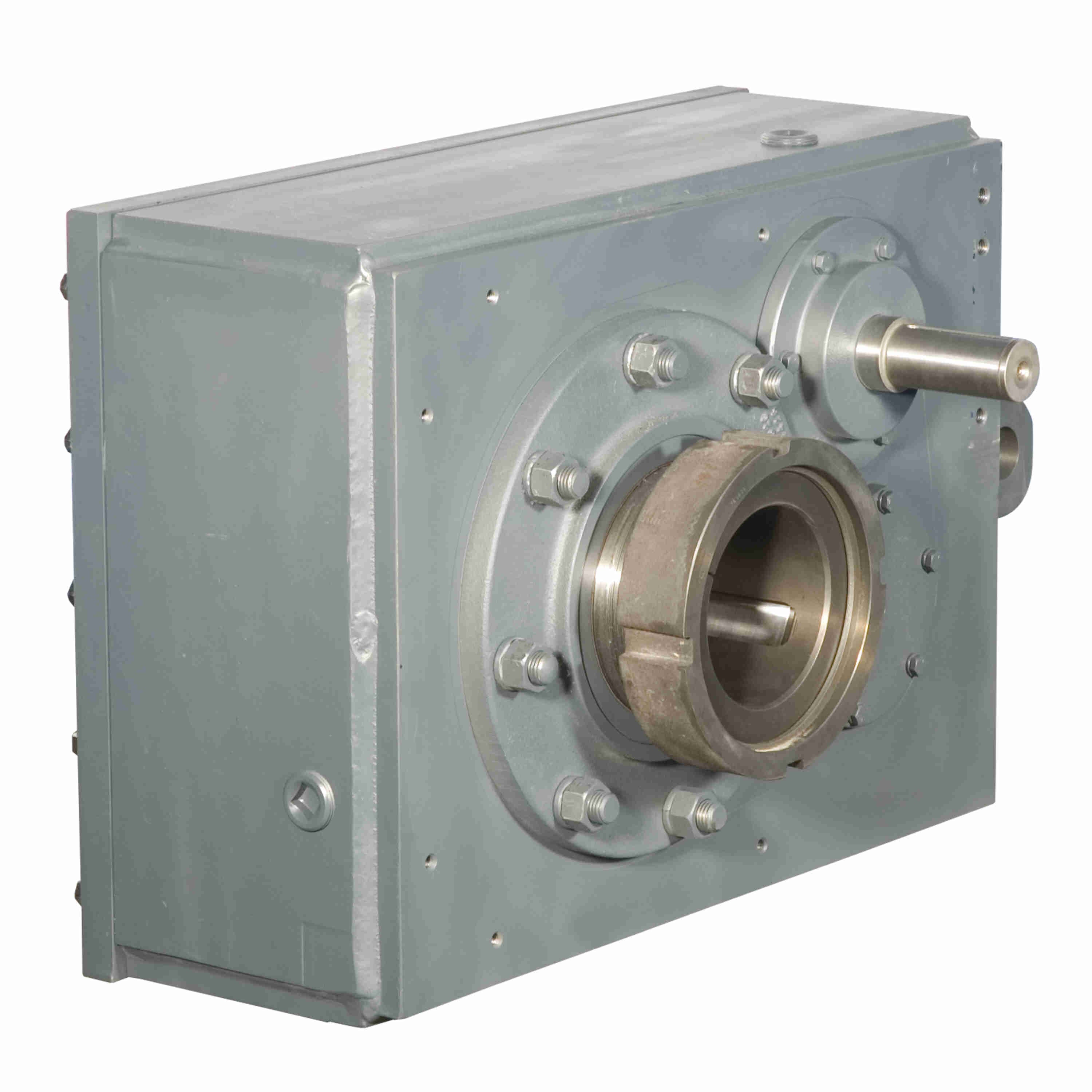

Size 5608 shaft mounted parallel helical gear drive with a 14:1 ratio. This part number includes a torque arm, but does not include a TA (torque-assist) tapered bushing.

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

High Speed Shaft Diameter (in):	3 in	Lip Seal Material:	Viton
Series:	Quadrive Gear Drives	Type of Auxiliary Cooling Supplied with Gear Drive:	None
Product:	5608J	Width Through Housing (in):	12.4 in
Vertical Distance from High Speed Shaft (HSS) Centerline to Low Speed Shaft (LSS) Centerline:	10.66 in	Drive Type:	Shaft Mounted (JR)
High Speed Shaft Length (in):	8.8 in	Recommended Driven Shaft Length [Nom] (in):	13 in
Unit Size:	5608	Nominal Ratio:	14
High Speed Shaft Speed [Max] (rpm):	1,728 rpm

UPC:	782934982163	Weight:	1,856.00 LB
HTC:	8483905090	Country of Origin:	United States of America
