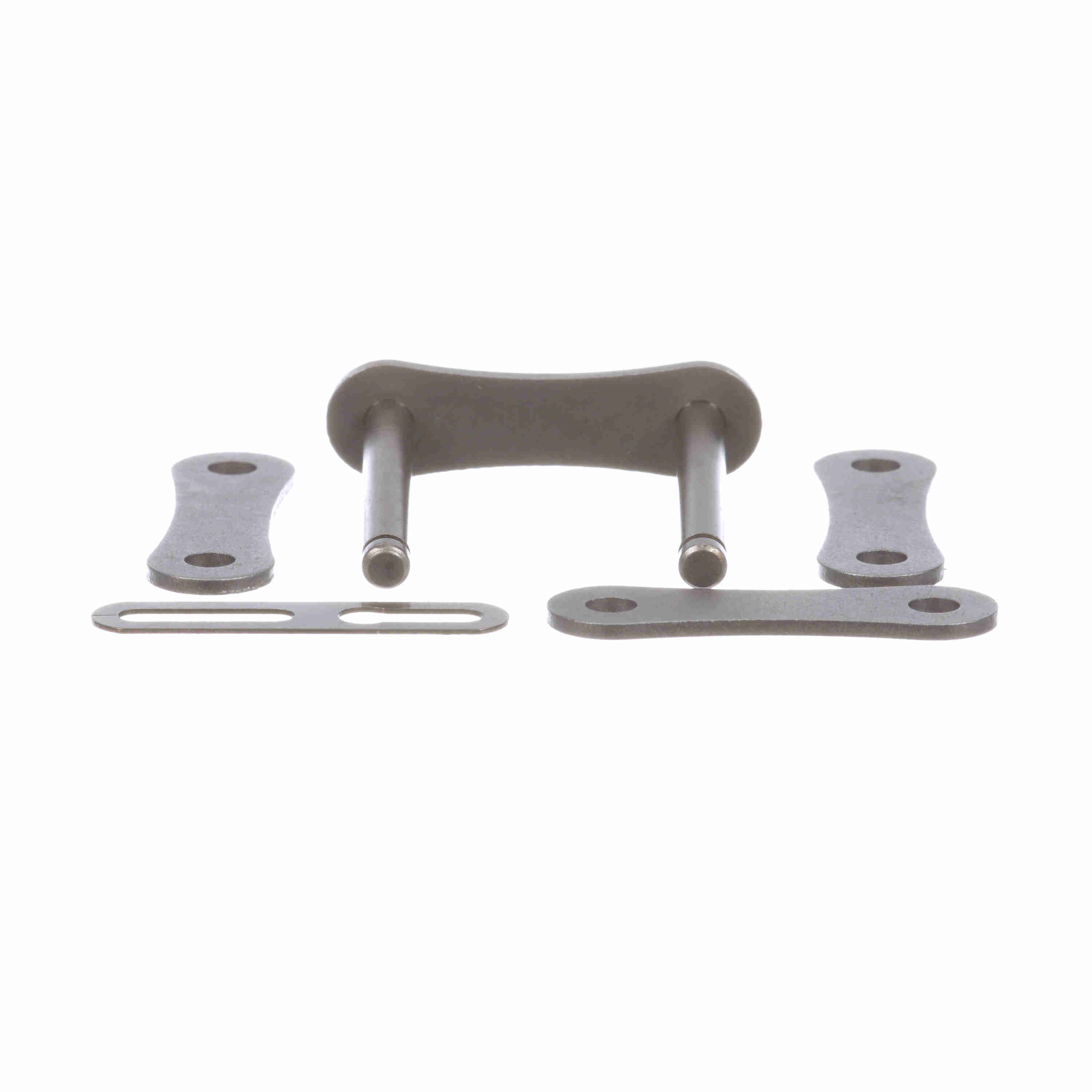

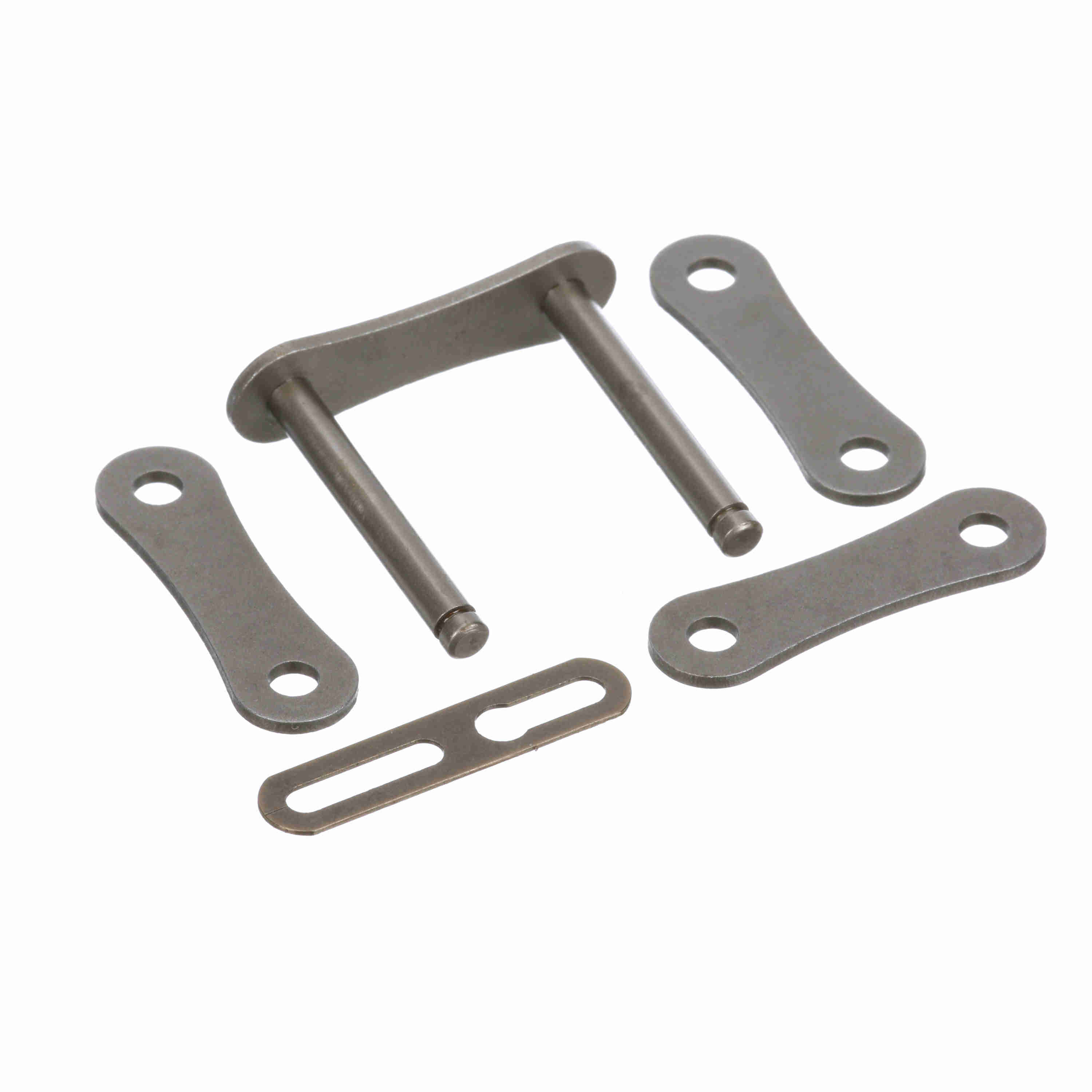

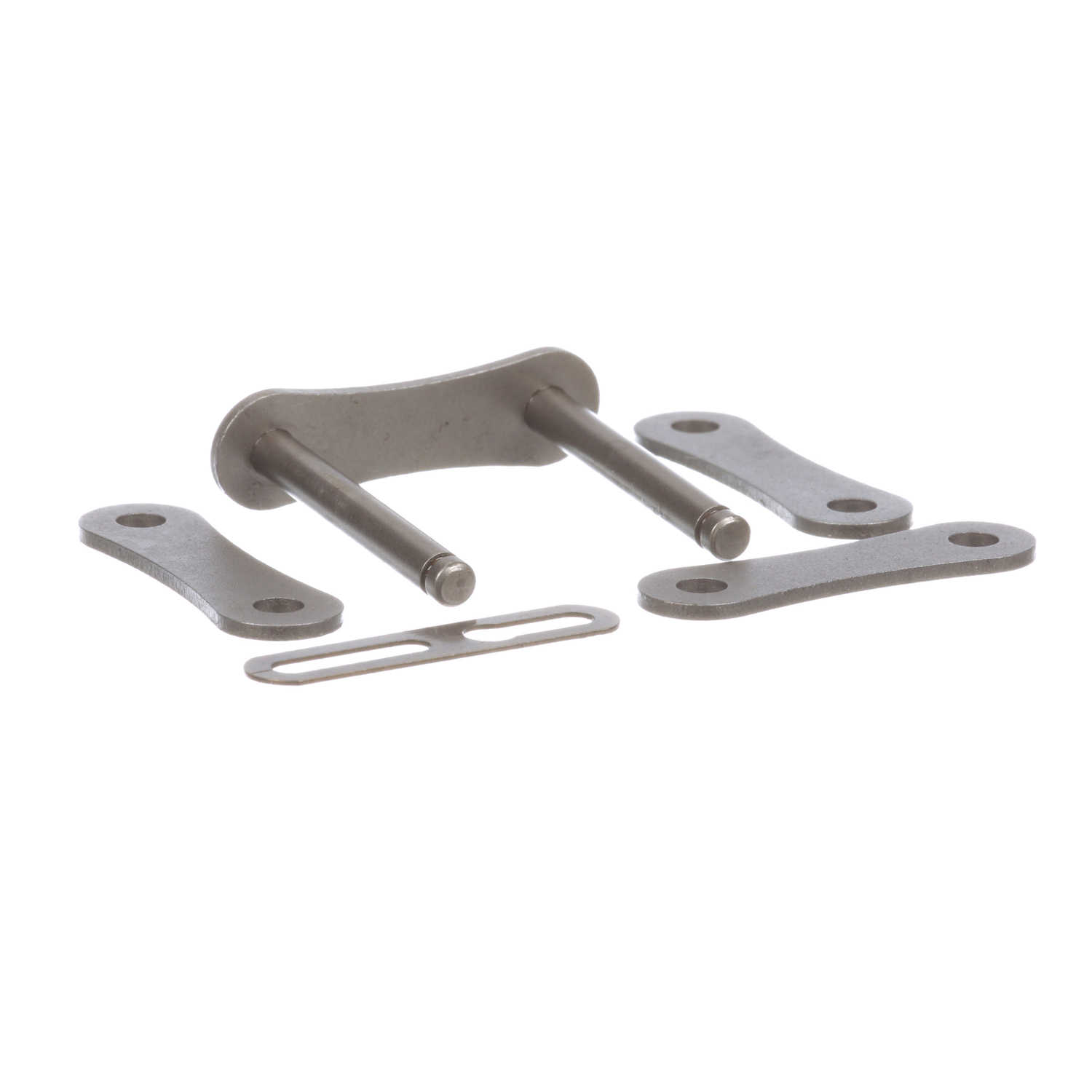

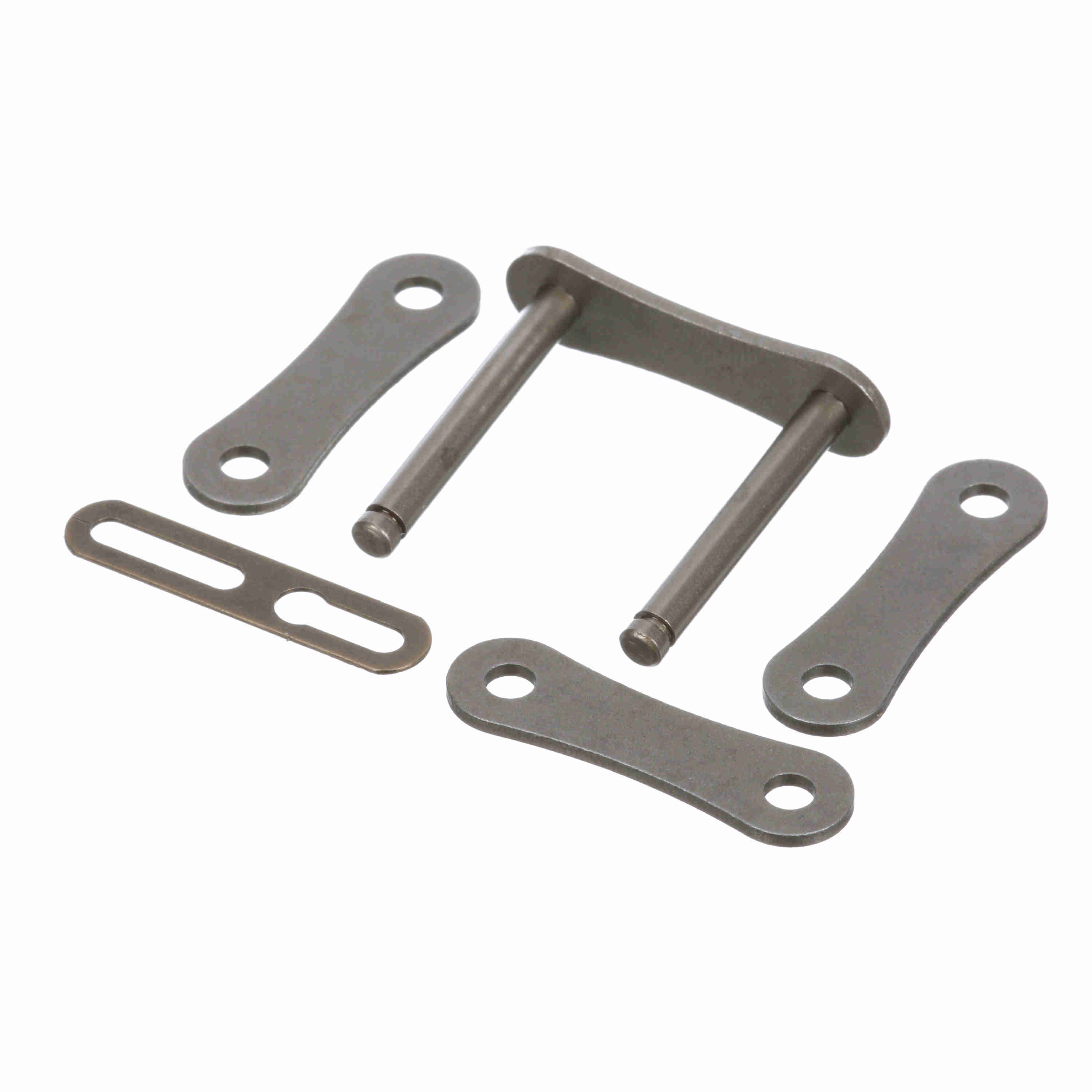

Morse Double Pitch Roller Chain - Standard Roller Design Spring Clip Connecting Link - 2040-2 C/L S/C S/F

Name: Morse Double Pitch Roller Chain - Standard Roller Design Spring Clip Connecting Link - 2040-2 C/L S/C S/F
Brand: Morse
Availability: OutOfStock

Part #:332565

Catalog #:2040-2 C/L S/C S/F

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

Unmatched Quality and Performance in Morse Brand Chain
Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
Available from Stock

How can we improve our Product Information?

Resource Center

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Technical Specifications

Roller Width (in):	0.3125 in	Pin Diameter (in):	0.156 in
Material:	Steel	Roller Diameter (in):	0.312 in
Number of Strands/Width:	2	Connecting Link - Slip Fit:	Spring Clip
Chain Pitch (in):	1 in	Chain Type:	Standard
Product Type:	Roller Chain	Plate Thickness (in):	0.06 in
Side Plate Configuration:	Straight	Pin Length - Riveted (in):	0.63 in
Inside Plate Height (in):	0.466 in	Pin Length - Cottered (in):	0.7 in

General Specifications

UPC:	662288633846	Weight:	0.47 LB
Packaged Length:	2.50 IN	Packaged Width:	2.85 IN
Packaged Height:	0.45 IN	HTC:	7315.19.0000
Country of Origin:	Taiwan, Republic of China
