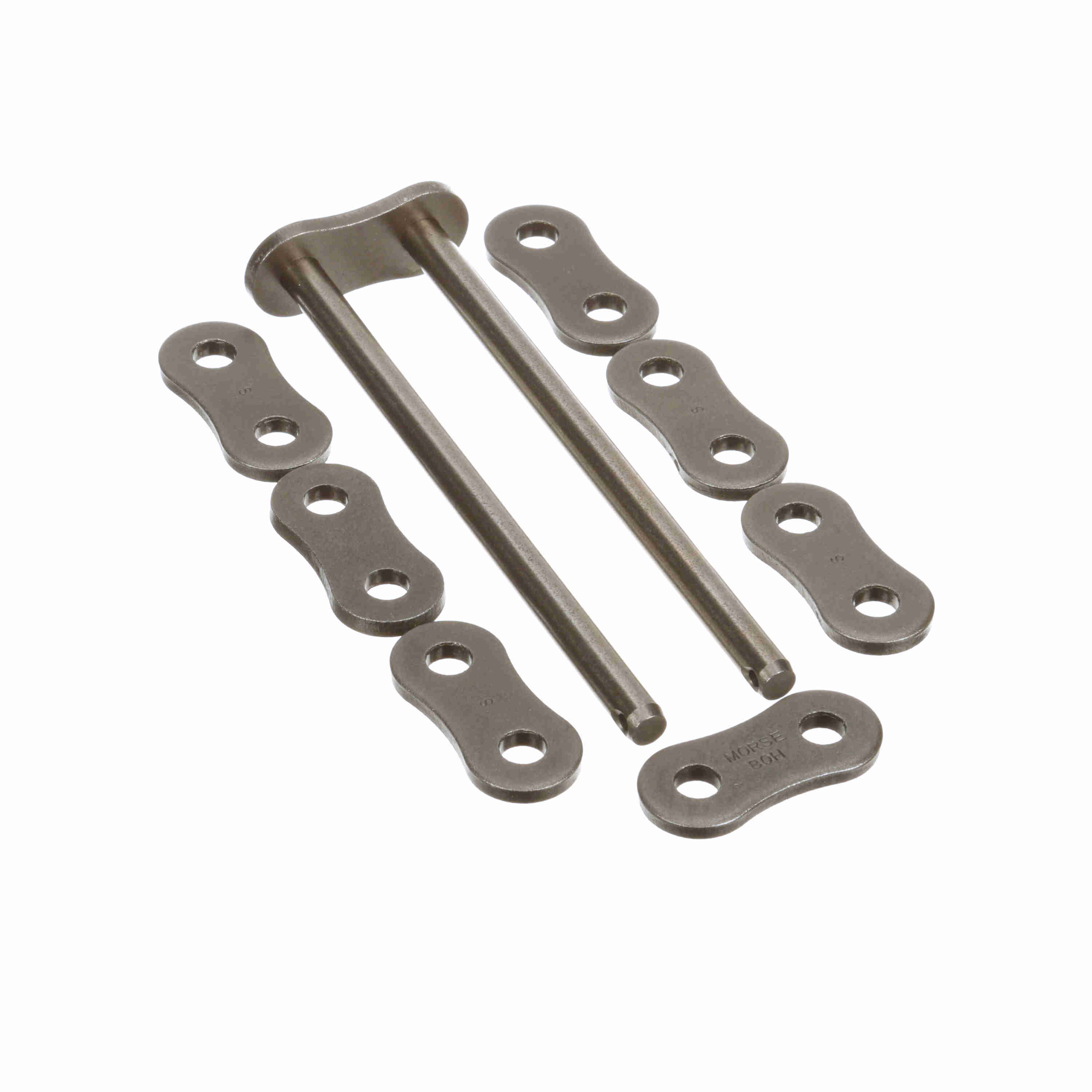

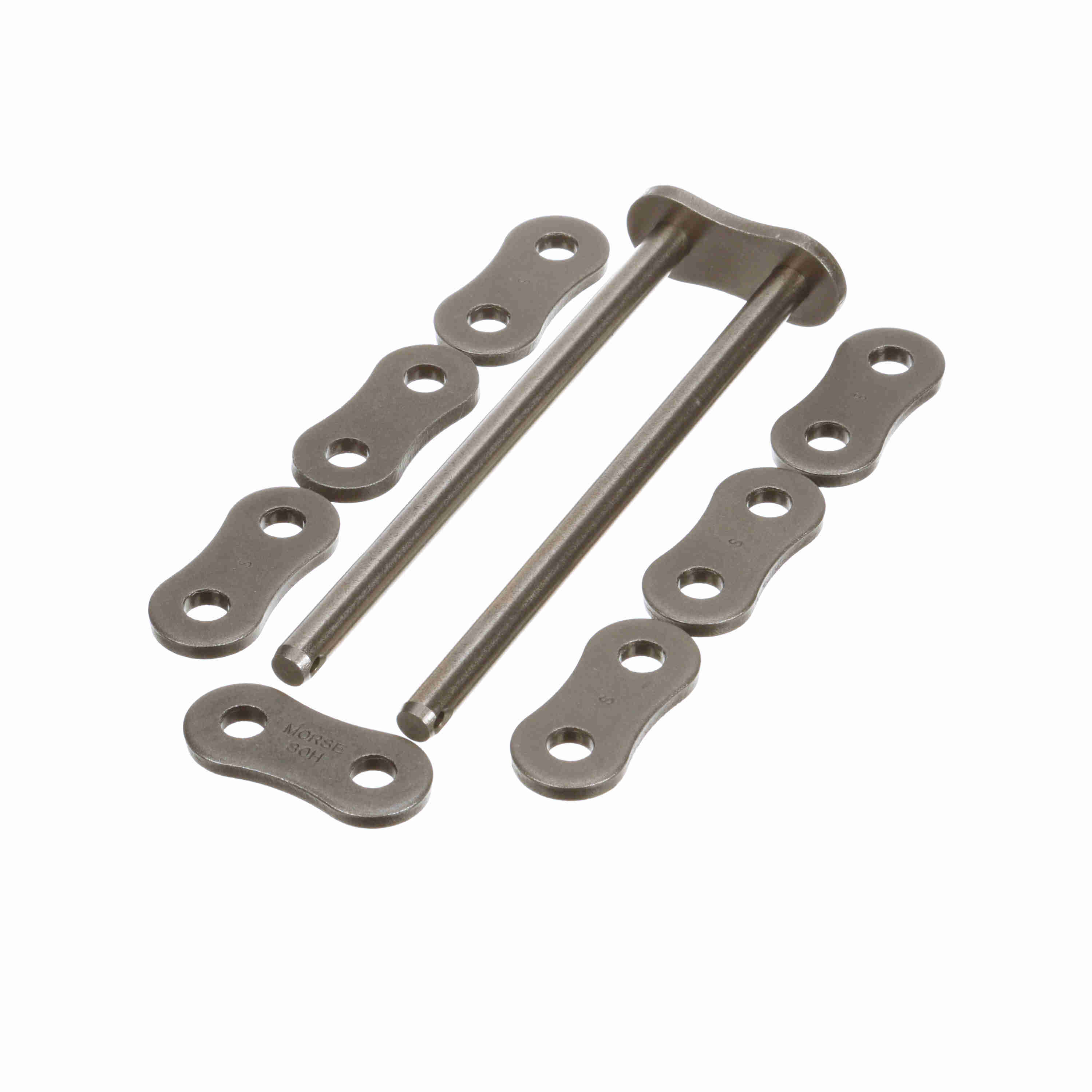

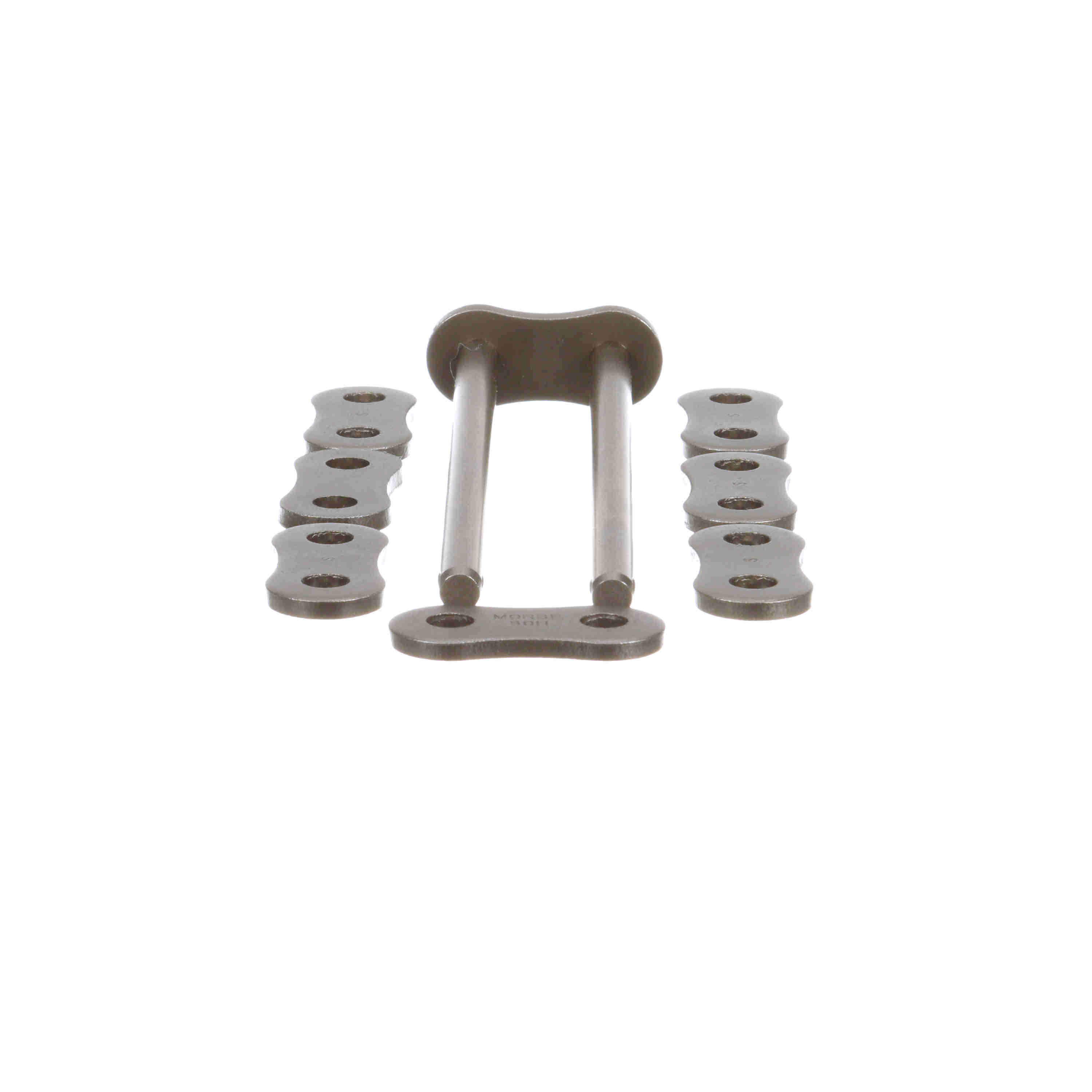

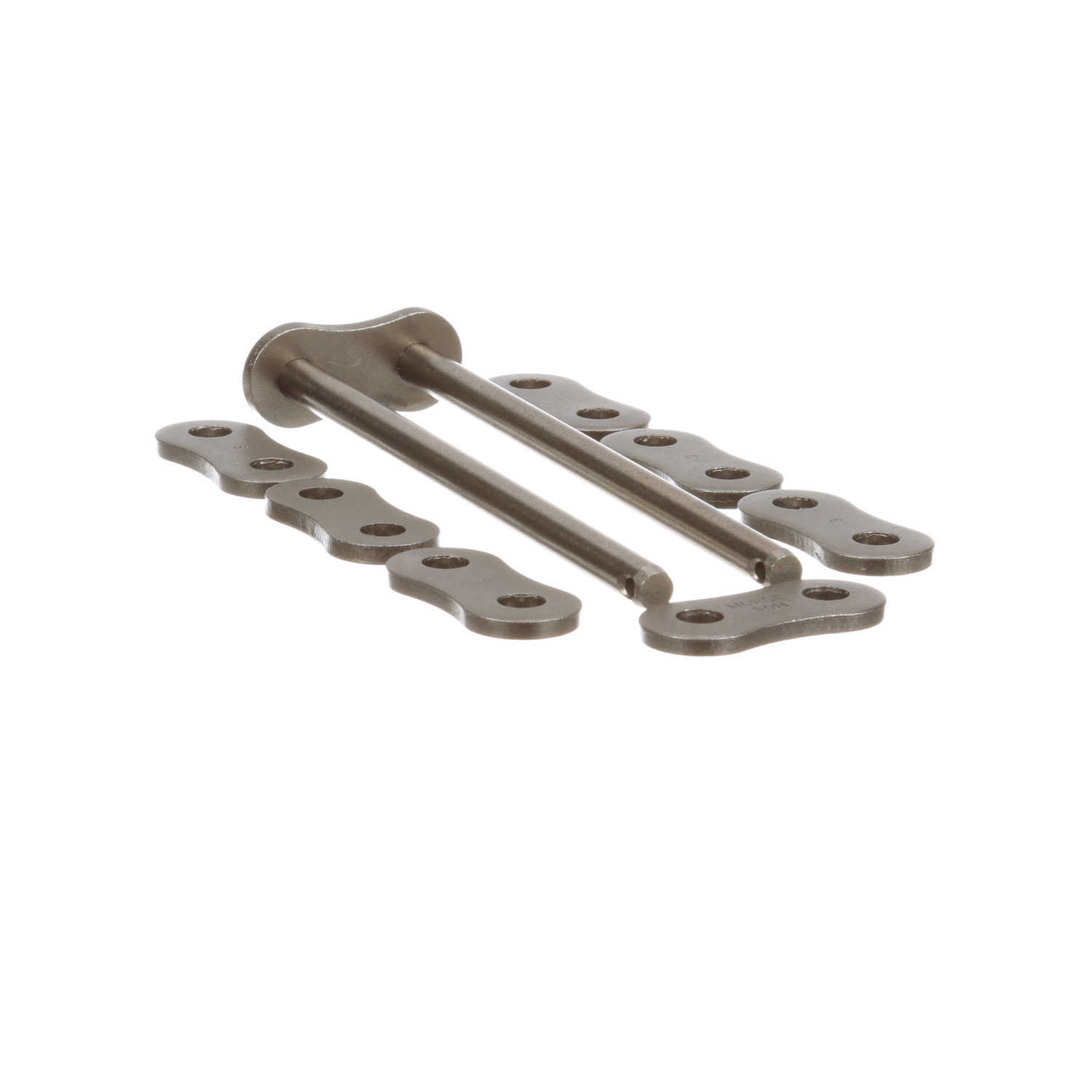

Morse Heavy Roller Chain Cotter Pin Connecting Link - 80H-4 C/L C/P P/F

Name: Morse Heavy Roller Chain Cotter Pin Connecting Link - 80H-4 C/L C/P P/F
Brand: Morse
Availability: OutOfStock

Part #:144694

Catalog #:80H-4 C/L C/P P/F

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

Unmatched Quality and Performance in Morse Brand Chain
Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
Available from Stock

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Roller Diameter (in):	0.625 in	Pin Diameter (in):	0.312 in
Number of Strands/Width:	4	Material:	Steel
Number of Connecting Links Included:	5	Connecting Link - Press Fit:	Press Fit - Optional
Chain Size:	80	Roller Width (in):	0.625 in
Product Type:	Roller Chain	Chain Pitch (in):	1 in
Chain Type:	Heavy	Inside Plate Height (in):	0.934 in
Plate Thickness (in):	0.156 in	Side Plate Configuration:	Hourglass
Overall Width/Pin Length (in):	5.25 in
