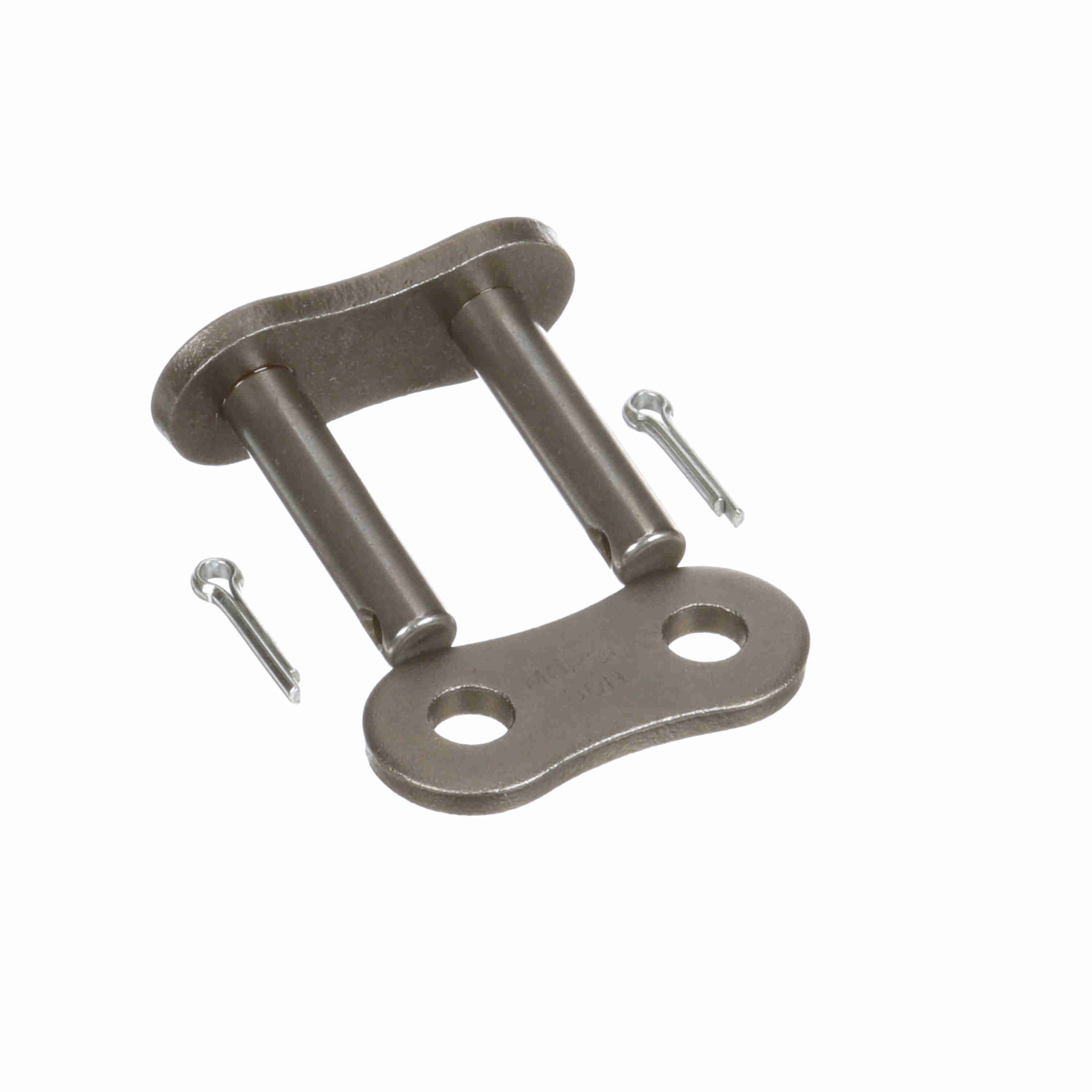

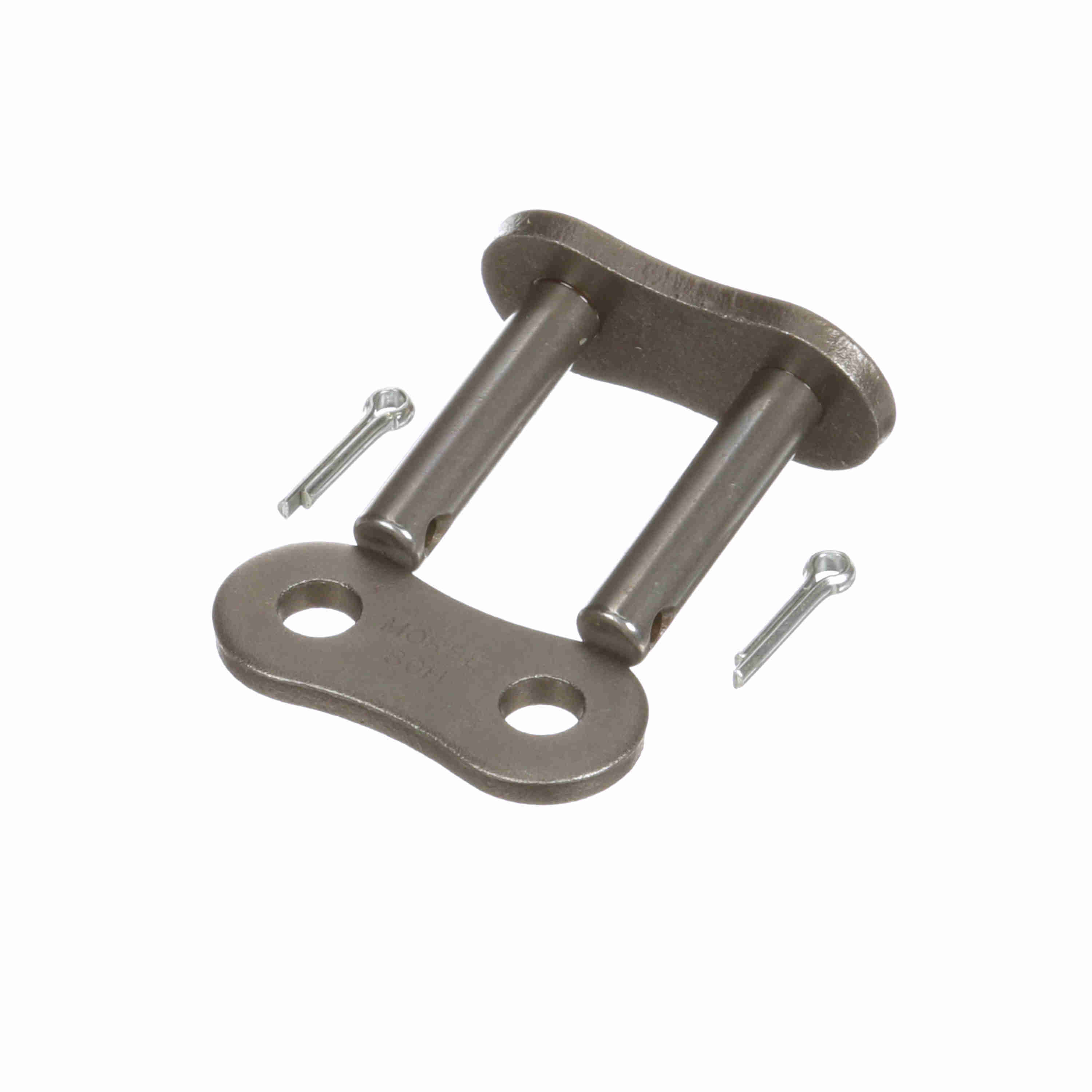

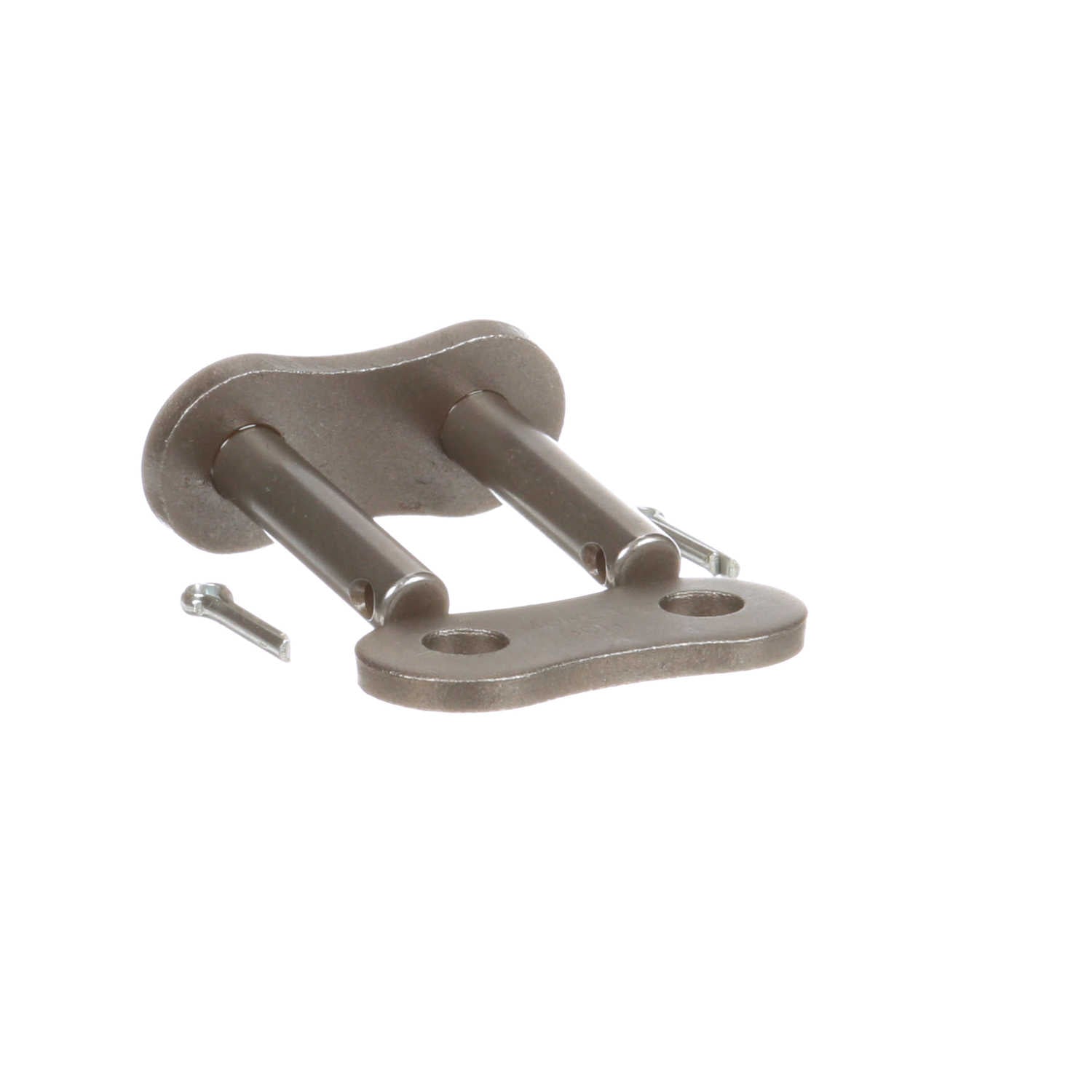

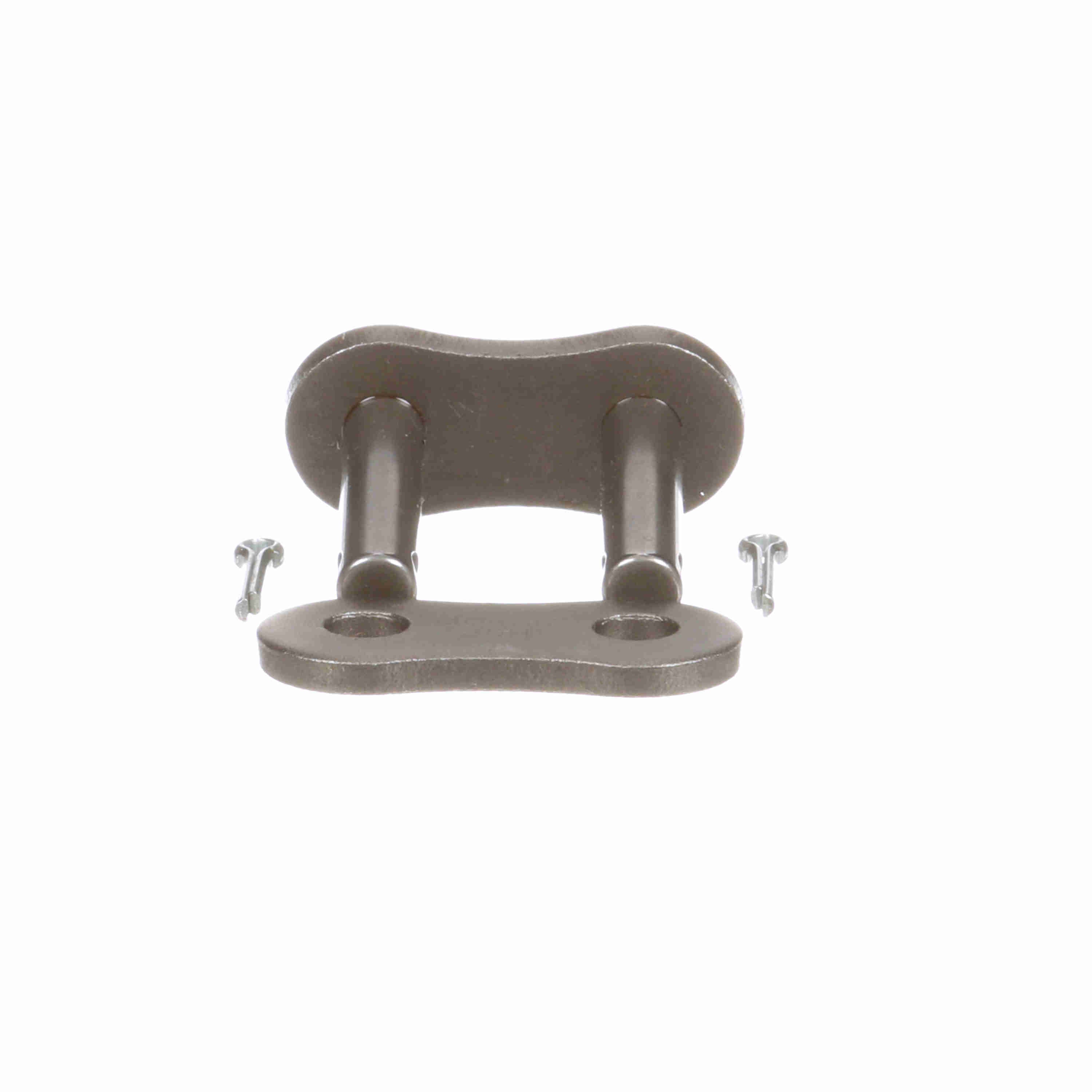

Morse Heavy Roller Chain Cotter Pin Connecting Link - 80H C/L C/P P/F

Name: Morse Heavy Roller Chain Cotter Pin Connecting Link - 80H C/L C/P P/F
Brand: Morse
Availability: OutOfStock

Part #:322446

Catalog #:80H C/L C/P P/F

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

Unmatched Quality and Performance in Morse Brand Chain
Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
Available from Stock

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Connecting Link - Press Fit:	Press Fit - Optional	Number of Strands/Width:	1
Pin Diameter (in):	0.312 in	Number of Connecting Links Included:	5
Chain Size:	80	Roller Width (in):	0.625 in
Roller Diameter (in):	0.625 in	Material:	Steel
Chain Type:	Heavy	Chain Pitch (in):	1 in
Product Type:	Roller Chain	Chain Construction:	Cottered
Link Type:	Connecting Link	Side Plate Configuration:	Hourglass
Inside Plate Height (in):	0.934 in	Overall Width/Pin Length (in):	1.4 in
Plate Thickness (in):	0.156 in
