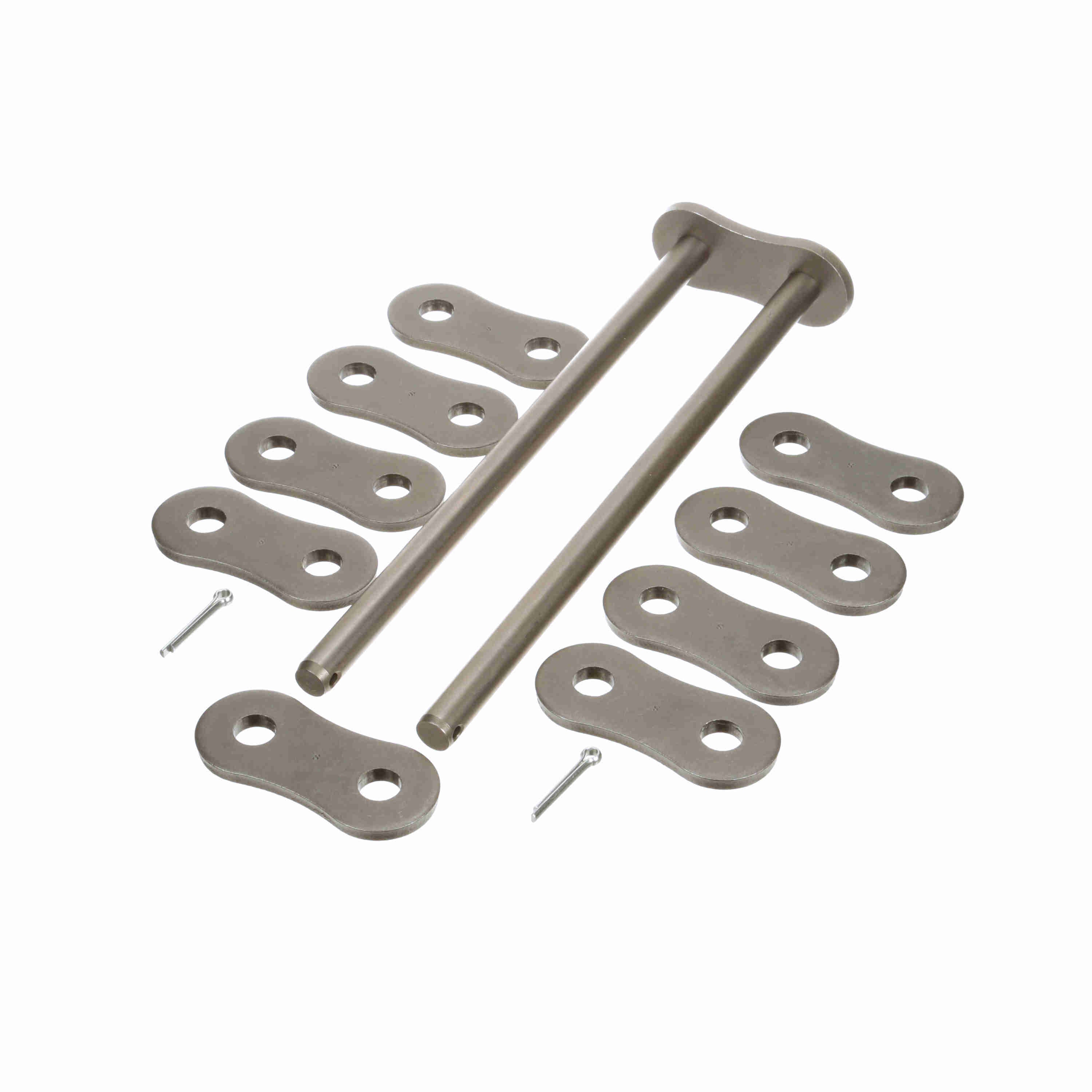

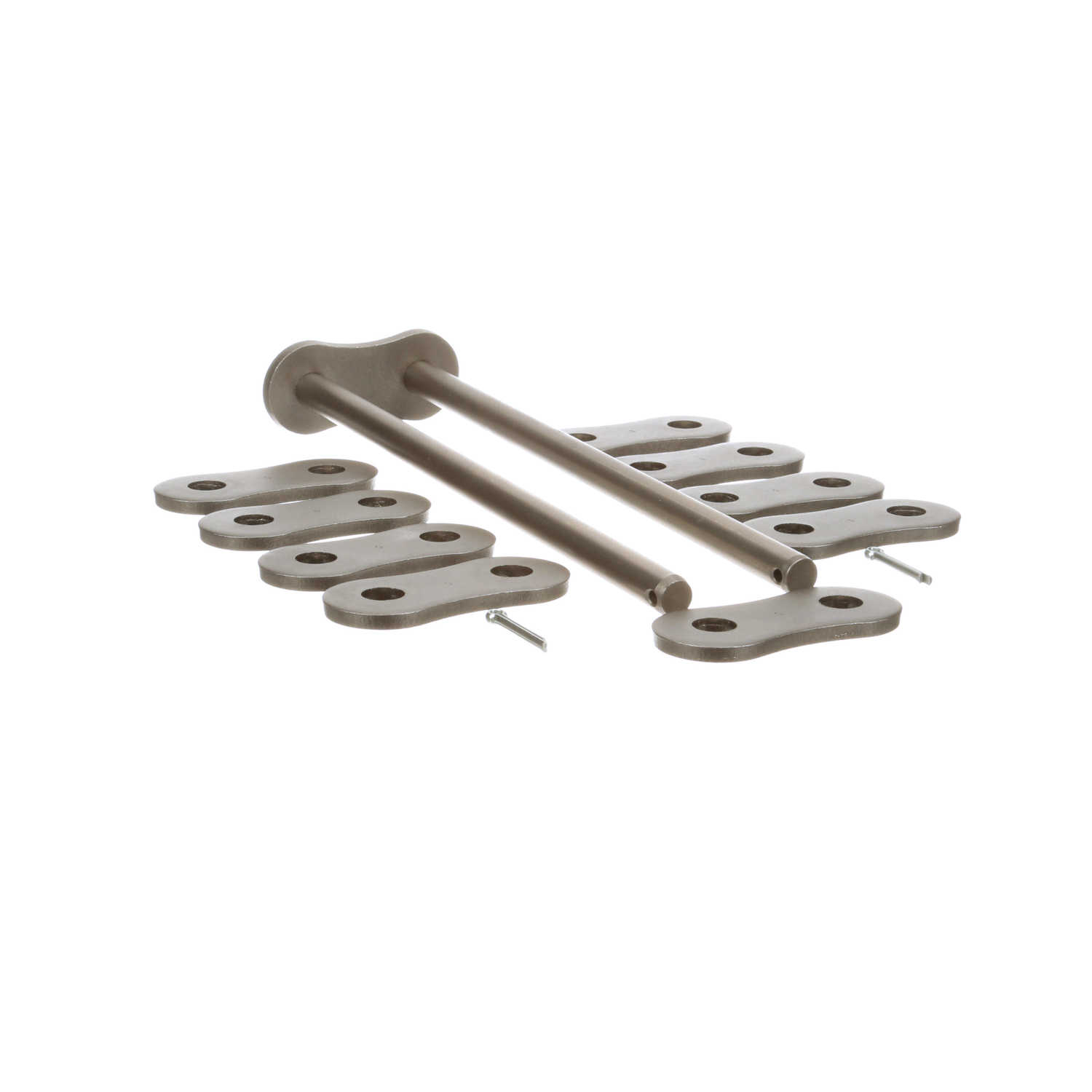

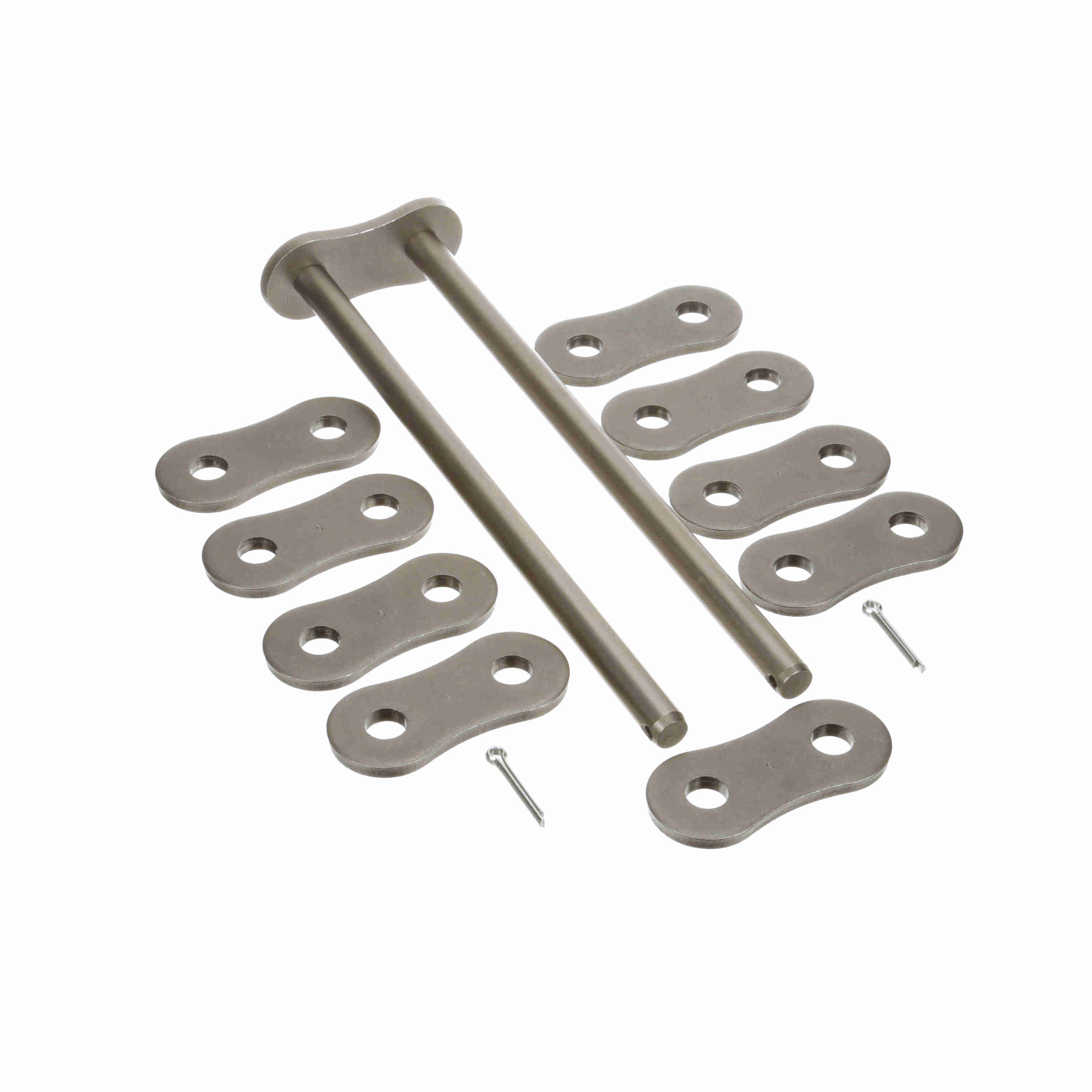

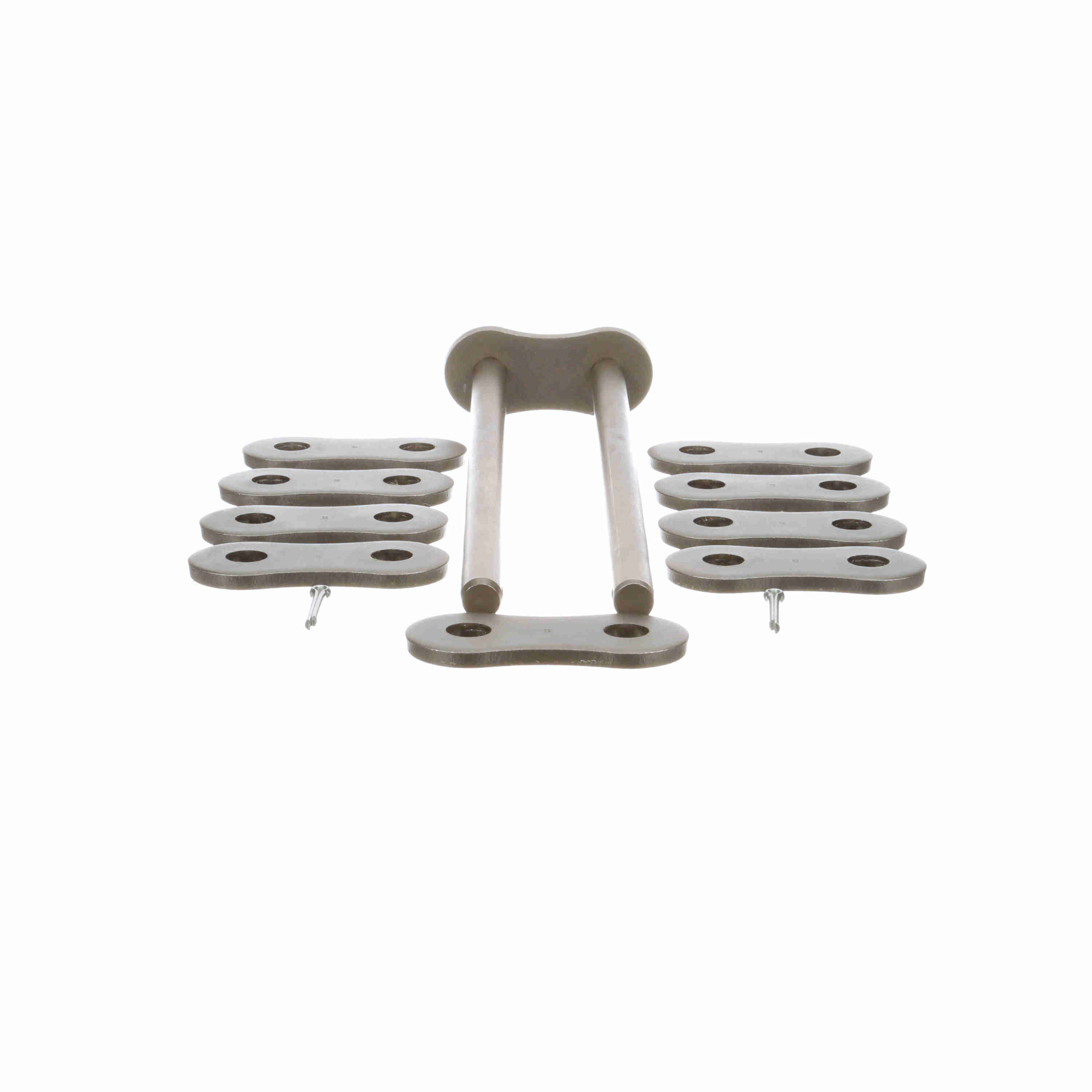

Morse Standard Roller Chain Cotter Pin Connecting Link - 140-5 C/L C/P S/F

Name: Morse Standard Roller Chain Cotter Pin Connecting Link - 140-5 C/L C/P S/F
Brand: Morse
Availability: OutOfStock

Part #:332317

Catalog #:140-5 C/L C/P S/F

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

Unmatched Quality and Performance in Morse Brand Chain
Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
Available from Stock

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Pin Diameter (in):	0.5 in	Roller Diameter (in):	1 in
Material:	Steel	Connecting Link - Slip Fit:	Cotter
Chain Size:	140	Number of Strands/Width:	5
Number of Connecting Links Included:	1	Roller Width (in):	1 in
Chain Pitch (in):	1.75 in	Chain Type:	Standard
Product Type:	Roller Chain	Plate Thickness (in):	0.219 in
Overall Width/Pin Length (in):	9.81 in	Inside Plate Height (in):	1.634 in
Side Plate Configuration:	Hourglass
