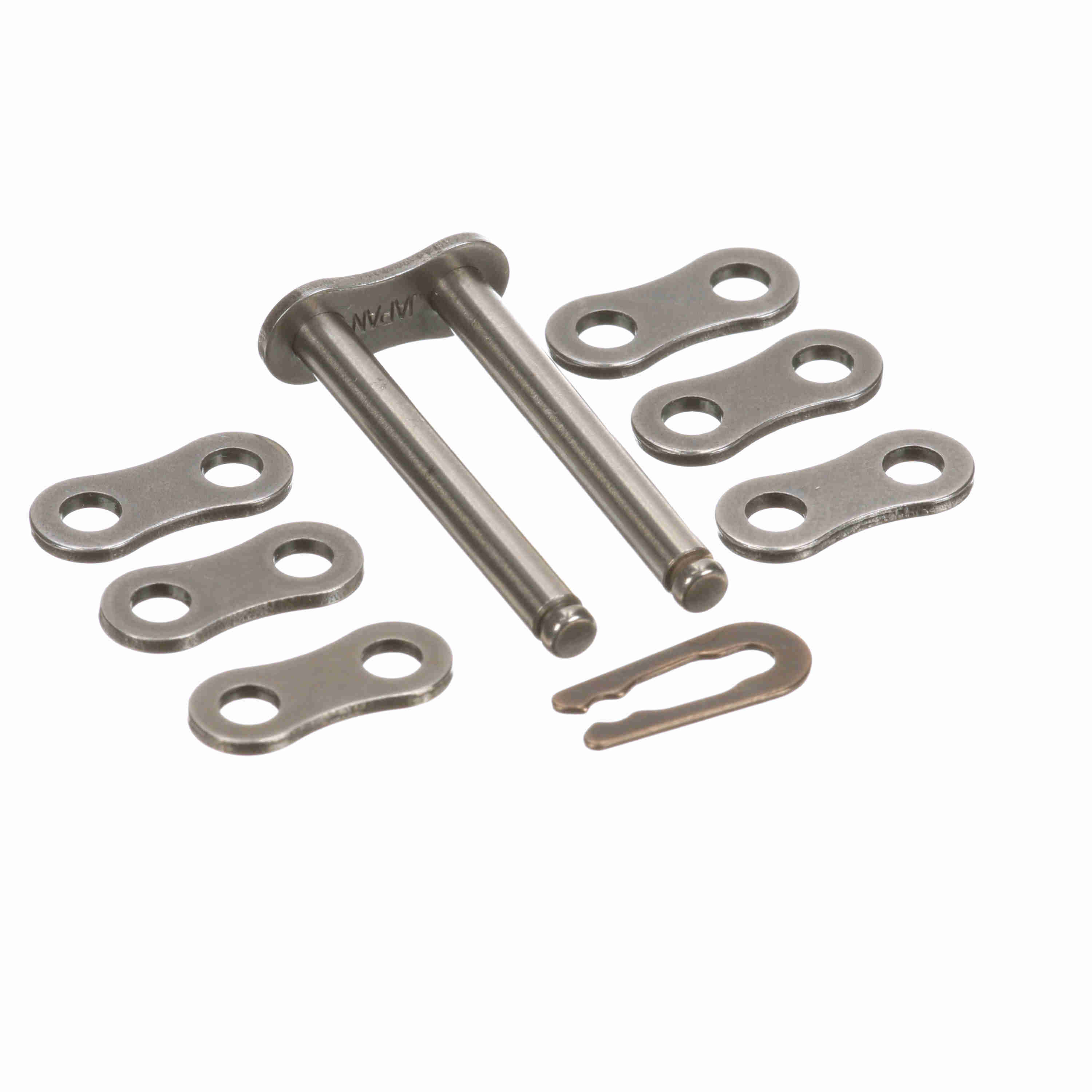

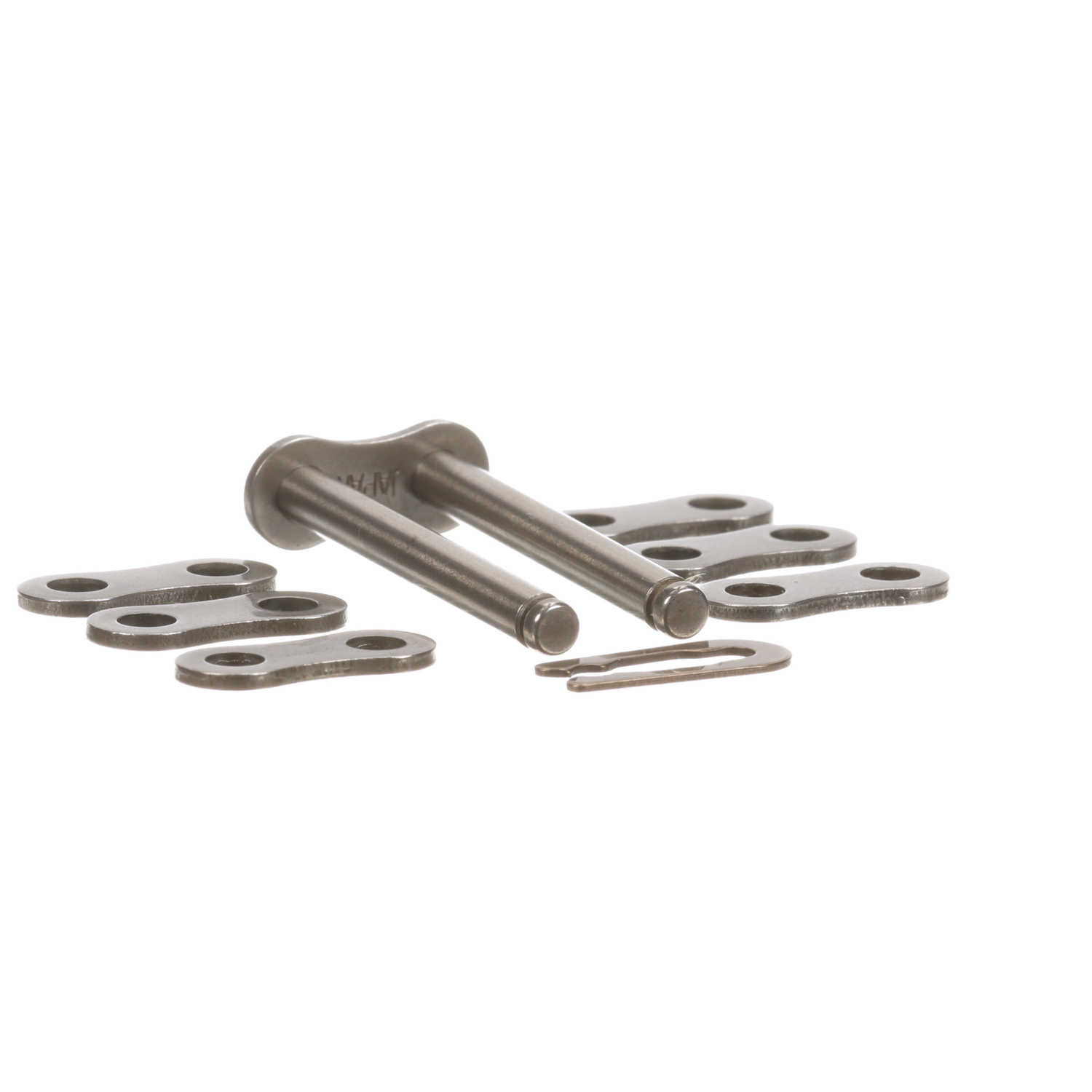

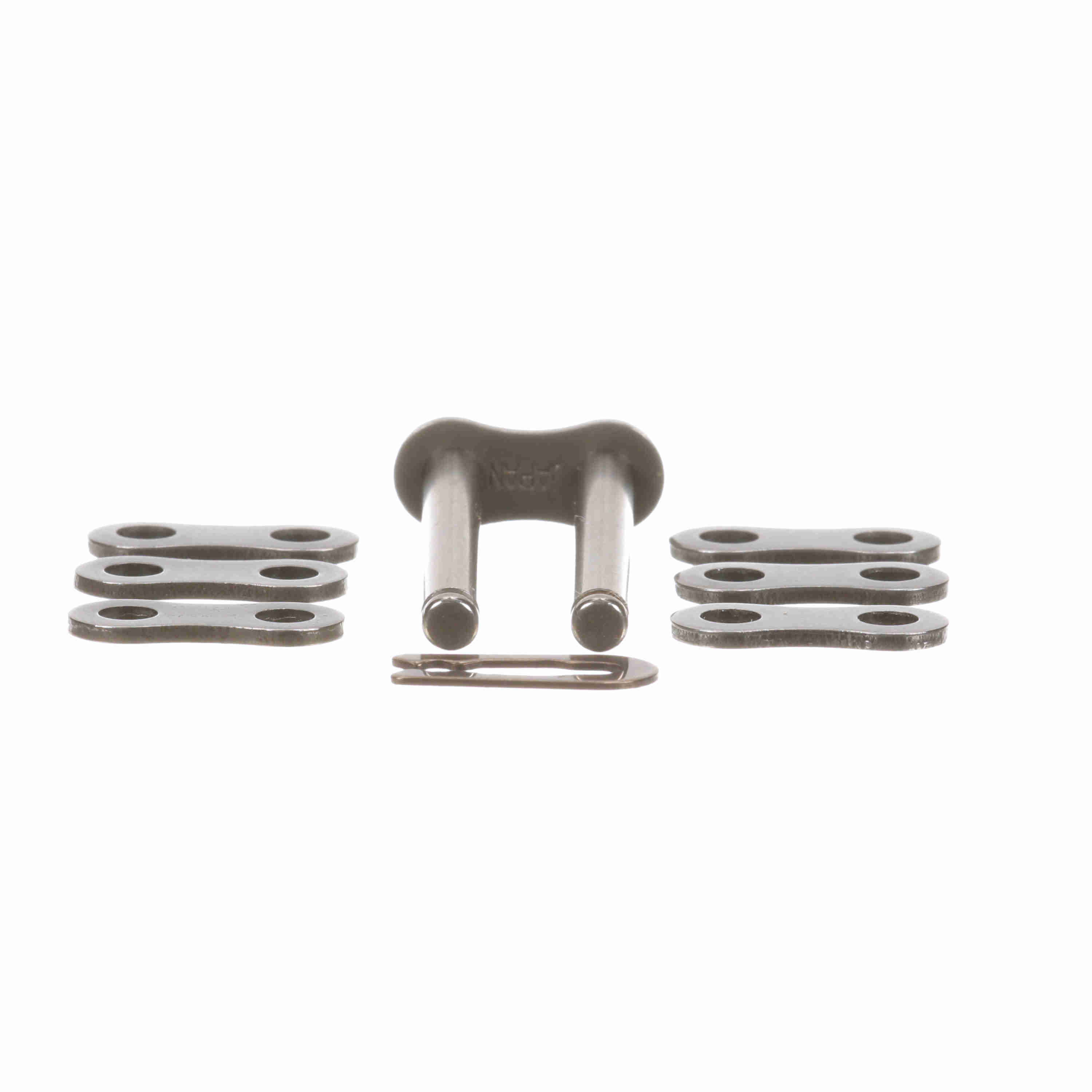

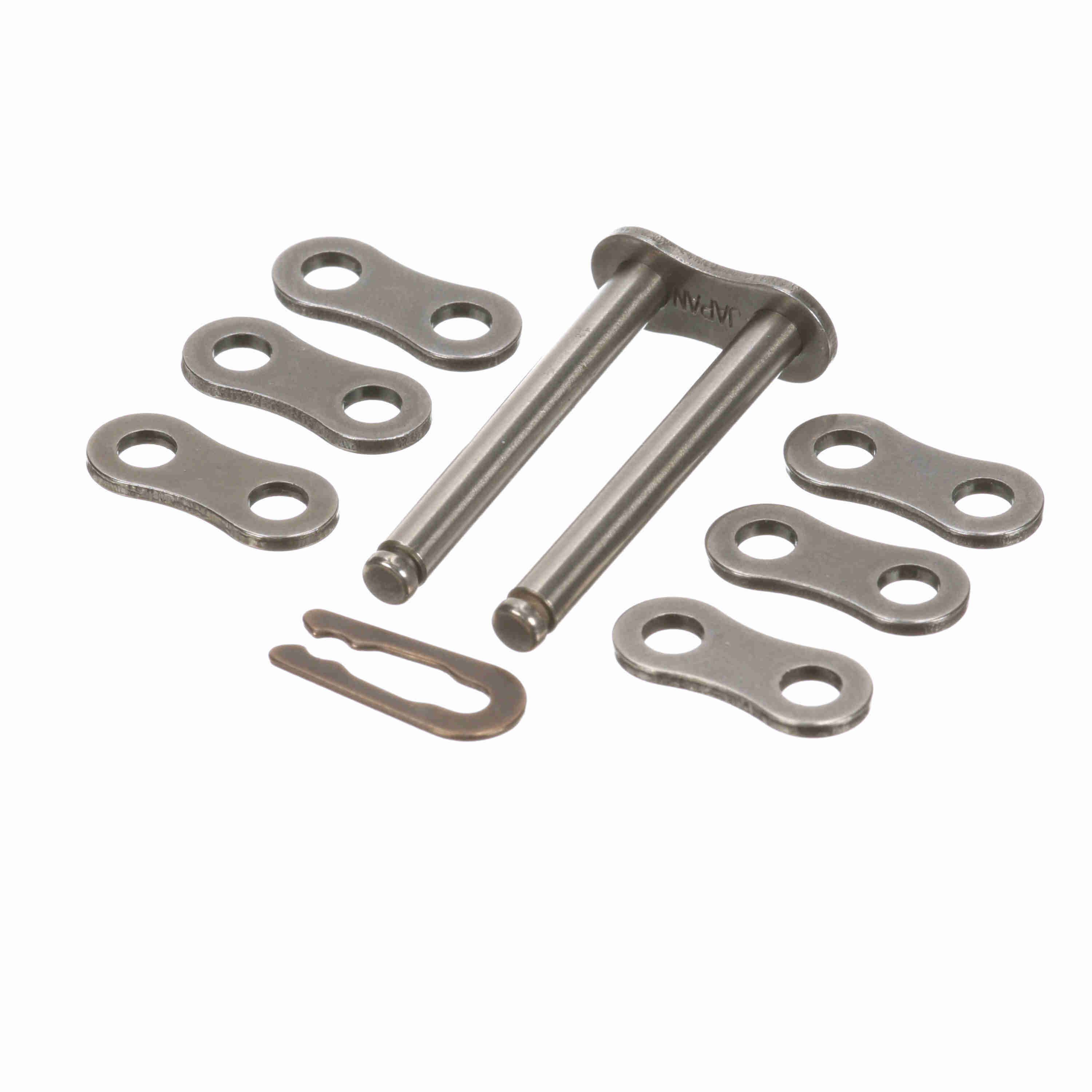

Morse Standard Roller Chain Spring Clip Connecting Link - 35-3 C/L S/C S/F

Name: Morse Standard Roller Chain Spring Clip Connecting Link - 35-3 C/L S/C S/F
Brand: Morse
Availability: OutOfStock

Part #:322423

Catalog #:35-3 C/L S/C S/F

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

Unmatched Quality and Performance in Morse Brand Chain
Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
Available from Stock

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Number of Strands/Width:	3	Roller Diameter (in):	0.2 in
Material:	Steel	Pin Diameter (in):	0.141 in
Chain Size:	35	Roller Width (in):	0.1875 in
Connecting Link - Slip Fit:	Spring Clip	Number of Connecting Links Included:	5
Product Type:	Roller Chain	Chain Pitch (in):	0.375 in
Chain Type:	Standard	Chain Construction:	Spring Clip
Link Type:	Connecting Link	Plate Thickness (in):	0.05 in
Overall Width/Pin Length (in):	1.27 in	Side Plate Configuration:	Hourglass
Inside Plate Height (in):	0.35 in
