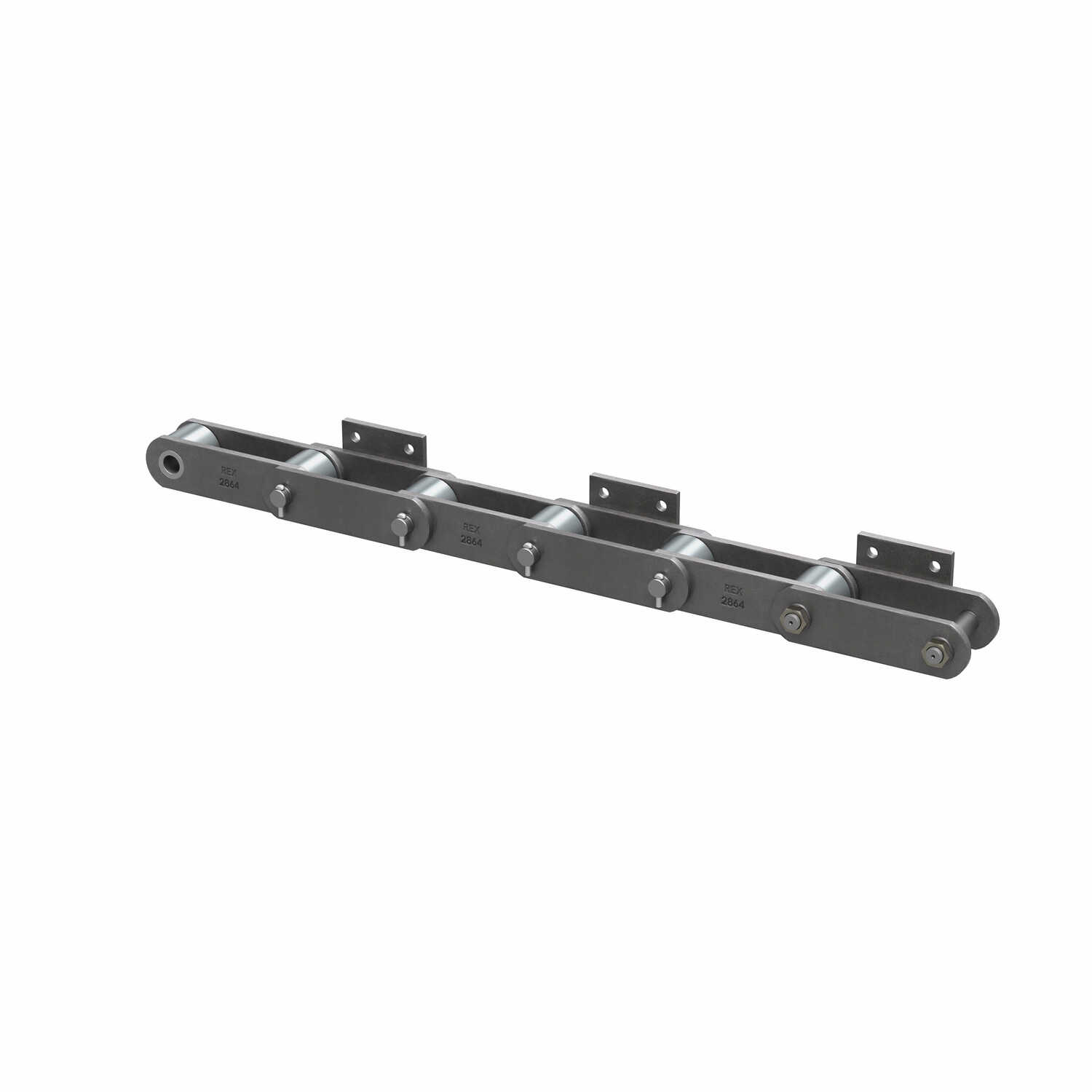

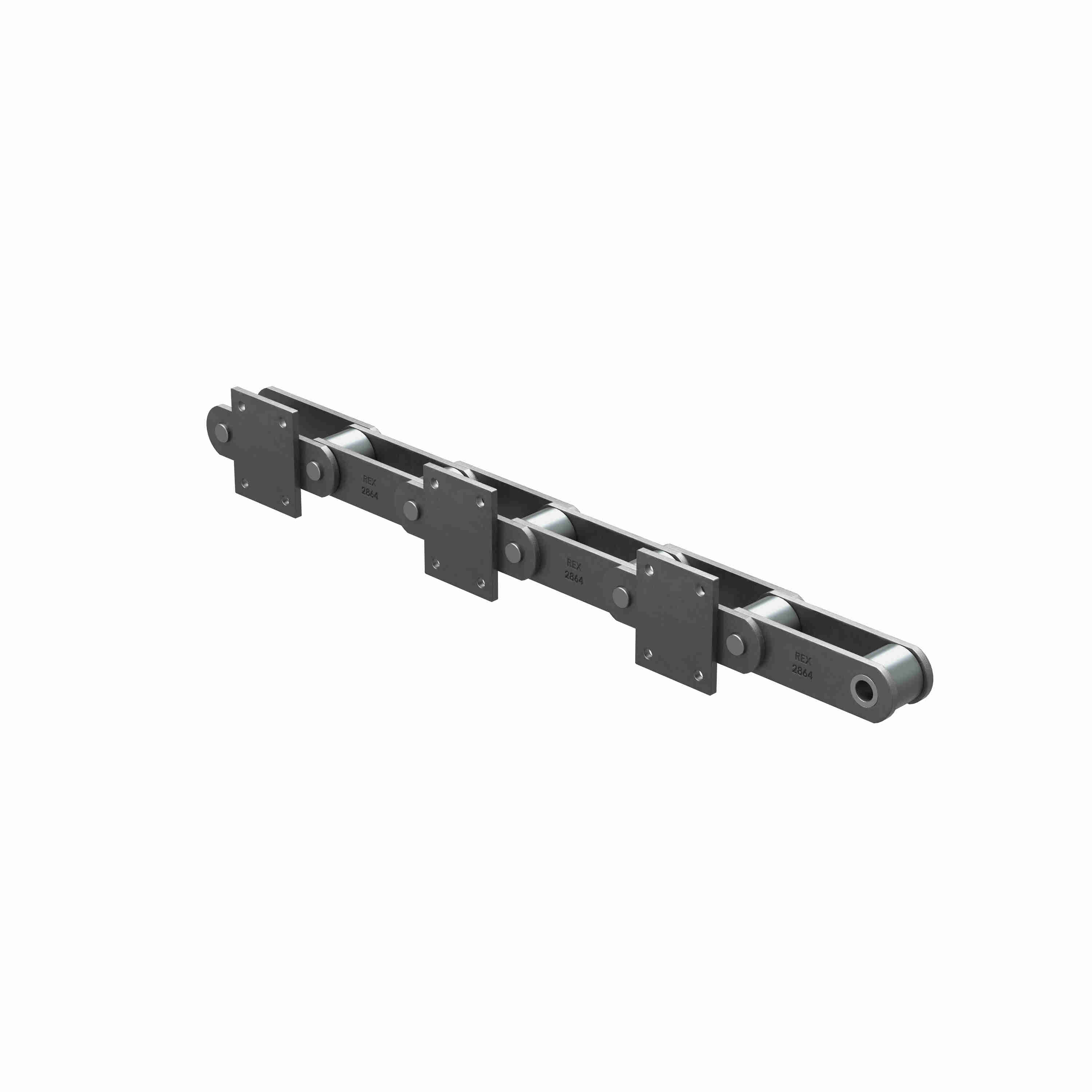

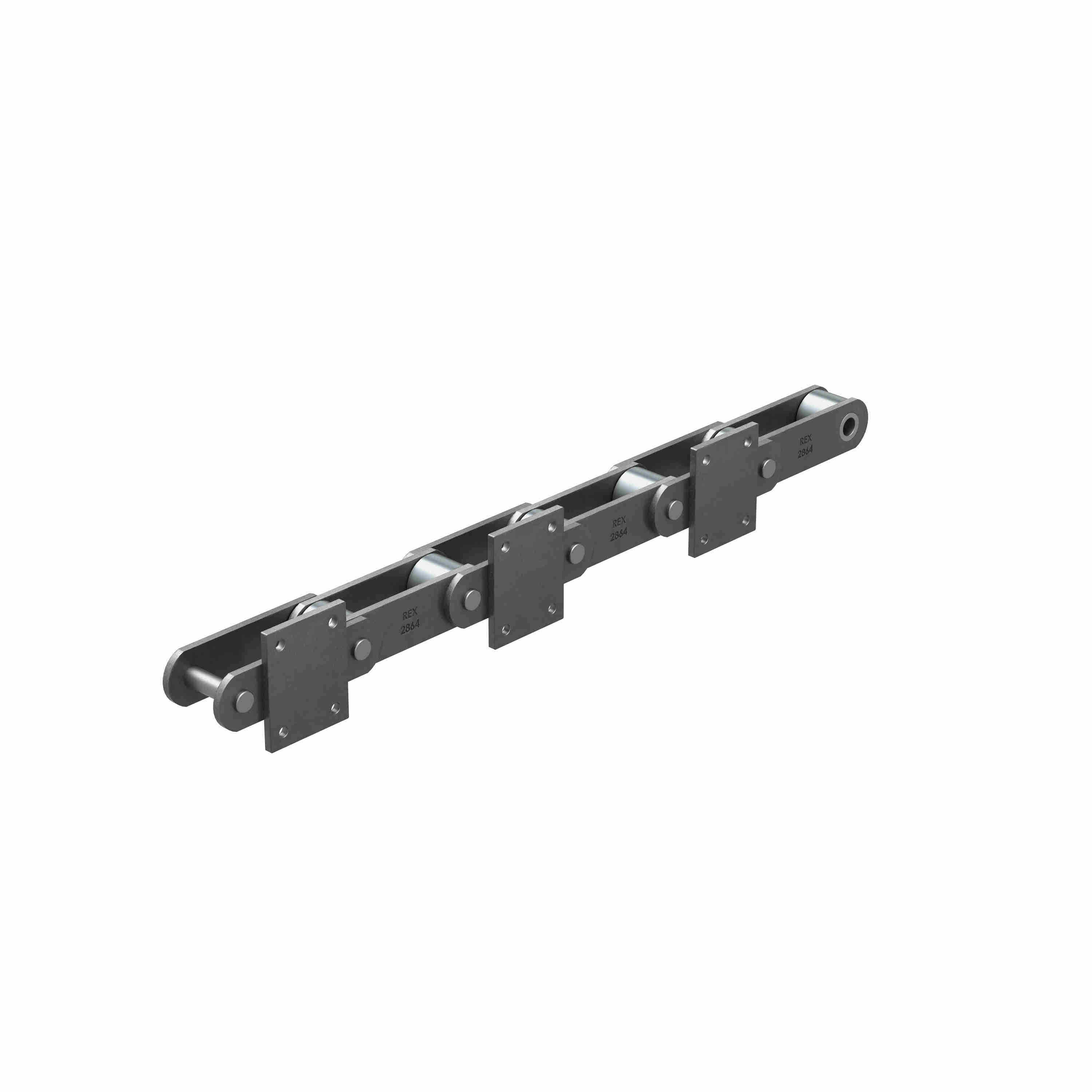

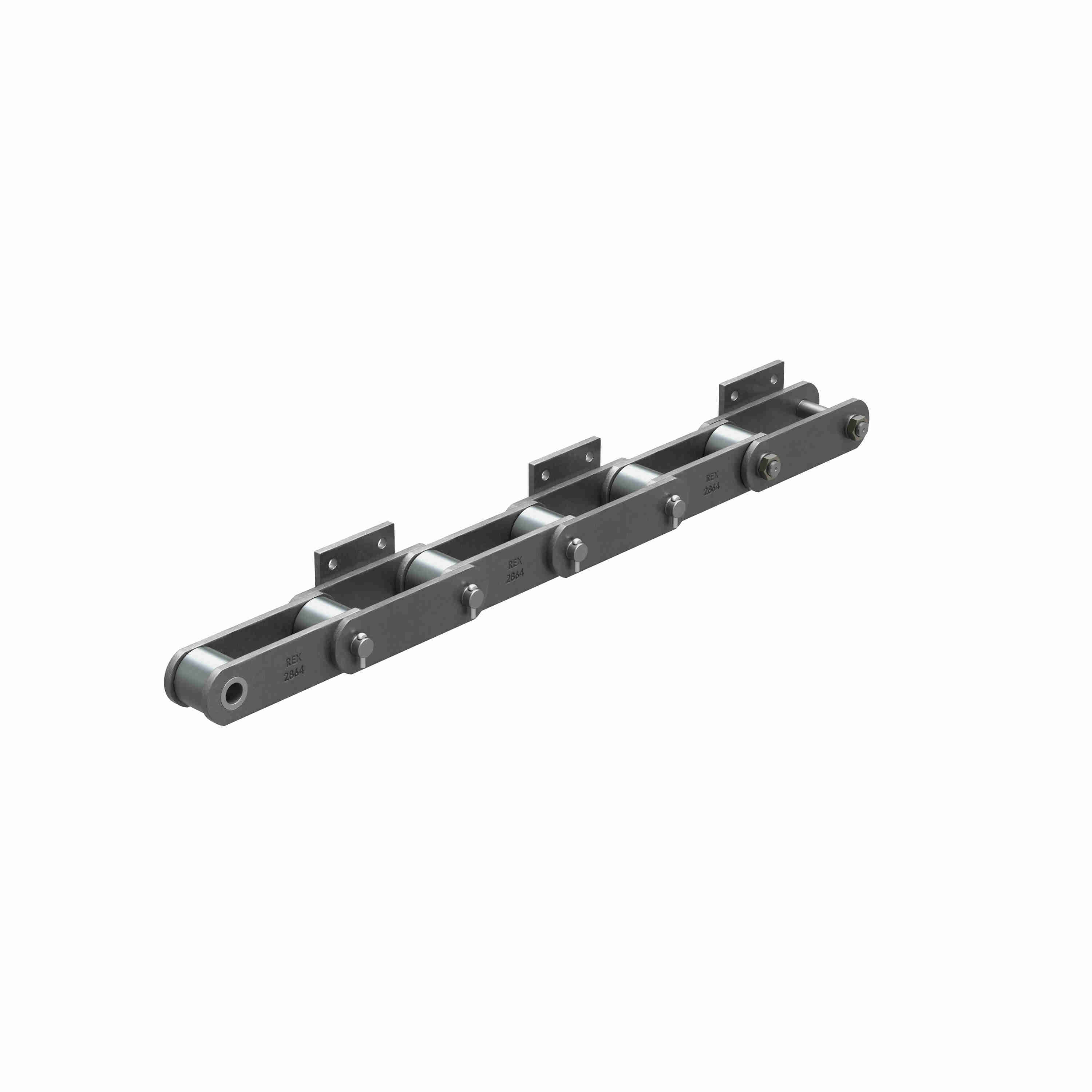

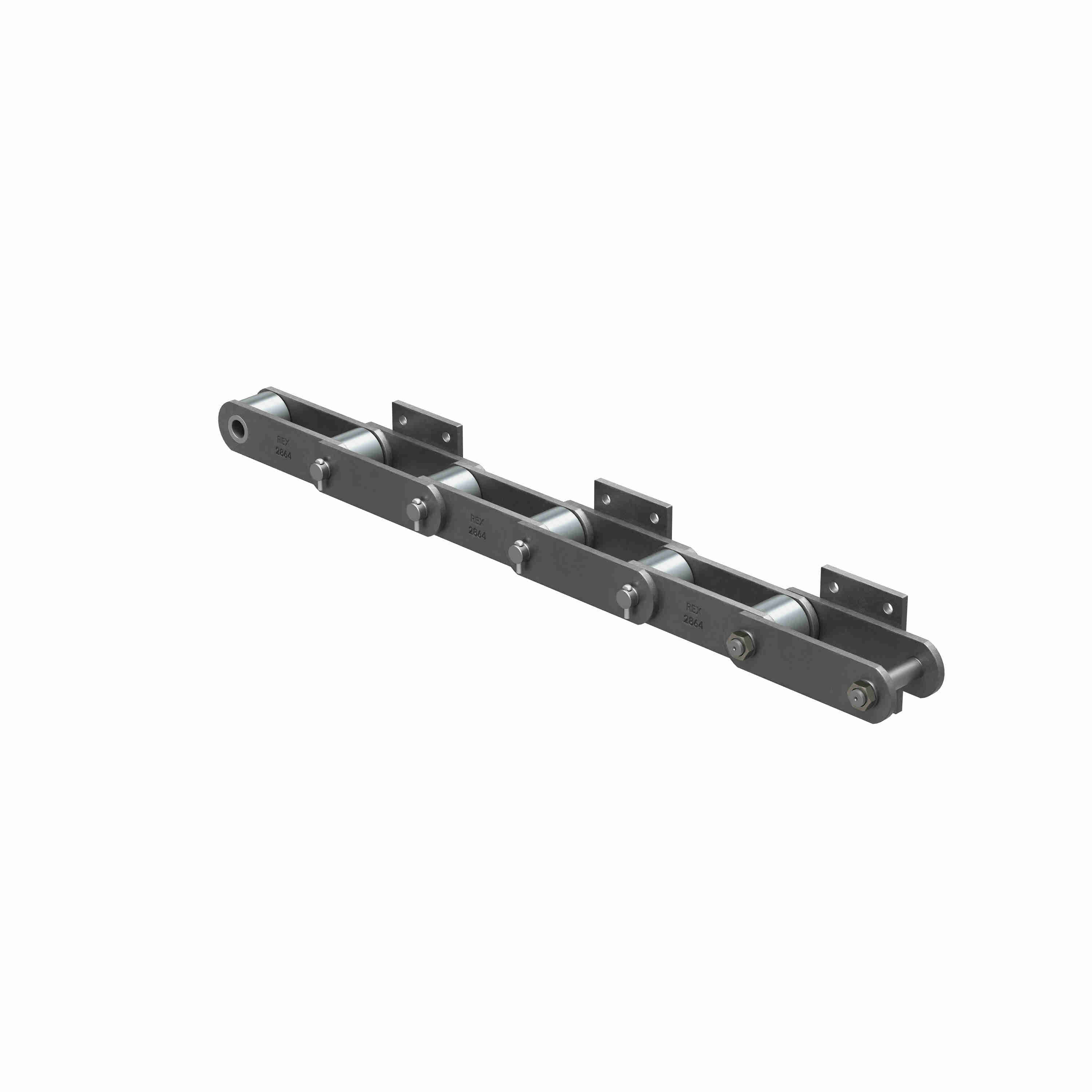

Rex 2864MLG4*300 Elevator Chain Engineered Steel Chains - 2864MLG4*300
Part #:10869937
Catalog #:2864MLG4*300
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Roller Diameter (in): | 3.5 in | Overall Width/Pin Length (in): | 6.04 in |
| Material: | Steel | Plate Style: | Straight |
| Barrel Length (in): | 3.75 in | Product Series: | RexPro |
| Sprocket Unit: | 2864 | Chain Category: | Elevator |
| Width Between Outer Plates (in): | 3.81 in | Plate Thickness (in): | 0.5 in |
| Series: | Elevator Chain | Pin Diameter (in): | 1.25 in |
| Rated Working Load (lb/ft): | 16,400 lb/ft | Product: | Hi Load Elevator |
| Barrel Diameter (in): | 2 in | Chain Sub-Category: | Hi Load Elevator |
| Chain Pitch (in): | 9 in | Base Catalog No: | 2864 |
| Plate Depth (in): | 3.5 in | Attachment Number: | G4 |
| Attachment Spacing: | 2 |
General Specifications
| Country of Origin: | Mexico |
