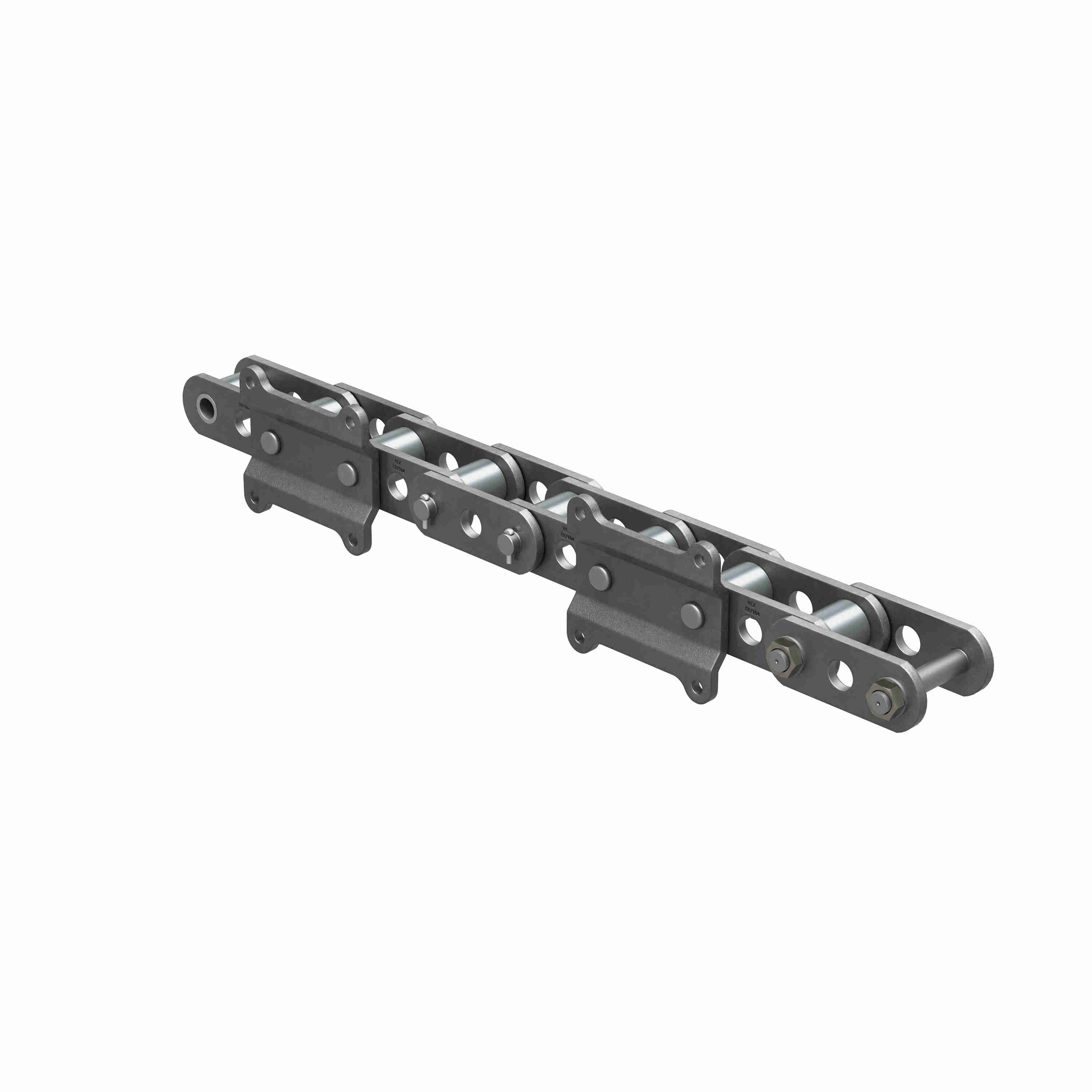

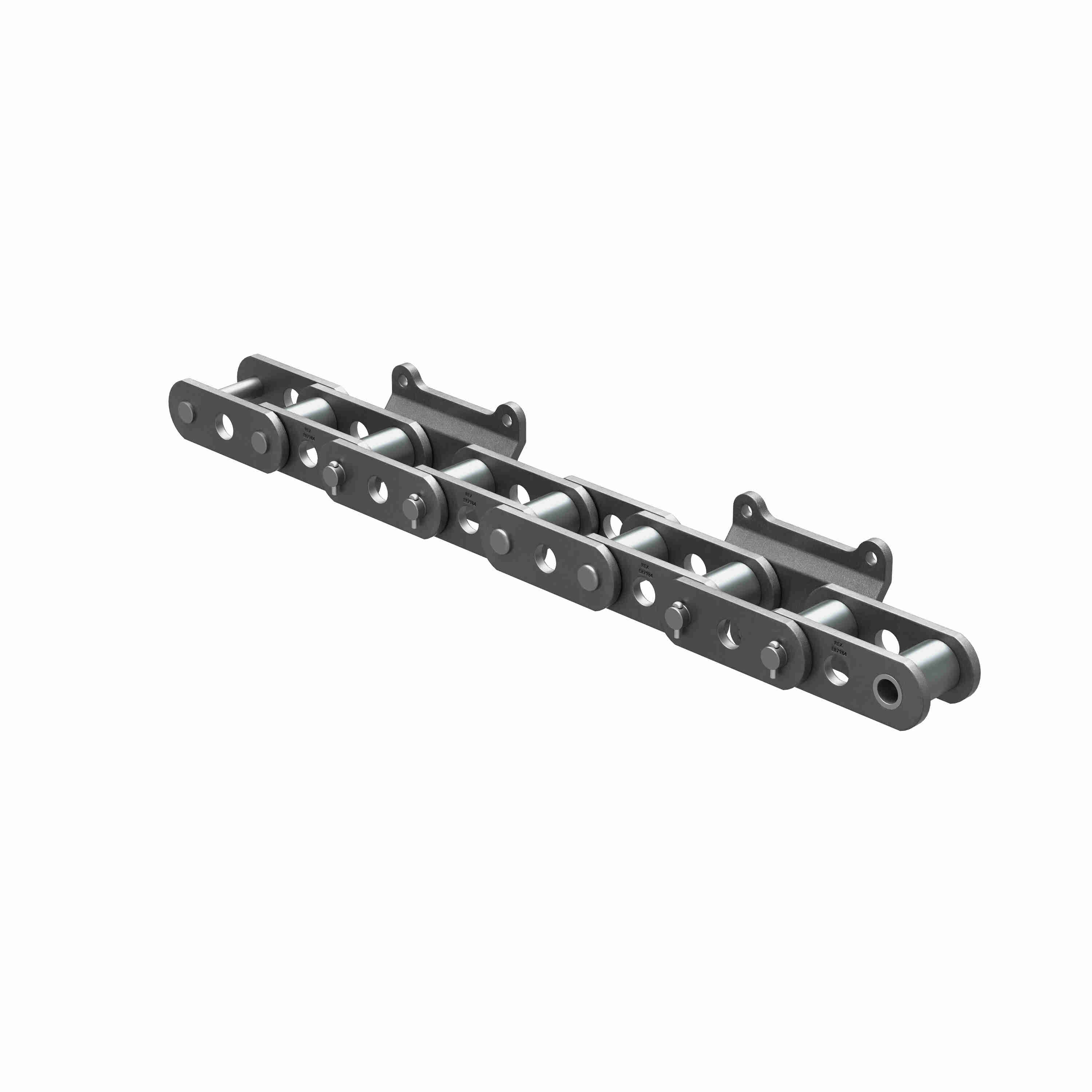

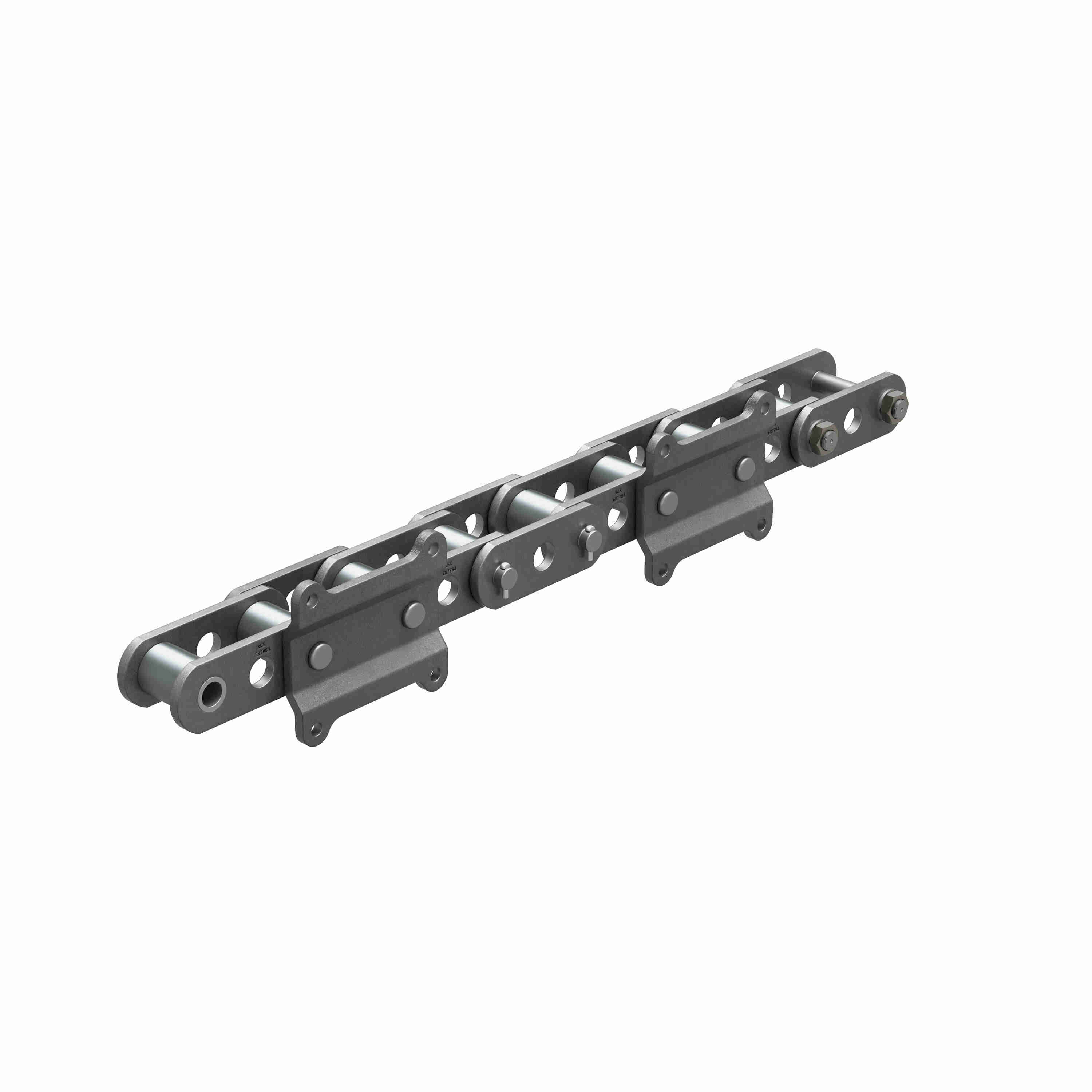

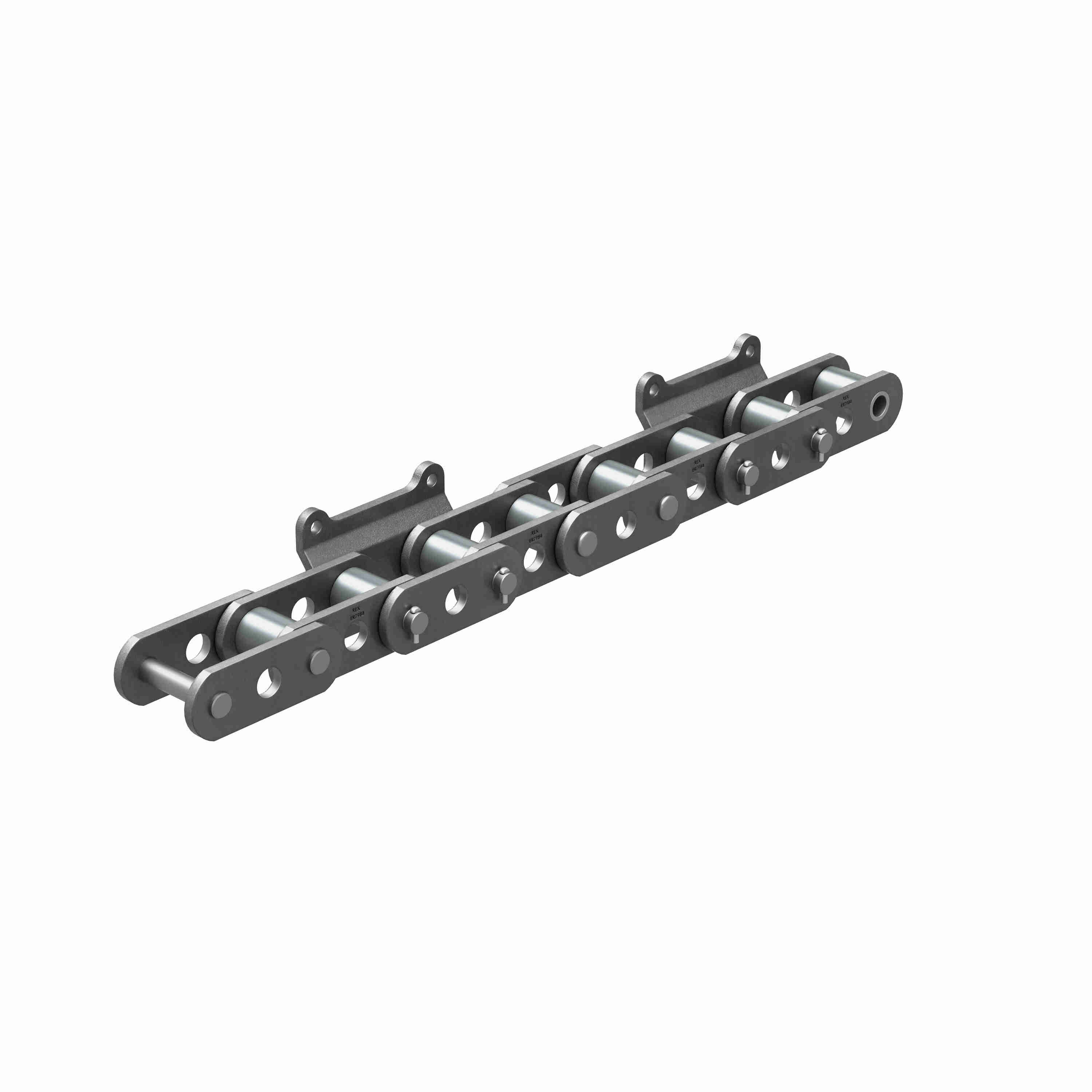

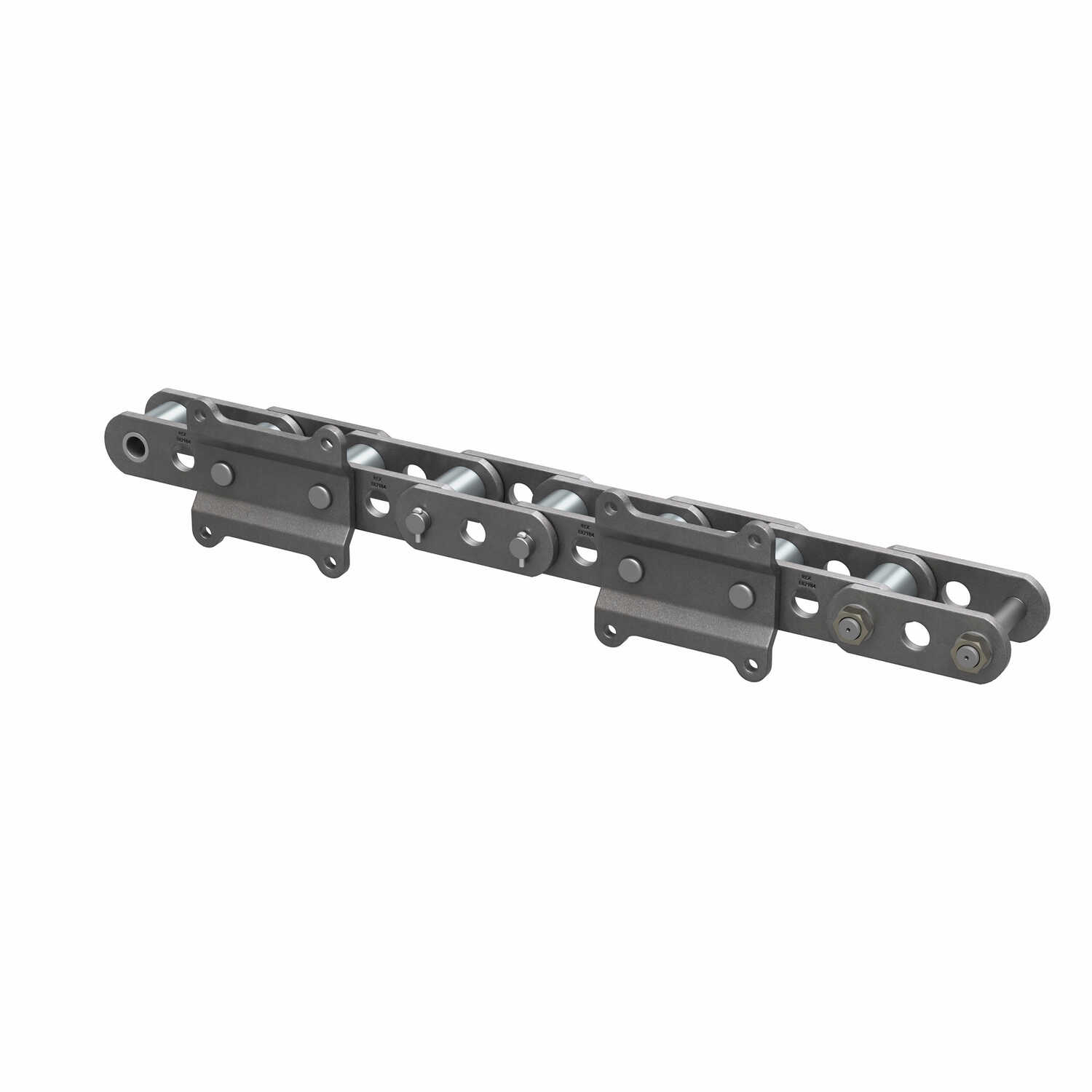

Rex ER7984MLG4*300 Elevator Chain Engineered Steel Chains - ER7984MLG4*300
Part #:10869941
Catalog #:ER7984MLG4*300
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Pin Diameter (in): | 1.38 in | Barrel Length (in): | 5 in |
| Rated Working Load (lb/ft): | 24,000 lb/ft | Width Between Outer Plates (in): | 5.12 in |
| Material: | Steel | Product: | Hi Load Elevator |
| Plate Depth (in): | 4 in | Series: | Elevator Chain |
| Product Series: | RexPro | Sprocket Unit: | 7984 |
| Plate Style: | Straight | Chain Category: | Conveyor |
| Attachment Number: | G4 | Base Catalog No: | ER984 |
| Roller Diameter (in): | 3 in | Minimum Tensile Strength (lbs): | 155,000 lb |
| Plate Thickness (in): | 0.62 in | Chain Pitch (in): | 7 in |
| Barrel Diameter (in): | 2.5 in | Chain Sub-Category: | Mill Duty Elevator |
| Overall Width/Pin Length (in): | 7.78 in | Attachment Spacing: | 4 |
General Specifications
| Weight: | 42.40 LB | Country of Origin: | Mexico |
