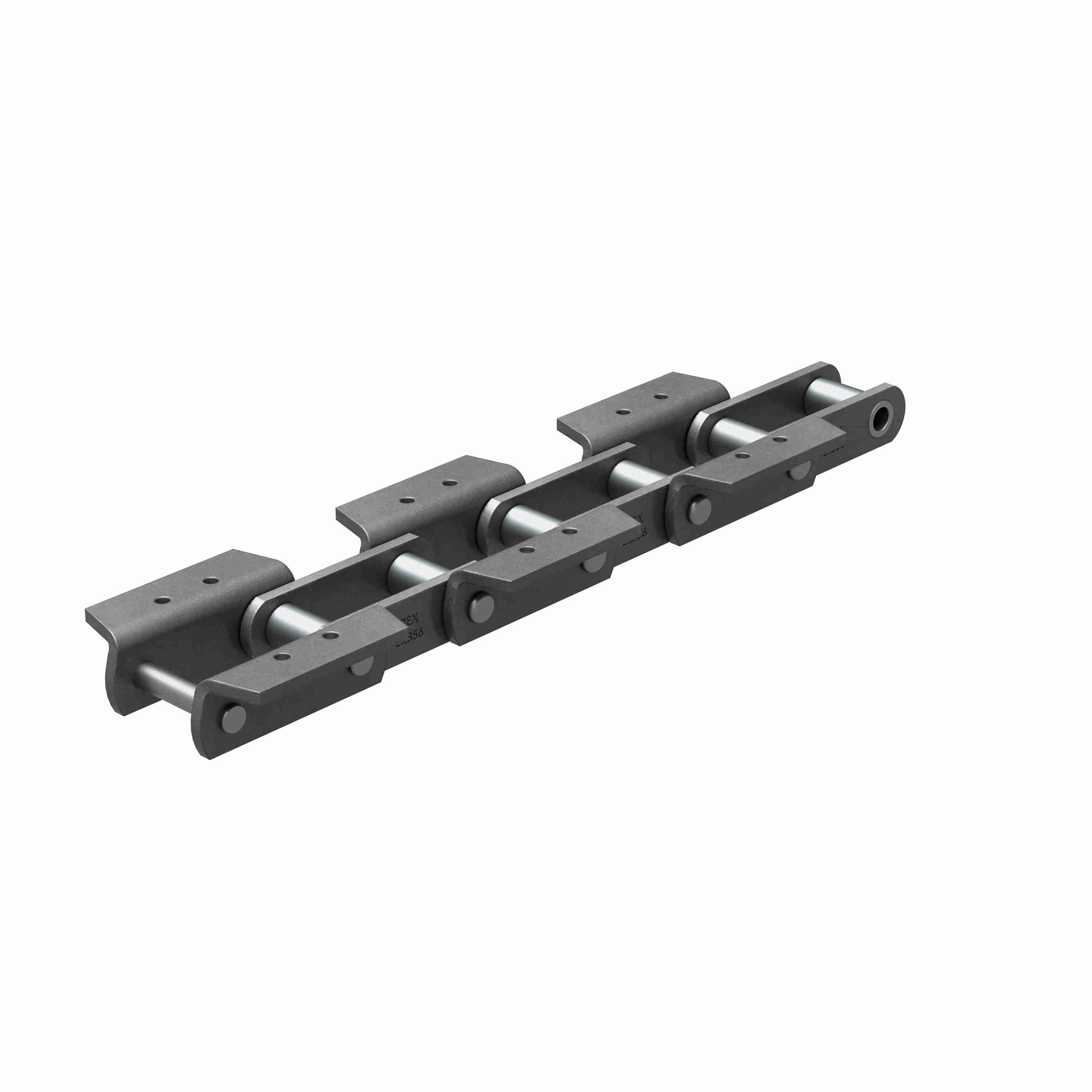

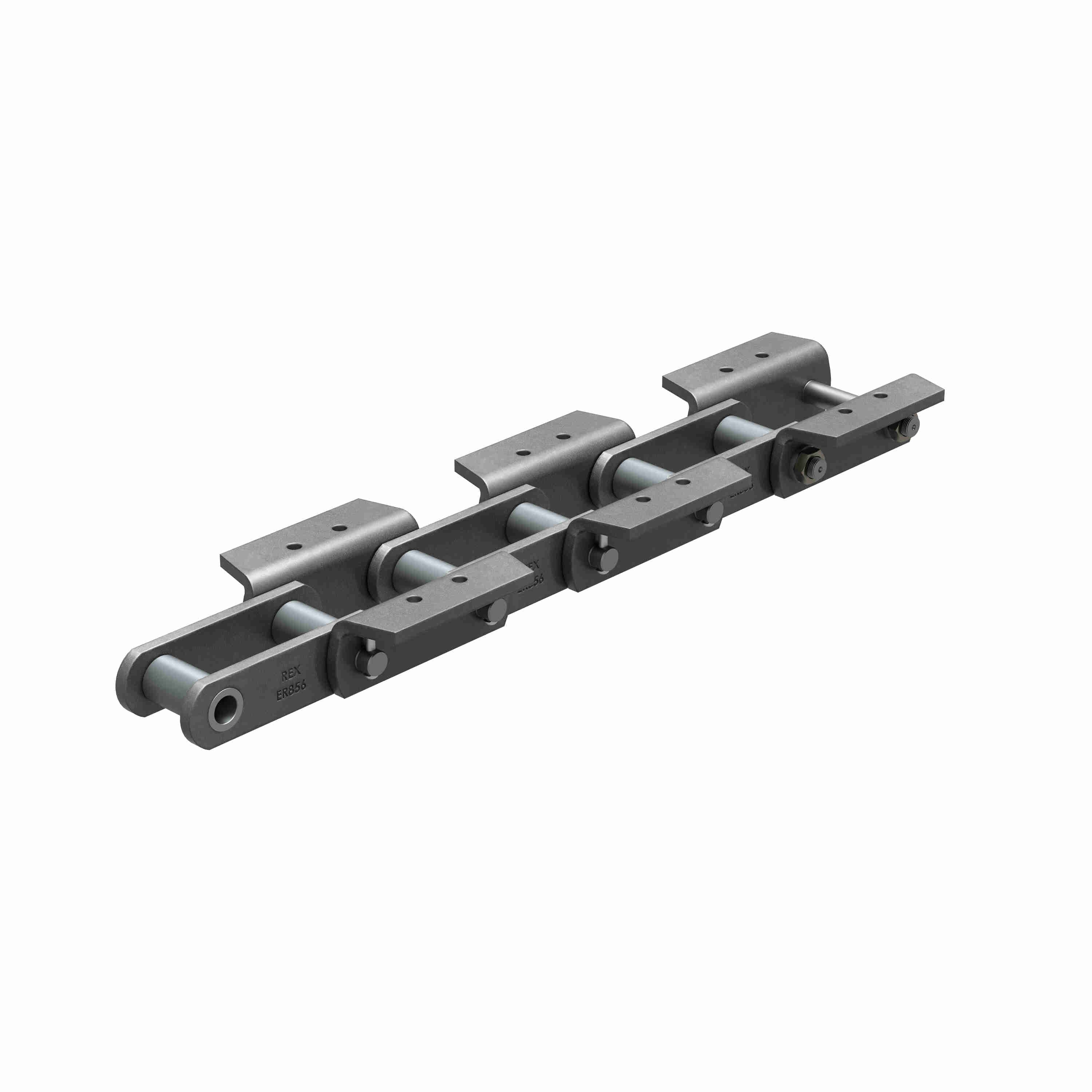

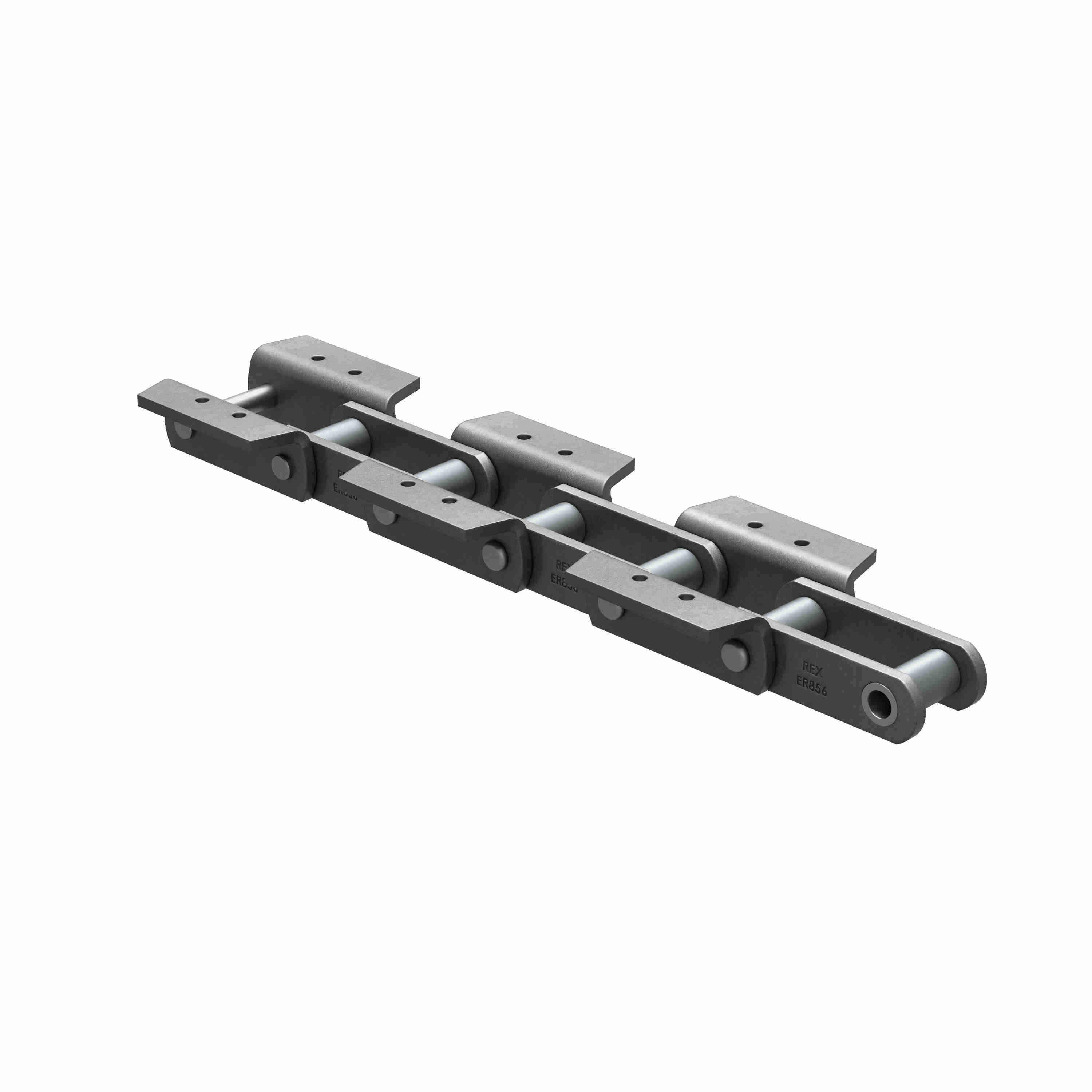

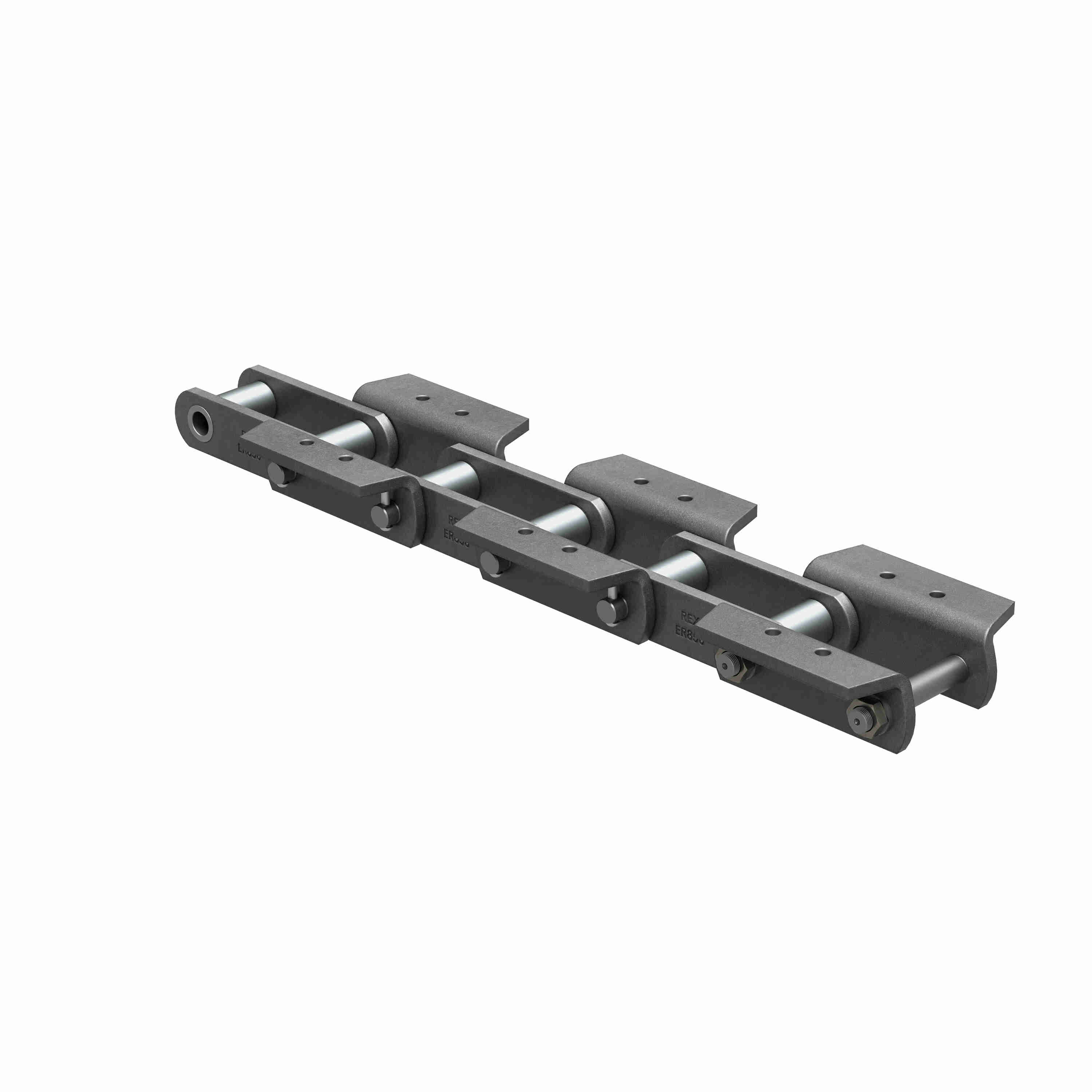

Rex ER856MLK23*300 Elevator Chain Engineered Steel Chains - ER856MLK23*300
Part #:10869574
Catalog #:ER856MLK23*300
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Width Between Outer Plates (in): | 4.06 in | Chain Pitch (in): | 6 in |
| Barrel Length (in): | 4 in | Series: | Elevator Chain |
| Attachment Number: | K23 | Plate Thickness (in): | 0.5 in |
| Base Catalog No: | ER856 | Plate Depth (in): | 2.5 in |
| Product: | Mill Duty Elevator | Overall Width/Pin Length (in): | 6.25 in |
| Sprocket Unit: | 856 | Product Series: | RexPro |
| Chain Sub-Category: | Mill Duty Elevator | Barrel Diameter (in): | 1.75 in |
| Rated Working Load (lb/ft): | 14,000 lb/ft | Chain Category: | Elevator |
| Pin Diameter (in): | 1 in | Minimum Tensile Strength (lbs): | 82,000 lb |
| Attachment Spacing: | 2 |
General Specifications
| Weight: | 25.50 LB | Country of Origin: | Mexico |
