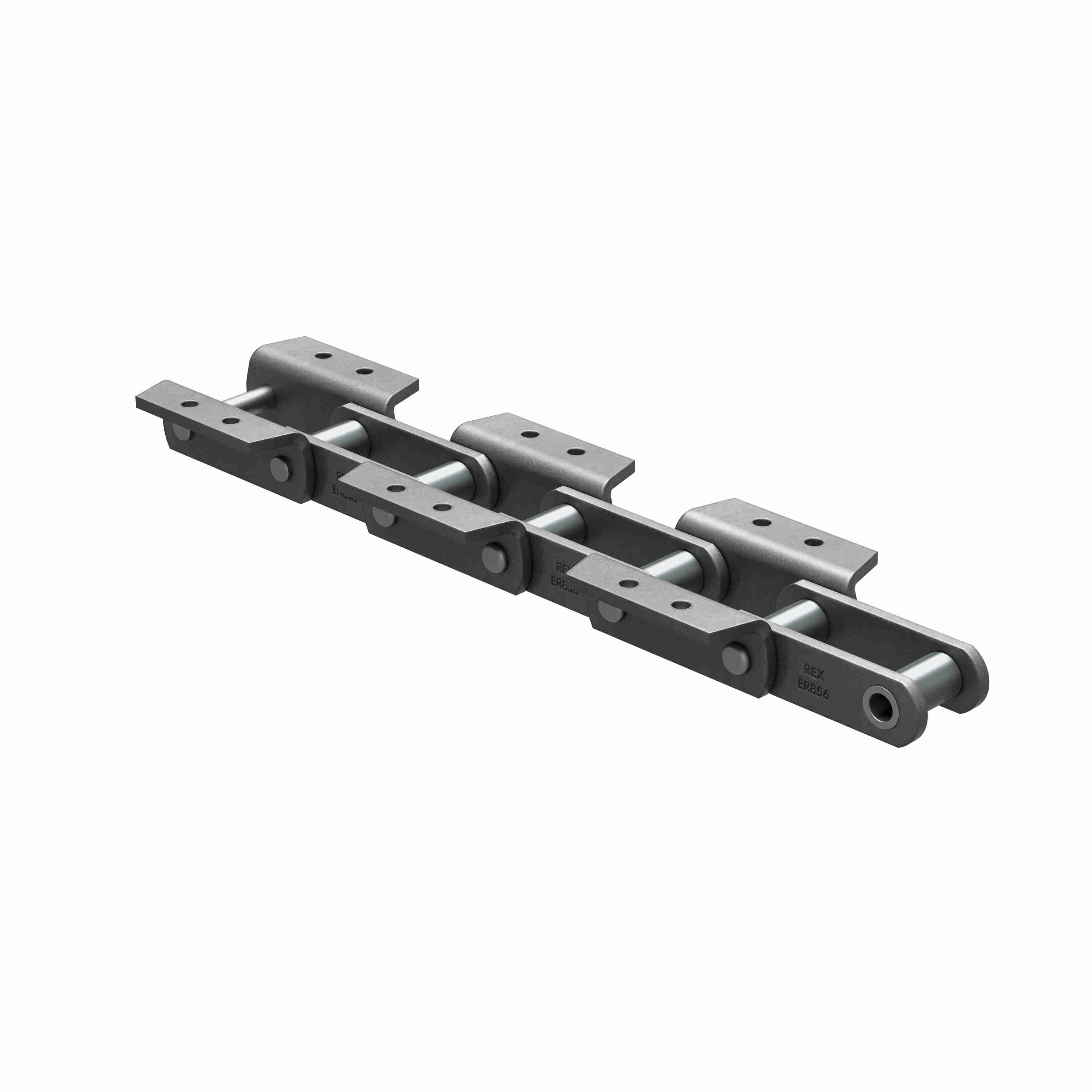

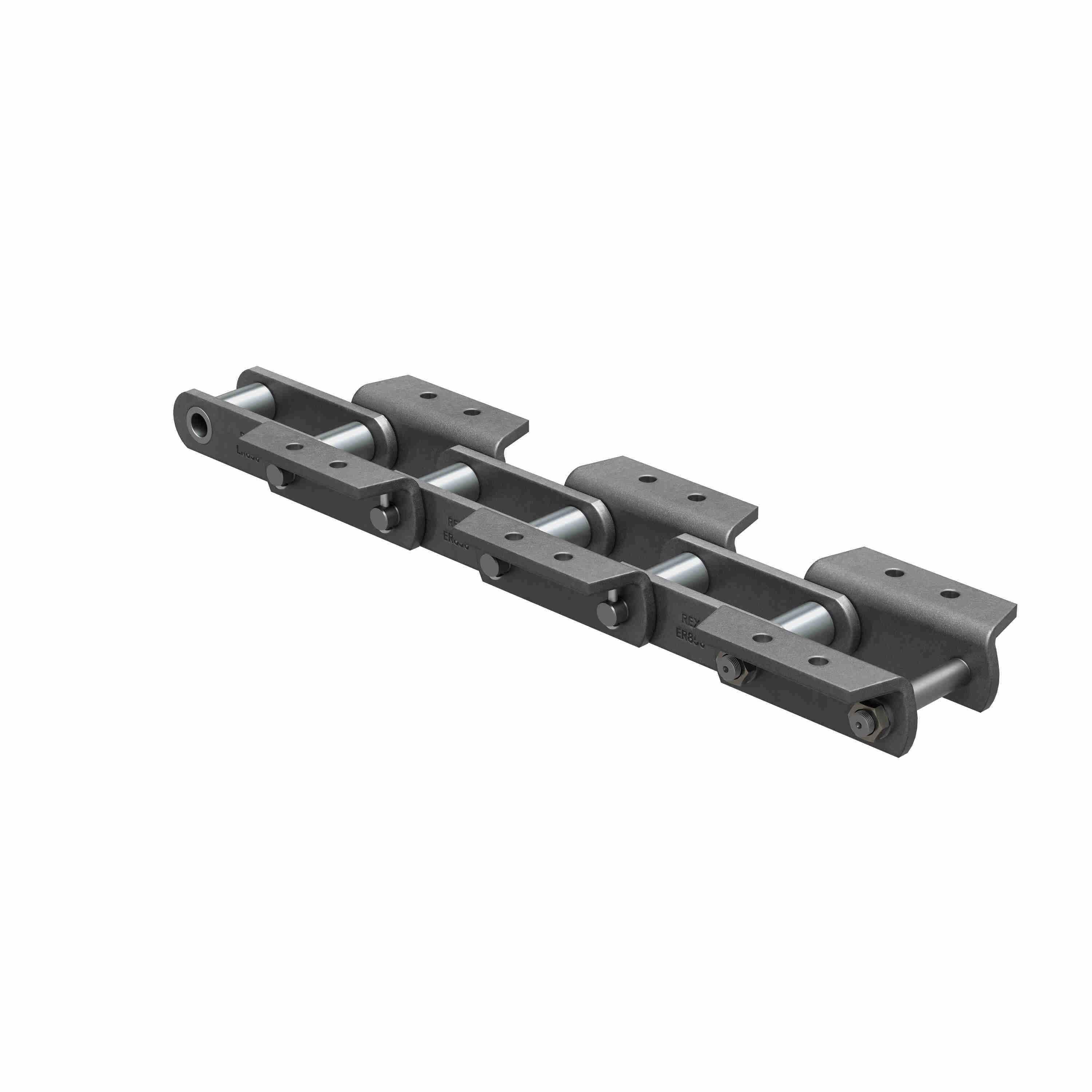

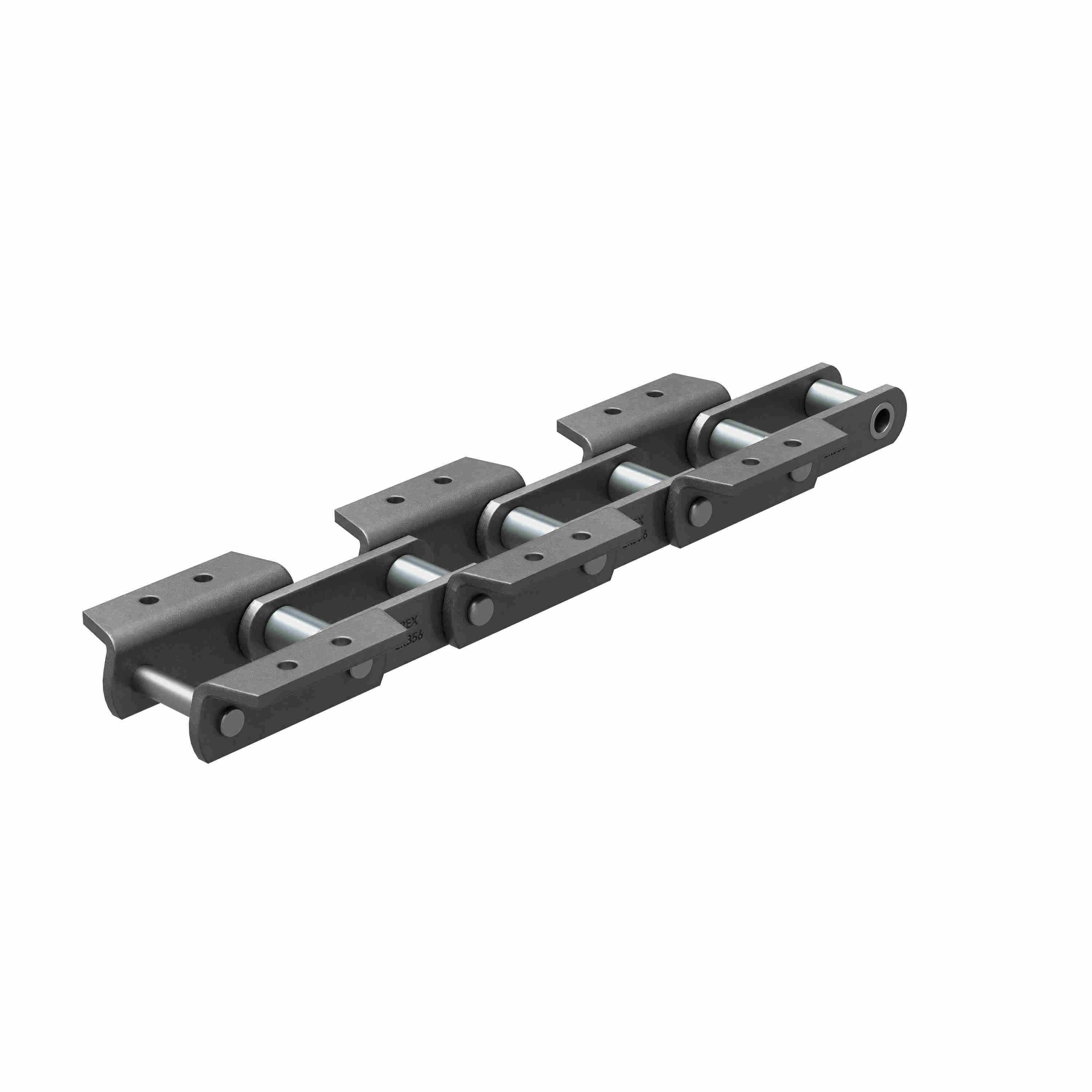

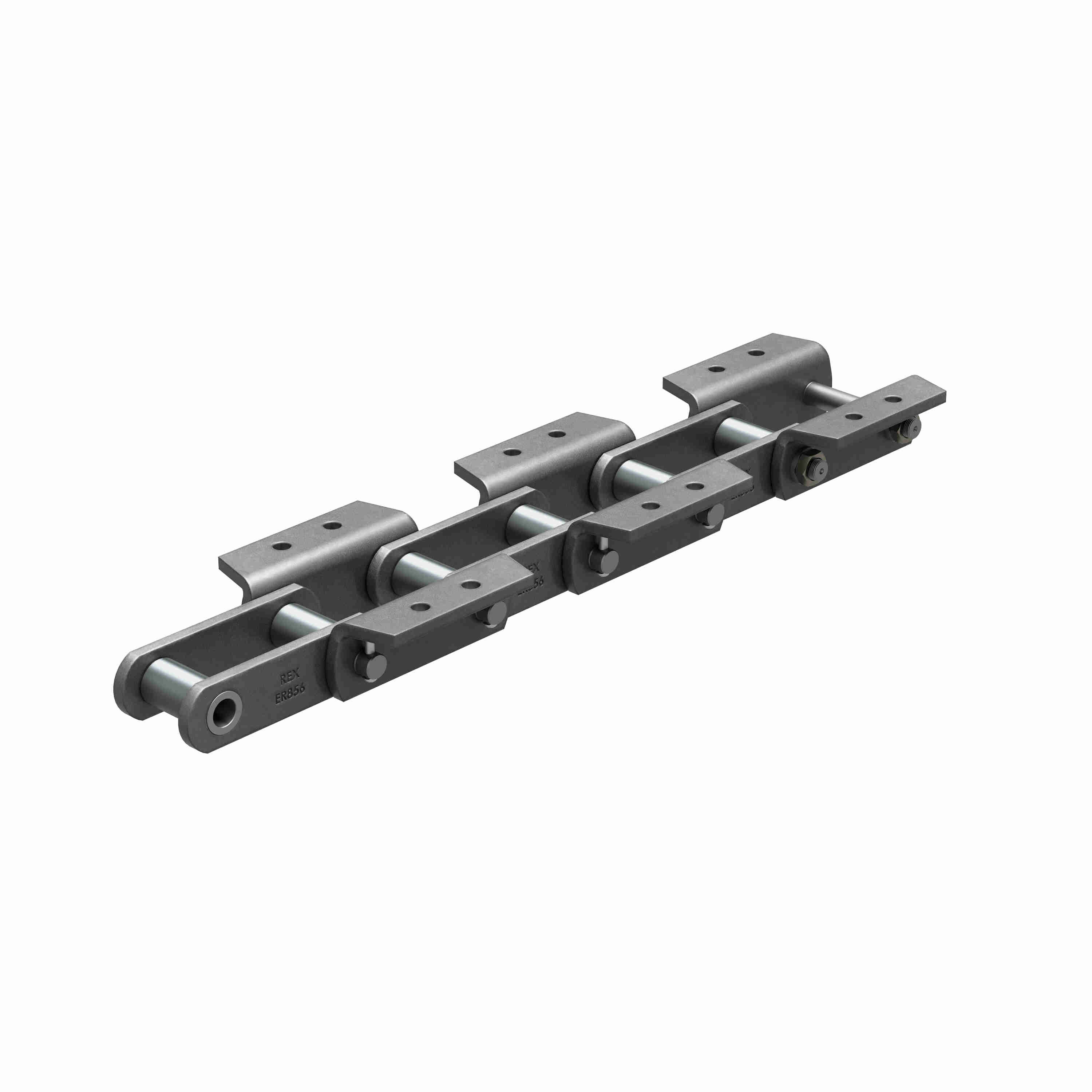

Rex ER856MLK24*303-M Elevator Chain Engineered Steel Chains - ER856MLK24*303-M
Part #:10869872
Catalog #:ER856MLK24*303-M
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Attachment Number: | K23 | Chain Category: | Elevator |
| Product Series: | RexPro | Minimum Tensile Strength (lbs): | 82,000 lb |
| Width Between Outer Plates (in): | 4.06 in | Overall Width/Pin Length (in): | 6.25 in |
| Plate Thickness (in): | 0.5 in | Barrel Diameter (in): | 1.75 in |
| Plate Depth (in): | 2.5 in | Product: | Mill Duty Elevator |
| Rated Working Load (lb/ft): | 14,000 lb/ft | Base Catalog No: | ER856 |
| Series: | Elevator Chain | Pin Diameter (in): | 1 in |
| Sprocket Unit: | 856 | Chain Sub-Category: | Mill Duty Elevator |
| Chain Pitch (in): | 6 in | Barrel Length (in): | 4 in |
| Attachment Spacing: | 2 |
General Specifications
| UPC: | 782935443335 | Weight: | 22.00 LB |
| HTC: | 7315120080 | Country of Origin: | Mexico |
