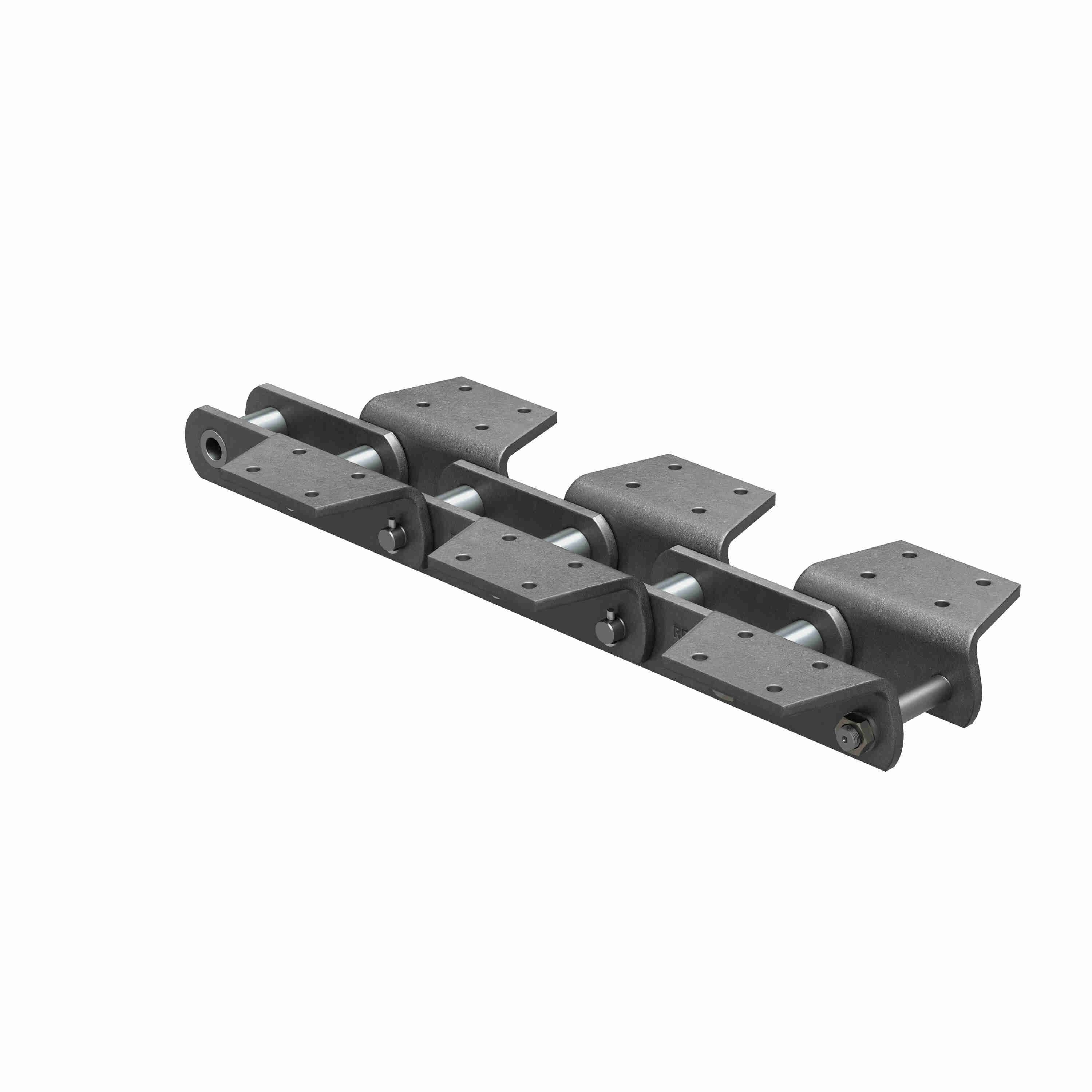

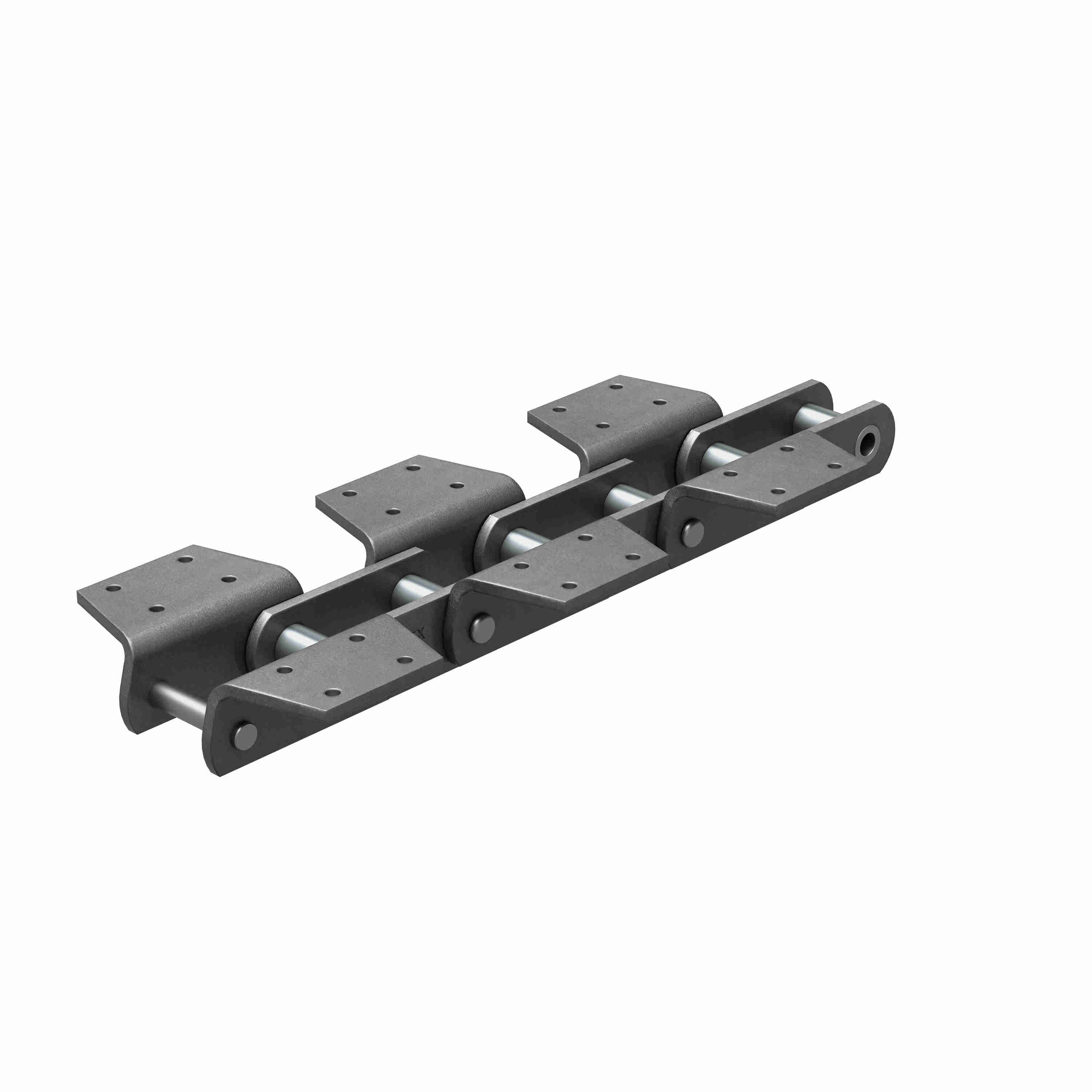

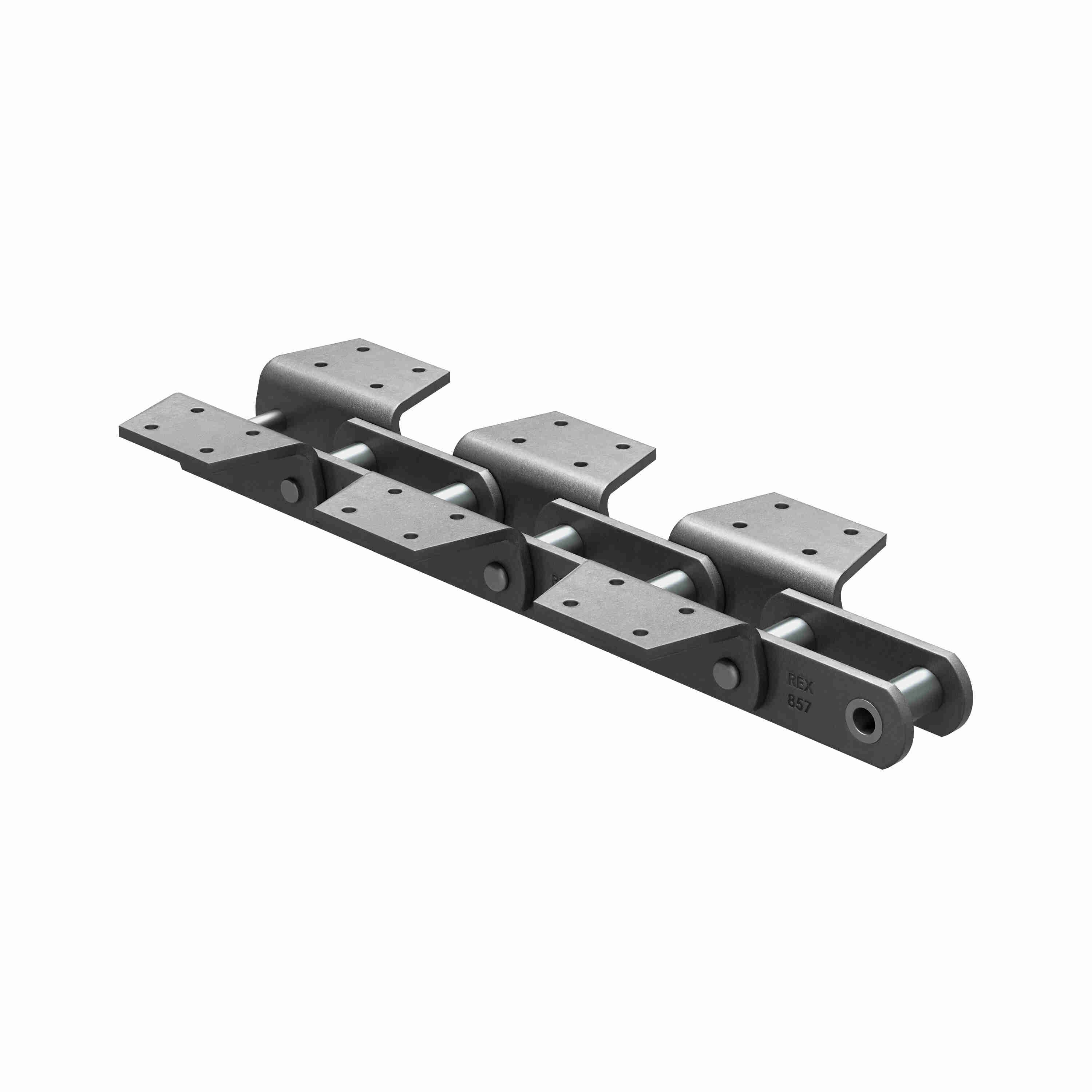

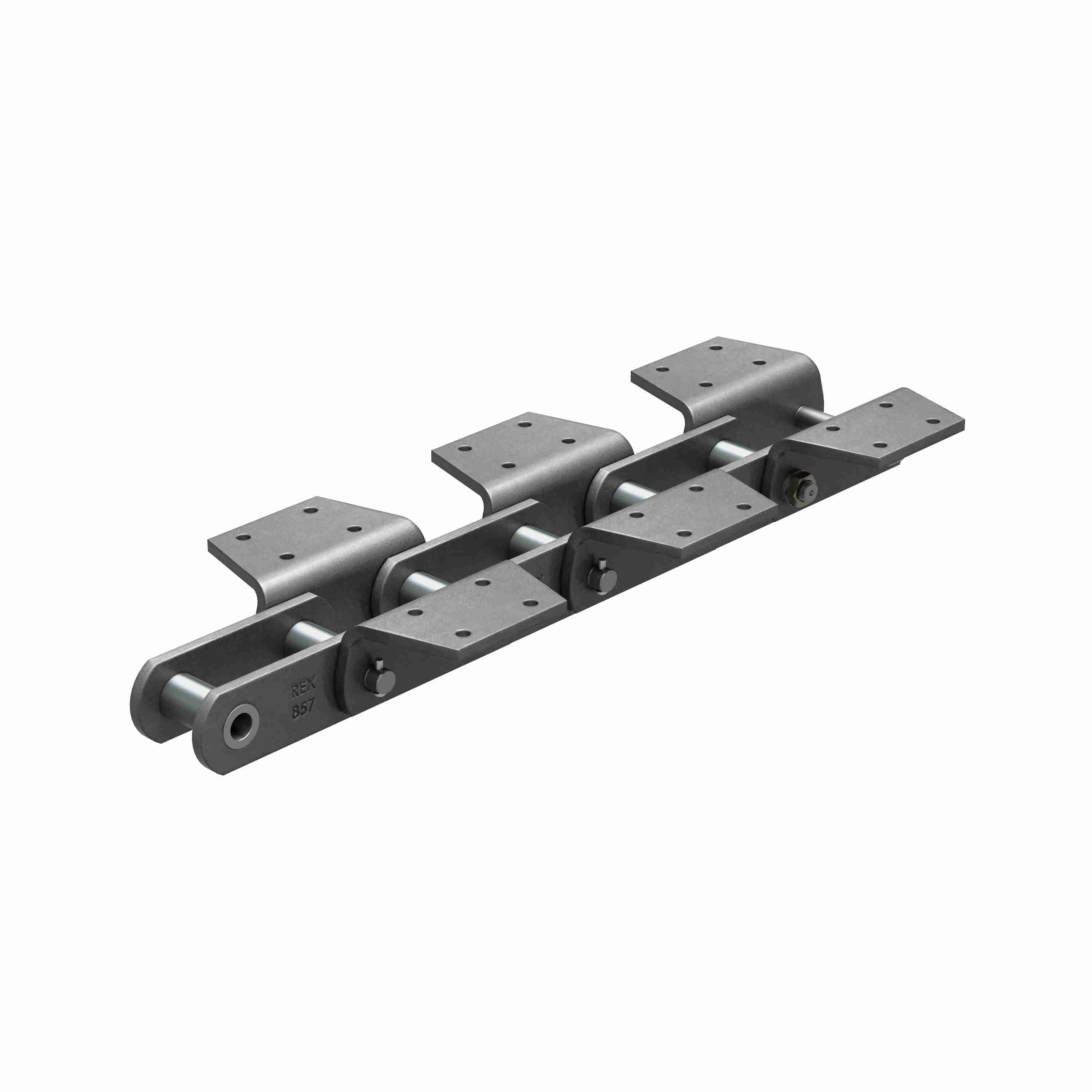

Rex ER857MLK44*300 Elevator Chain Engineered Steel Chains - ER857MLK44*300
Part #:10869617
Catalog #:ER857MLK44*300
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Barrel Diameter (in): | 1.75 in | Barrel Length (in): | 4 in |
| Base Catalog No: | ER857 | Chain Category: | Elevator |
| Pin Diameter (in): | 1 in | Overall Width/Pin Length (in): | 6.25 in |
| Minimum Tensile Strength (lbs): | 97,000 lb | Chain Pitch (in): | 6 in |
| Sprocket Unit: | 856 | Material: | Steel |
| Plate Depth (in): | 3.25 in | Plate Thickness (in): | 0.5 in |
| Attachment Number: | K44 | Rated Working Load (lb/ft): | 14,000 lb/ft |
| Product: | Mill Duty Elevator | Series: | Elevator Chain |
| Width Between Outer Plates (in): | 4.06 in | Chain Sub-Category: | Mill Duty Elevator |
| Product Series: | RexPro | Attachment Spacing: | 2 |
General Specifications
| UPC: | 782935443328 | Weight: | 31.50 LB |
| Country of Origin: | Mexico |
