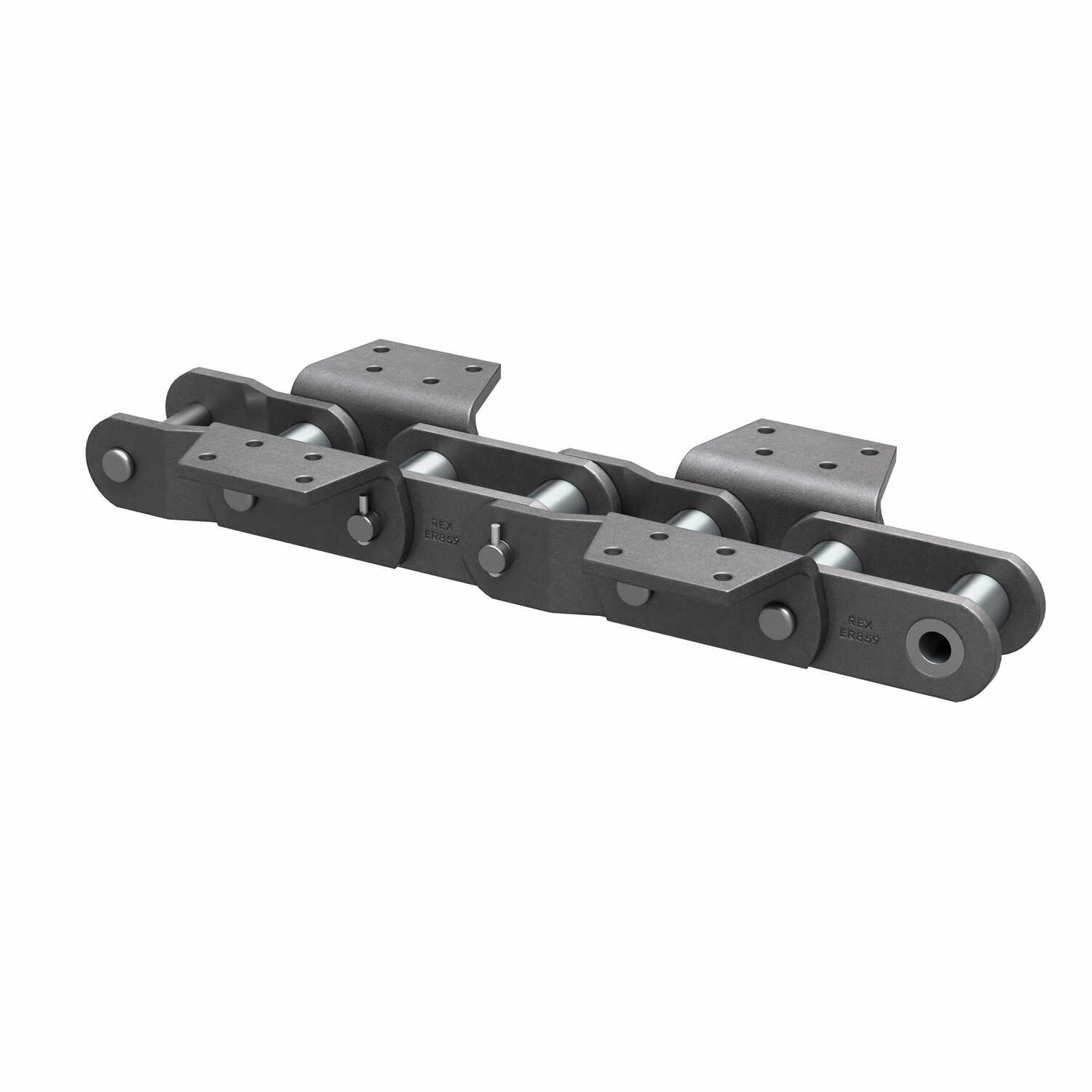

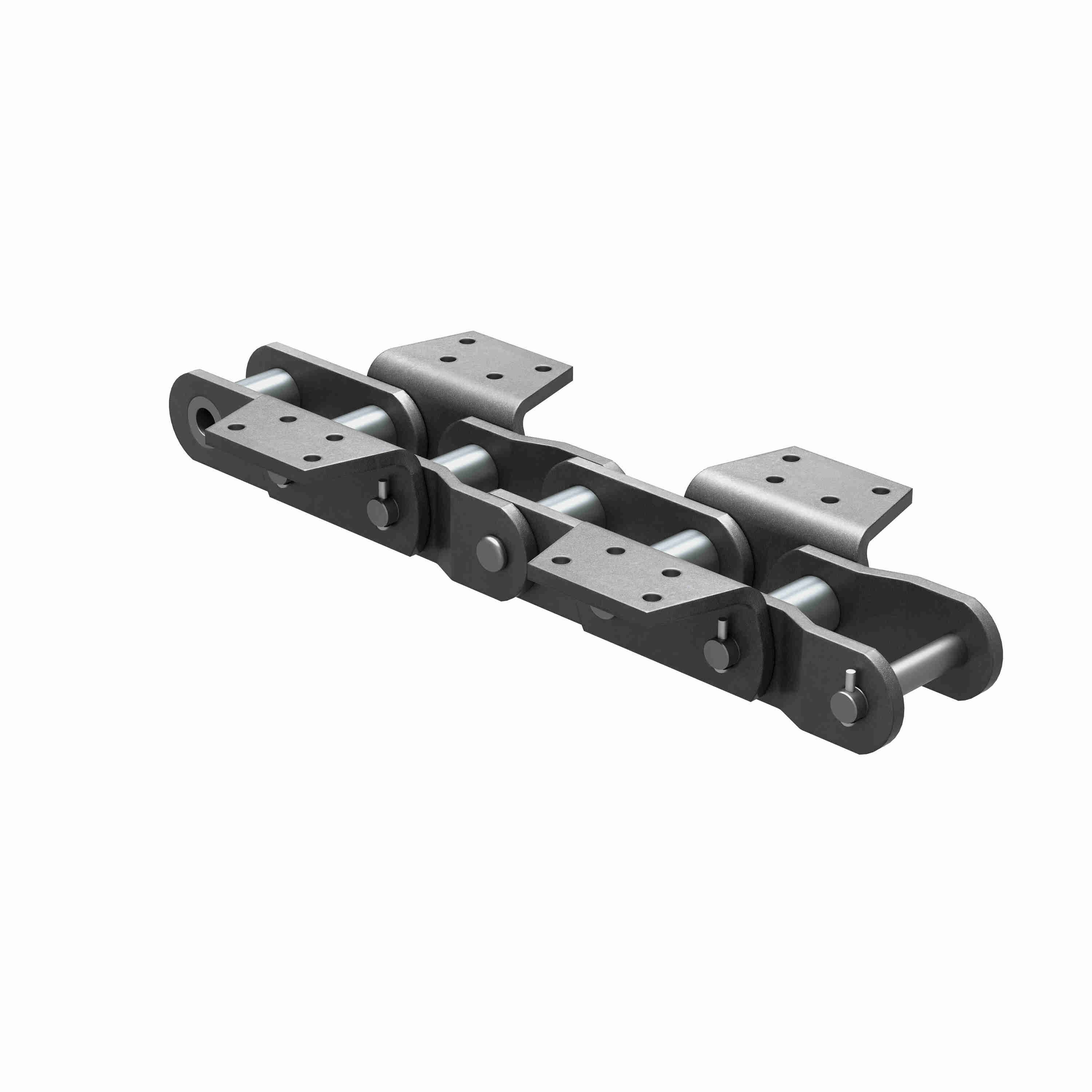

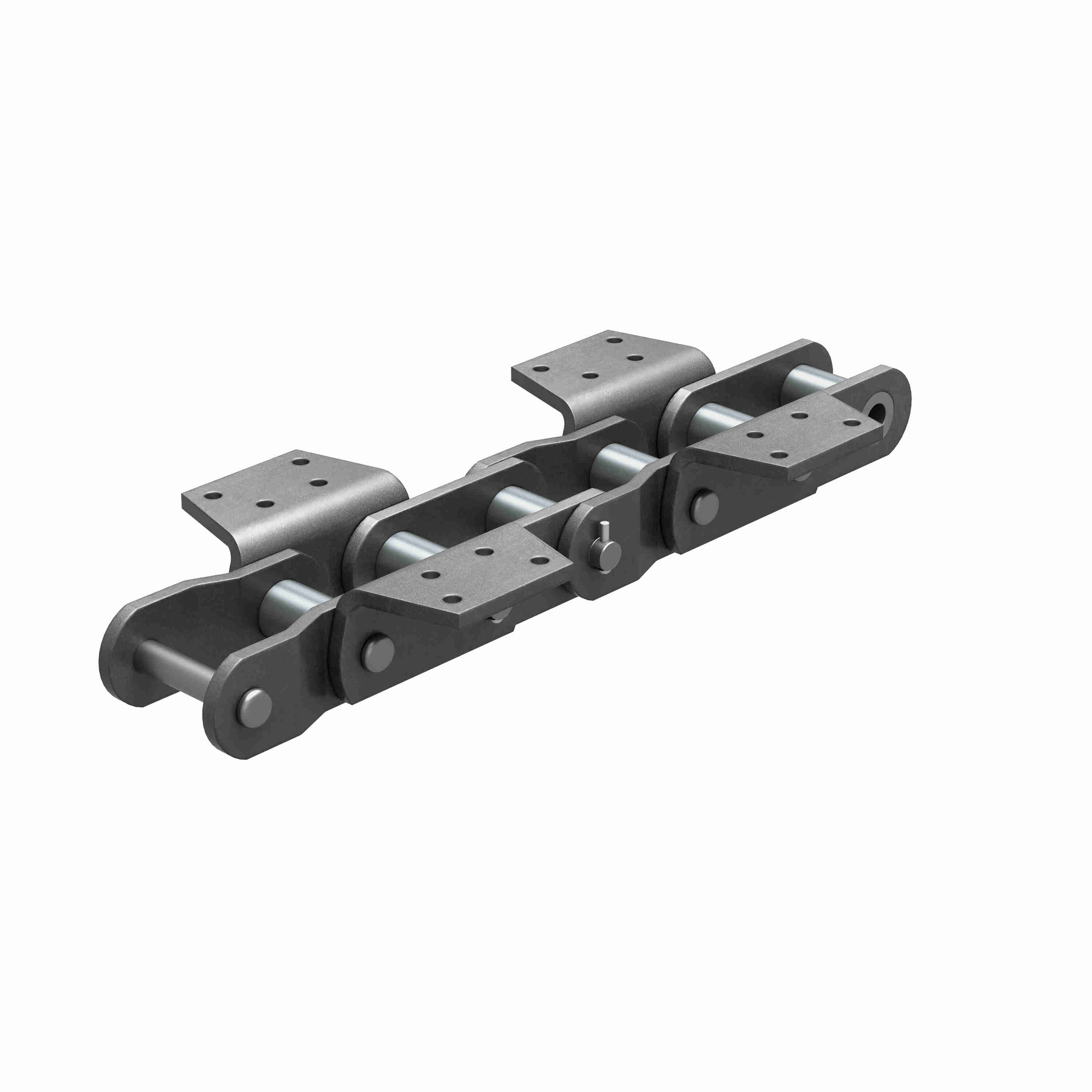

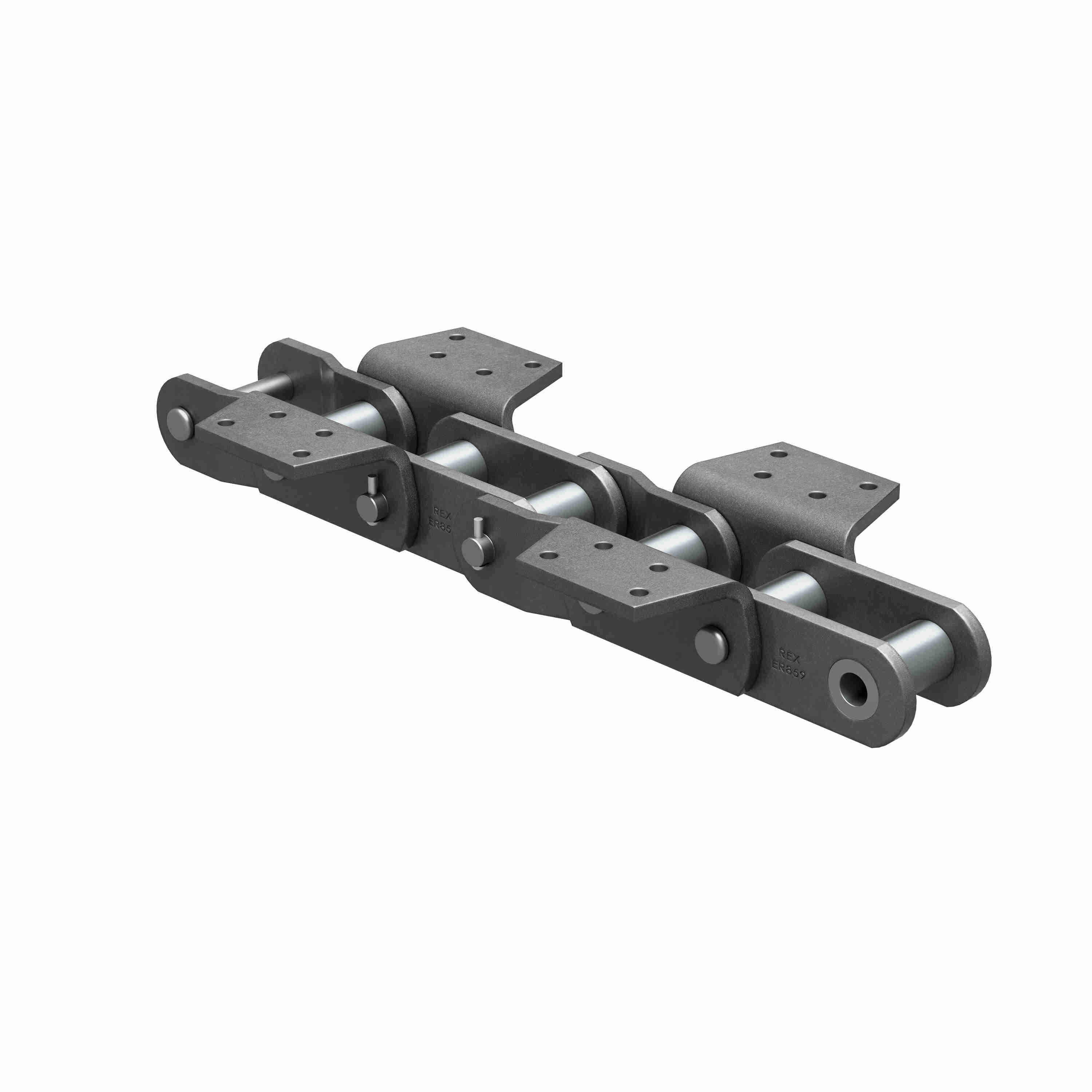

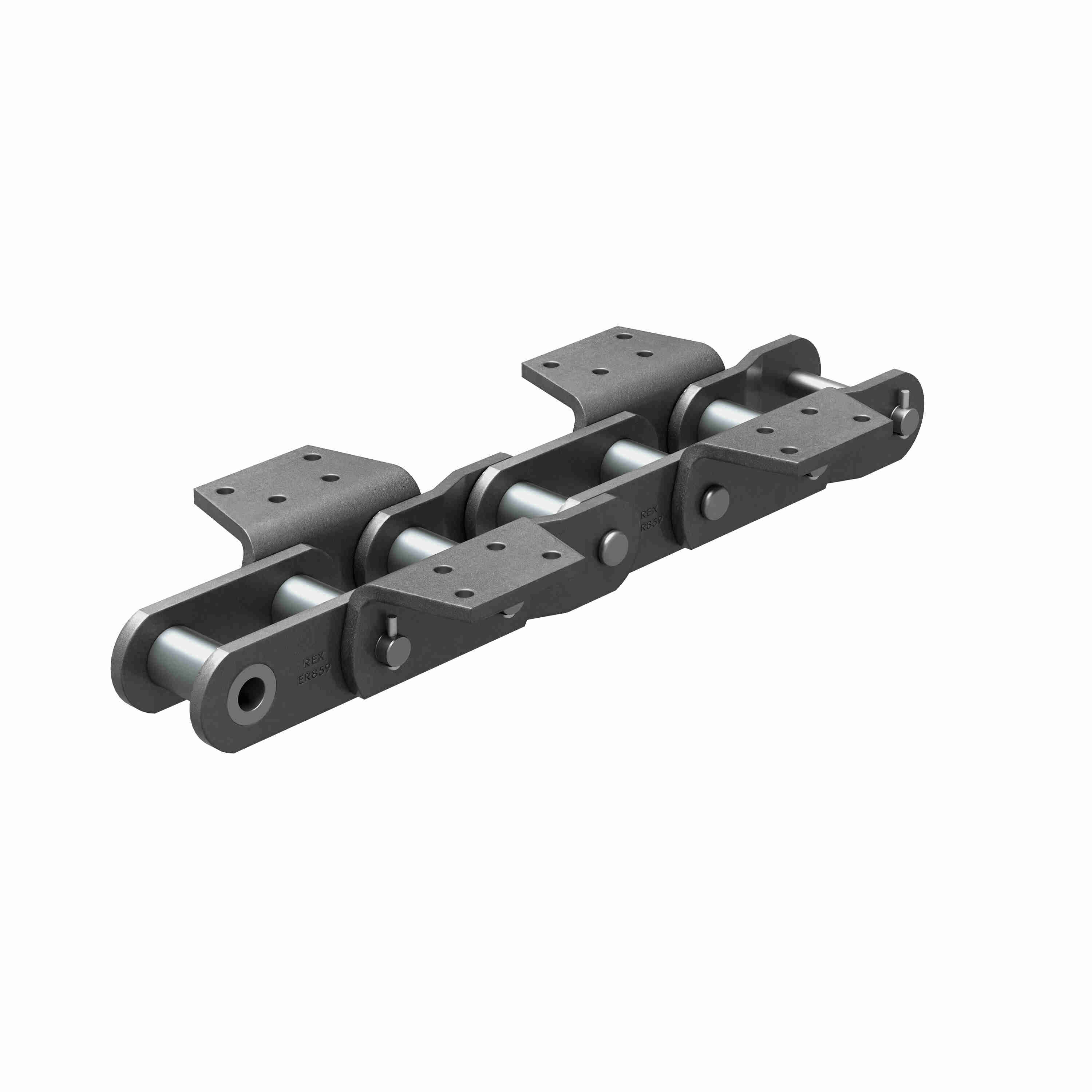

Rex ER859K44*304 Engineered Steel Chains - ER859K44*304
Part #:10520759
Catalog #:ER859K44*304
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (in): | 6 in | Base Catalog No: | ER859 |
| Minimum Tensile Strength (lbs): | 155,000 lb | Sprocket Unit: | 859 |
| Chain Sub-Category: | Mill Duty Elevator | Product Type: | Mill Duty High-Performance Elevator |
| Roller Diameter (in): | 2.38 in | Rated Working Load (lb/ft): | 22,000 lb/ft |
| Chain Category: | Elevator | Material: | Carbon Steel |
| Plate Thickness (in): | 0.63 in | Pin Diameter (in): | 1.25 in |
| Barrel Length (in): | 5 in | Barrel Diameter (in): | 2.38 in |
| Plate Style: | Straight | Product: | Mill Duty Elevator |
| Overall Width/Pin Length (in): | 7.62 in | Attachment Number: | K44 |
| Width Between Outer Plates (in): | 5.12 in | Plate Depth (in): | 4 in |
| Series: | Elevator Chain | Attachment Spacing: | 3 |
General Specifications
| UPC: | 793699623925 | Weight: | 46.00 LB |
| HTC: | 7315120080 | Country of Origin: | United States of America |
