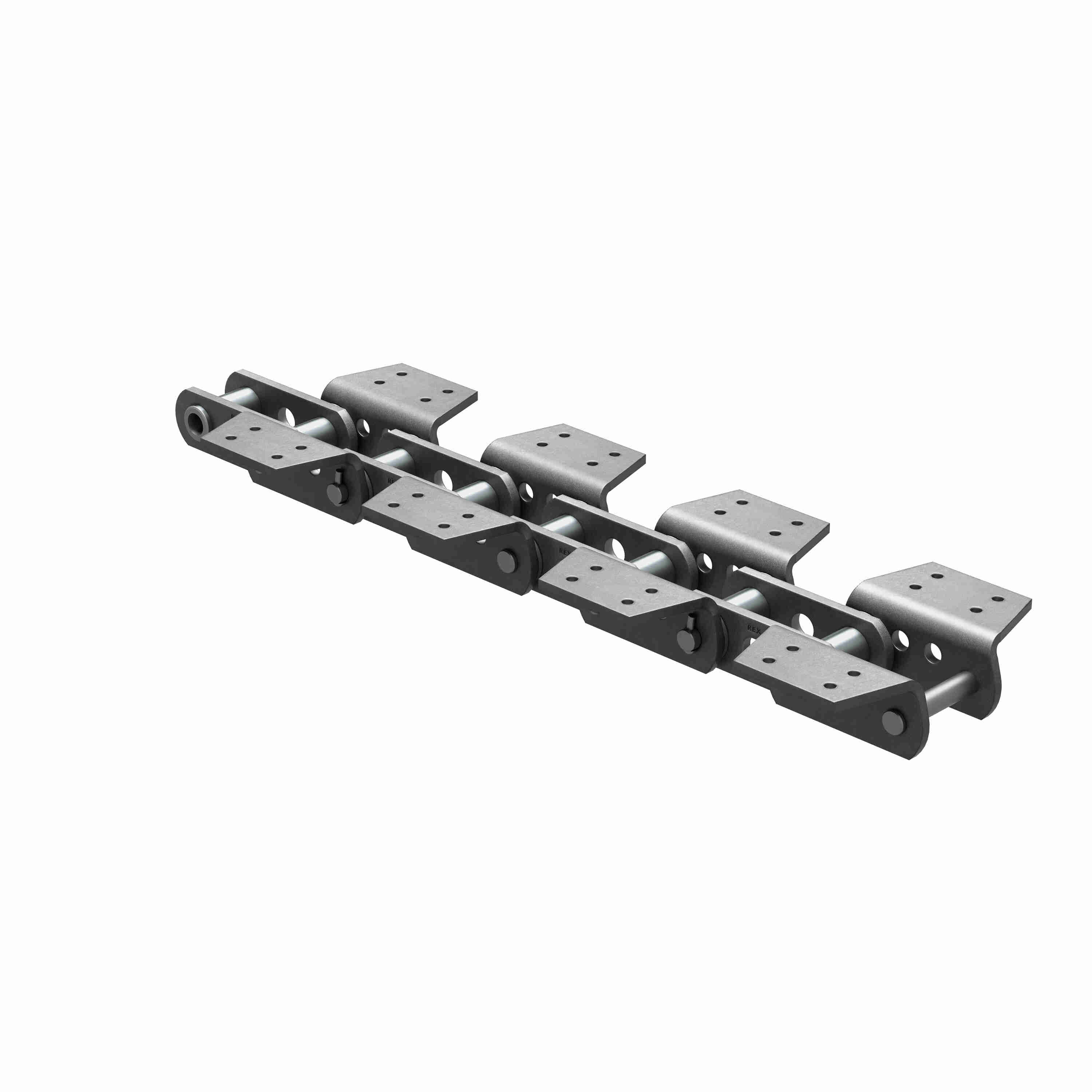

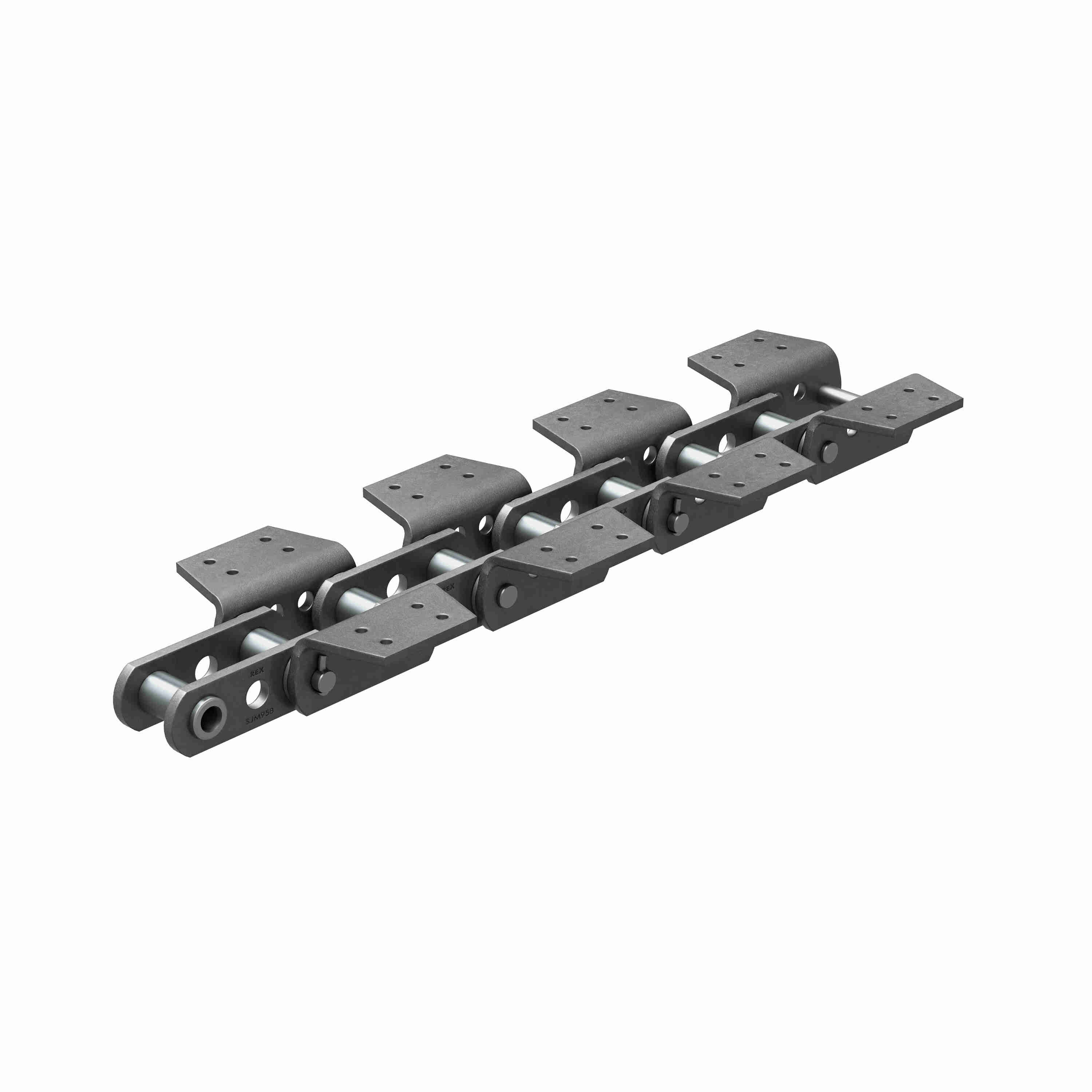

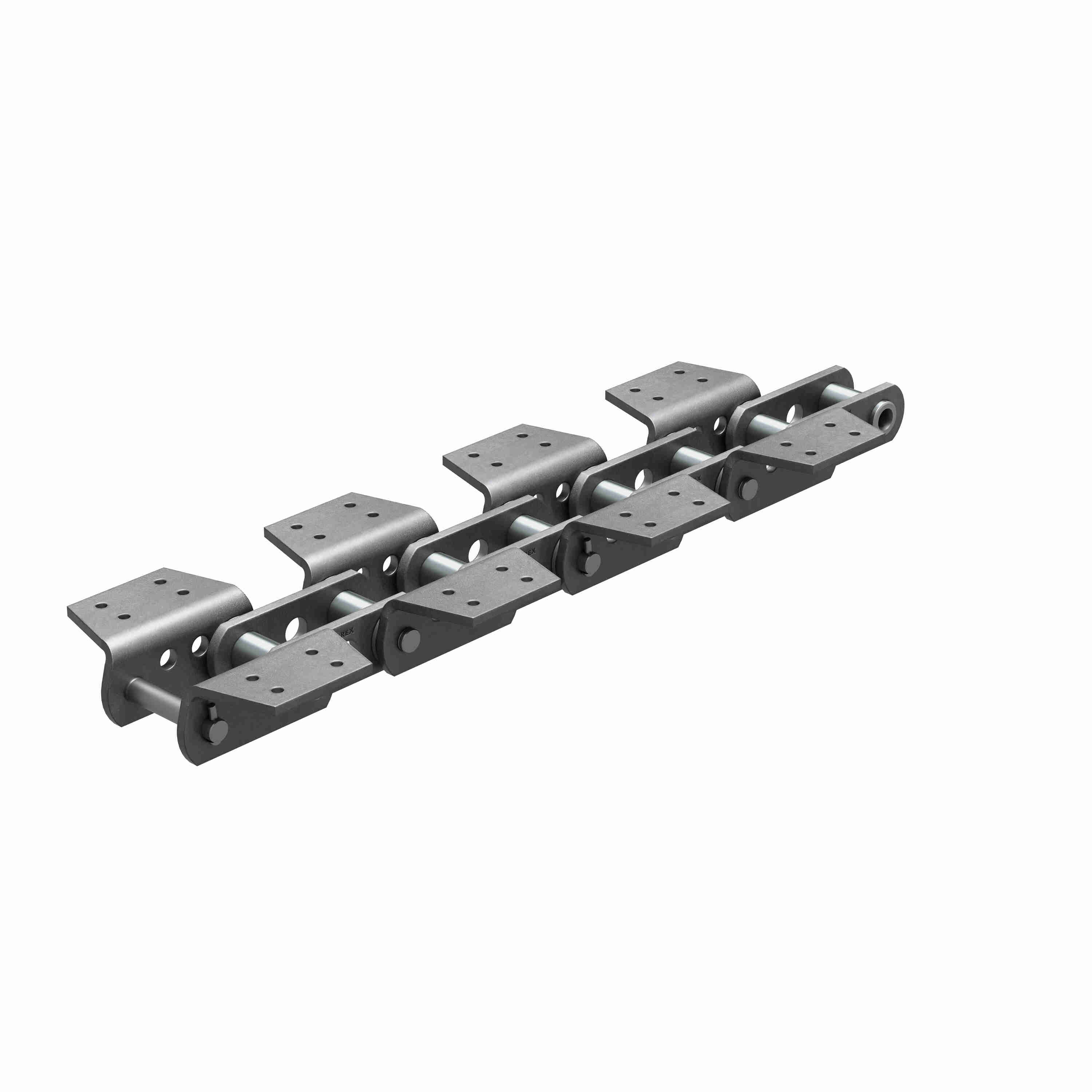

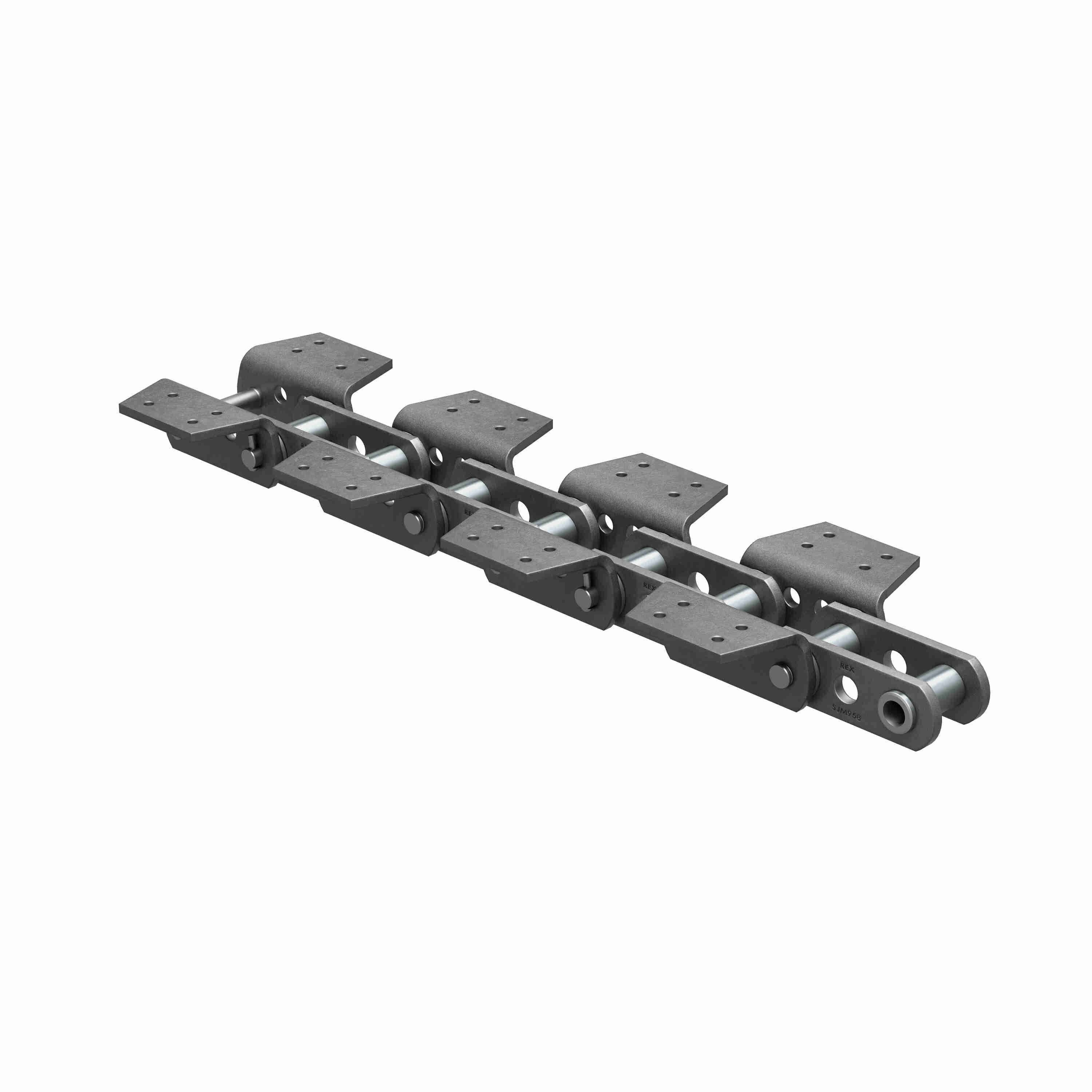

Rex SJM958K-*300 Engineered Steel Chains - SJM958K-*300
Part #:10521885
Catalog #:SJM958K-*300
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Plate Depth (in): | 3.25 in | Width Between Outer Plates (in): | 4.72 in |
| Overall Width/Pin Length (in): | 6.61 in | Sprocket Unit: | 958 |
| Chain Sub-Category: | Mill Duty Elevator | Series: | Elevator Chain |
| Rated Working Load (lb/ft): | 16,300 lb/ft | Plate Thickness (in): | 0.56 in |
| Base Catalog No: | SJM958 | Pin Diameter (in): | 1.13 in |
| Attachment Number: | K45 | Minimum Tensile Strength (lbs): | 97,000 lb |
| Chain Pitch (in): | 6 in | Chain Category: | Elevator |
| Product: | Mill Duty Elevator | Attachment Spacing: | 2 |
General Specifications
| UPC: | 793699626599 | Weight: | 64.04 LB |
| HTC: | 7315120080 | Country of Origin: | Mexico |
