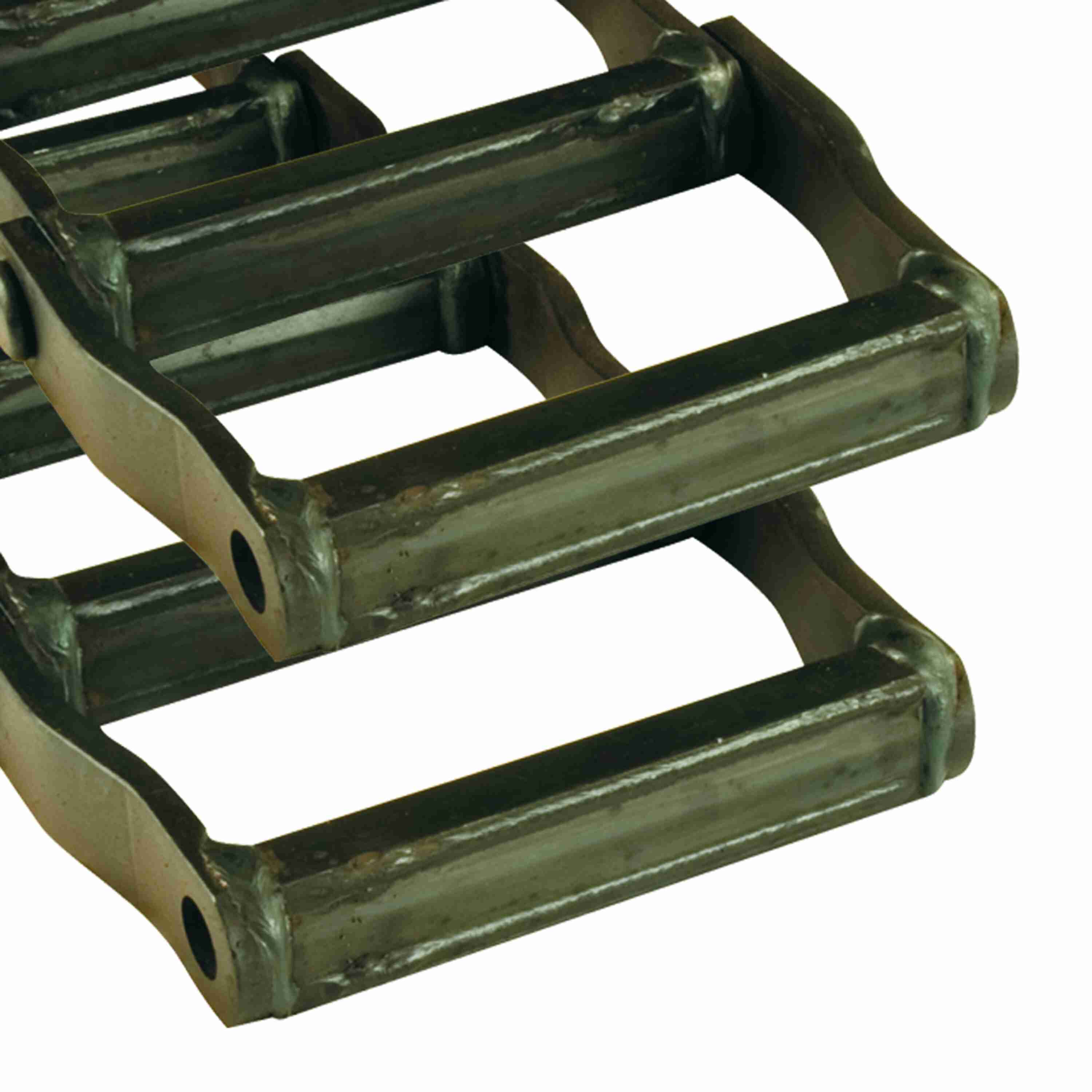

Rex WDH112*300 Engineered Steel Chains - WDH112*300
Part #:10520648
Catalog #:WDH112*300
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Type: | WDH | Plate Thickness (in): | 0.38 in |
| Pin Diameter (in): | 0.75 in | Minimum Tensile Strength (lbs): | 55,000 lb |
| Chain Pitch (in): | 8 in | Rated Working Load (lb/ft): | 10,000 lb/ft |
| Barrel Length (in): | 10.38 in | Chain Category: | Welded Steel |
| Product: | Wide Mill Drag | Chain Sub-Category: | Wide Mill Drag |
| Width Between Outer Plates (in): | 9 in | Material: | Steel |
| Base Catalog No: | WDH112 | Series: | Welded Chains |
| Sprocket Unit: | H112 | Plate Depth (in): | 1.5 in |
| Overall Width/Pin Length (in): | 11.8 in |
General Specifications
| UPC: | 698210800994 | Weight: | 11.40 LB |
| Packaged Length: | 48.00 IN | Packaged Width: | 42.00 IN |
| Packaged Height: | 6.00 IN | HTC: | 7315120040 |
| Country of Origin: | China |
