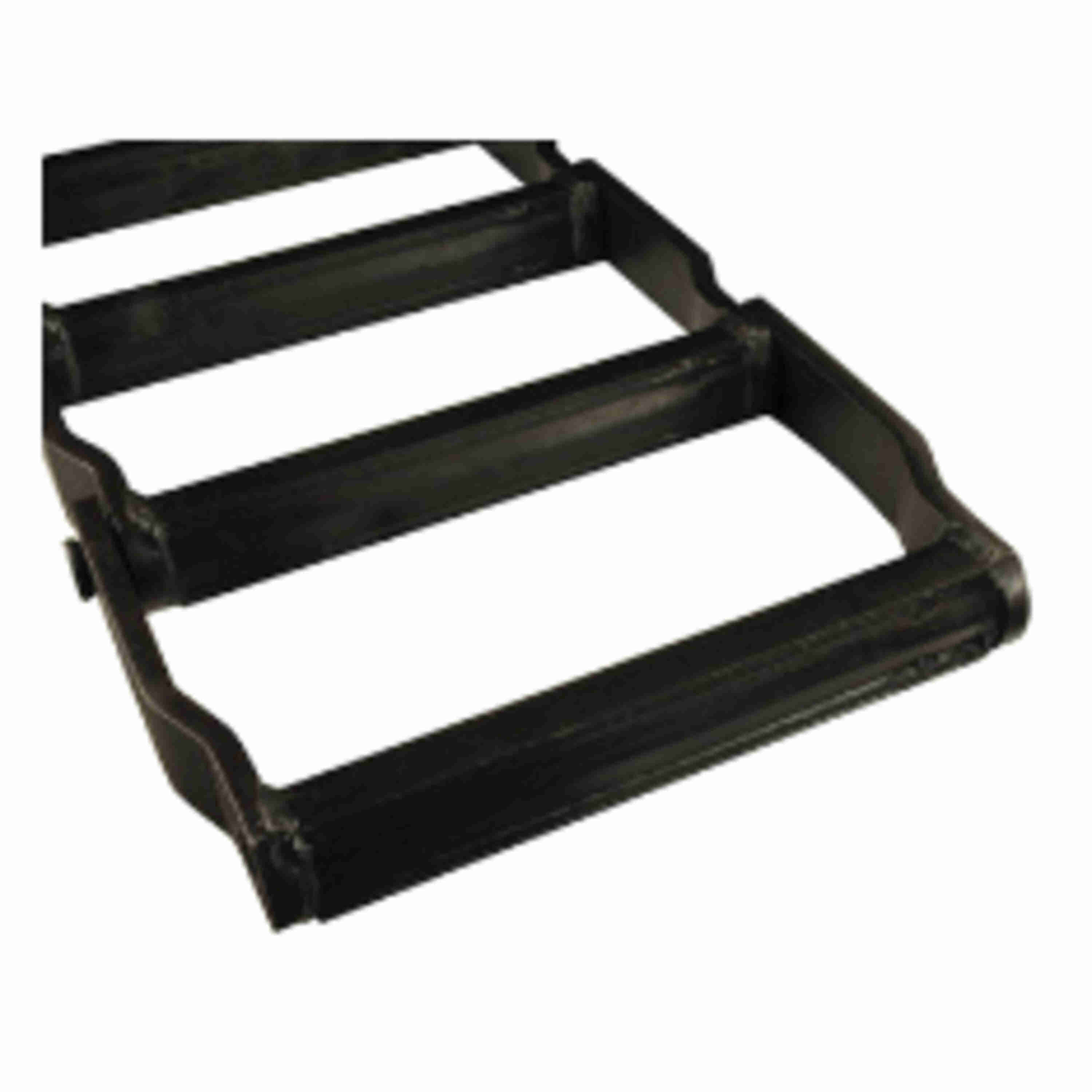

Rex WDHR480C Engineered Steel Chains - WDHR480C
Part #:10521653
Catalog #:WDHR480C
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Series: | Welded Chains | Barrel Length (in): | 12.75 in |
| Sprocket Unit: | H480 | Pin Diameter (in): | 0.88 in |
| Chain Category: | Welded Steel | Chain Sub-Category: | Wide Mill Drag |
| Rated Working Load (lb/ft): | 15,000 lb/ft | Product Type: | WDH |
| Base Catalog No: | WDH480 | Overall Width/Pin Length (in): | 14.6 in |
| Plate Thickness (in): | 0.5 in | Product: | Wide Mill Drag |
| Plate Depth (in): | 2 in | Minimum Tensile Strength (lbs): | 79,000 lb |
| Material: | Steel | Chain Pitch (in): | 8 in |
| Width Between Outer Plates (in): | 11.2 in |
General Specifications
| UPC: | 793699627596 | Weight: | 17.61 LB |
| Packaged Length: | 63.00 IN | Packaged Width: | 63.00 IN |
| Packaged Height: | 36.00 IN | Country of Origin: | China |
