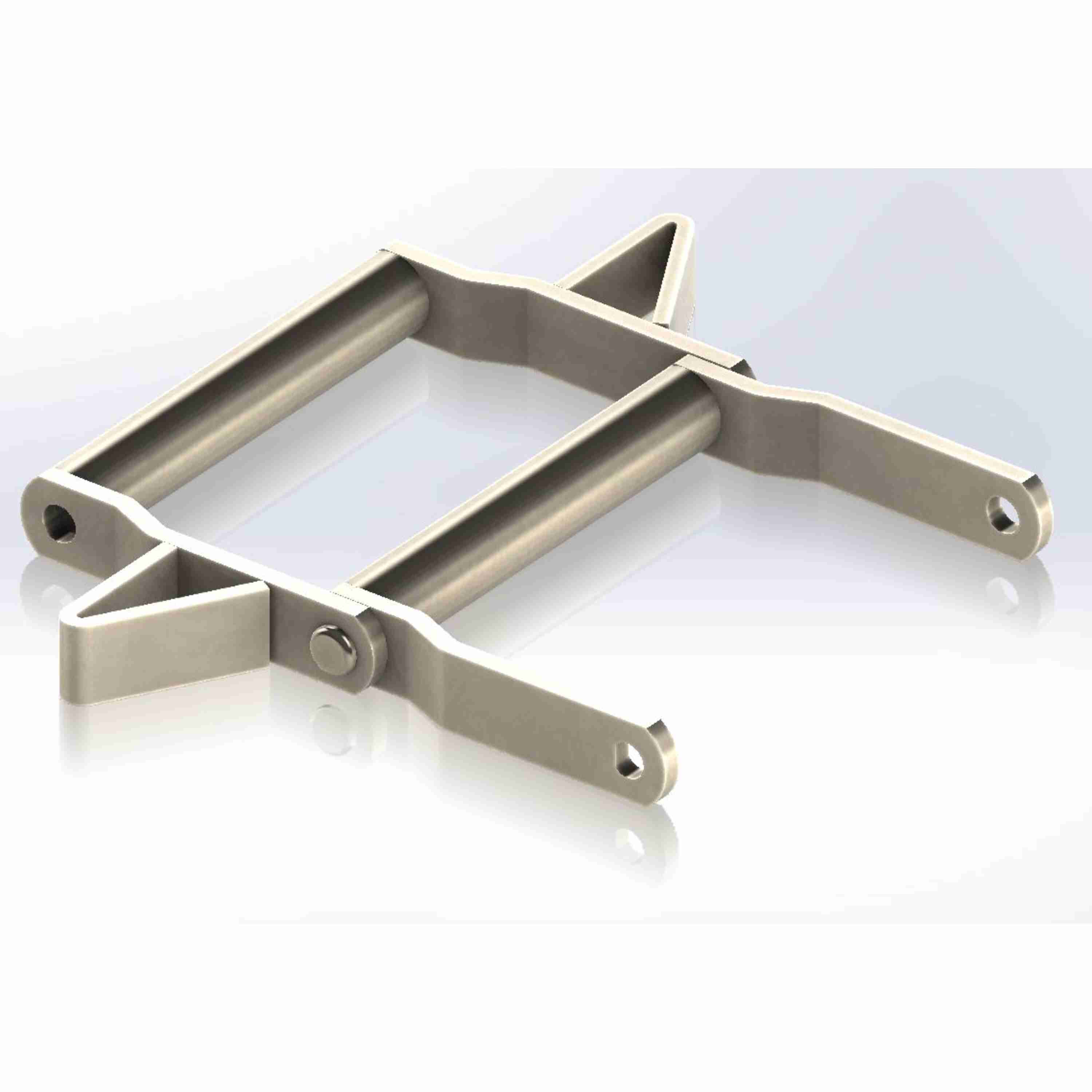

Rex WDHR480W22E2R Engineered Steel Chains - WDHR480W22E2R
Part #:10521914
Catalog #:WDHR480W22E2R
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Sprocket Unit: | H480 | Chain Pitch (in): | 8 in |
| Barrel Length (in): | 12.75 in | Attachment Number: | W22 |
| Pin Diameter (in): | 0.88 in | Minimum Tensile Strength (lbs): | 79,000 lb |
| Overall Width/Pin Length (in): | 14.6 in | Rated Working Load (lb/ft): | 15,000 lb/ft |
| Series: | Welded Chains | Chain Sub-Category: | Wide Mill Drag |
| Base Catalog No: | WDH480 | Product: | Wide Mill Drag |
| Width Between Outer Plates (in): | 12.83 in | Chain Category: | Welded Steel |
| Plate Depth (in): | 2 in | Plate Thickness (in): | 0.5 in |
| Attachment Spacing: | 2 |
General Specifications
| UPC: | 793699627626 | Weight: | 20.39 LB |
| Packaged Length: | 63.00 IN | Packaged Width: | 63.00 IN |
| Packaged Height: | 48.00 IN | HTC: | 7315120040 |
| Country of Origin: | Mexico |
