Product Specifications
Technical Specifications

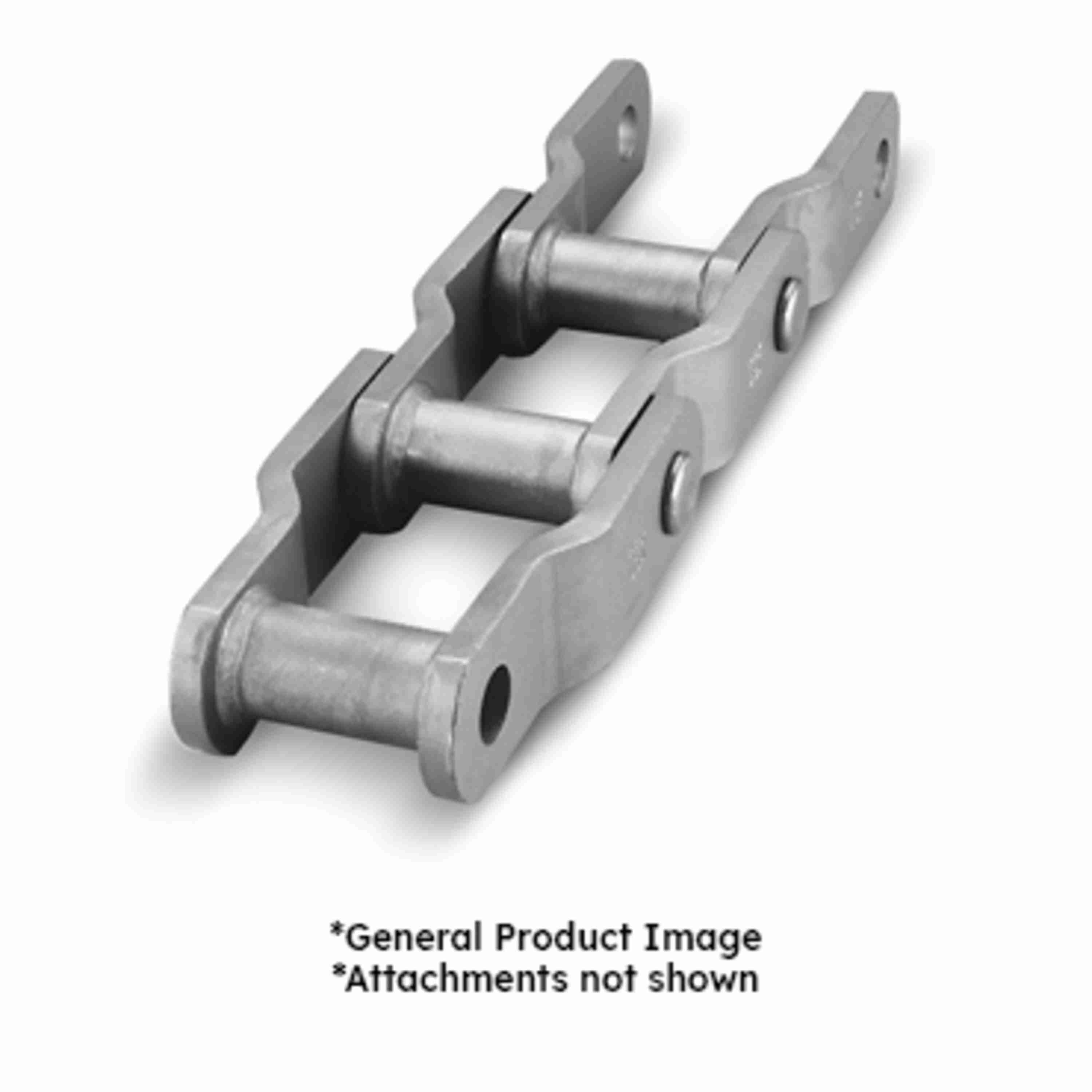

| Series: | Welded Chains | Chain Sub-Category: | Narrow Mill |
| Plate Thickness (in): | 0.5 in | Chain Category: | Welded Steel |
| Barrel Diameter (in): | 1.75 in | Plate Depth (in): | 2.5 in |
| Product: | Narrow Mill | Rated Working Load (lb/ft): | 15,000 lb/ft |
| Chain Pitch (in): | 6.05 in | Width Between Outer Plates (in): | 3 in |
| Sprocket Unit: | 132 | Attachment Number: | SS9 |
| Barrel Length (in): | 4.38 in | Overall Width/Pin Length (in): | 6.31 in |
| Pin Diameter (in): | 1 in | Minimum Tensile Strength (lbs): | 90,000 lb |
| Base Catalog No: | WHX150 |
General Specifications
| UPC: | 782934961854 | Weight: | 17.38 LB |
| HTC: | 7315120080 | Country of Origin: | Mexico |
