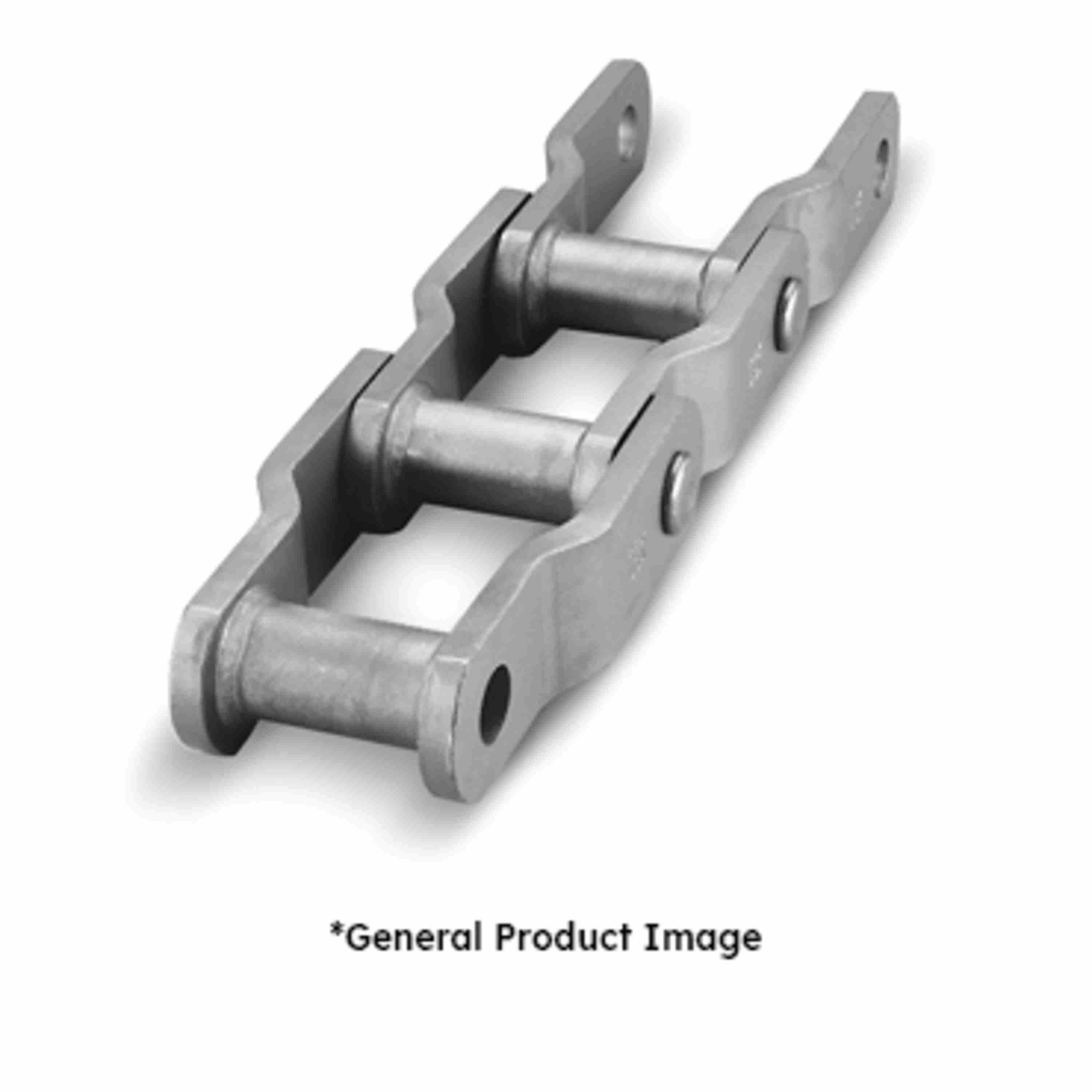

Rex WHXR155C Engineered Steel Chains - WHXR155C
Part #:10521437
Catalog #:WHXR155C
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Pin Diameter (in): | 1.13 in | Material: | Steel |
| Plate Depth (in): | 2.5 in | Product Type: | WHX |
| Series: | Welded Chains | Base Catalog No: | WHXR155 |
| Minimum Tensile Strength (lbs): | 102,000 lb | Overall Width/Pin Length (in): | 6.48 in |
| Chain Sub-Category: | Narrow Mill | Rated Working Load (lb/ft): | 17,500 lb/ft |
| Product: | Narrow Mill | Barrel Length (in): | 4.38 in |
| Barrel Diameter (in): | 1.75 in | Chain Category: | Welded Steel |
| Chain Pitch (in): | 6.05 in | Sprocket Unit: | 132 |
| Plate Thickness (in): | 0.56 in | Width Between Outer Plates (in): | 4.51 in |
General Specifications
| UPC: | 698210893194 | Weight: | 19.01 LB |
| Packaged Length: | 95.23 IN | Packaged Width: | 83.33 IN |
| Packaged Height: | 11.90 IN | HTC: | 7315120040 |
| Country of Origin: | Mexico |
