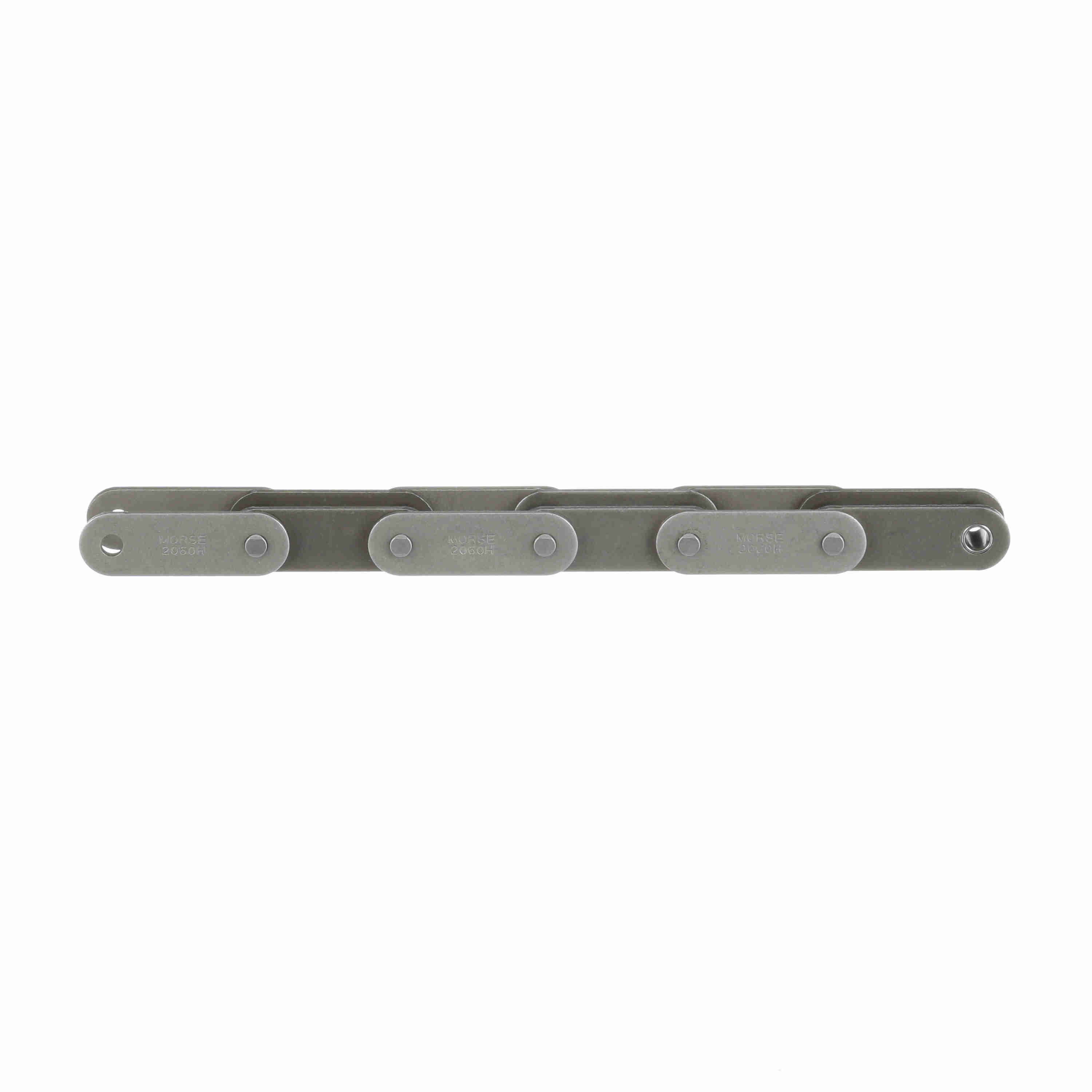

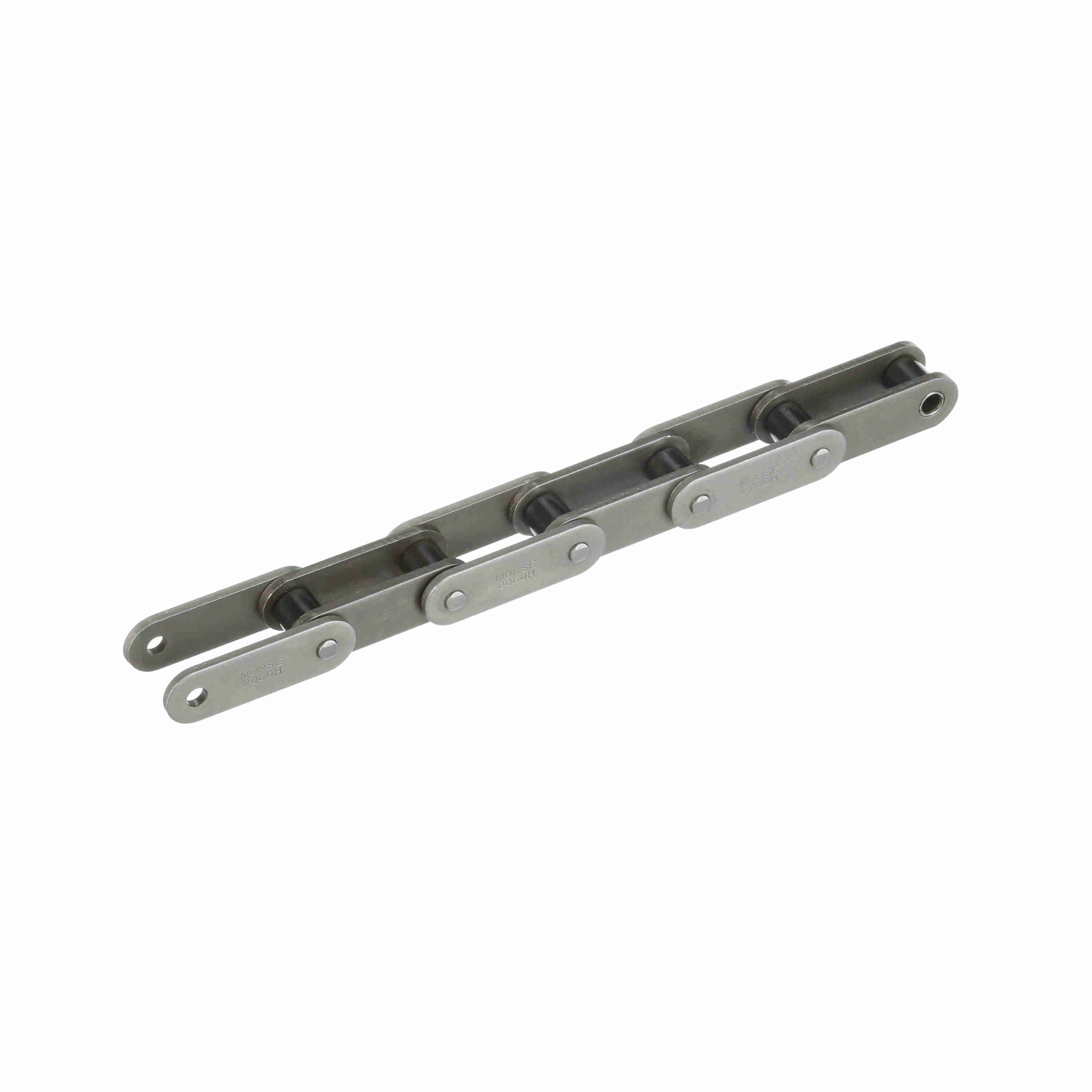

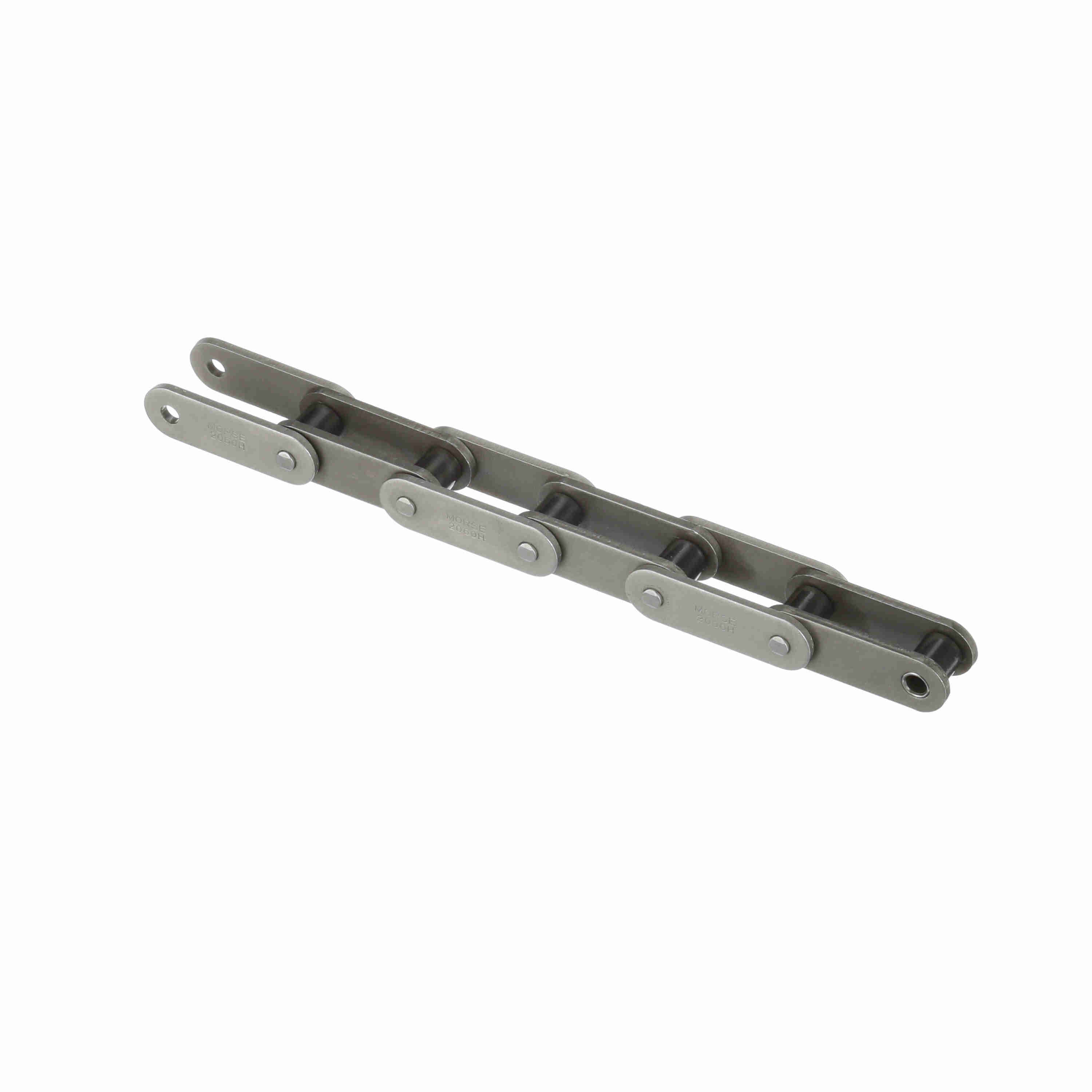

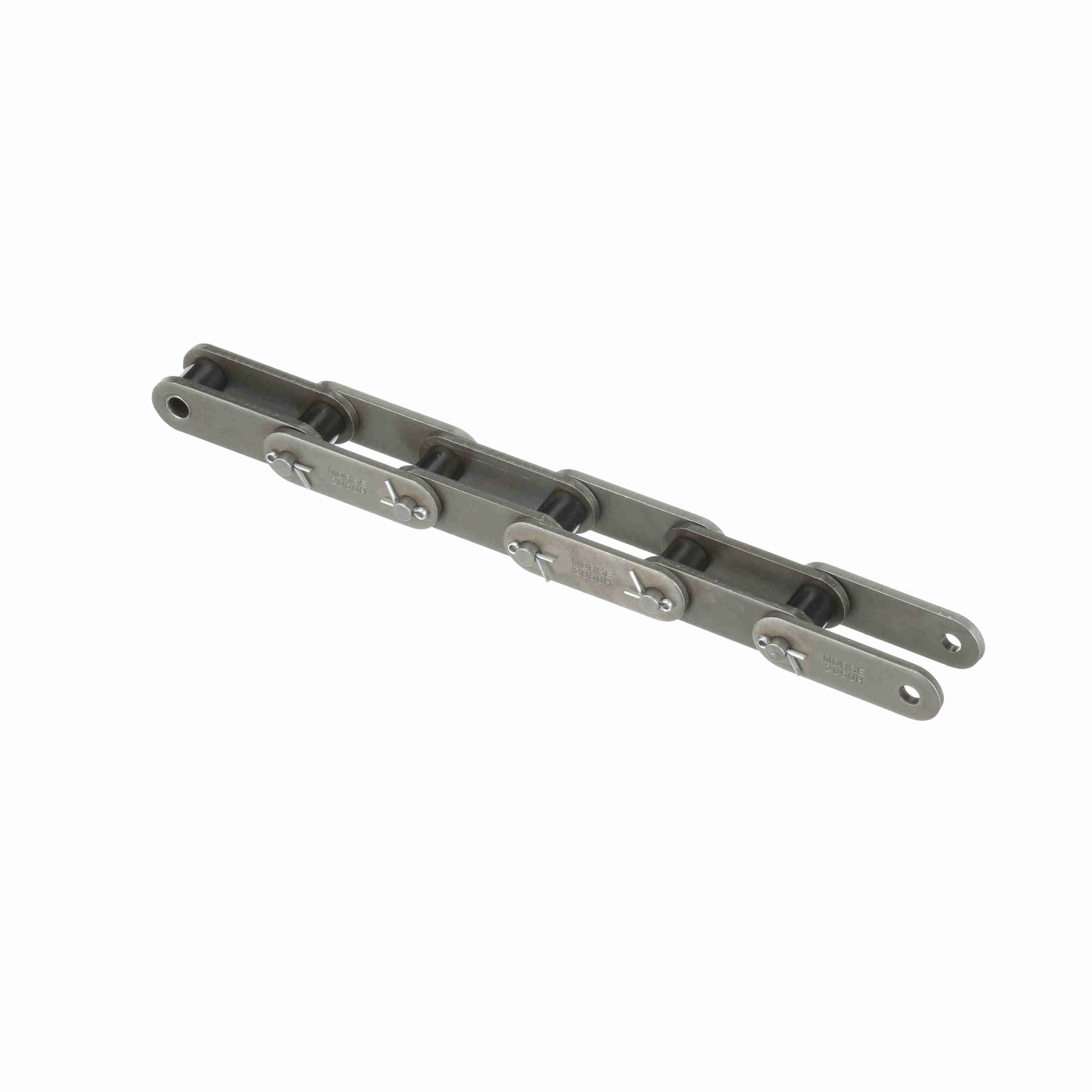

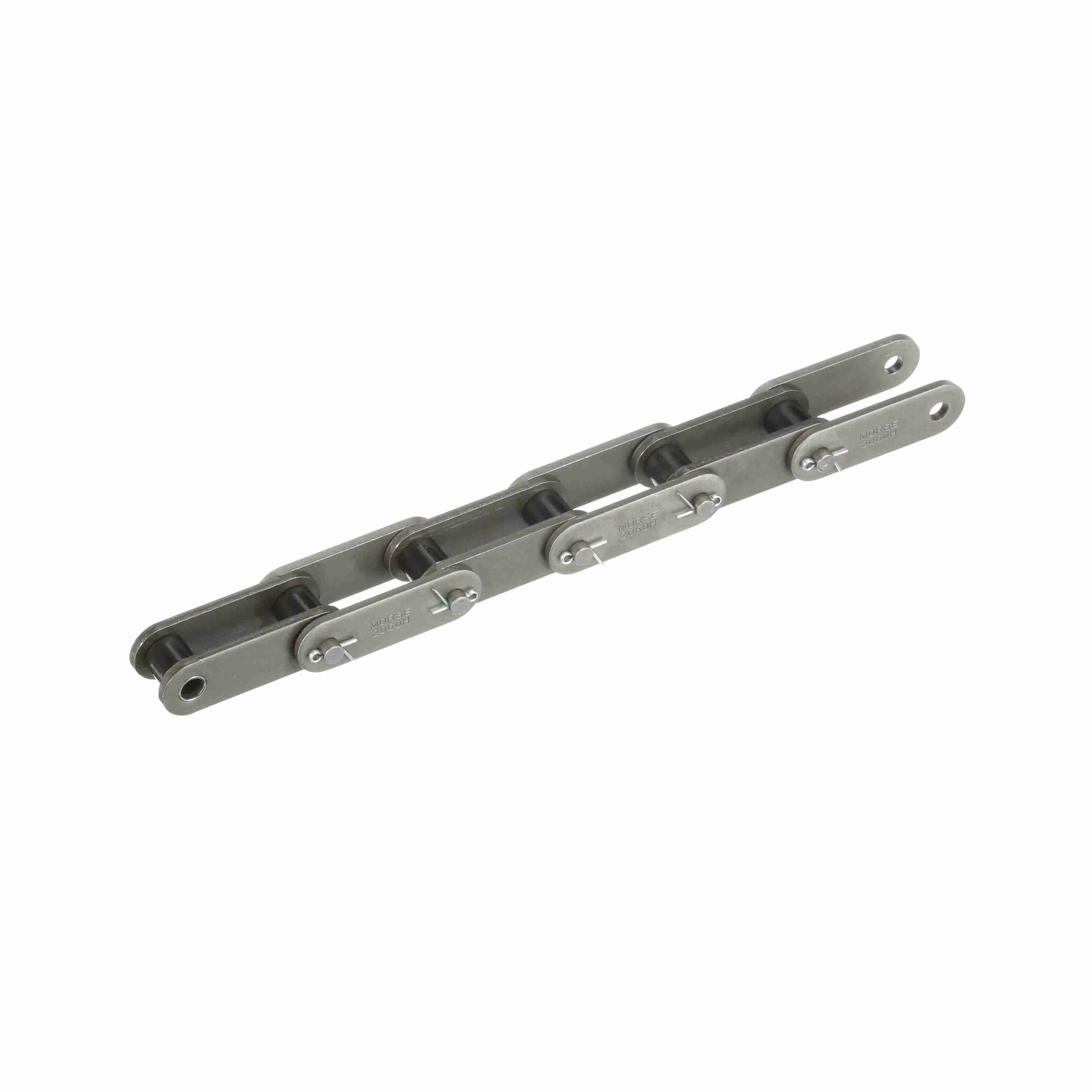

Morse Double Pitch Roller Chain - Cottered Standard Roller Design - C2060HC 10FT

Name: Morse Double Pitch Roller Chain - Cottered Standard Roller Design - C2060HC 10FT
Brand: Morse
Availability: OutOfStock

Part #:119823

Catalog #:C2060HC 10FT

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

Unmatched Quality and Performance in Morse Brand Chain in conveying chain
Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
Available in package quantities or via quick-turnaround cut-to-length

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Roller Width (in):	0.5 in	Roller Diameter (in):	0.468 in
Number of Connecting Links Included:	1	Pin Diameter (in):	0.234 in
Number of Strands/Width:	1	Chain Construction:	Cottered
Material:	Steel	Product Type:	Roller Chain
Chain Type:	Standard	Chain Pitch (in):	1.5 in
Chain Family:	C2060	Pin Length (in):	1.207 in
Base Catalog No:	C2060H	Plate Thickness (in):	0.125 in
Total Length (ft):	10 ft	Side Plate Configuration:	Straight
Inside Plate Height (in):	0.7 in
