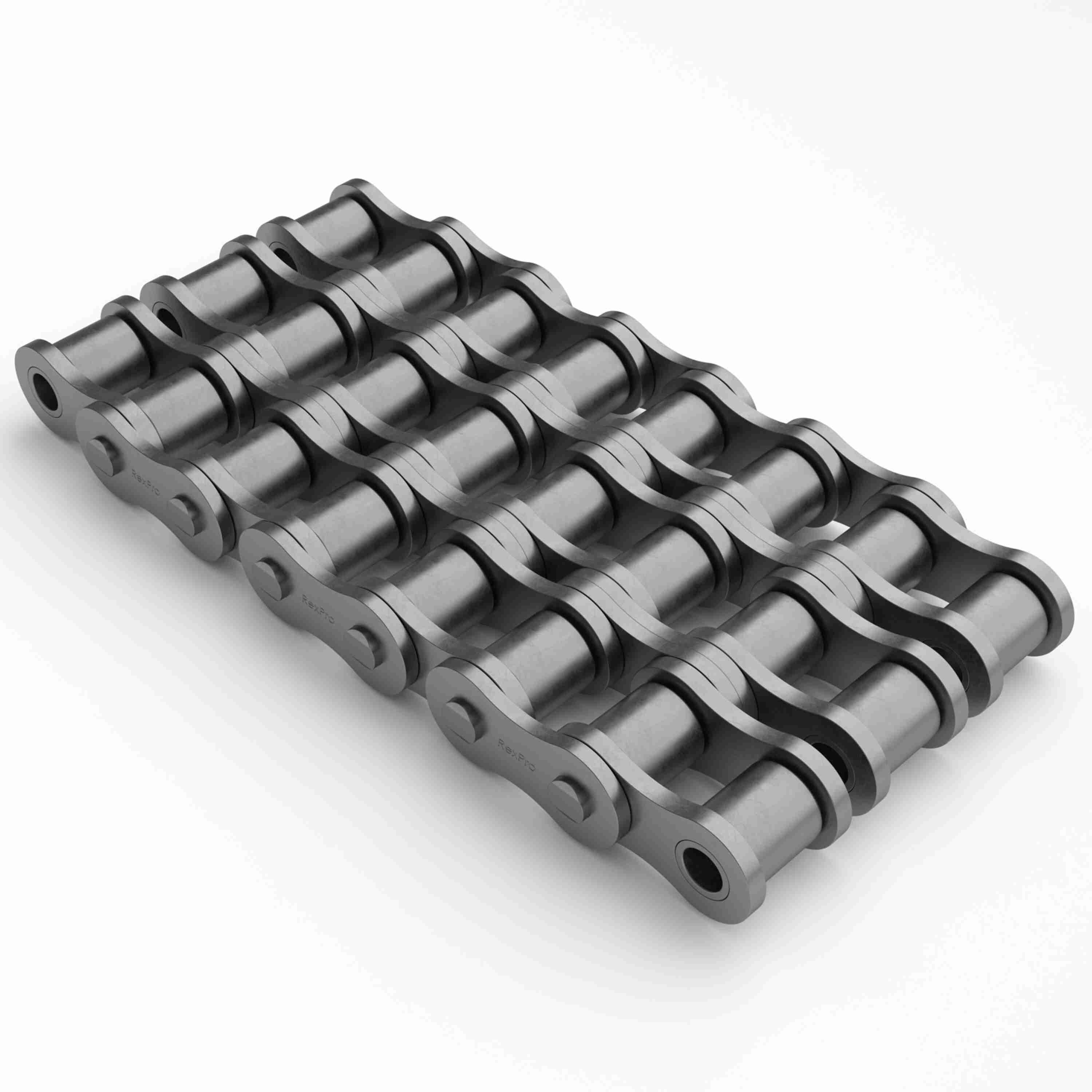

Link-Belt R603R10BX Roller Chains - R603R10BX
Part #:10483645
Catalog #:R603R10BX
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Type: | Standard-Approved Performance ANSI Standard | Chain Construction: | Riveted |
| Sprocket Unit: | C-20 | Base Catalog No: | 60-3 |
| Number of Strands/Width: | 3 | Width Between Outer Plates (in): | 0.5 in |
| Minimum Tensile Strength (lbs): | 21,090 lb | Plate Thickness (in): | 0.09 in |
| Series: | Roller Chain | Material: | Steel |
| Chain Pitch (in): | 0.75 in | Pin Length (in): | 2.9 in |
| Inside Plate Height (in): | 0.71 in | Pin Diameter (in): | 0.234 in |
| Roller Diameter (in): | 0.469 in |
General Specifications
| UPC: | 662327132422 | Weight: | 2.89 LB |
| Packaged Length: | 12.00 IN | Packaged Width: | 12.00 IN |
| Packaged Height: | 3.00 IN | HTC: | 7315110045 |
| Country of Origin: | China |
