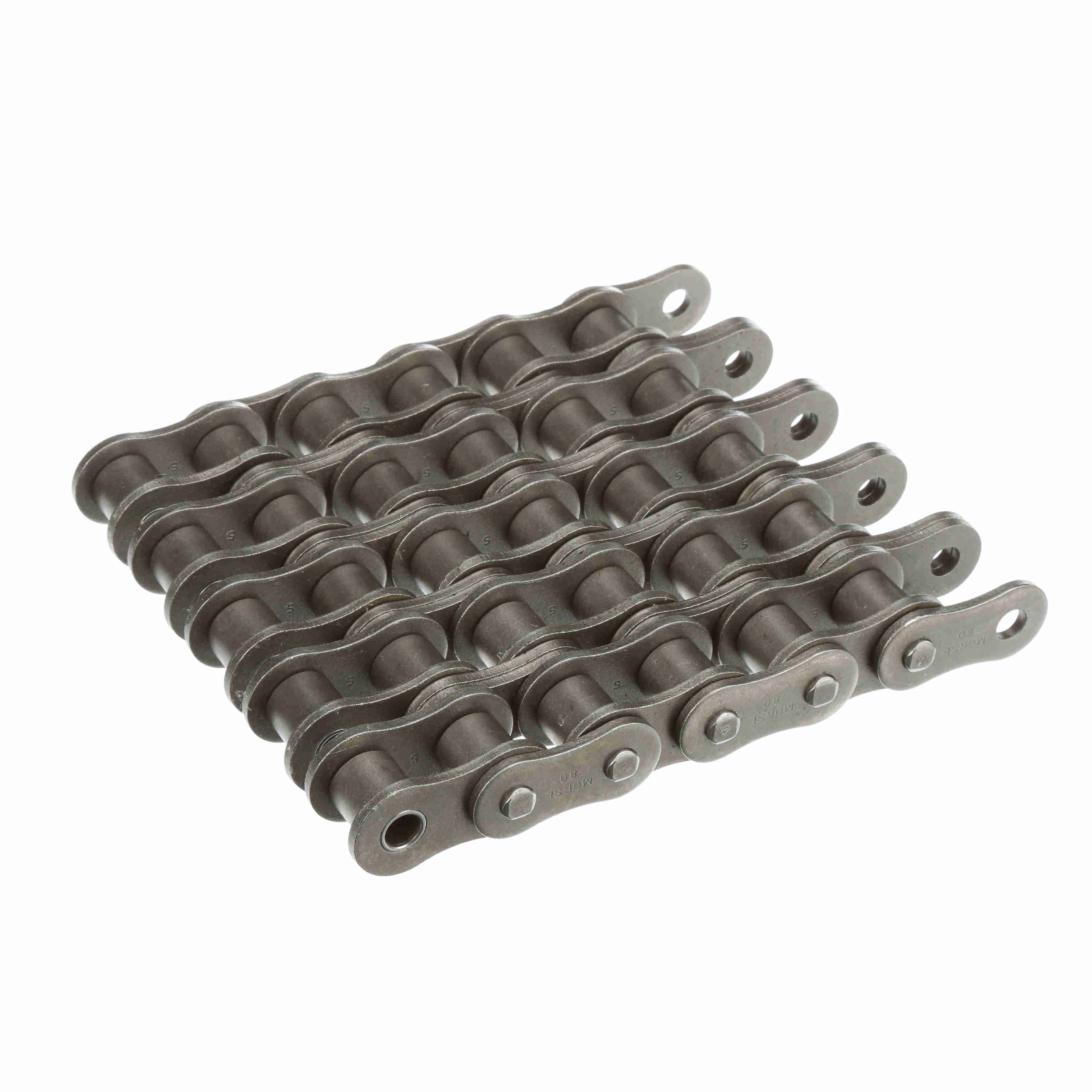

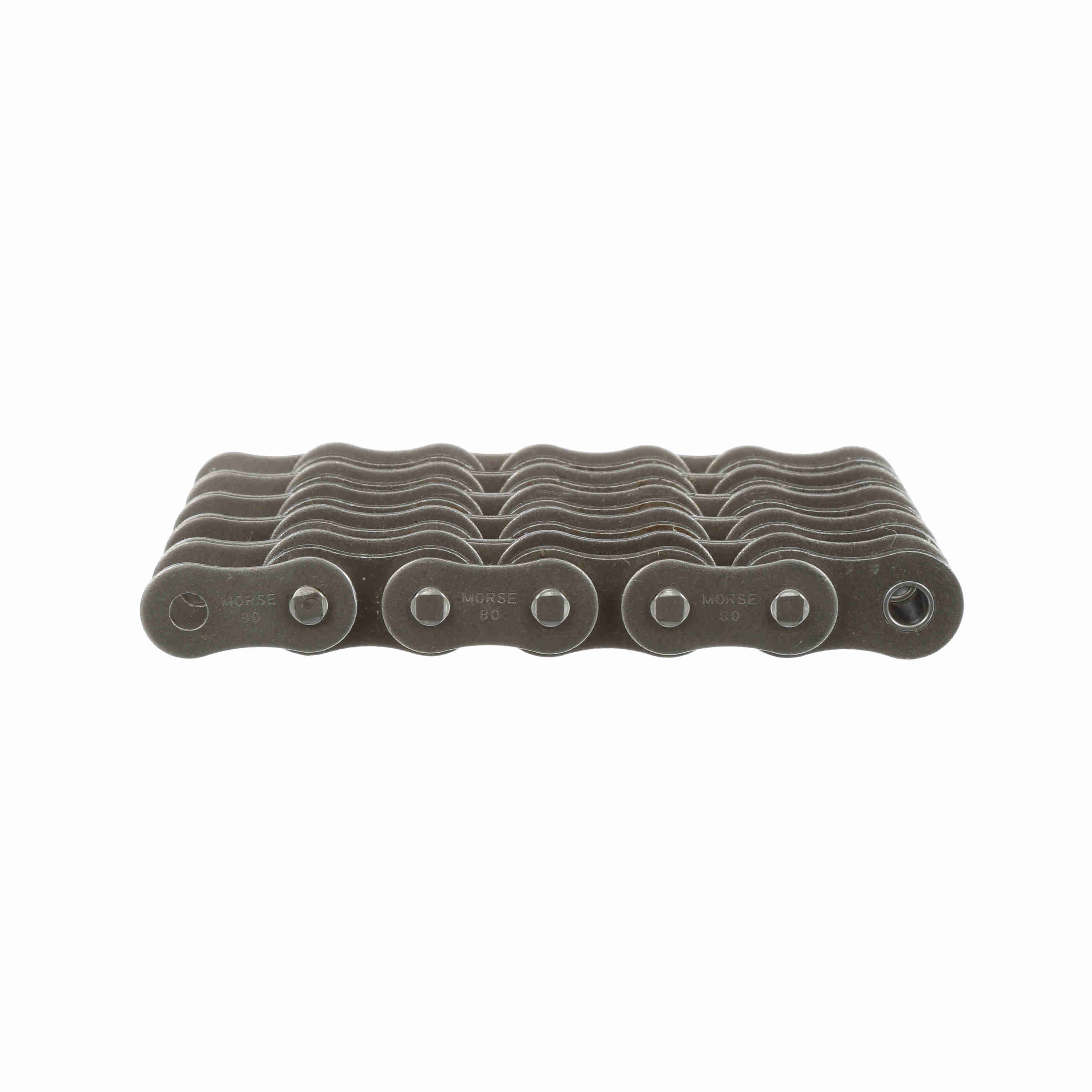

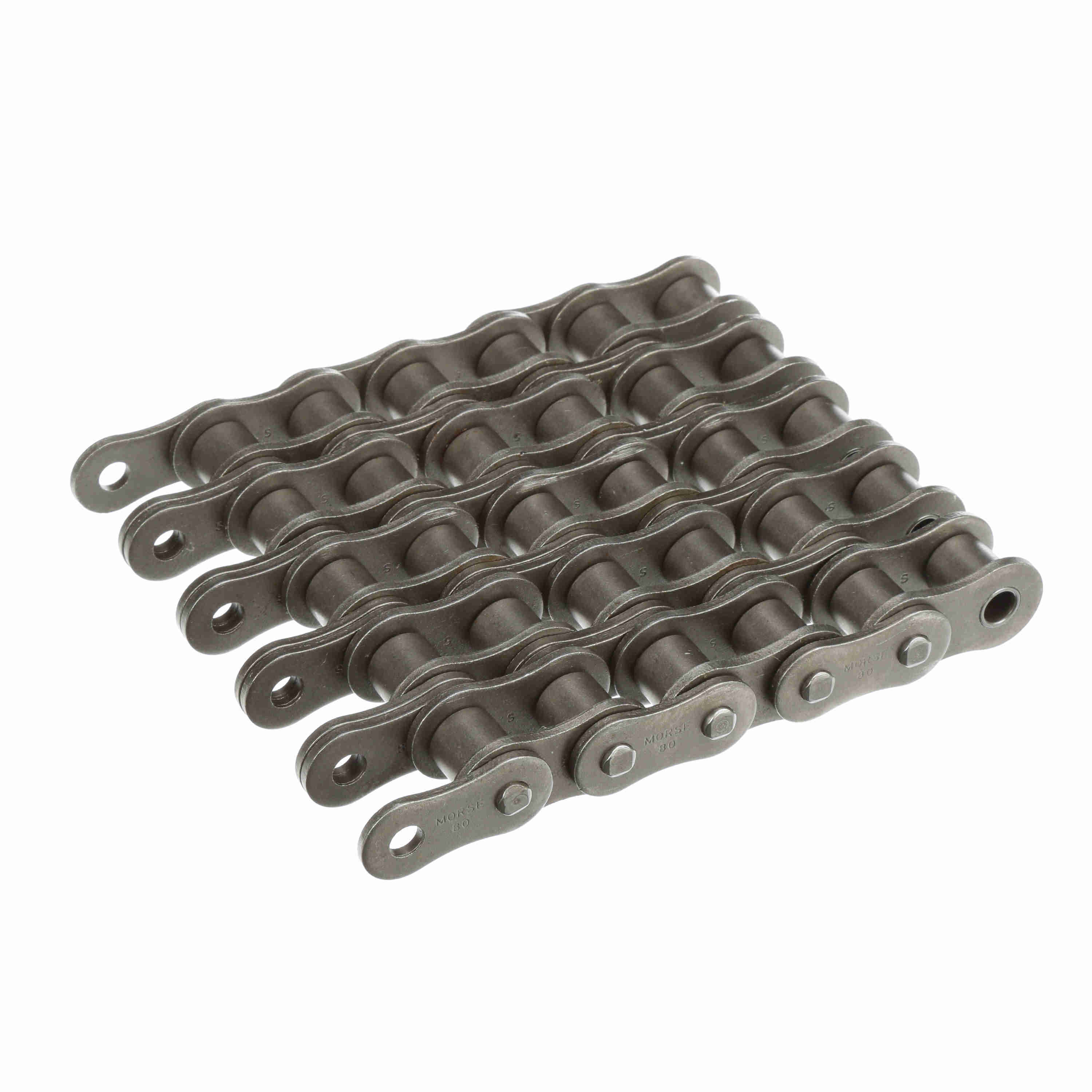

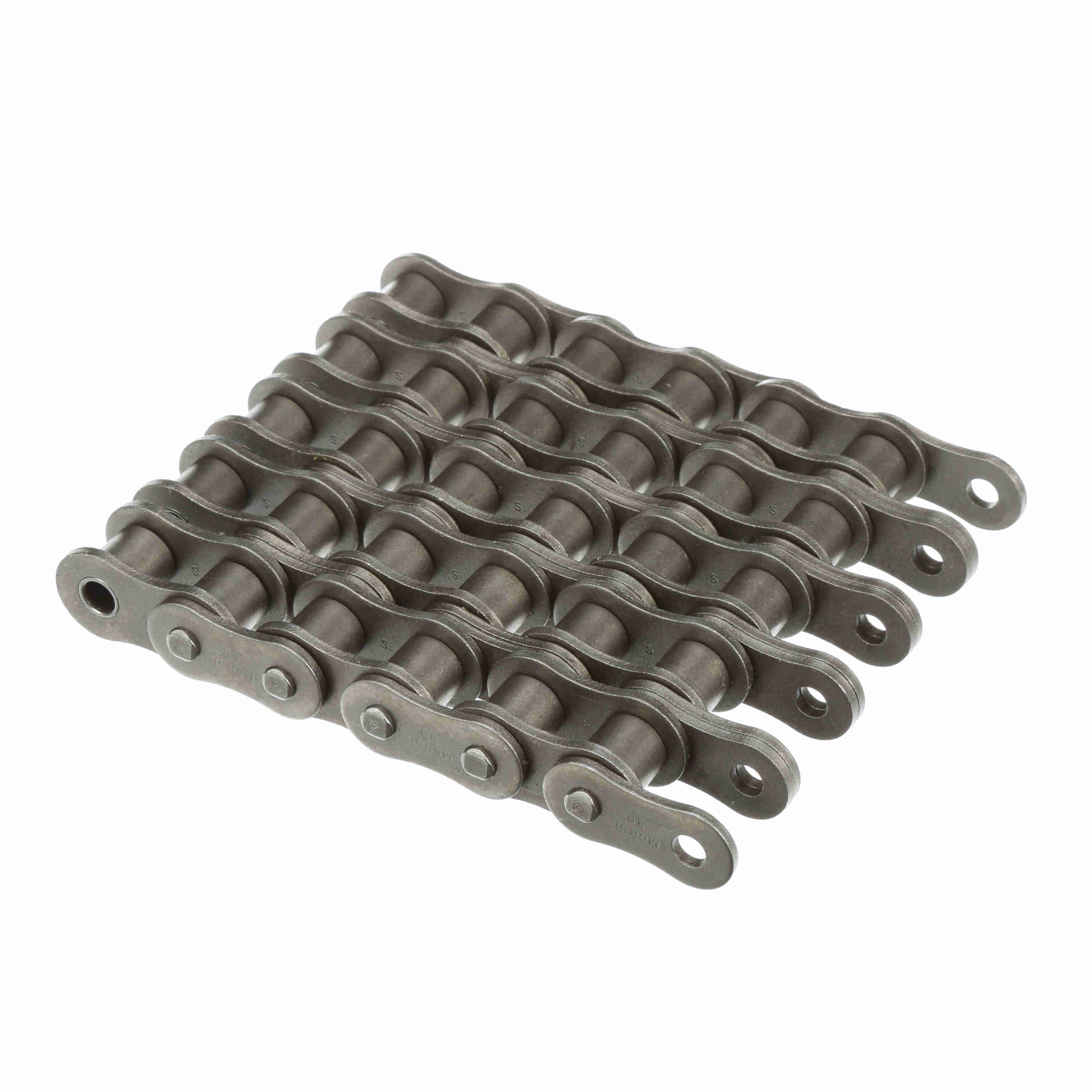

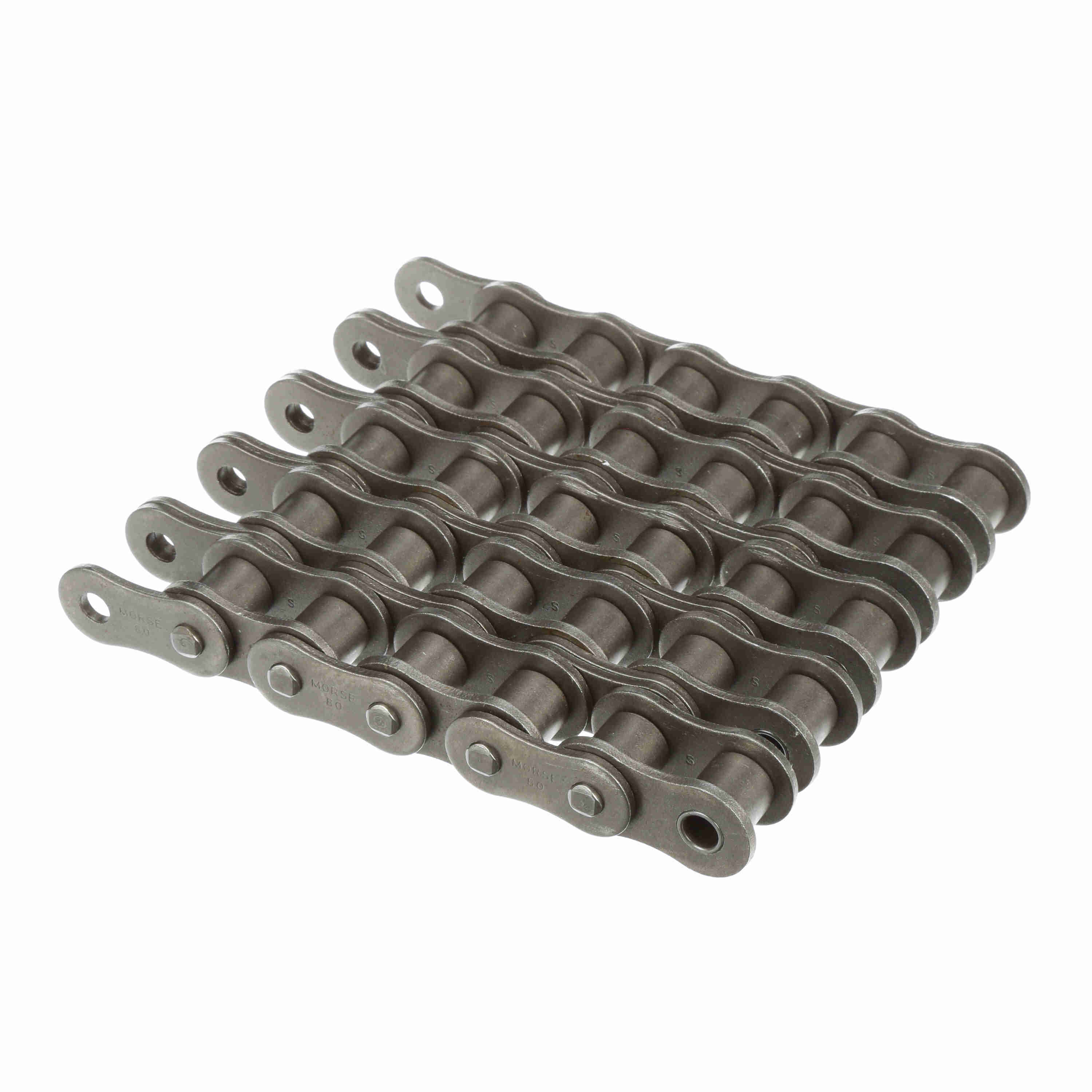

Morse Standard Riveted Roller Chain - 80-5R 10FT

Name: Morse Standard Riveted Roller Chain - 80-5R 10FT
Brand: Morse
Availability: OutOfStock

Part #:371911

Catalog #:80-5R 10FT

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

Unmatched Quality and Performance in Morse Brand Chain
Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
Available in package quantities or via quick-turnaround cut-to-length

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Number of Connecting Links Included:	1	Material:	Steel
Pin Diameter (in):	0.313 in	Roller Width (in):	0.625 in
Roller Diameter (in):	0.625 in	Chain Family:	80
Number of Strands/Width:	5	Chain Construction:	Riveted
Chain Pitch (in):	1 in	Product Type:	Roller Chain
Chain Type:	Standard	Coating:	Uncoated
Standard Met:	ANSI B29.1	Measurement System:	Imperial
Inside Plate Height (in):	0.934 in	Plate Thickness (in):	0.125 in
Base Catalog No:	80-5	Total Length (ft):	10 ft
Transverse Pitch (in):	1.153 in	Side Plate Configuration:	Hourglass
Minimum Tensile Strength (lbs):	62,500 lb	Width Over Pins/Total Width (in):	5.891 in
Pin Length (in):	5.891 in

UPC:	662288860372	Weight:	8.46 LB
HTC:	7315.11.0060	Country of Origin:	Taiwan, Republic of China
