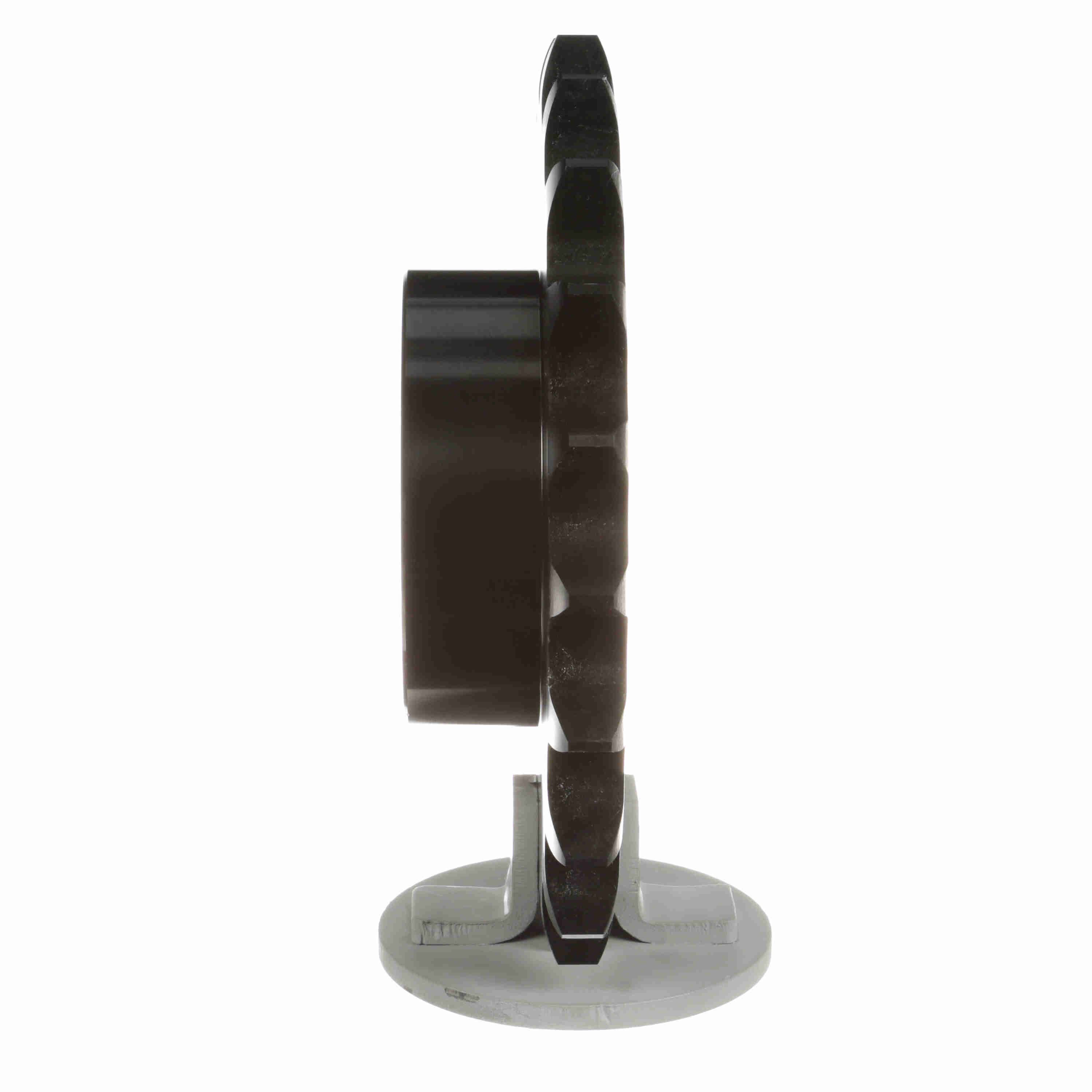

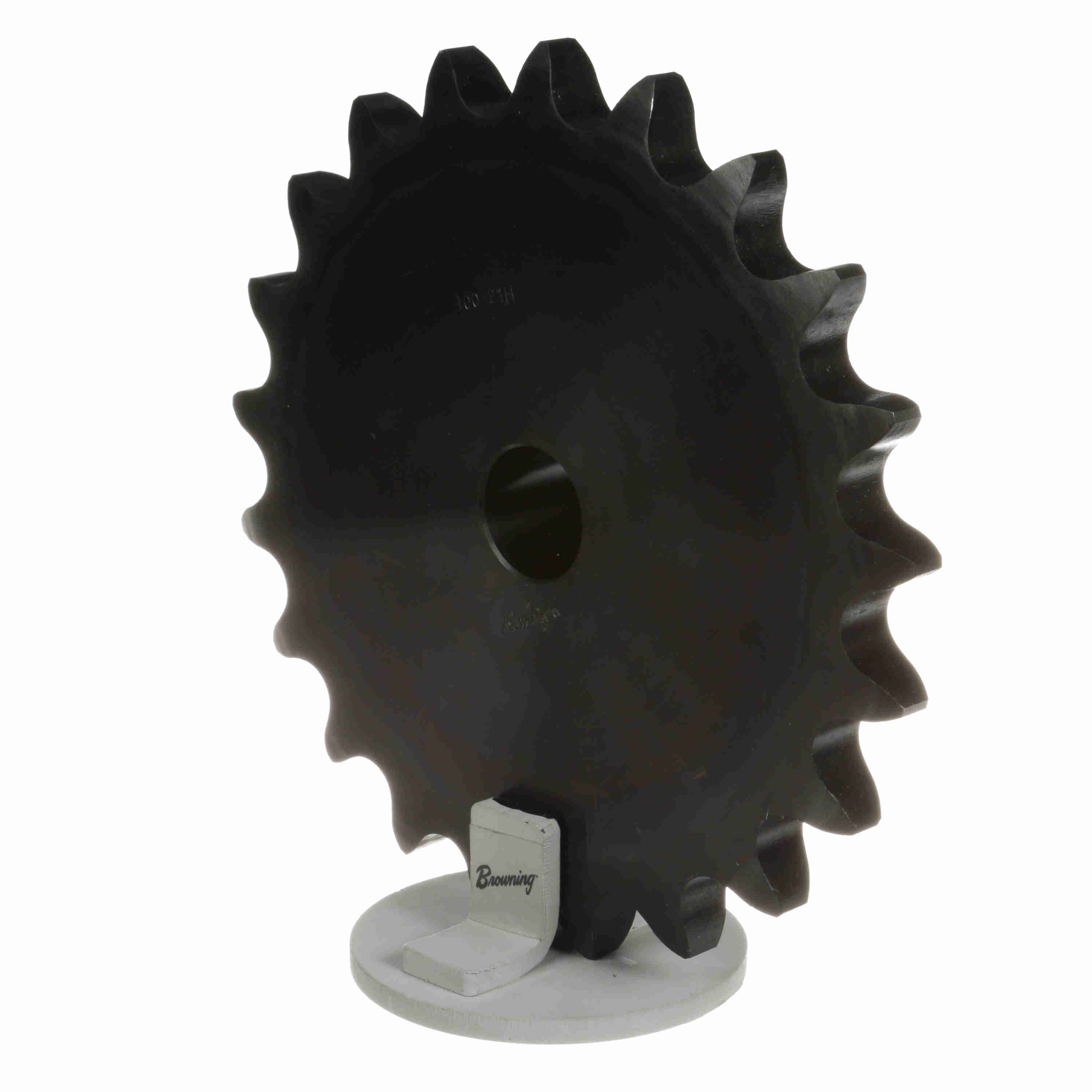

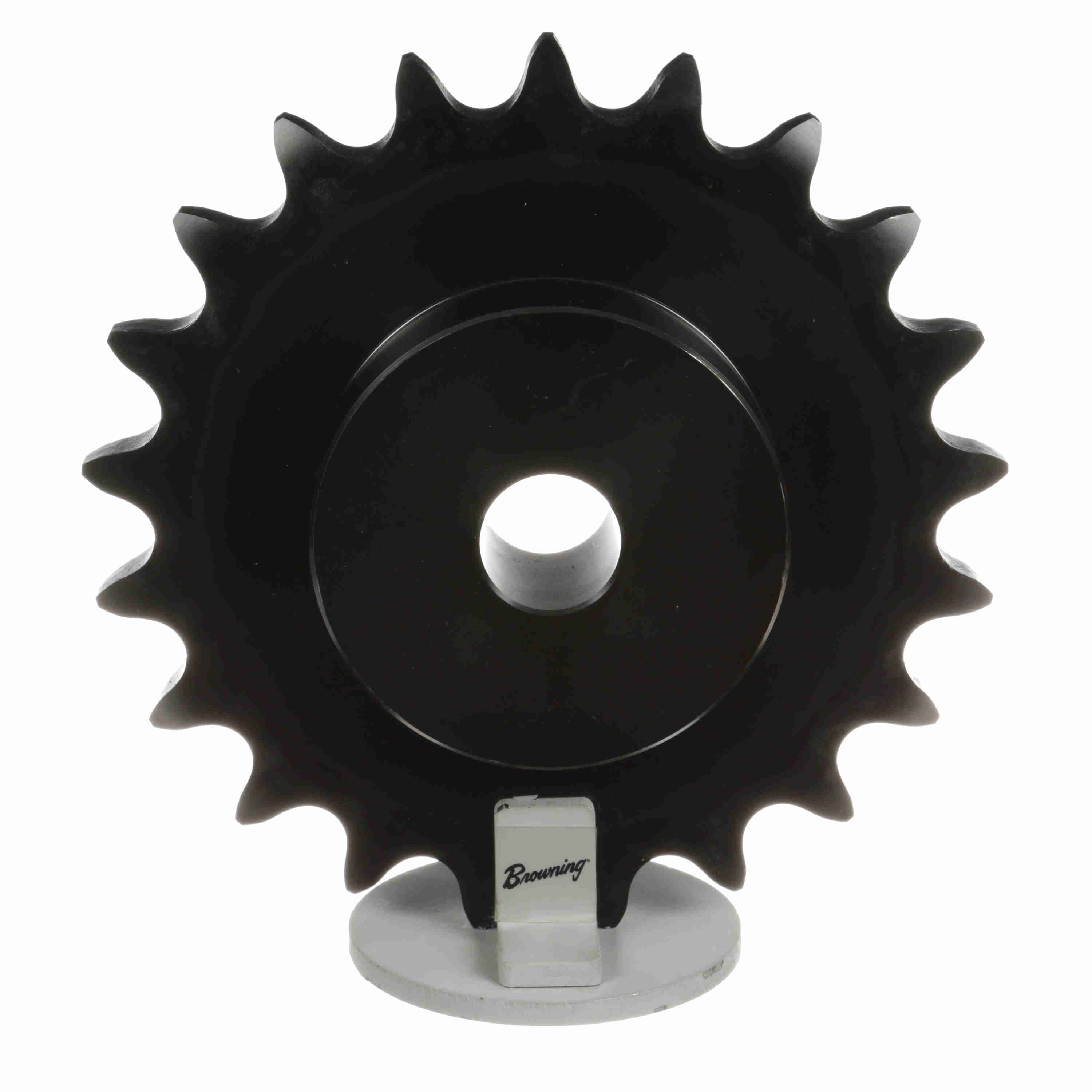

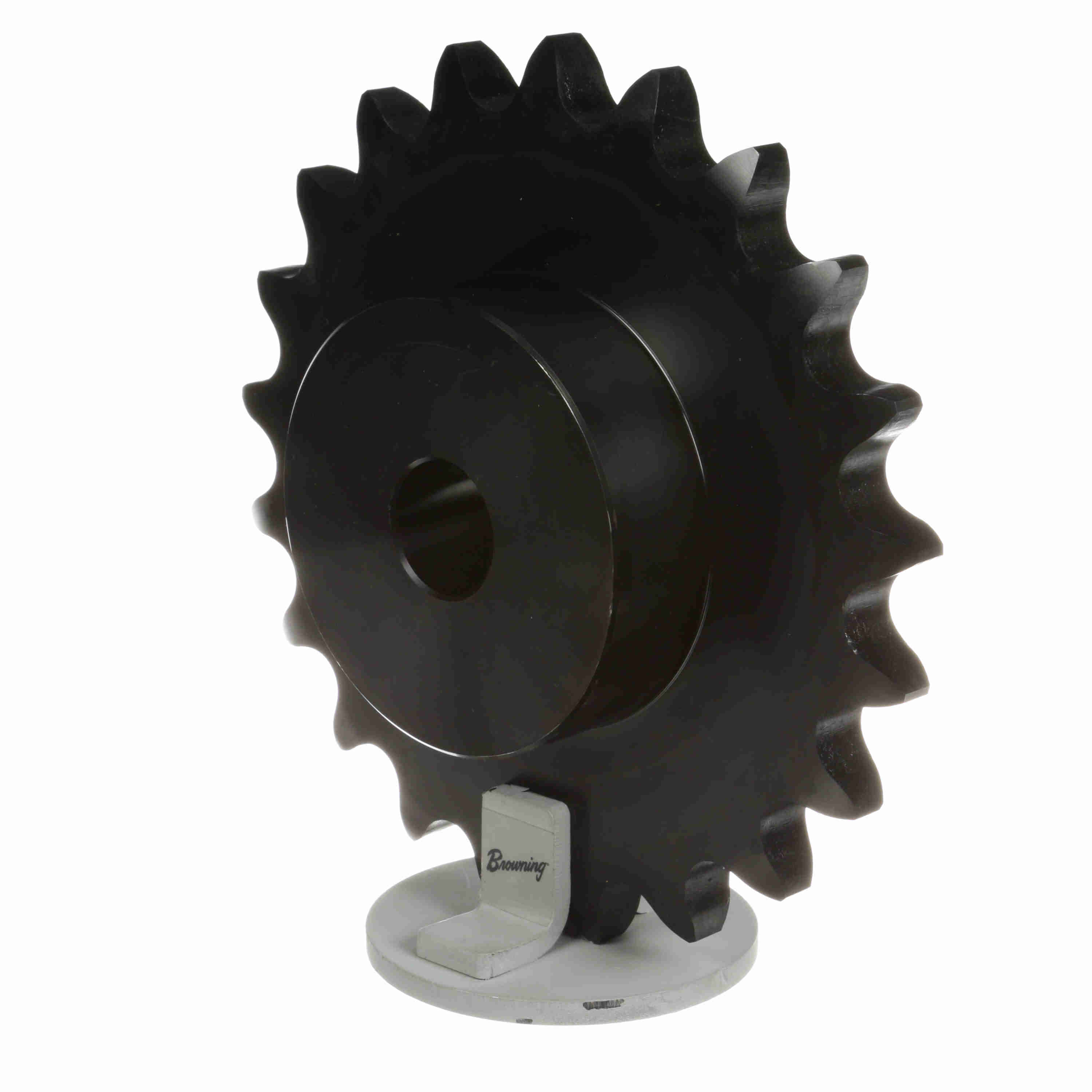

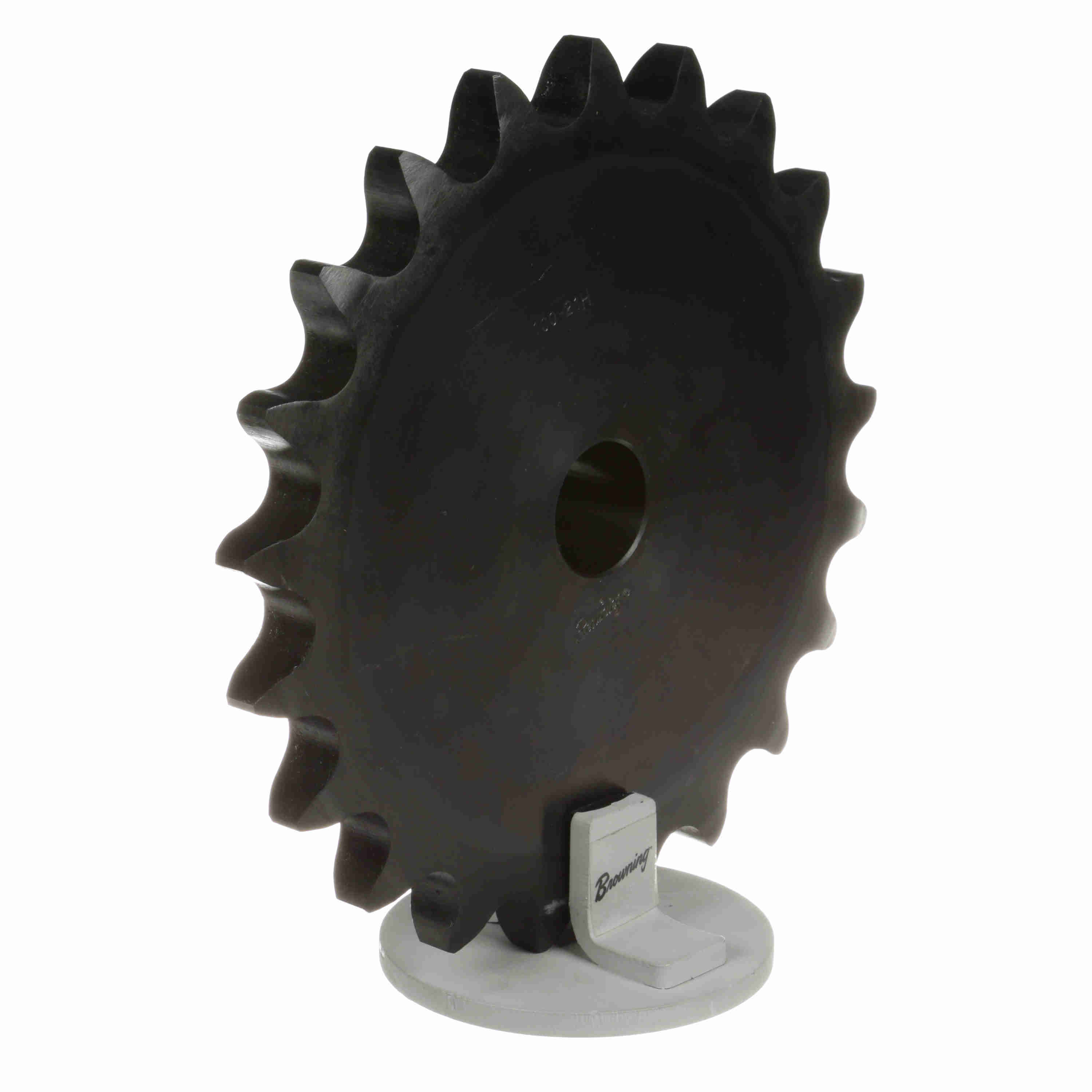

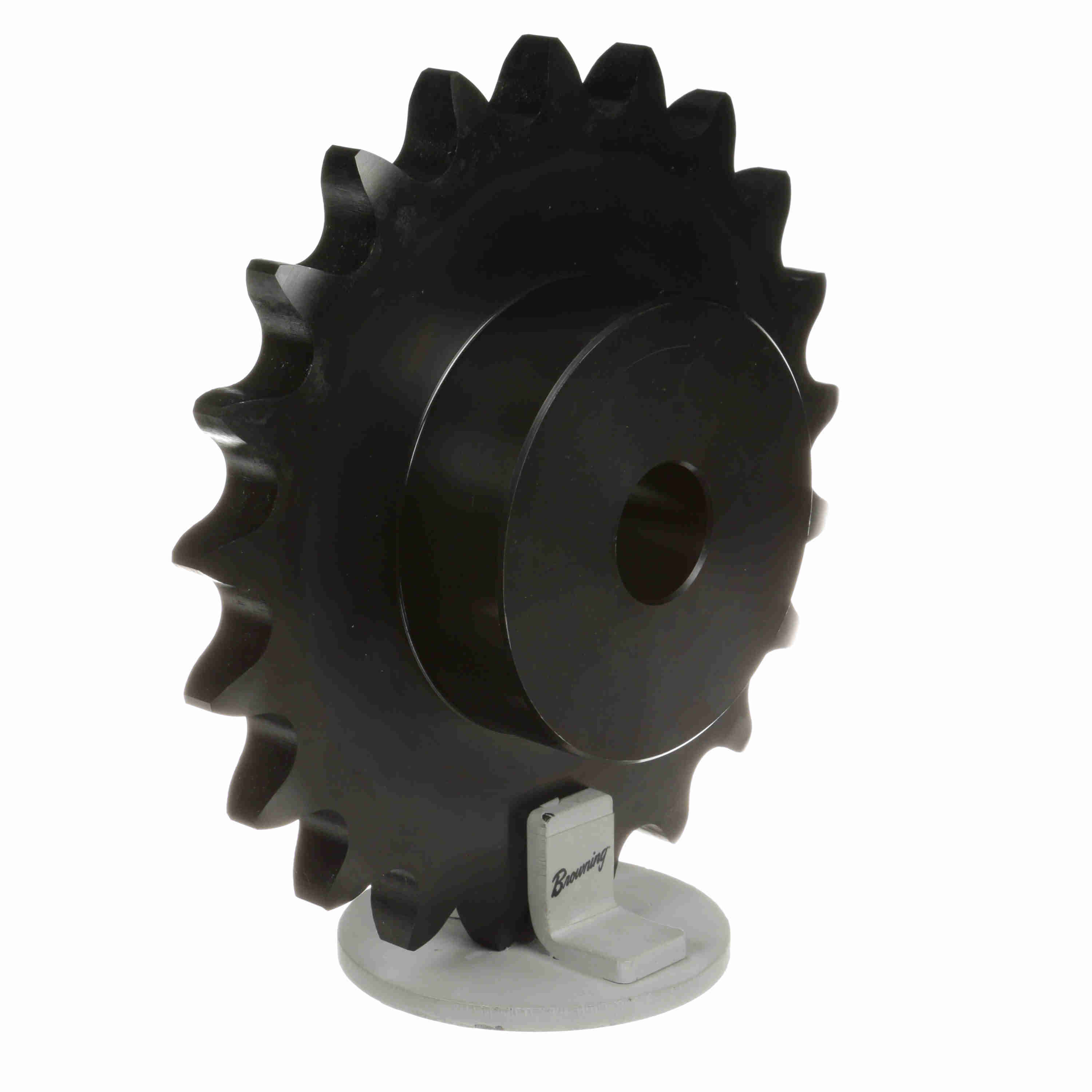

Browning Steel Minimum Plain Bore Roller Chain Sprocket - 100B21
Part #:1124122
Catalog #:100B21
KEY FEATURES
- When you think Sprockets - Think Browning
- Made with Minimum bore, no keyseat or setscrew. This can be bored to size with keyseat and setscrew for a reasonable extra charge.
- Maximum Bore Shown will accommodate standard keyways and setscrews over keyway. Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway.
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain | Number of Teeth: | 21 |
| Material: | Steel | Product Type: | Type "B" Minimum Bore Sprocket |
| Chain Pitch (in): | 1.25 in | Bore Type: | Minimum Plain Bore |
| Hub Diameter (in): | 4.5 in | Tooth Width (in): | 0.692 in |
| Max Bore (in): | 3 in | Min Bore (in): | 1.3125 in |
| Sprocket Material: | Steel, Hardened Teeth | Outside Diameter (in): | 9.04 in |
| Length Through Bore (in): | 2 in | Overall Length (in): | 2 in |
| Hub Type: | Type B | Pitch Diameter (in): | 8.387 in |
| Number of Strands/Width: | 1 | Bore Diameter (in): | 1.3125 in |
| Maximum Bore (in): | 3.25 in | Minimum Bore (mm): | 26 mm |
| Maximum Bore (mm): | 82 mm | Number of Hubs: | 1 |
| Hub Projection (in): | 1.3125 in |
General Specifications
| UPC: | 662289160693 | Weight: | 15.95 LB |
| Packaged Length: | 9.06 IN | Packaged Width: | 9.06 IN |
| Packaged Height: | 2.25 IN | HTC: | 8483.90.1050 |
| Country of Origin: | United States of America |
