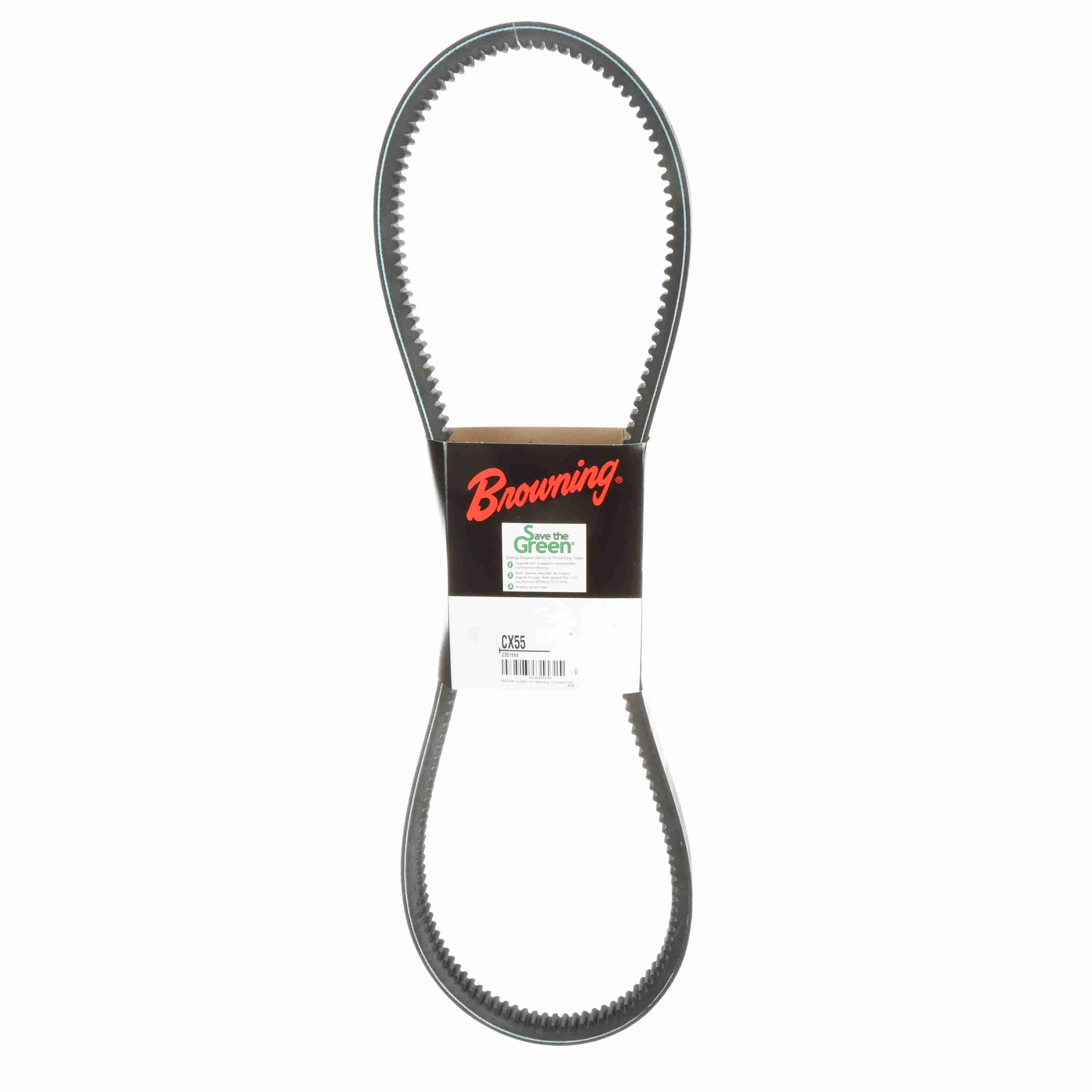

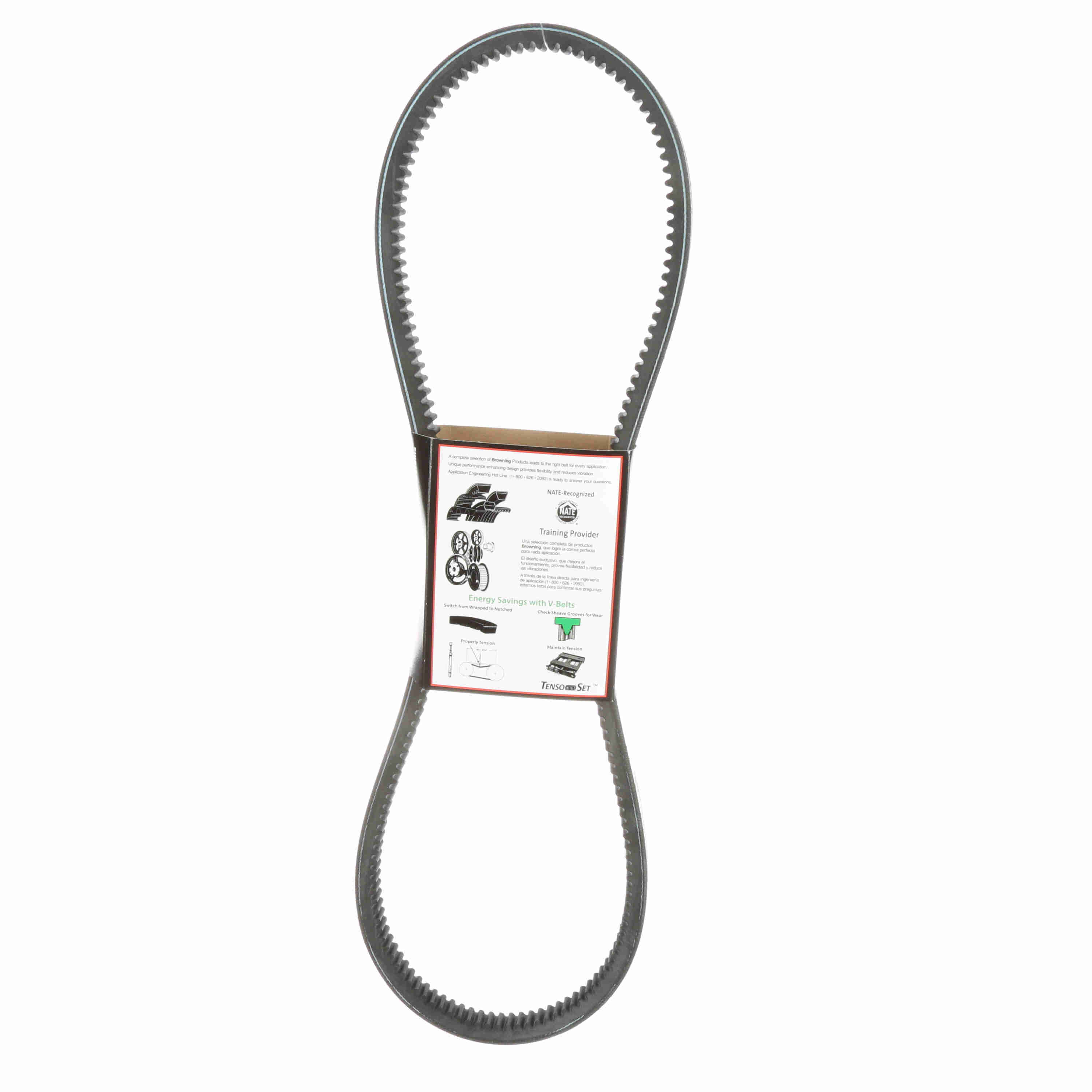

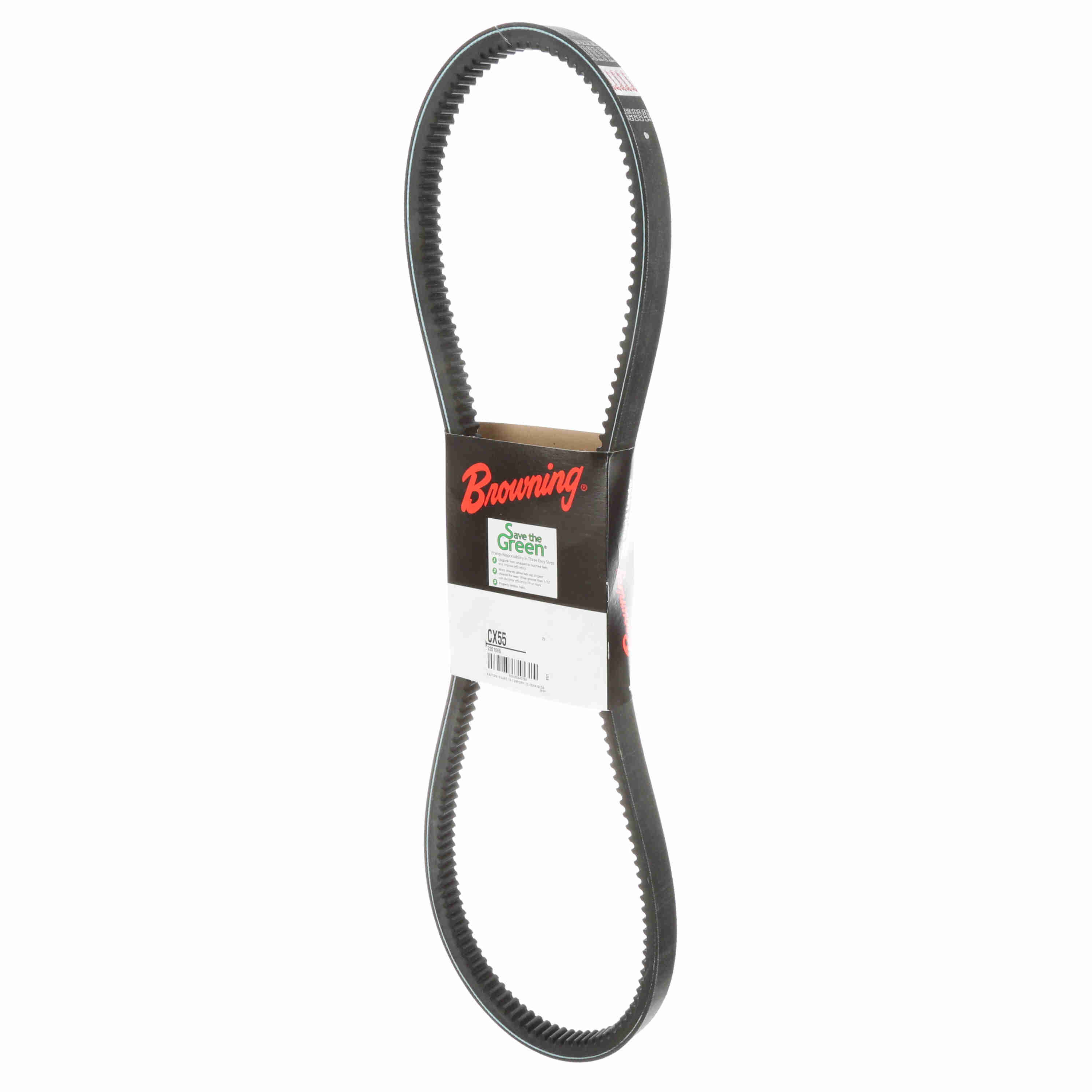

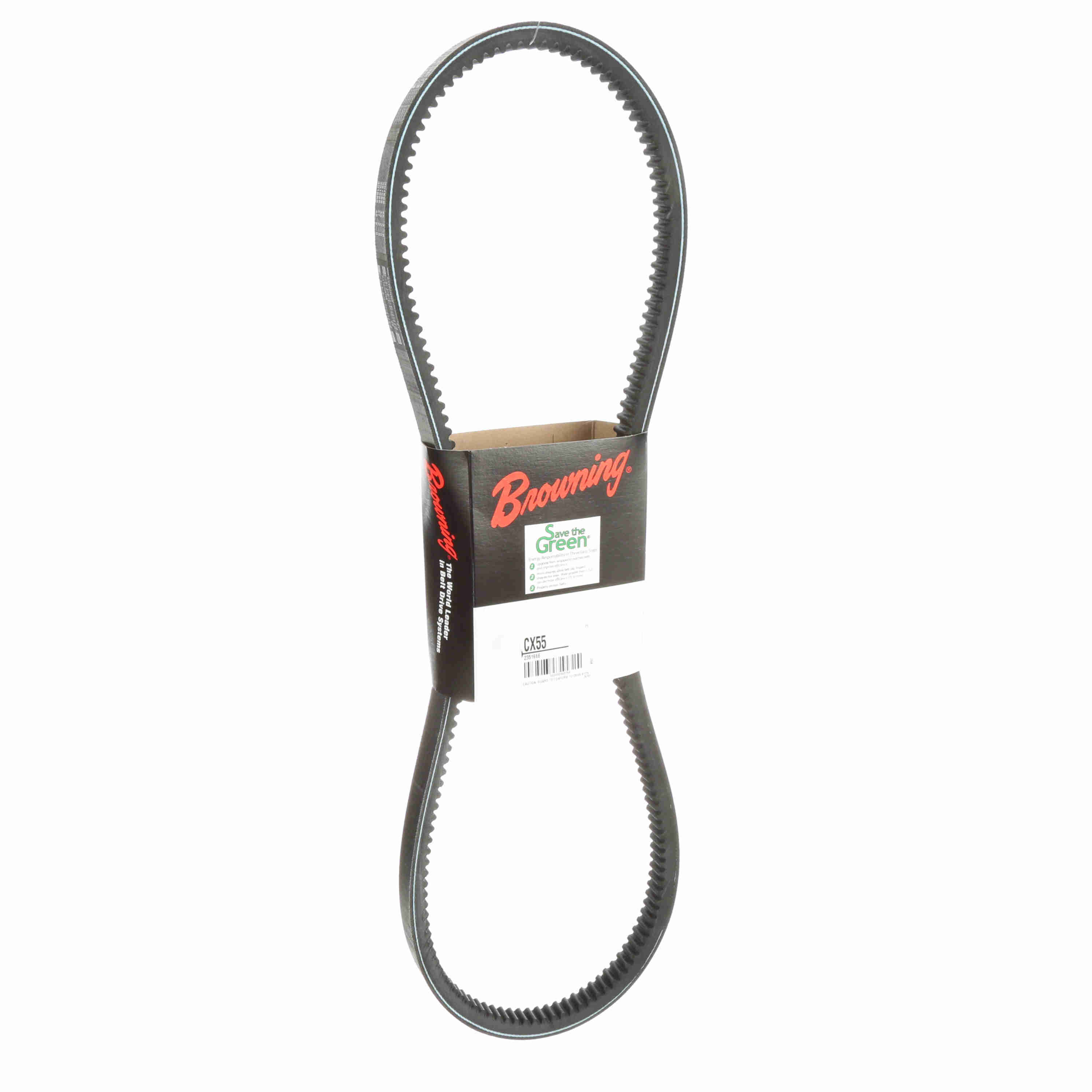

Browning EPDM Notched Belt 98% Efficient - CX55

Name: Browning EPDM Notched Belt 98% Efficient - CX55
Brand: Browning
Availability: OutOfStock

Part #:2351666

Catalog #:CX55

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

EPDM Material provides expanded operating temperature range to -60F degrees to 250F degrees which helps ensure long-life and reliable performance in the moste demanding climates and heat sensitive applications.
Precision Molded Cogs - Provide more surface area for heat dissipation and increase belt flexibility. Cooler running means longer life. Browning Notched belts assure longer life when replacing existing Wrapped V-Belts.
Close Belt tolerance - Browning Belts offer the "Code 1" Match belt system on all classical and "358" Belts, allowing easy selection of just one match number for each belt size. This ensures tighter than RMA standards.
High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt.
Raw-Edge Sidewalls - Improved gripping contract with pulley sidewalls. Assures less vibration and Smoother , quieter performance. Notched belts provide higher horsepower than wrapped belts.

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Pitch Length:	57.9	Type:	Gripnotch Notched V-Belts
Belt Section:	CX	Material:	EPDM
Efficiency (%):	0.98	Product Type:	Notched Belt
Outside Diameter (in):	59.2 in	Outside Length/Diameter (in):	59.2 in
Operating Temperature [Max] ºC:	121 °C	Operating Temperature [Max] ºF:	250 °F
Width (in):	0.875 in	Belt Series:	Gripnotch
Section Size:	CX	Reinforcing cord material:	Nylon
Number of Ribs:	1	Construction Type:	Cogged
Height:	0.5313	Band Type:	Belt with Ends Joined
