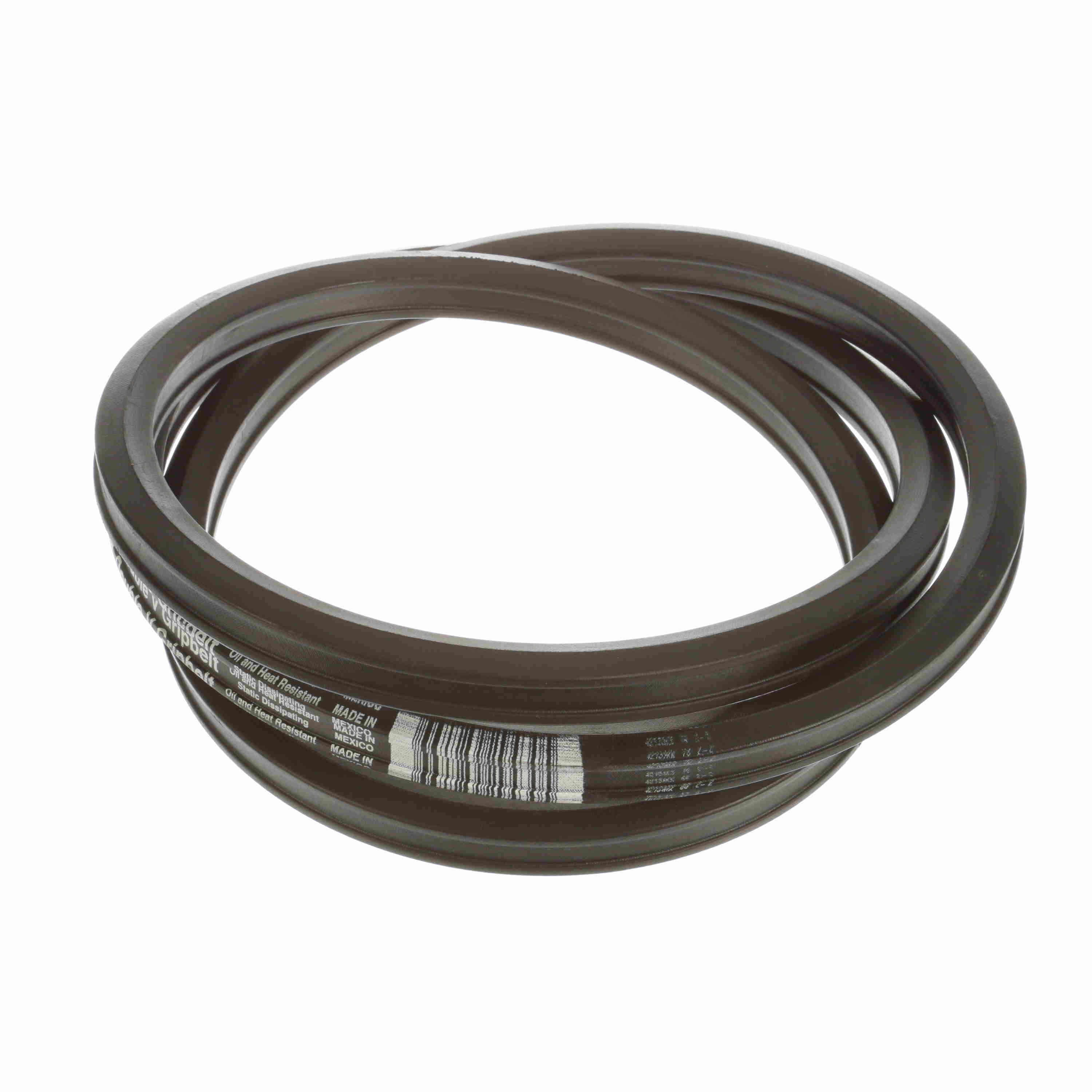

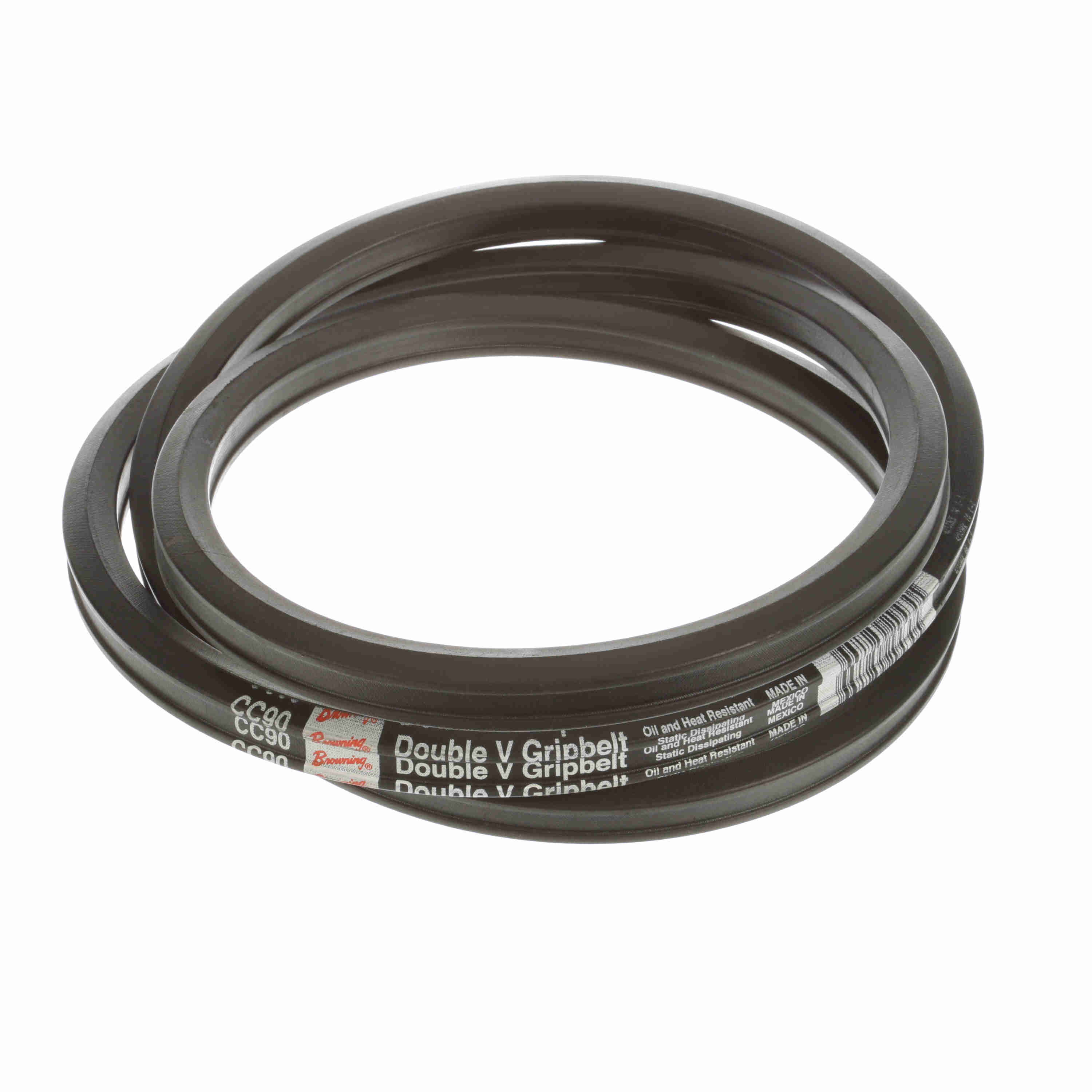

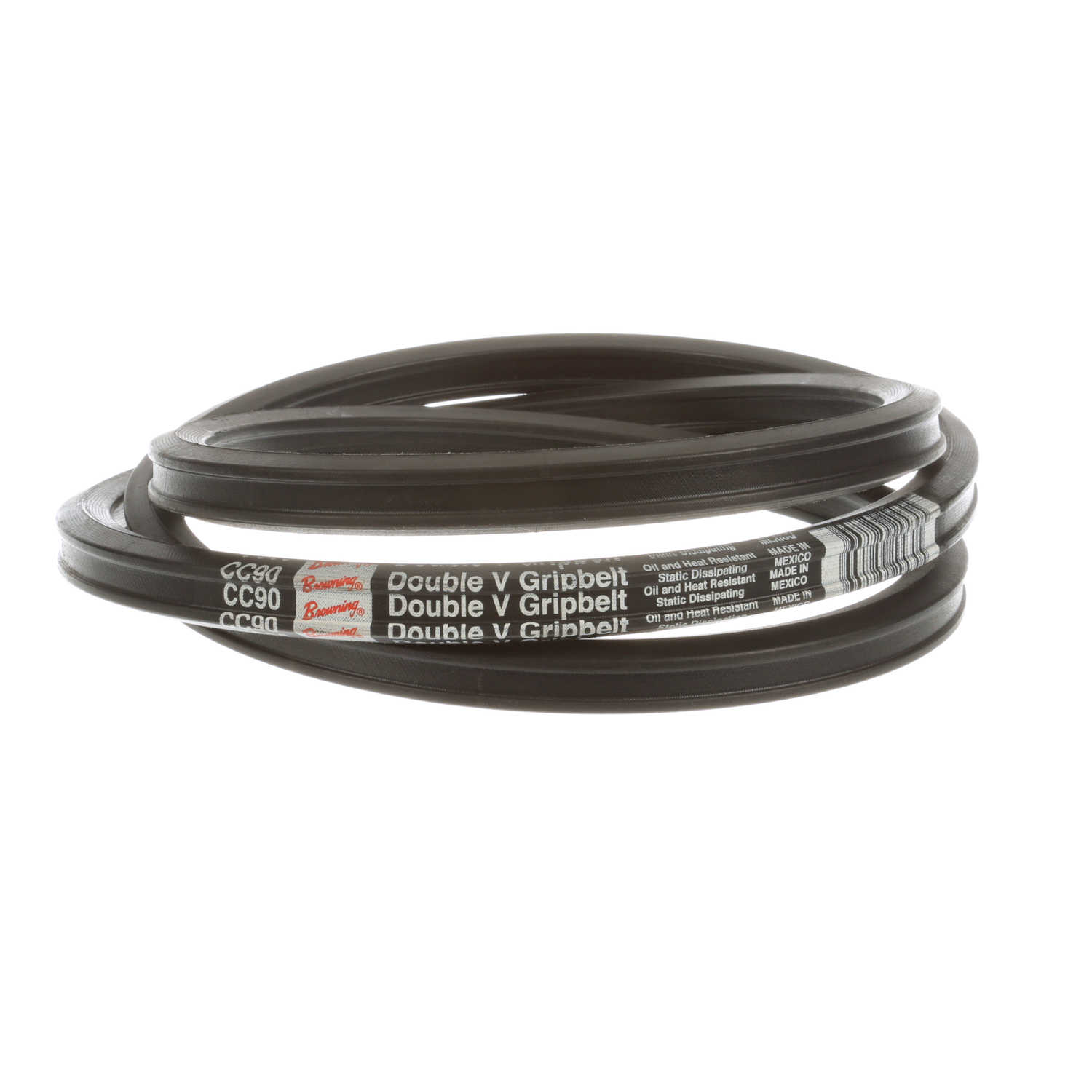

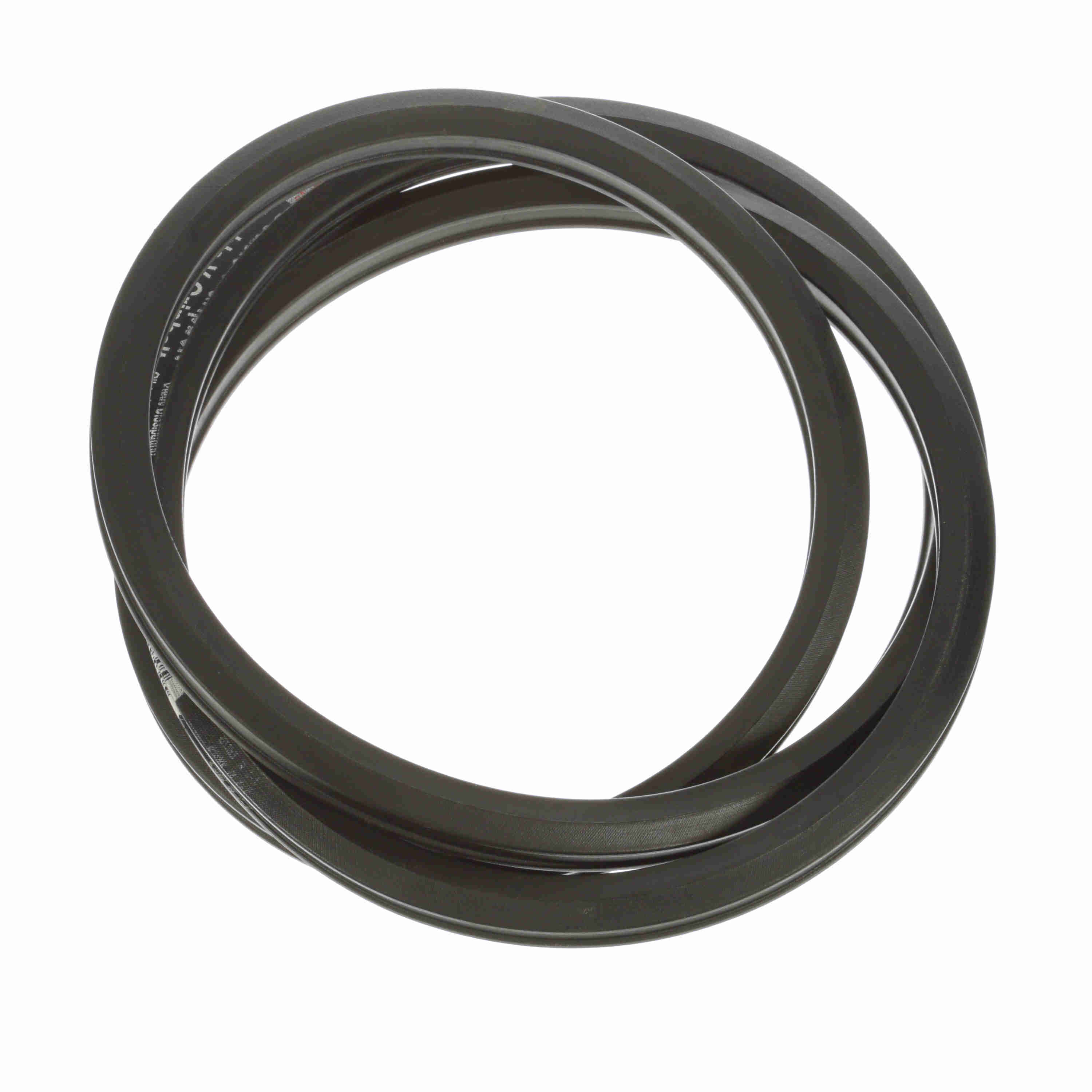

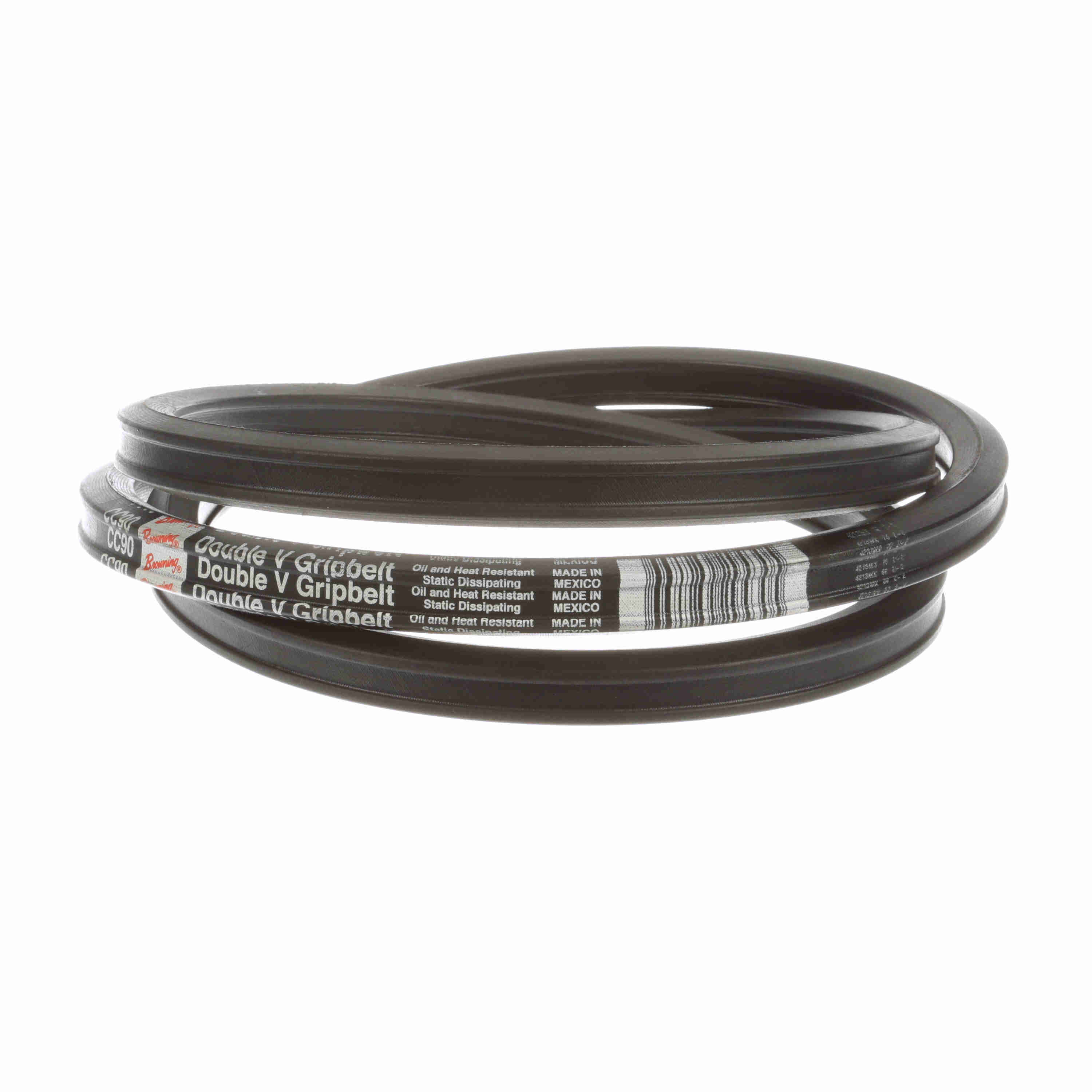

Browning Neoprene Wrapped Belt 95% Efficient - CC90

Name: Browning Neoprene Wrapped Belt 95% Efficient - CC90
Brand: Browning
Availability: OutOfStock

Part #:1088137

Catalog #:CC90

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

Ideal for multiple shaft drives - When a drive requires operation of several shafts to run in the same or different directions Double V-Gripbelts are the most economical solution. Ideal for serpentine drives.

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Belt Section:	CC	Pitch Length:	94.2
Type:	Super Gripbelt V-Belts	Material:	Neoprene
Operating Temperature [Max] ºC:	60 °C	Outside Diameter (in):	96.2 in
Outside Length/Diameter (in):	96.2 in	Operating Temperature [Max] ºF:	140 °F
Efficiency (%):	0.95	Product Type:	Wrapped Belt
Section Size:	CC	Width (in):	0.875 in
Belt Series:	Gripbelt	Construction Type:	Classic
