Browning Steel Bushed Bore HPT Chain Sprocket - B8MCS-90-12

Part #:2764967

Catalog #:B8MCS-90-12

Key Features Product Specs

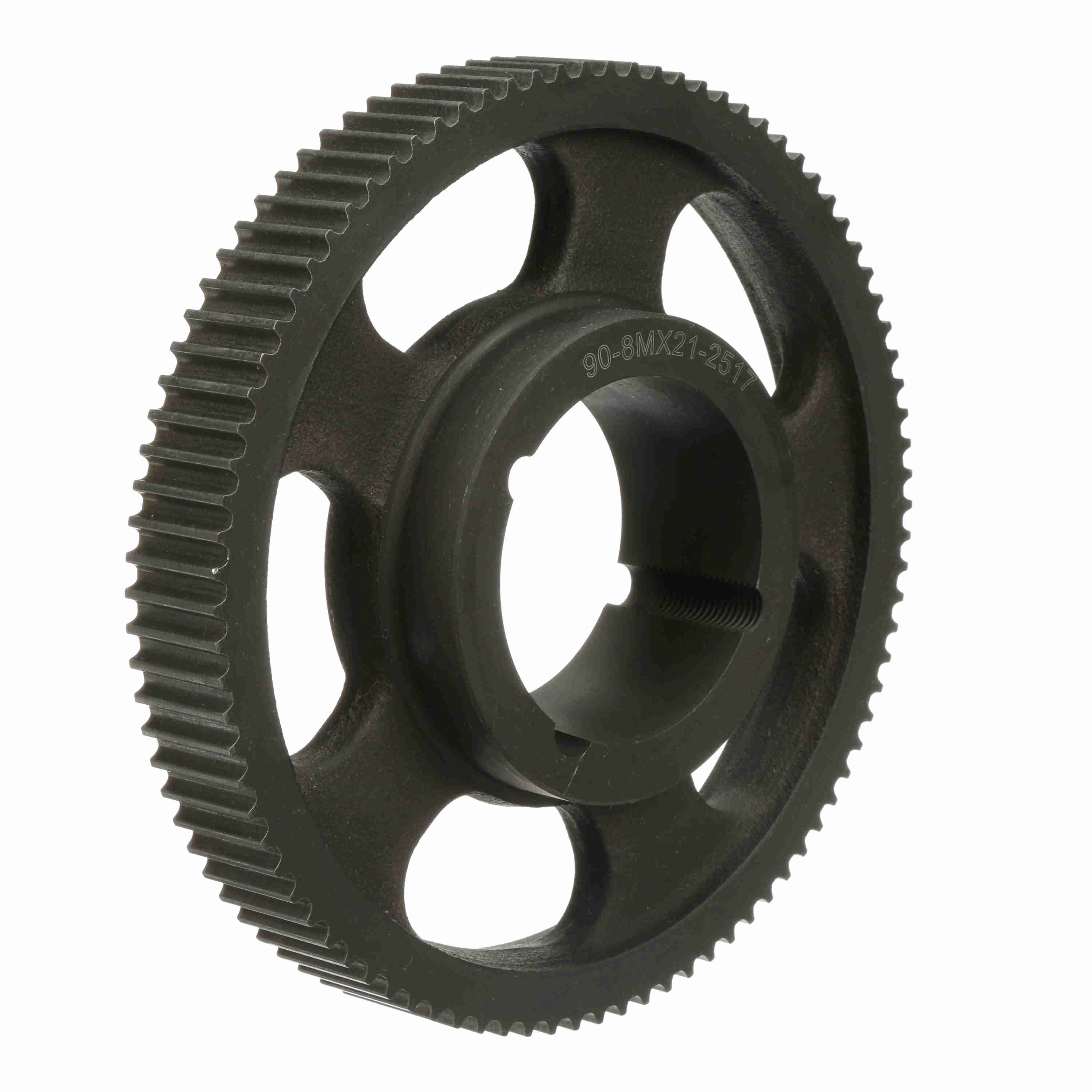

Image differs from product

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Chain Synchronous pulley, bushed to fit taper lock bushing
High performance compact design
Well suited for high-torque applications; under 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Bushing:	2012	Product Type:	HPT Chain Sprocket
Number of teeth:	90	Width (mm):	12 mm
Bushing Type:	Taper Bore	Bore Type:	Bushed
Outside Diameter (mm):	227.584 mm	Material:	Steel
Bore (Min) (mm):	12.7 mm	Pitch Diameter (mm):	229.1842 mm
Bore (Max) (mm):	53.975 mm	Belt Section:	8M

General Specifications

UPC:	662460614618	Weight:	8.00 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
