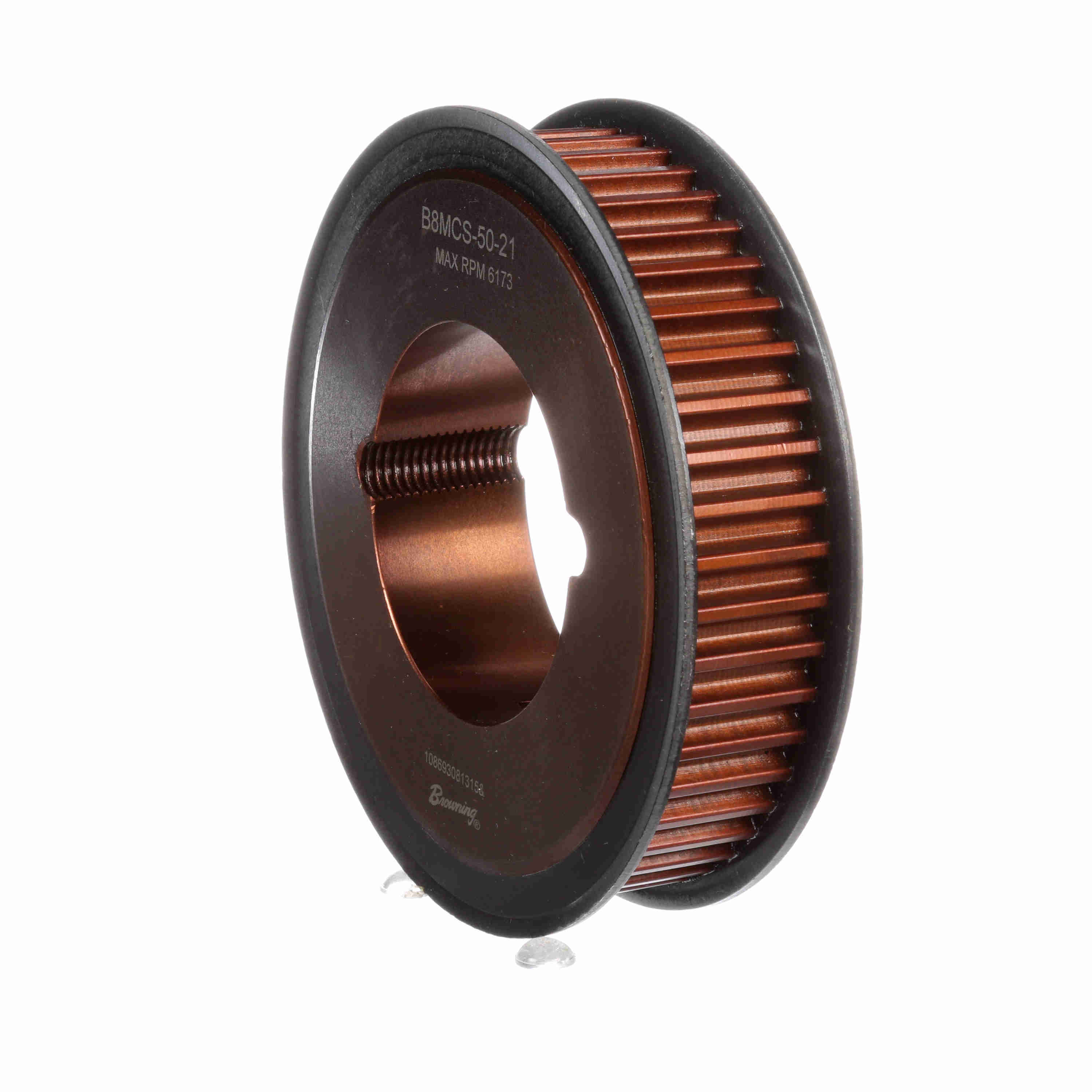

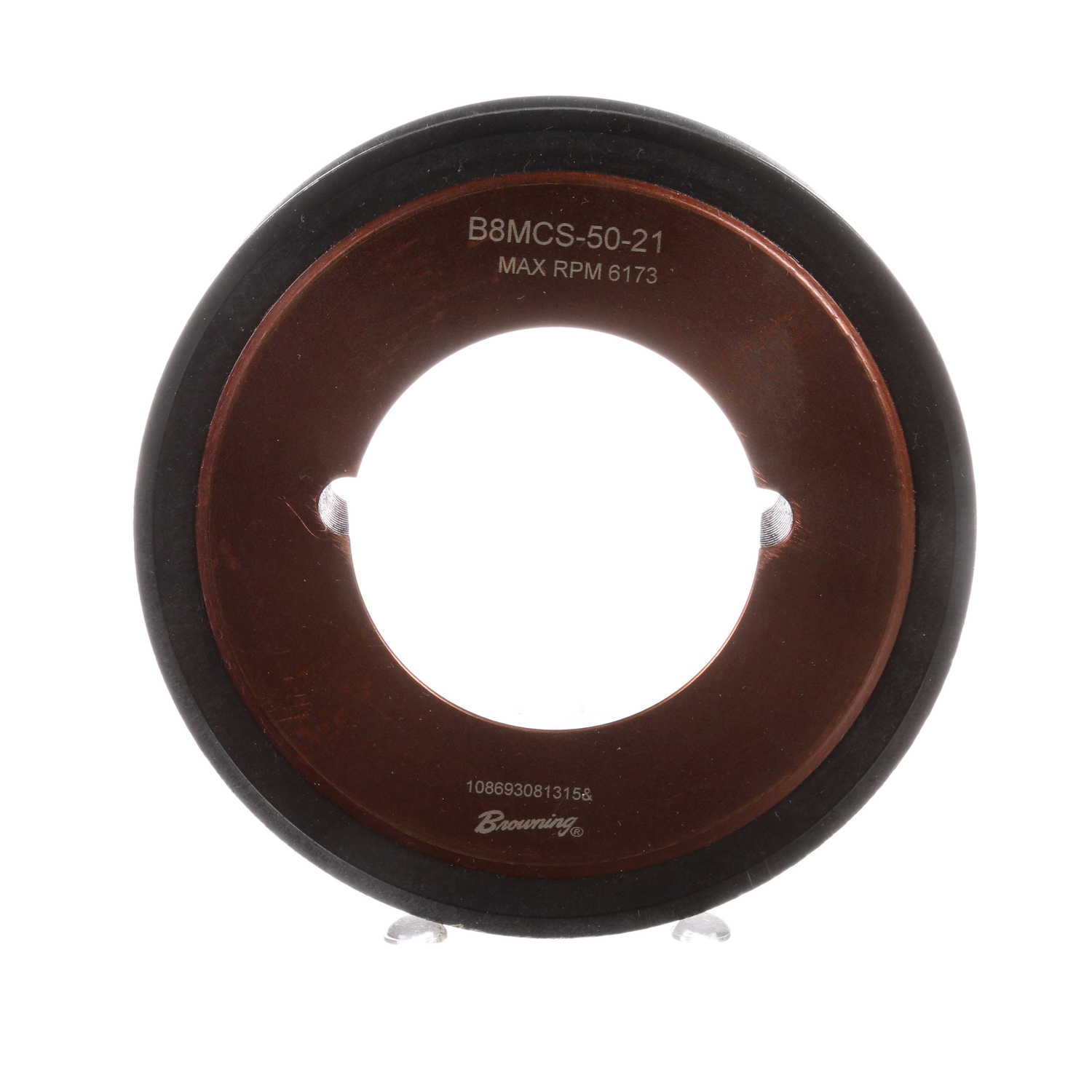

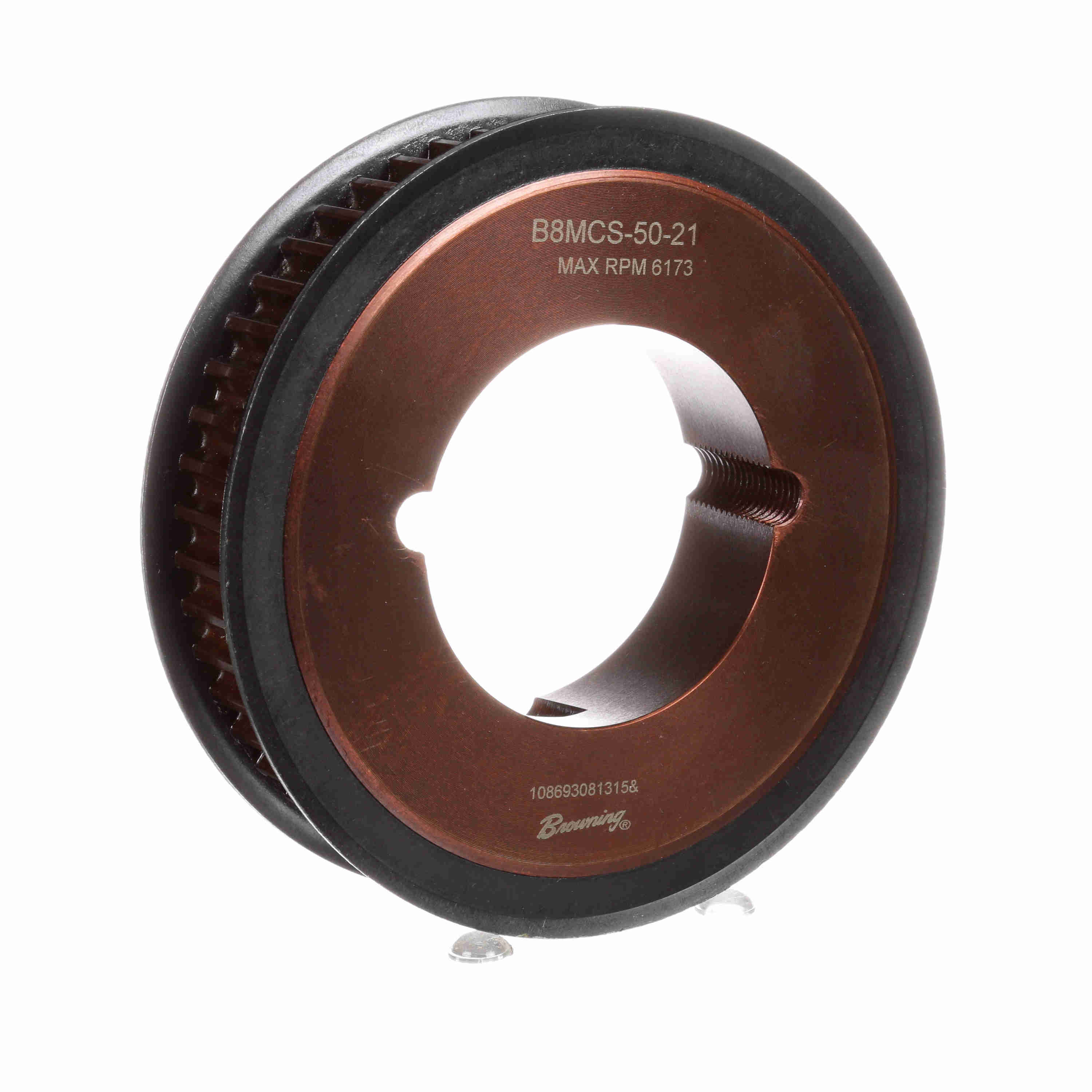

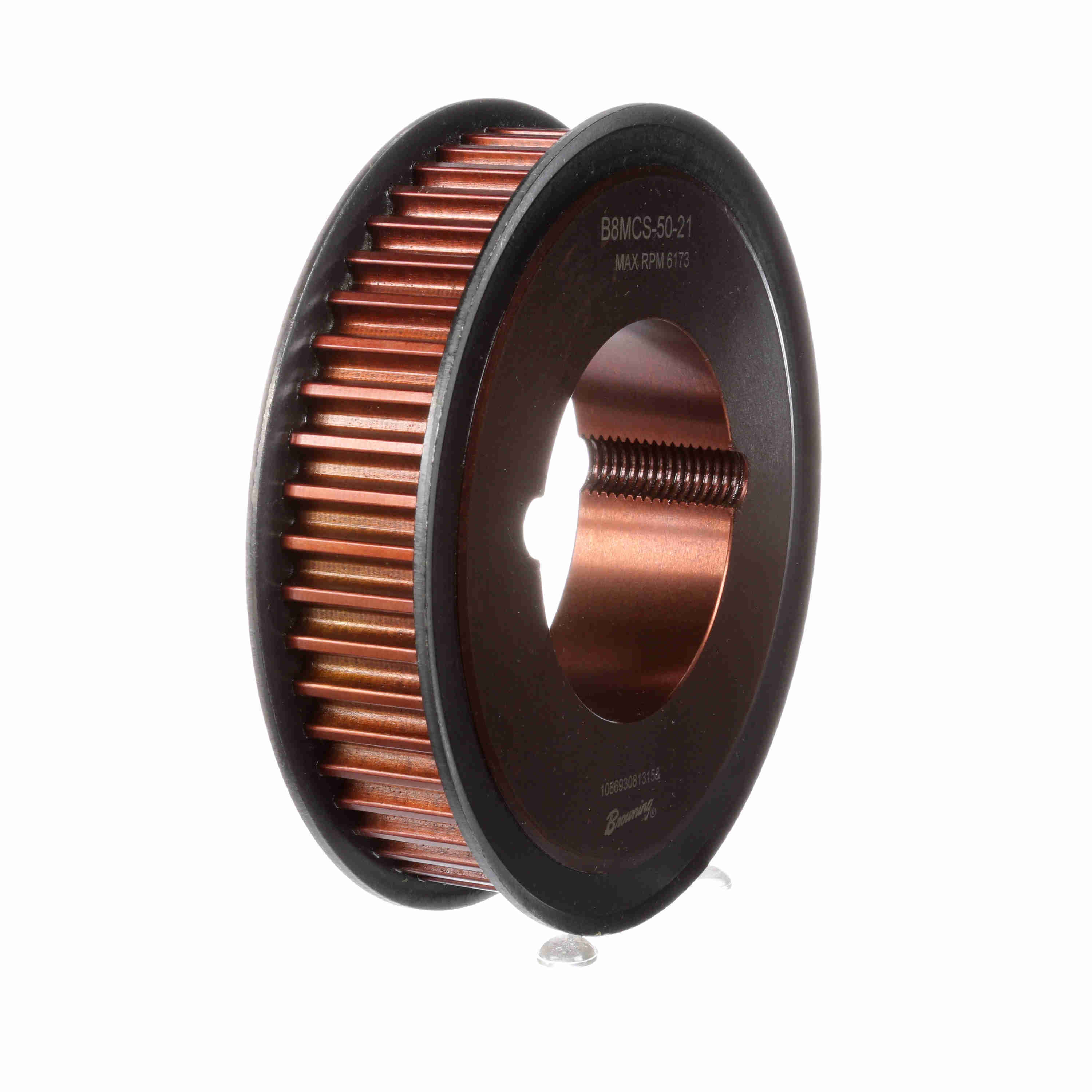

Browning Steel Bushed Bore HPT Chain Sprocket - B8MCS-50-21

Part #:2765295

Catalog #:B8MCS-50-21

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Chain Synchronous pulley, bushed to fit taper lock bushing
High performance compact design
Well suited for high-torque applications; under 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Flange (mm):	135.128 mm	Bushing:	2012
Width (mm):	21 mm	Number of teeth:	50
Product Type:	HPT Chain Sprocket	Bushing Type:	Taper Bore
Bore Type:	Bushed	Material:	Steel
Belt Section:	8M	Bore (Max) (mm):	53.975 mm
Pitch Diameter (mm):	127.3302 mm	Outside Diameter (mm):	125.73 mm
Bore (Min) (mm):	12.7 mm

General Specifications

UPC:	662460614946	Weight:	4.75 LB
Packaged Length:	6.40 IN	Packaged Width:	6.30 IN
Packaged Height:	2.60 IN	HTC:	8483.50.9080
Country of Origin:	United States of America
