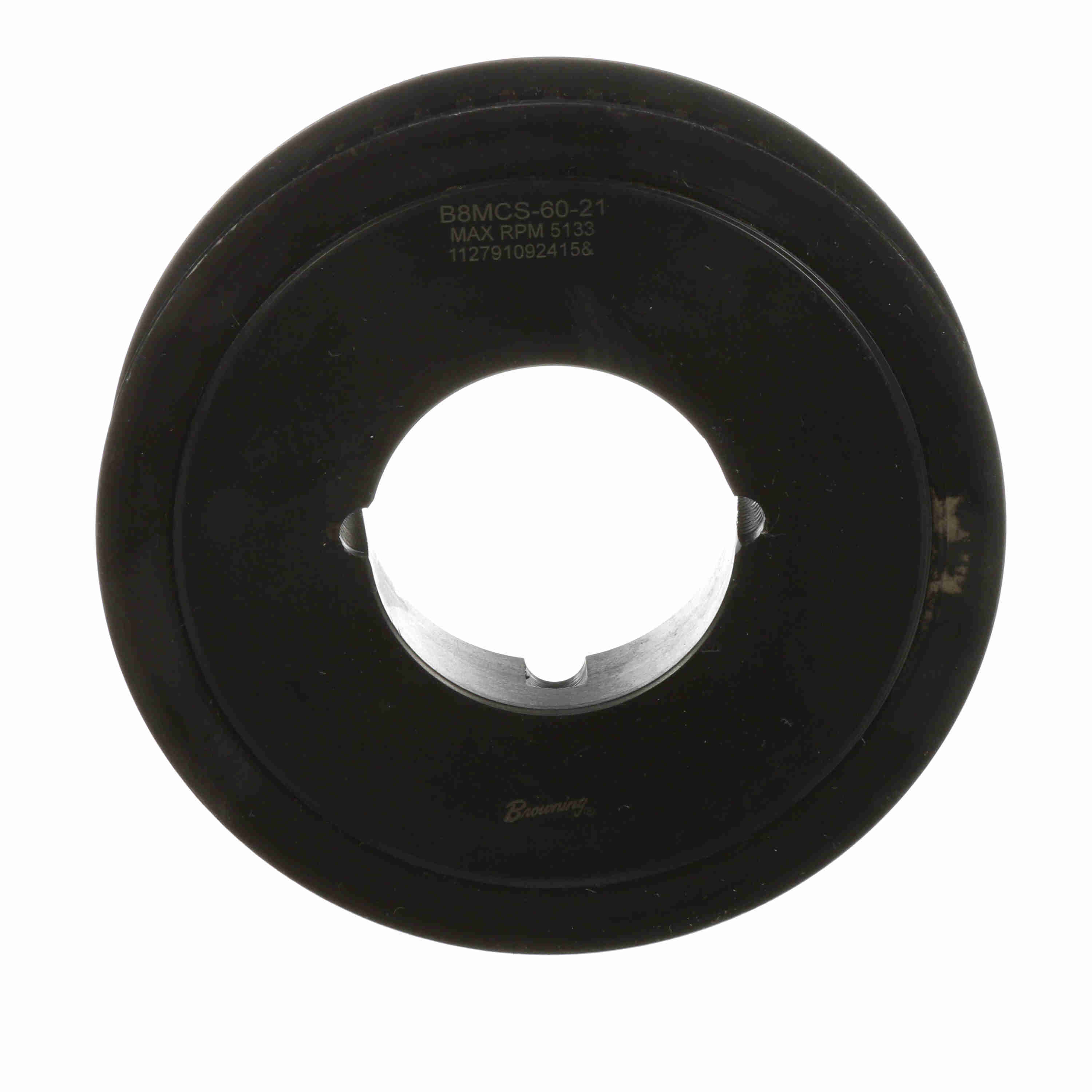

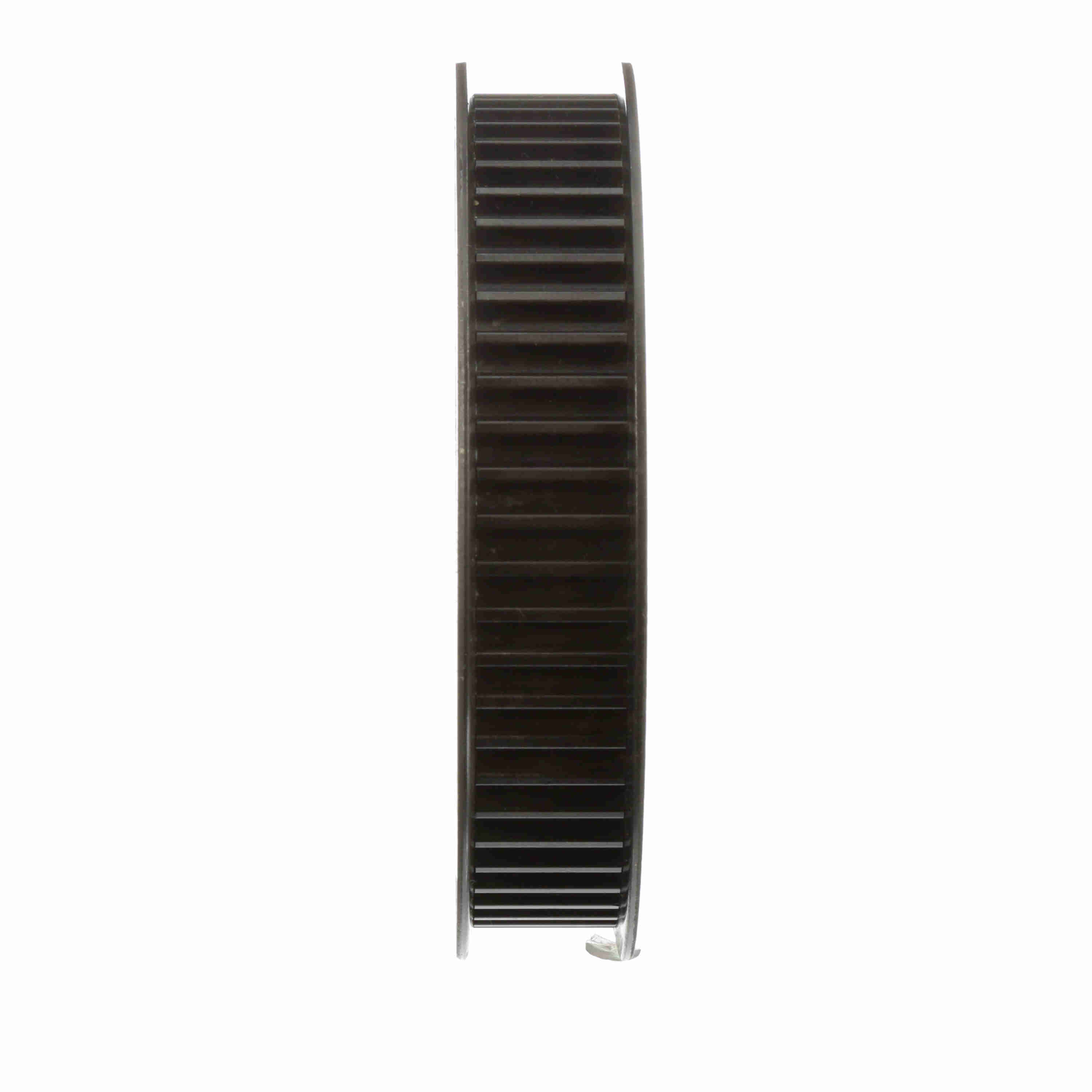

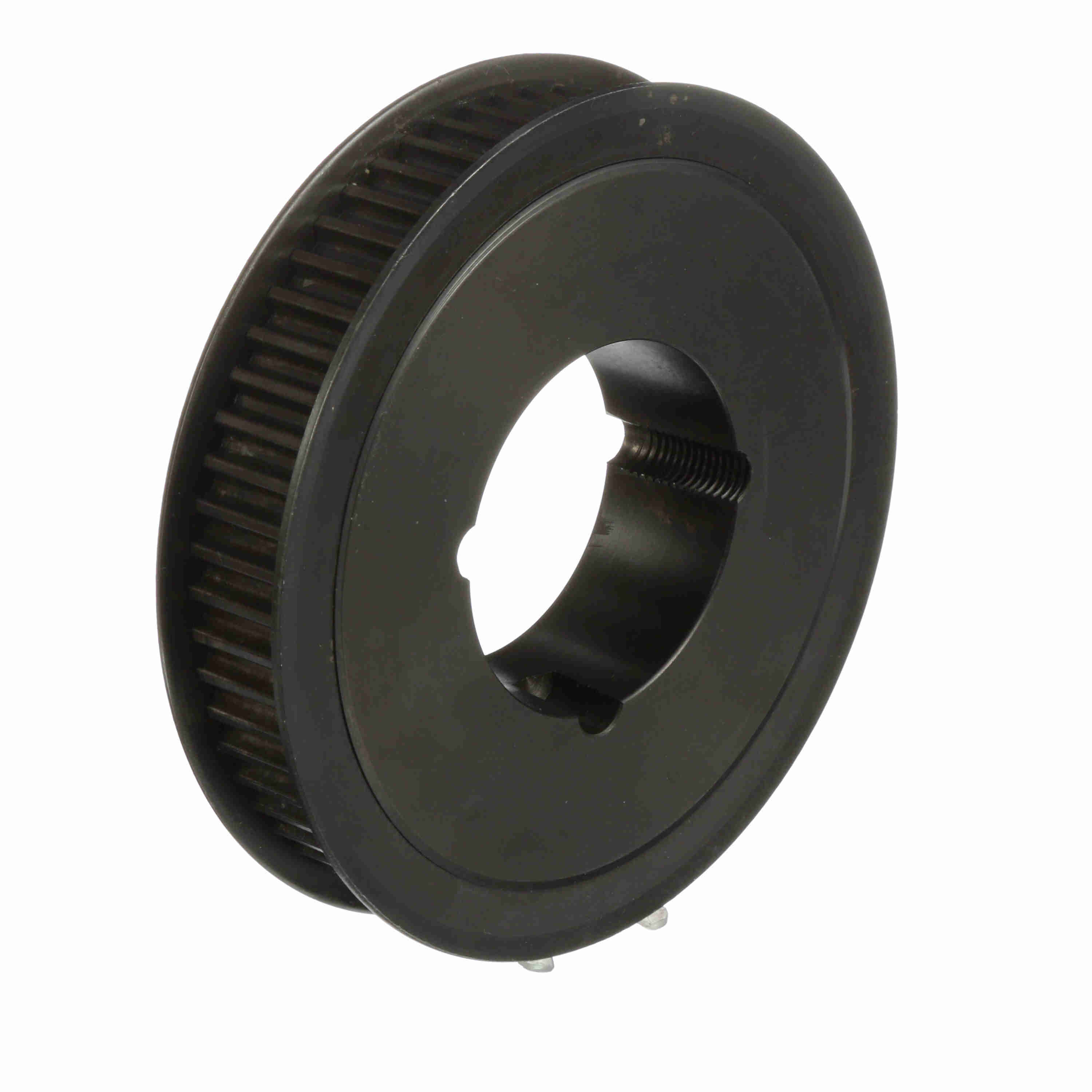

Browning Steel Bushed Bore HPT Chain Sprocket - B8MCS-60-21

Part #:2765329

Catalog #:B8MCS-60-21

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Chain Synchronous pulley, bushed to fit taper lock bushing
High performance compact design
Well suited for high-torque applications; under 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Product Type:	HPT Chain Sprocket	Width (mm):	21 mm
Flange (mm):	161.925 mm	Bushing:	2012
Number of teeth:	60	Bushing Type:	Taper Bore
Bore Type:	Bushed	Outside Diameter (mm):	151.1808 mm
Material:	Steel	Bore (Max) (mm):	53.975 mm
Belt Section:	8M	Bore (Min) (mm):	12.7 mm
Pitch Diameter (mm):	152.781 mm

General Specifications

UPC:	662460614977	Weight:	6.90 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
