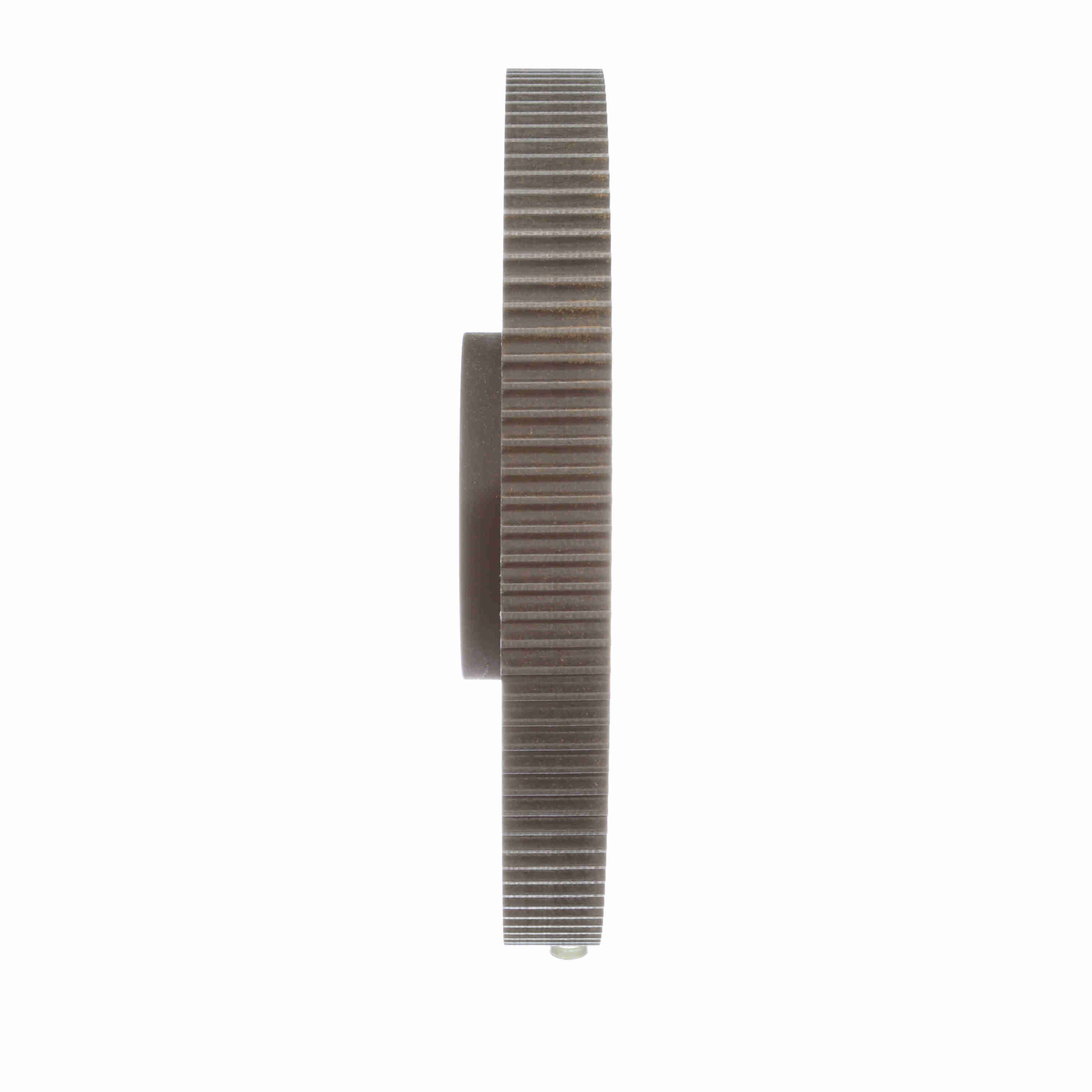

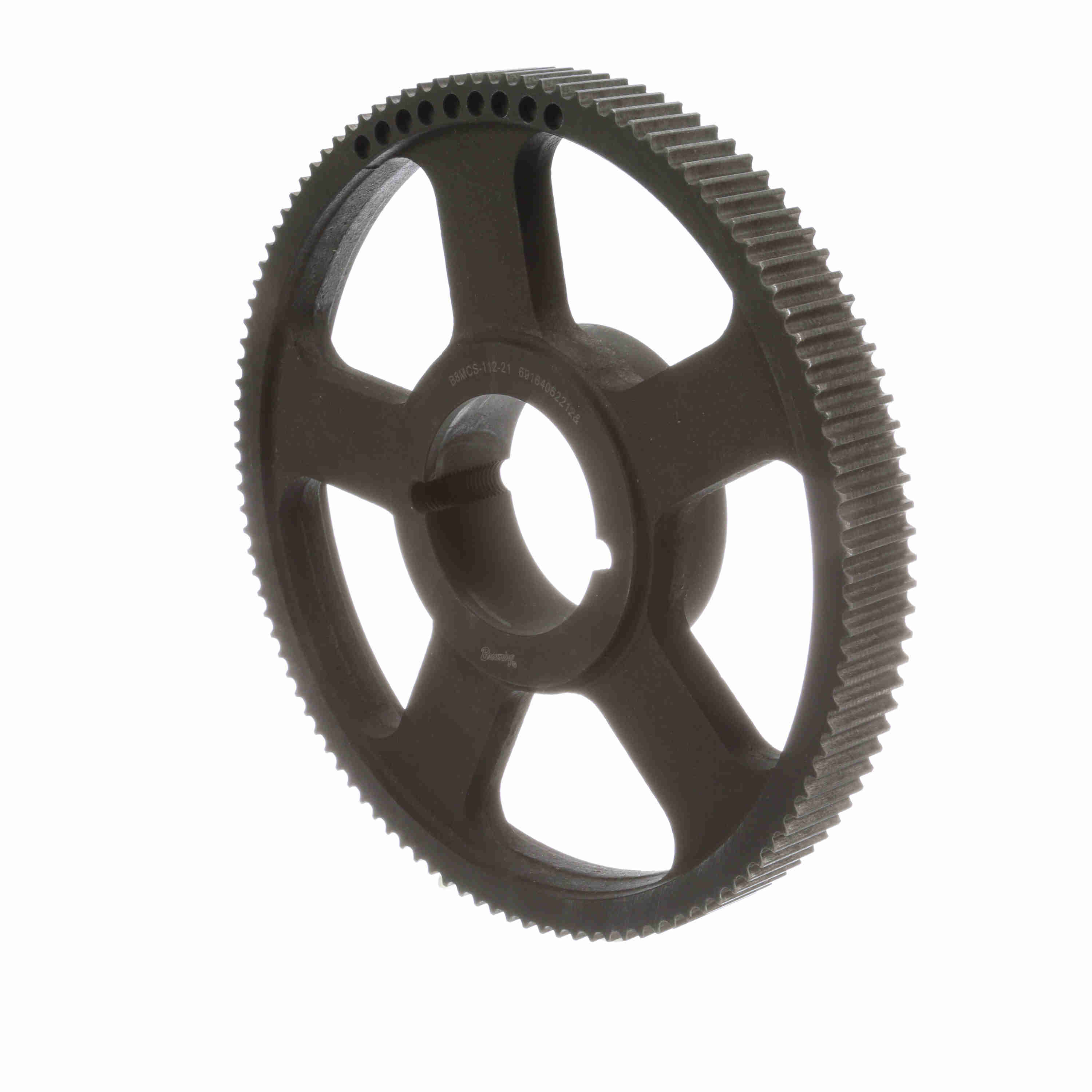

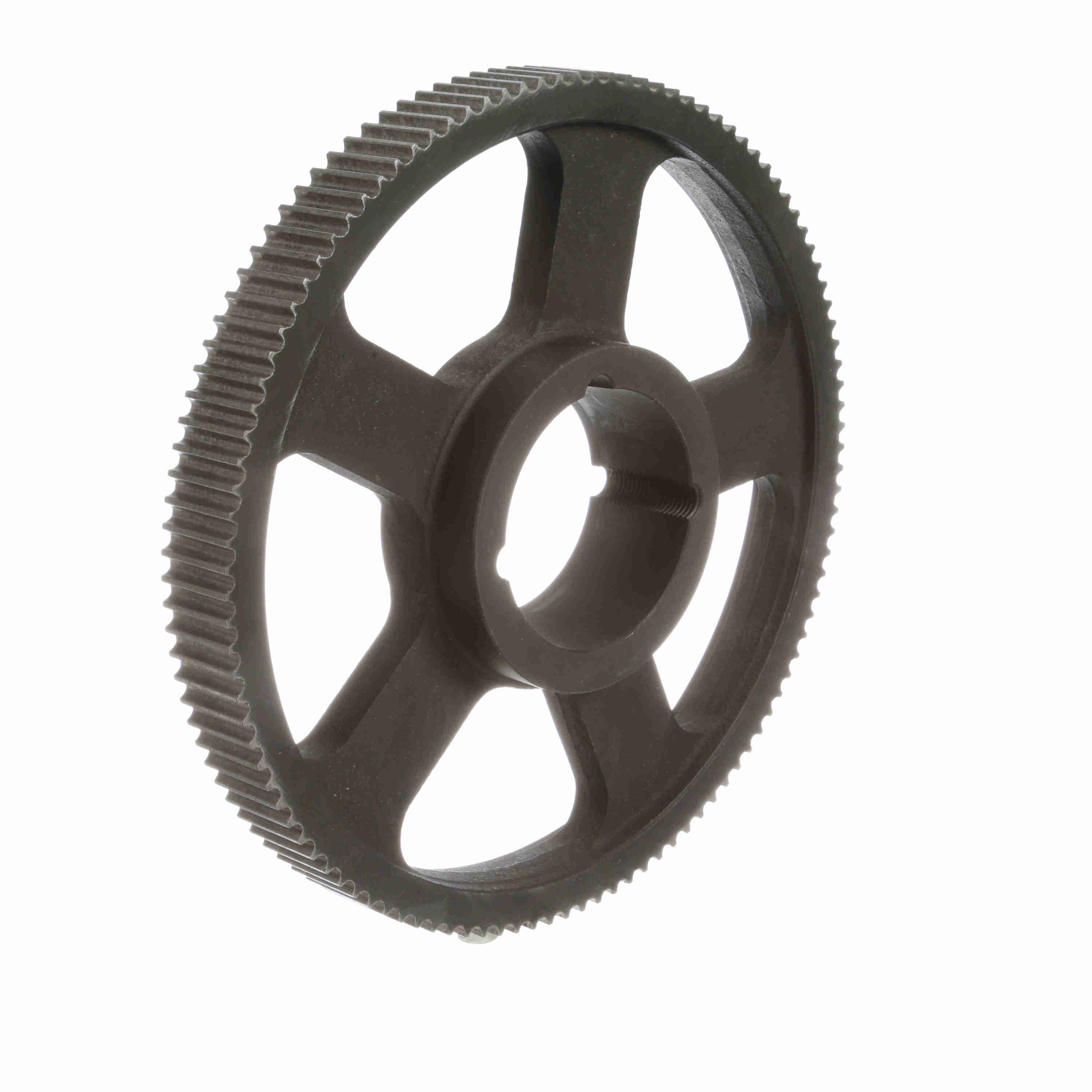

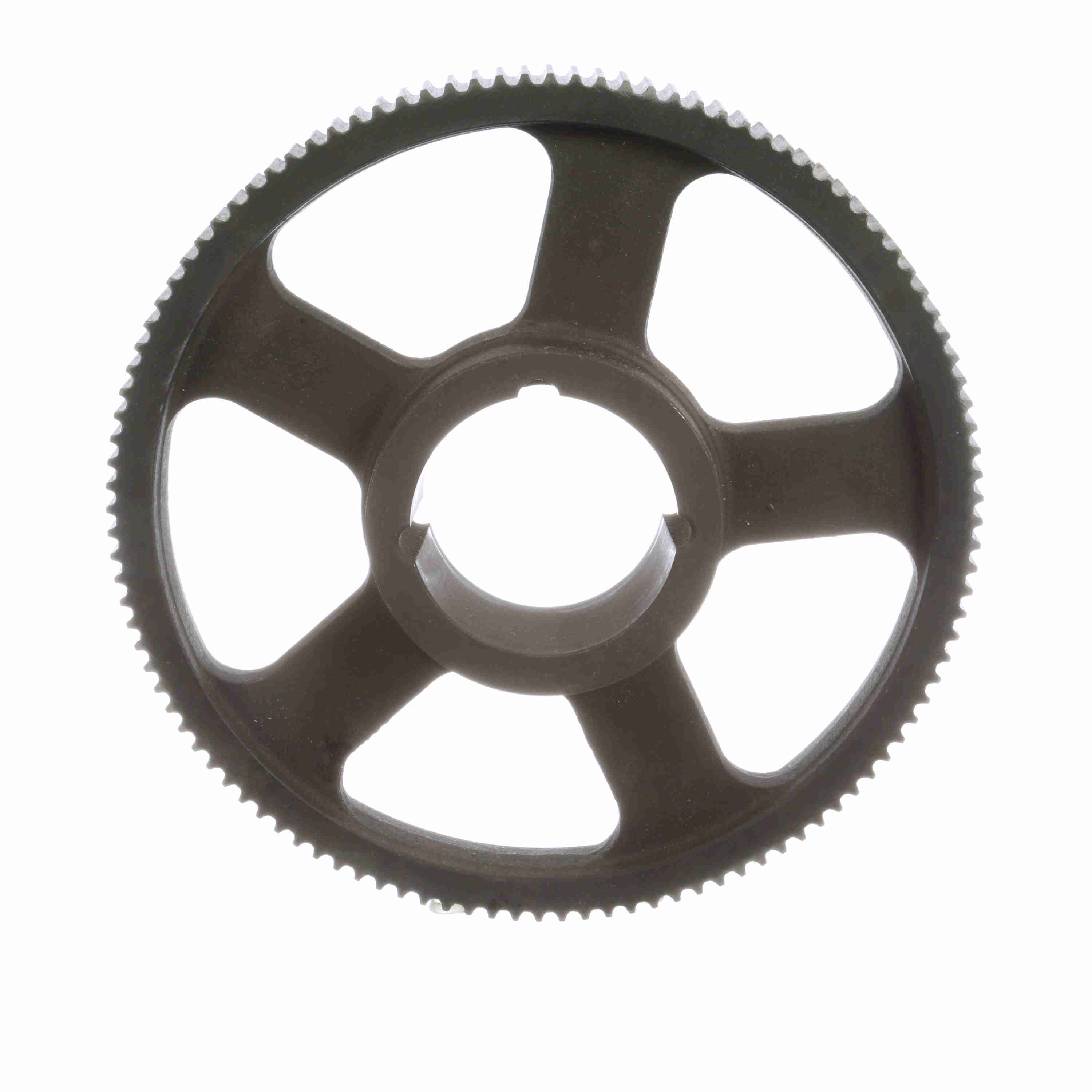

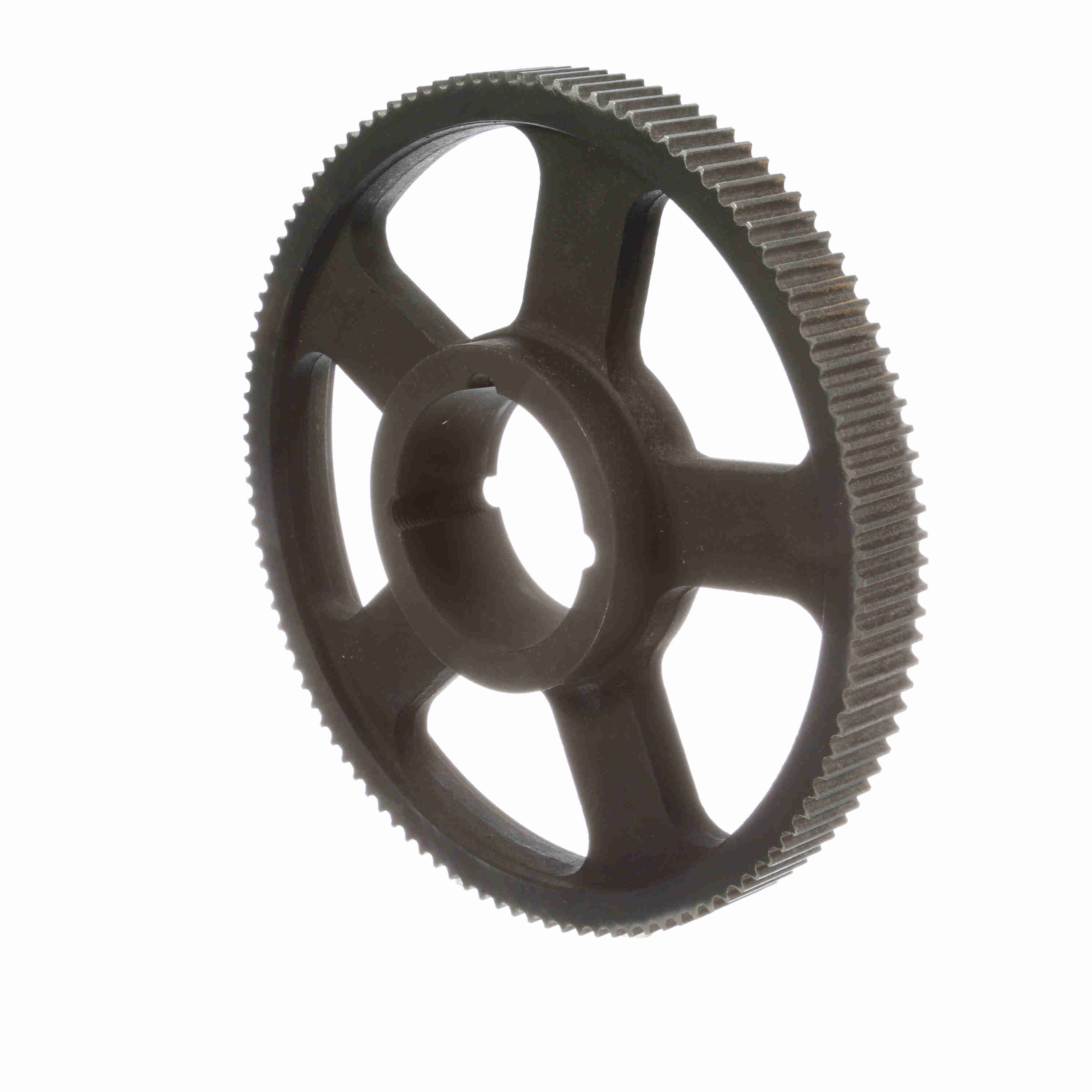

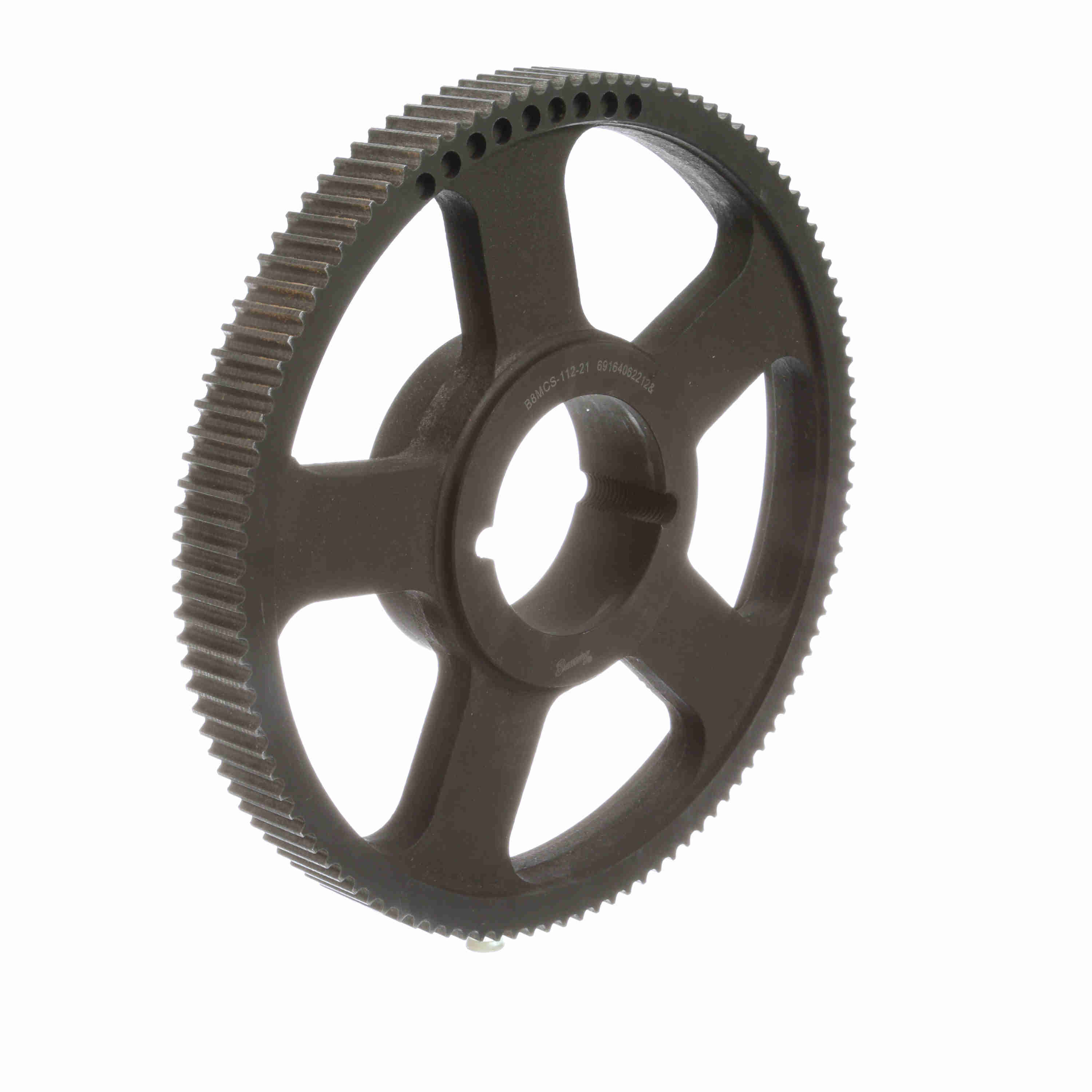

Browning Steel Bushed Bore HPT Chain Sprocket - B8MCS-112-21

Part #:2765410

Catalog #:B8MCS-112-21

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Chain Synchronous pulley, bushed to fit taper lock bushing
High performance compact design
Well suited for high-torque applications; under 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Bushing:	2517	Product Type:	HPT Chain Sprocket
Number of teeth:	112	Width (mm):	21 mm
Bushing Type:	Taper Bore	Bore Type:	Bushed
Material:	Steel	Outside Diameter (mm):	283.6164 mm
Bore (Min) (mm):	12.7 mm	Belt Section:	8M
Pitch Diameter (mm):	285.2166 mm	Bore (Max) (mm):	68.2752 mm

General Specifications

UPC:	662460615066	Weight:	13.93 LB
Packaged Length:	12.40 IN	Packaged Width:	12.30 IN
Packaged Height:	2.60 IN	HTC:	8483.50.9080
Country of Origin:	United States of America
