Browning Steel Bushed Bore HPT Chain Sprocket - B8MCS-60-36

Part #:2765691

Catalog #:B8MCS-60-36

Key Features Product Specs

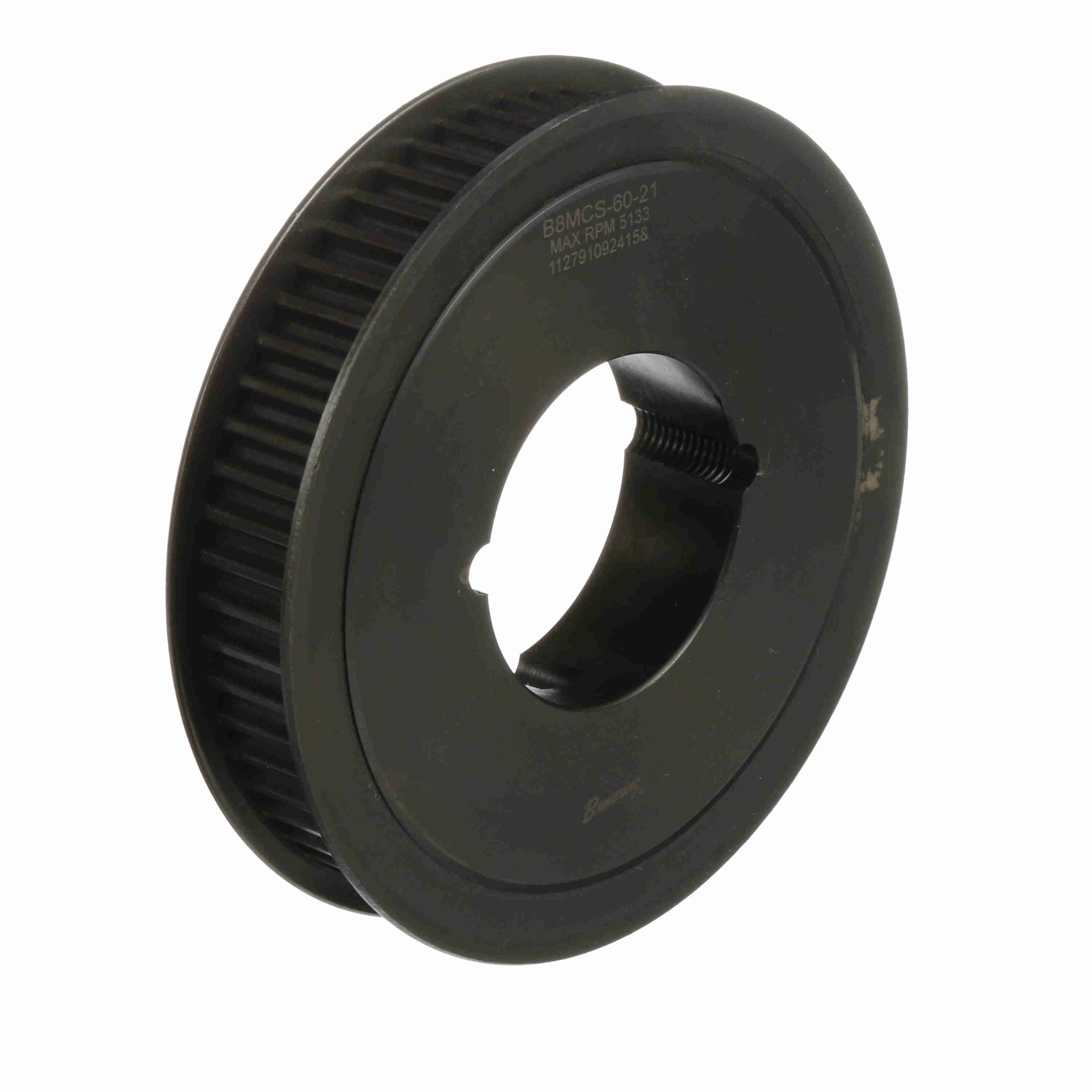

Image differs from product

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Chain Synchronous pulley, bushed to fit taper lock bushing
High performance compact design
Well suited for high-torque applications; under 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Bushing:	2517	Number of teeth:	60
Width (mm):	36 mm	Product Type:	HPT Chain Sprocket
Flange (mm):	161.925 mm	Bore Type:	Bushed
Bushing Type:	Taper Bore	Belt Section:	8M
Pitch Diameter (mm):	152.781 mm	Bore (Max) (mm):	68.2752 mm
Bore (Min) (mm):	12.7 mm	Outside Diameter (mm):	151.1808 mm
Material:	Steel

General Specifications

UPC:	662460615349	Weight:	8.90 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
