Browning Steel Bushed Bore HPT Chain Sprocket - B14MCS-53-37

Part #:2766640

Catalog #:B14MCS-53-37

Key Features Product Specs

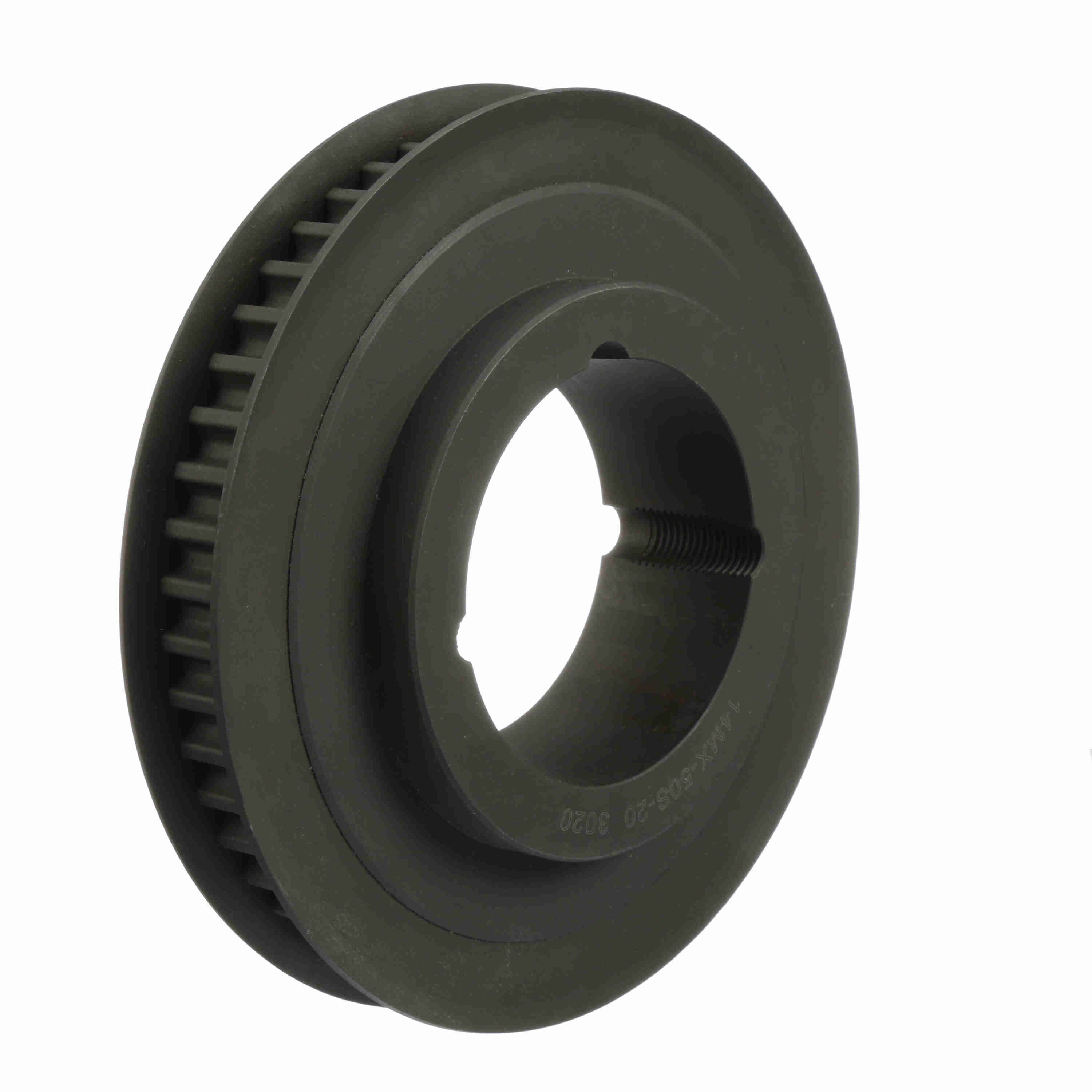

Image differs from product

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Chain Synchronous pulley, bushed to fit taper lock bushing
High performance compact design
Well suited for high-torque applications; under 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Width (mm):	37 mm	Product Type:	HPT Chain Sprocket
Number of teeth:	53	Bushing:	3020
Flange (mm):	246.0498 mm	Bushing Type:	Taper Bore
Bore Type:	Bushed	Bore (Max) (mm):	82.55 mm
Pitch Diameter (mm):	236.1946 mm	Belt Section:	14M
Bore (Min) (mm):	22.225 mm	Outside Diameter (mm):	233.4006 mm
Material:	Steel

General Specifications

UPC:	662460616308	Weight:	28.30 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
