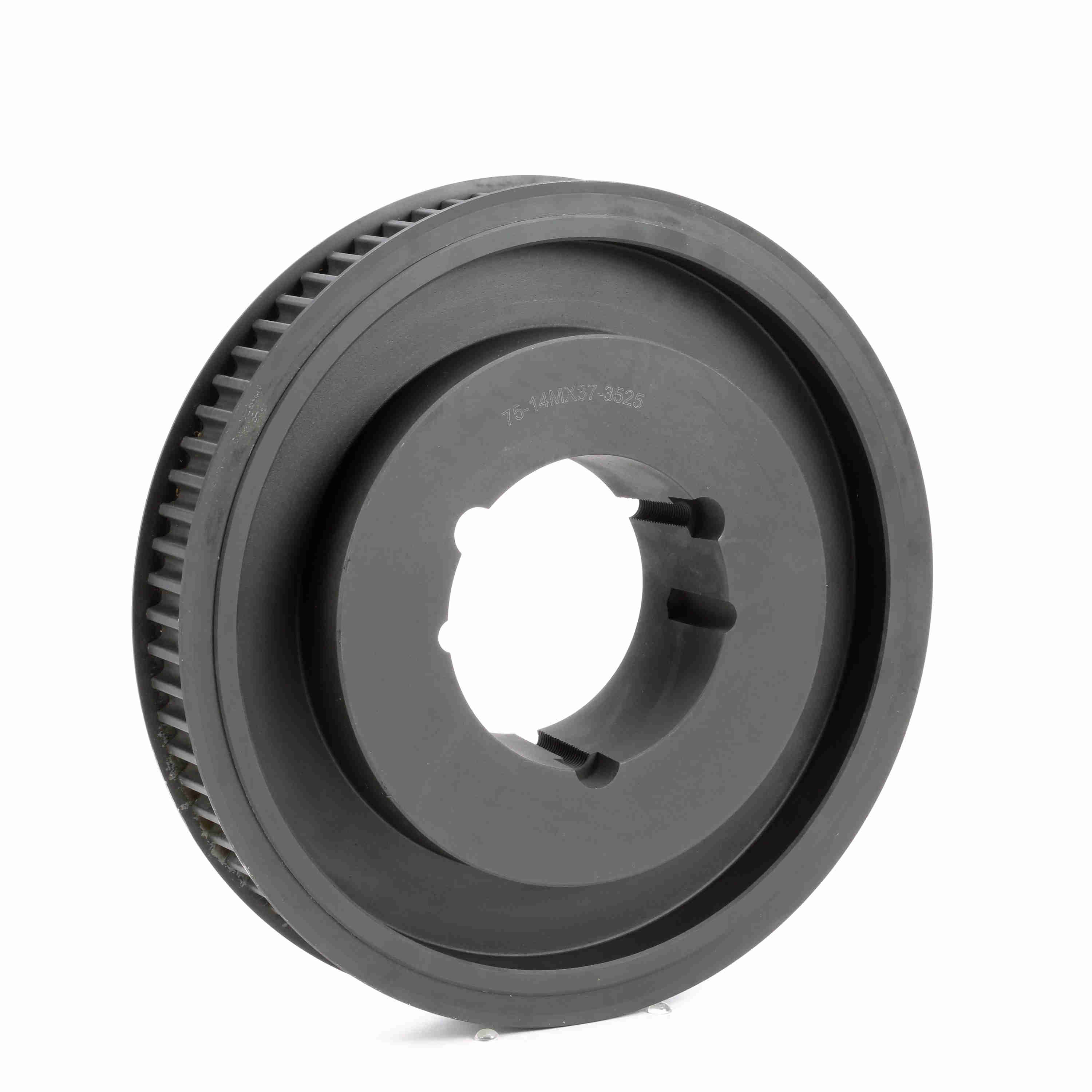

Browning Steel Bushed Bore HPT Chain Sprocket - B14MCS-75-90

Part #:2767481

Catalog #:B14MCS-75-90

Key Features Product Specs

Image differs from product

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Chain Synchronous pulley, bushed to fit taper lock bushing
High performance compact design
Well suited for high-torque applications; under 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Number of teeth:	75	Width (mm):	90 mm
Flange (mm):	348.742 mm	Bushing:	4030
Product Type:	HPT Chain Sprocket	Bushing Type:	Taper Bore
Bore Type:	Bushed	Bore (Max) (mm):	112.7252 mm
Belt Section:	14M	Outside Diameter (mm):	331.4192 mm
Material:	Steel	Bore (Min) (mm):	36.5252 mm
Pitch Diameter (mm):	334.2132 mm

General Specifications

UPC:	662460617145	Weight:	96.00 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
