Browning Steel Bushed Bore HPT Chain Sprocket - B14MCS-80-90

Part #:2767499

Catalog #:B14MCS-80-90

Key Features Product Specs

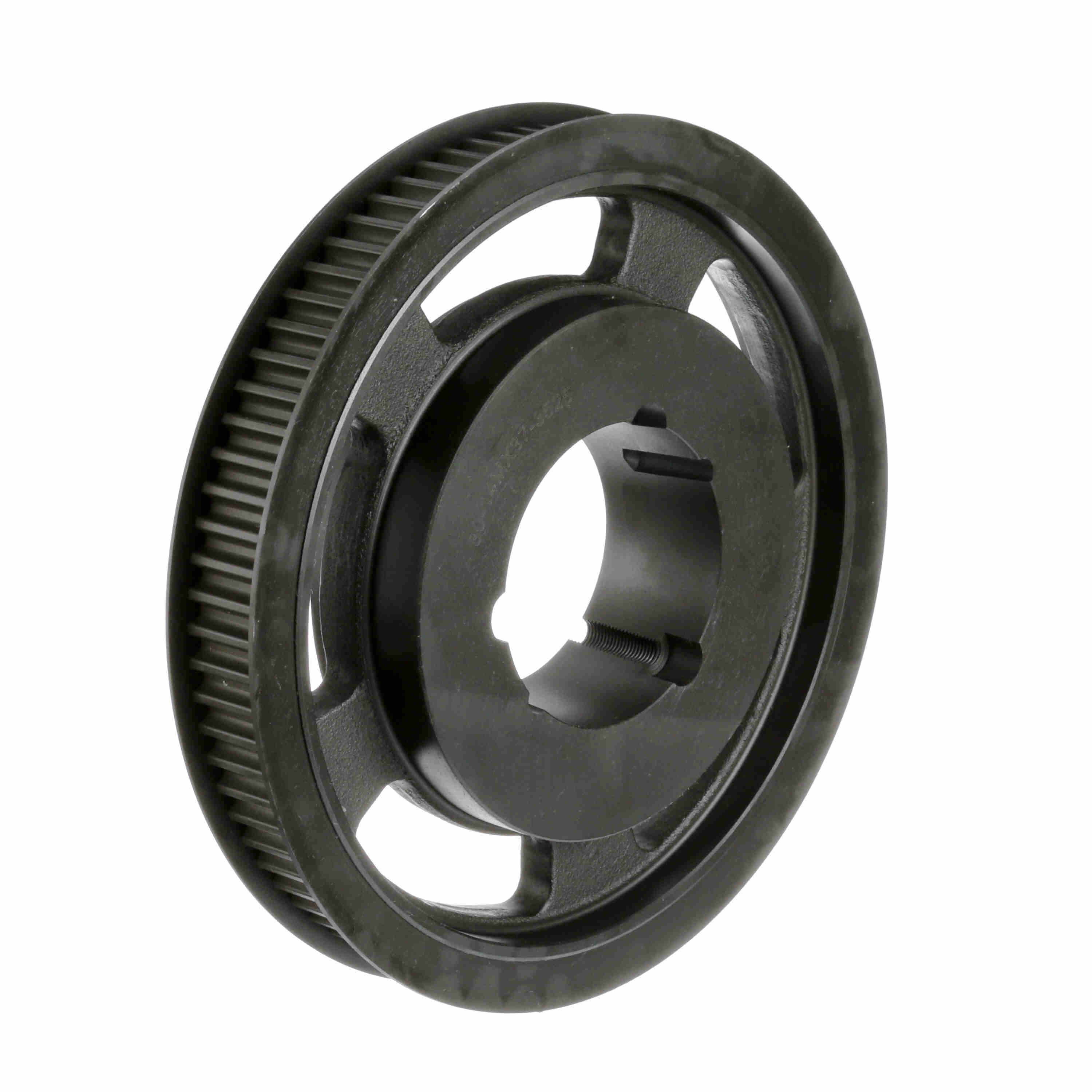

Image differs from product

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Chain Synchronous pulley, bushed to fit taper lock bushing
High performance compact design
Well suited for high-torque applications; under 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Flange (mm):	371.475 mm	Bushing:	4030
Product Type:	HPT Chain Sprocket	Number of teeth:	80
Width (mm):	90 mm	Bore Type:	Bushed
Bushing Type:	Taper Bore	Belt Section:	14M
Bore (Min) (mm):	36.5252 mm	Material:	Steel
Bore (Max) (mm):	112.7252 mm	Outside Diameter (mm):	353.7204 mm
Pitch Diameter (mm):	356.5144 mm

General Specifications

UPC:	662460617152	Weight:	94.00 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
