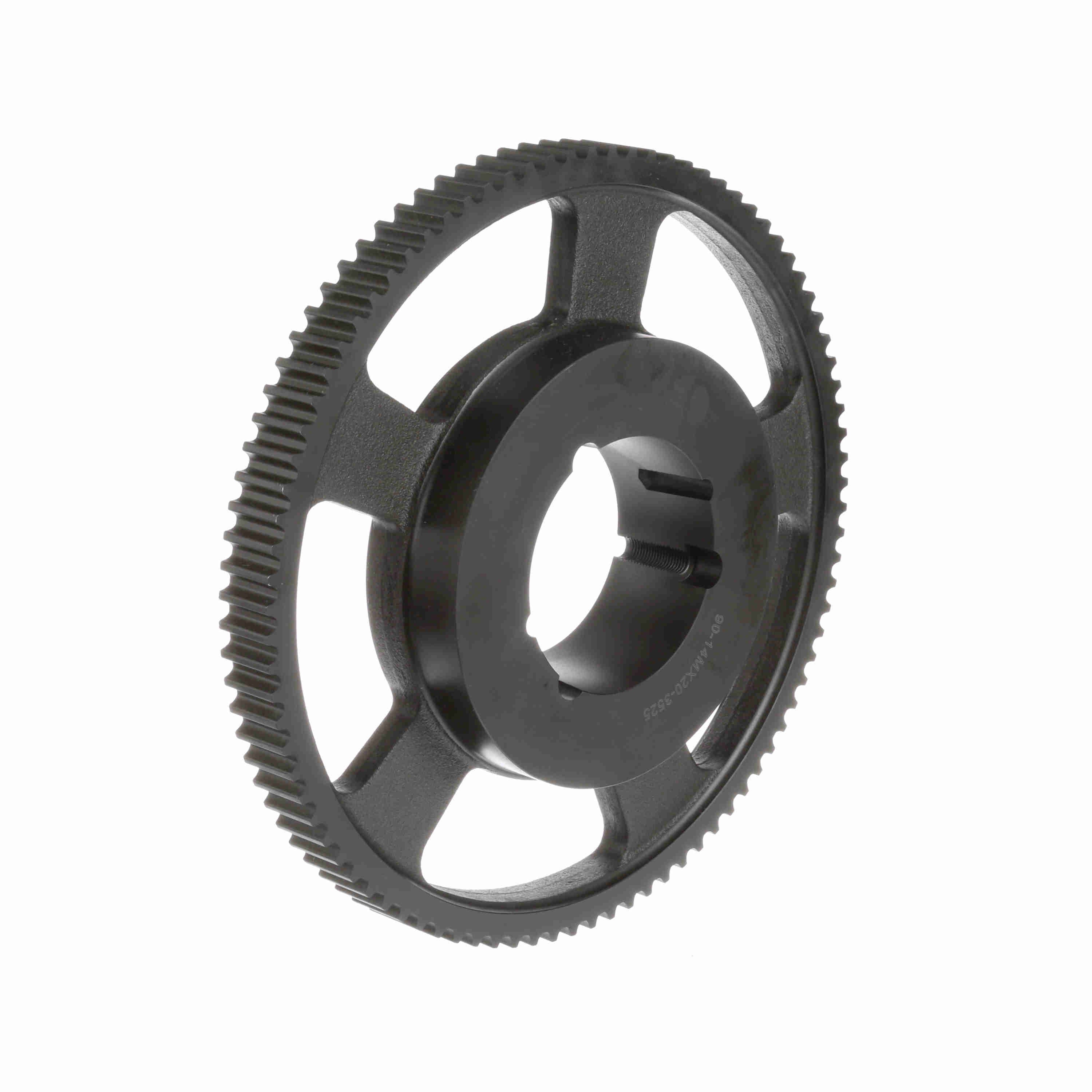

Browning Steel Bushed Bore HPT Chain Sprocket - B14MCS-168-90

Part #:2767531

Catalog #:B14MCS-168-90

Key Features Product Specs

Image differs from product

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Chain Synchronous pulley, bushed to fit taper lock bushing
High performance compact design
Well suited for high-torque applications; under 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Width (mm):	90 mm	Number of teeth:	168
Bushing:	5040	Product Type:	HPT Chain Sprocket
Bore Type:	Bushed	Bushing Type:	Taper Bore
Material:	Steel	Outside Diameter (mm):	745.871 mm
Pitch Diameter (mm):	748.665 mm	Bore (Max) (mm):	127 mm
Bore (Min) (mm):	61.9252 mm	Belt Section:	14M

General Specifications

UPC:	662460617190	Weight:	395.00 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
