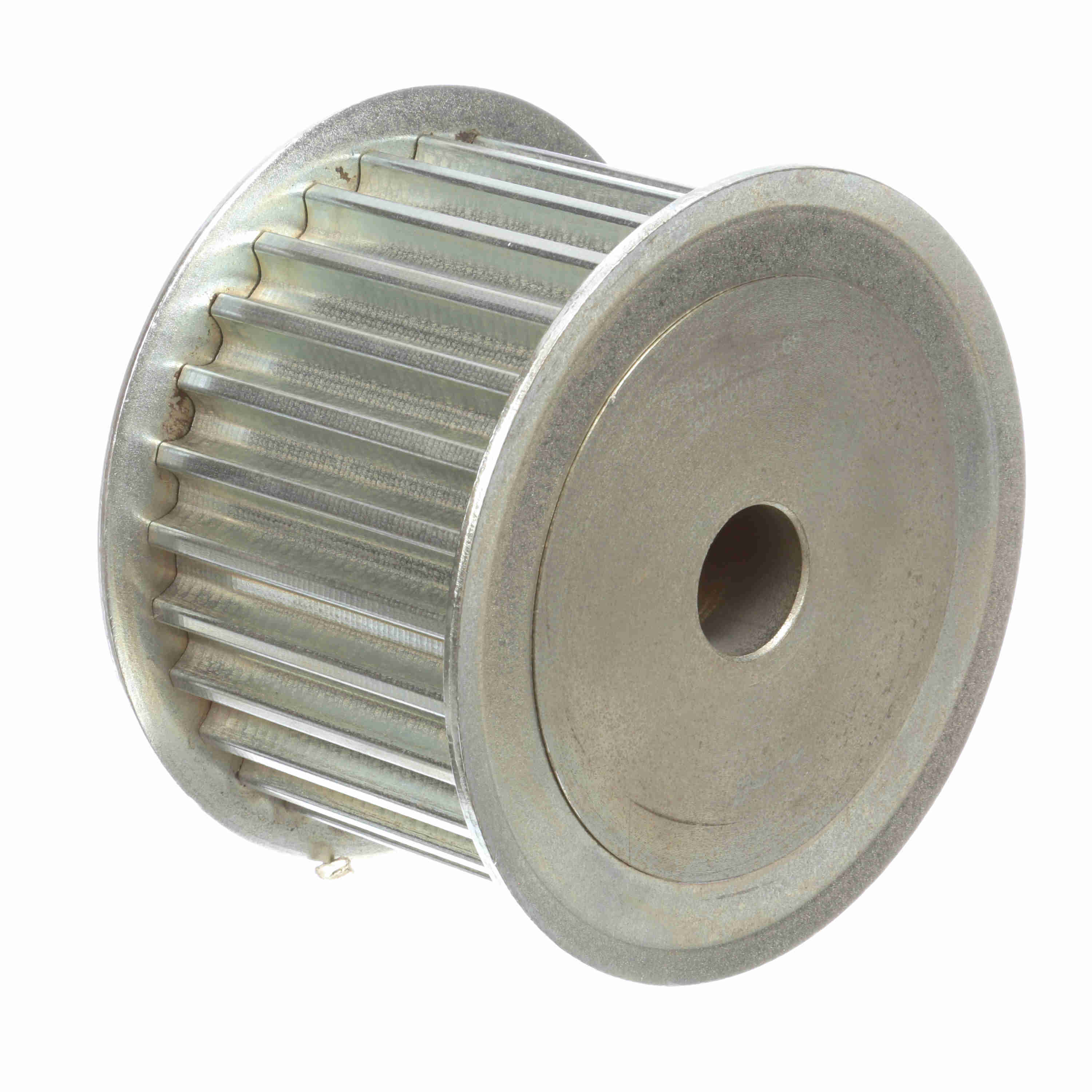

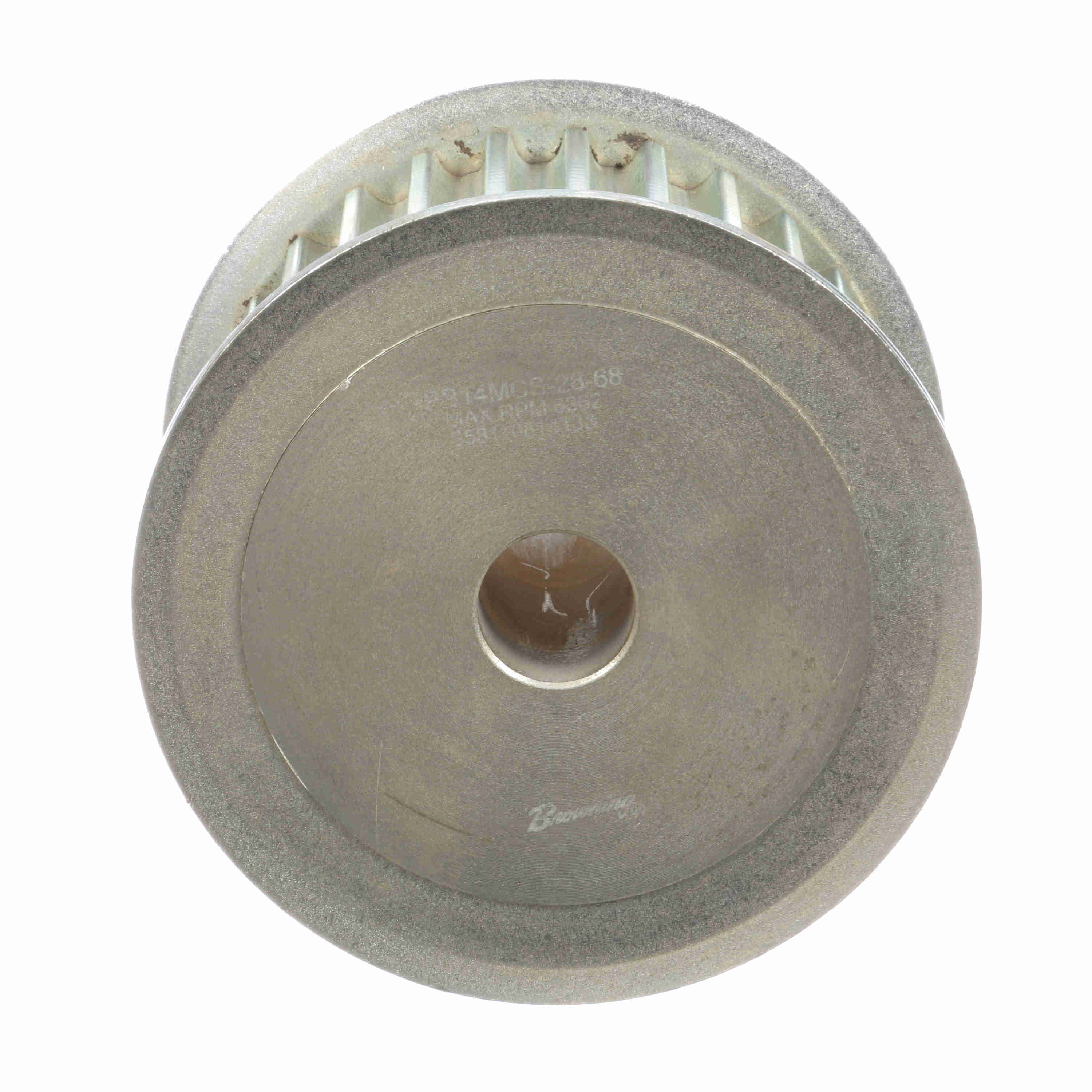

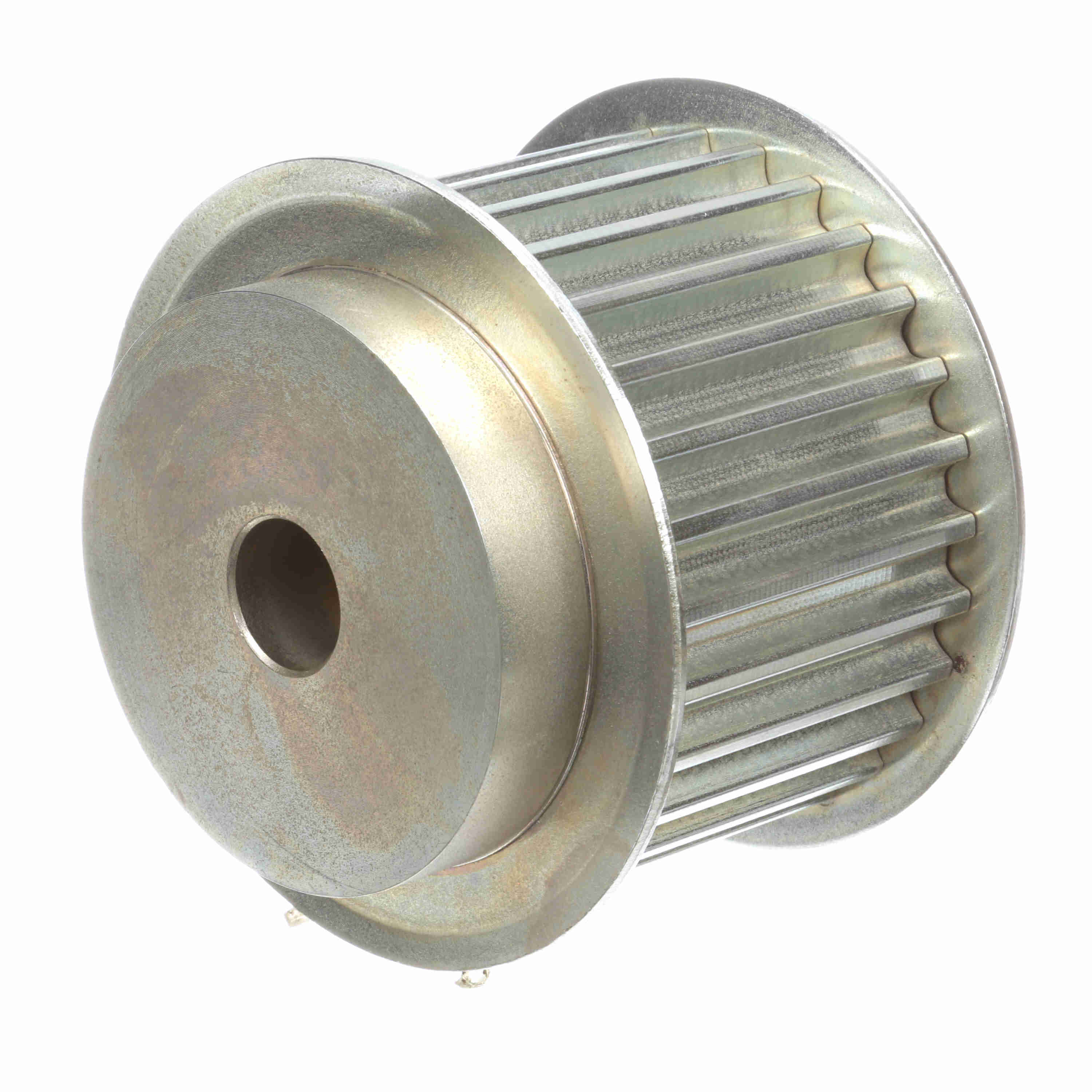

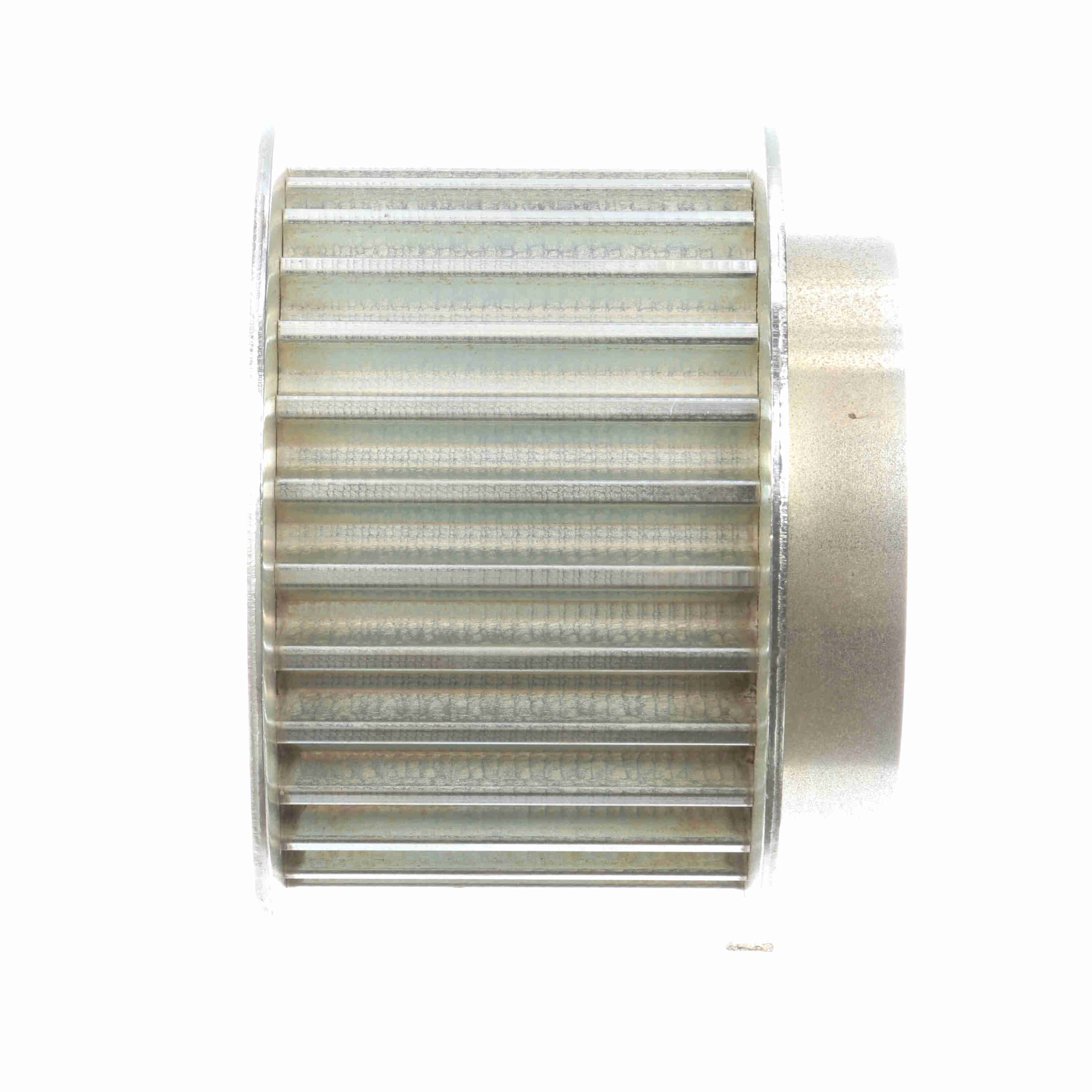

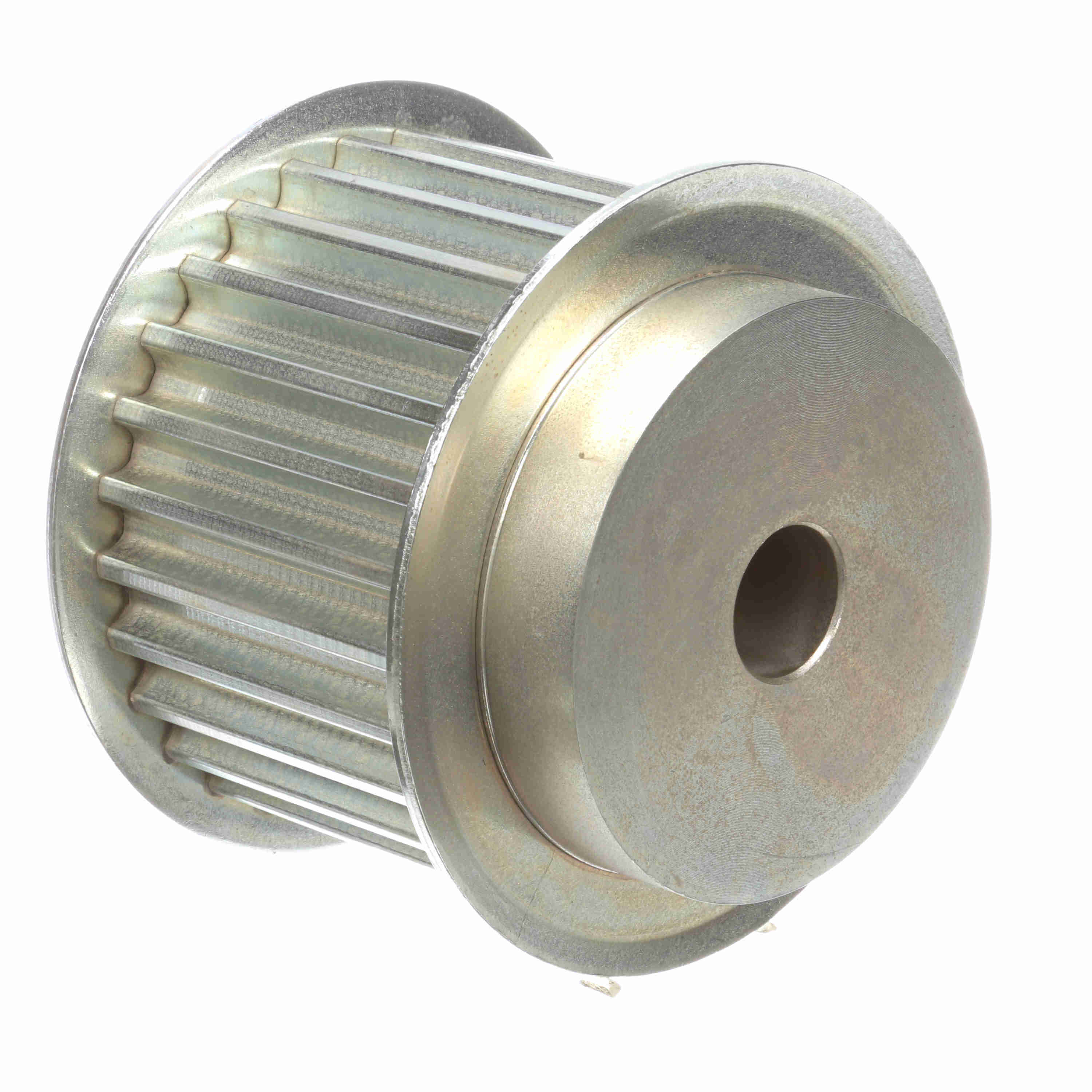

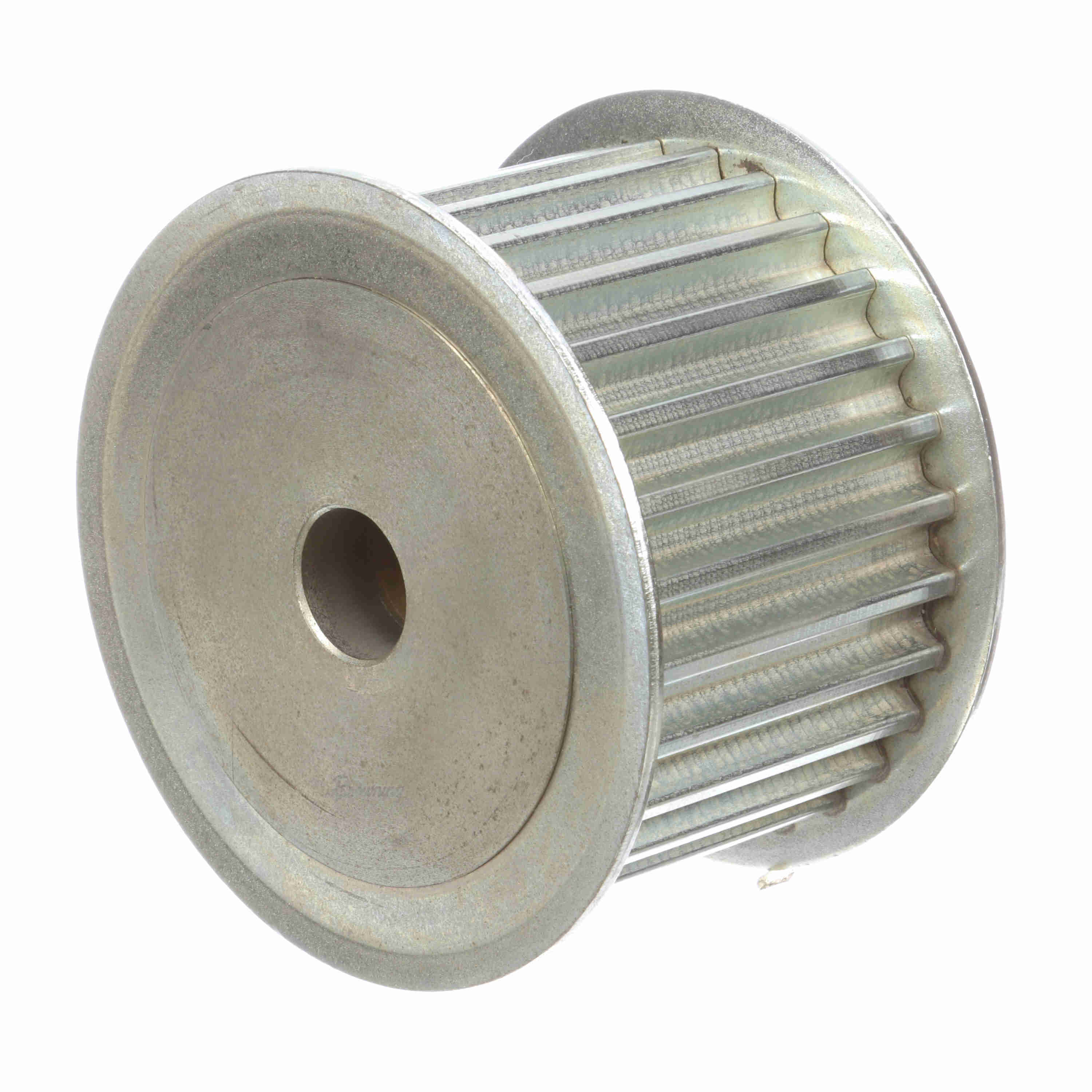

Browning Steel Rough Bore HPT Chain Sprocket - PB14MCS-28-68

Part #:2766814

Catalog #:PB14MCS-28-68

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Chain Synchronous pulley, minimum plain bore
High performance compact design
Well suited for high-torque applications; under 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Flange (mm):	141.2748 mm	Number of teeth:	28
Width (mm):	68 mm	Product Type:	HPT Chain Sprocket
Bushing:	MPB	Bore Type:	Rough Bore
Outside Diameter (mm):	121.9708 mm	Material:	Steel
Pitch Diameter (mm):	124.7648 mm	Bore (Min) (mm):	25.4 mm
Belt Section:	14M	Bore (Max) (mm):	74.6252 mm

General Specifications

UPC:	662460616476	Weight:	16.03 LB
Packaged Length:	6.30 IN	Packaged Width:	6.40 IN
Packaged Height:	4.70 IN	HTC:	8483.50.9080
Country of Origin:	United States of America
