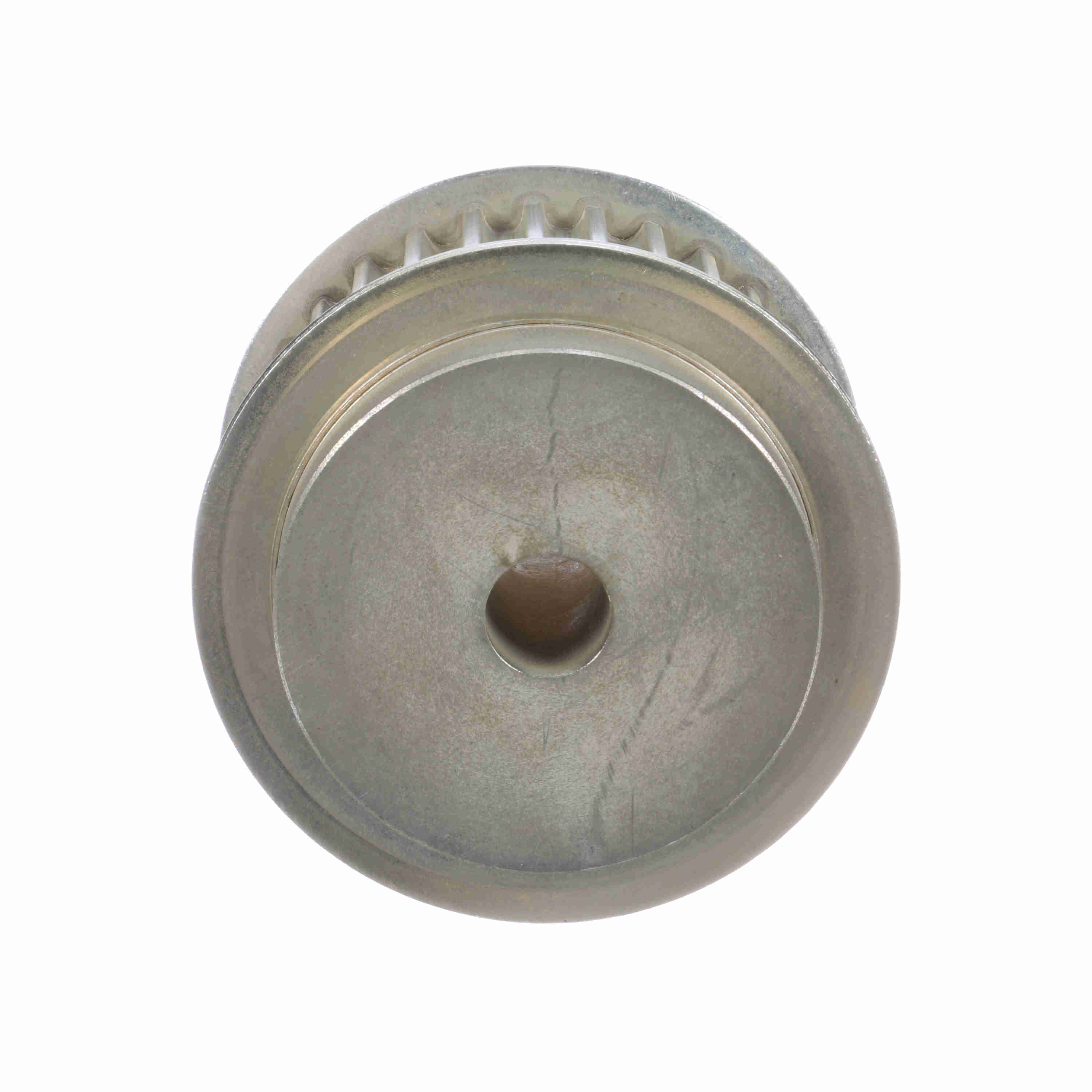

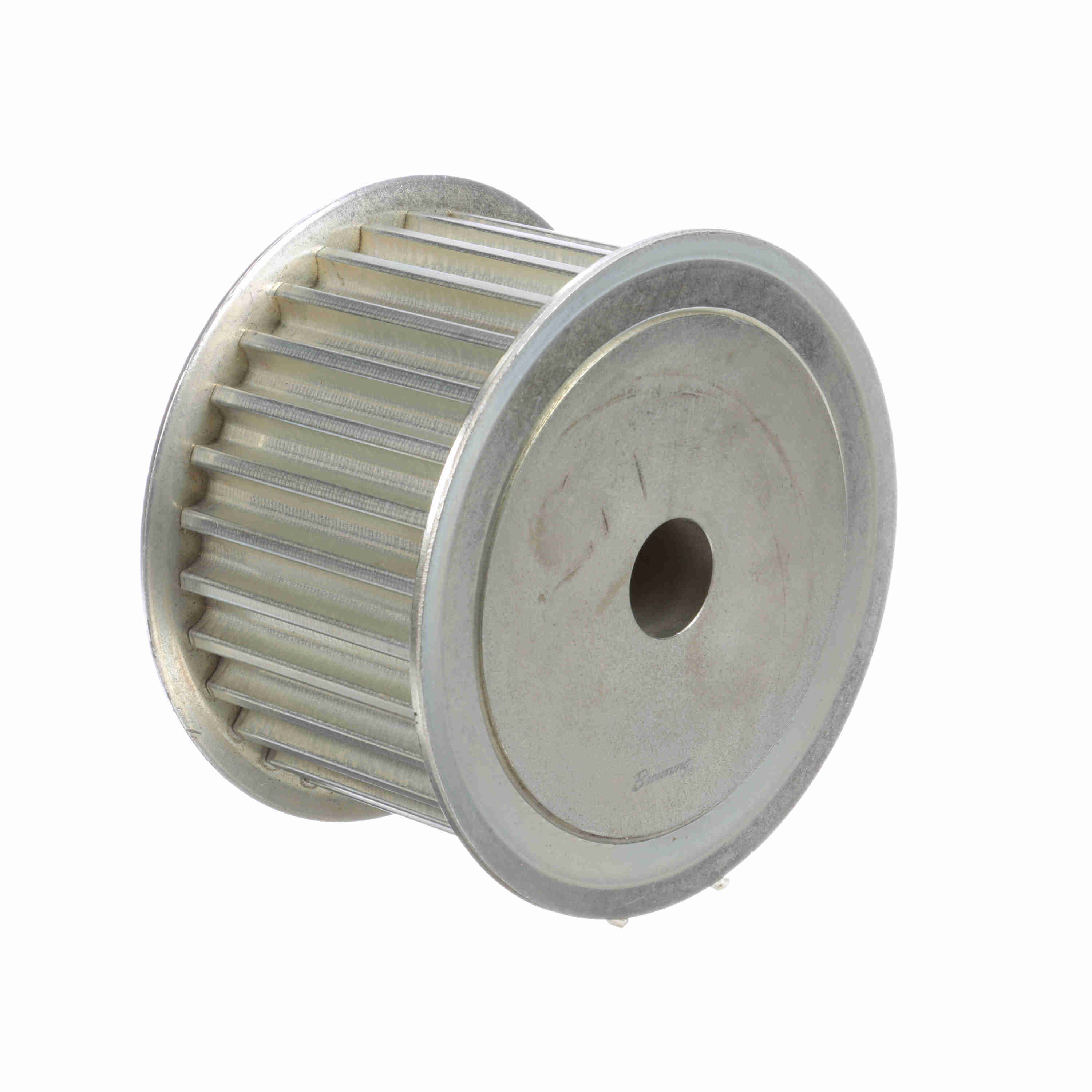

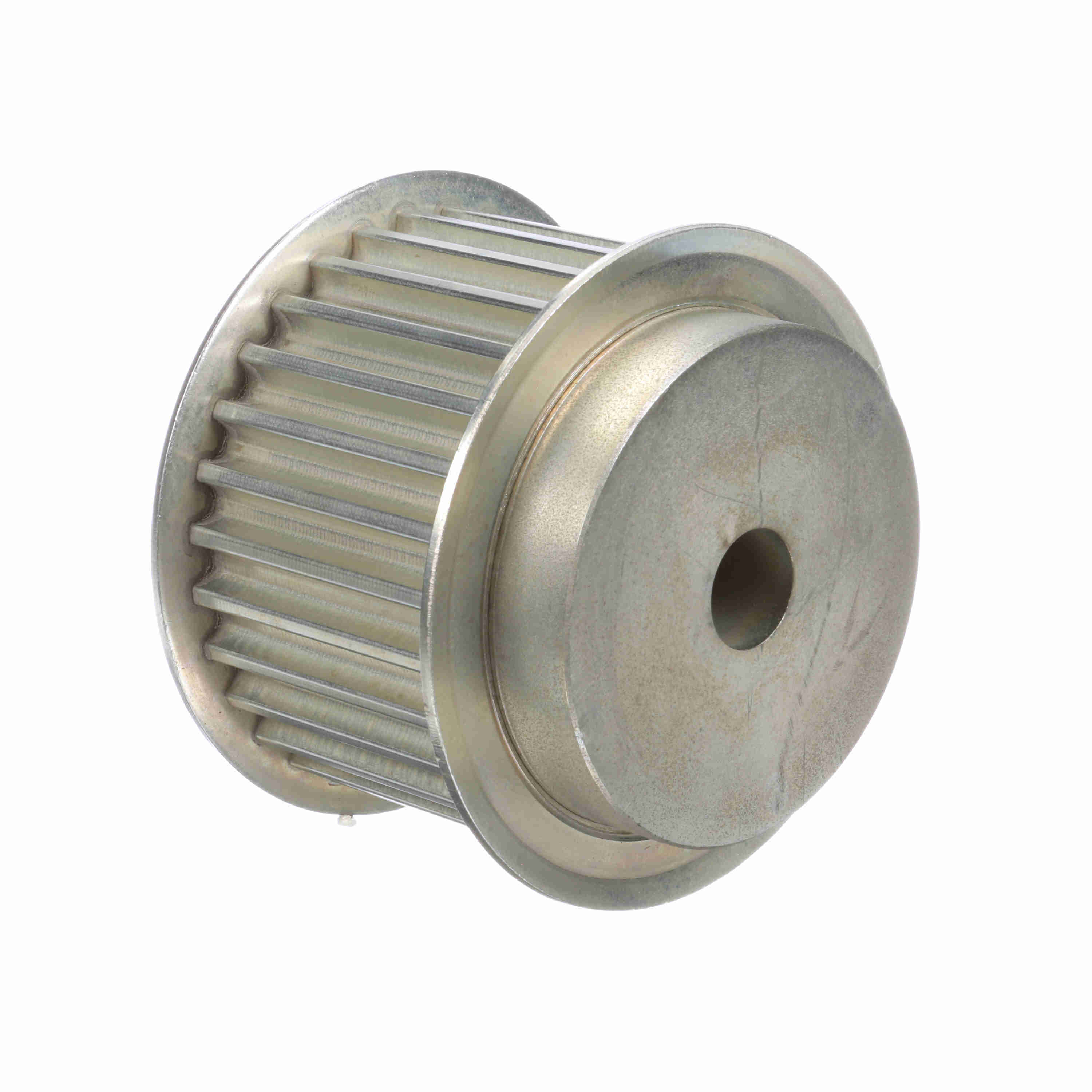

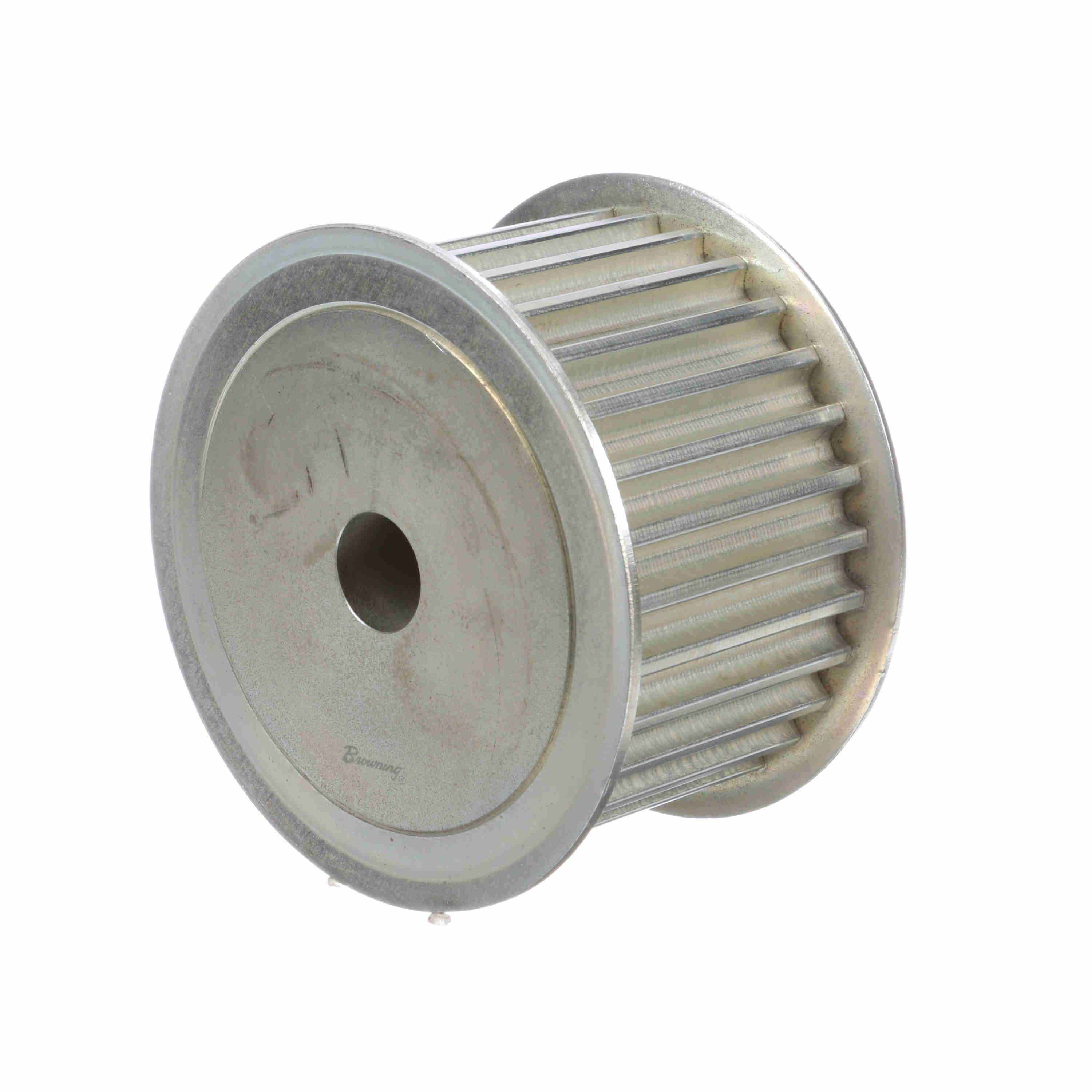

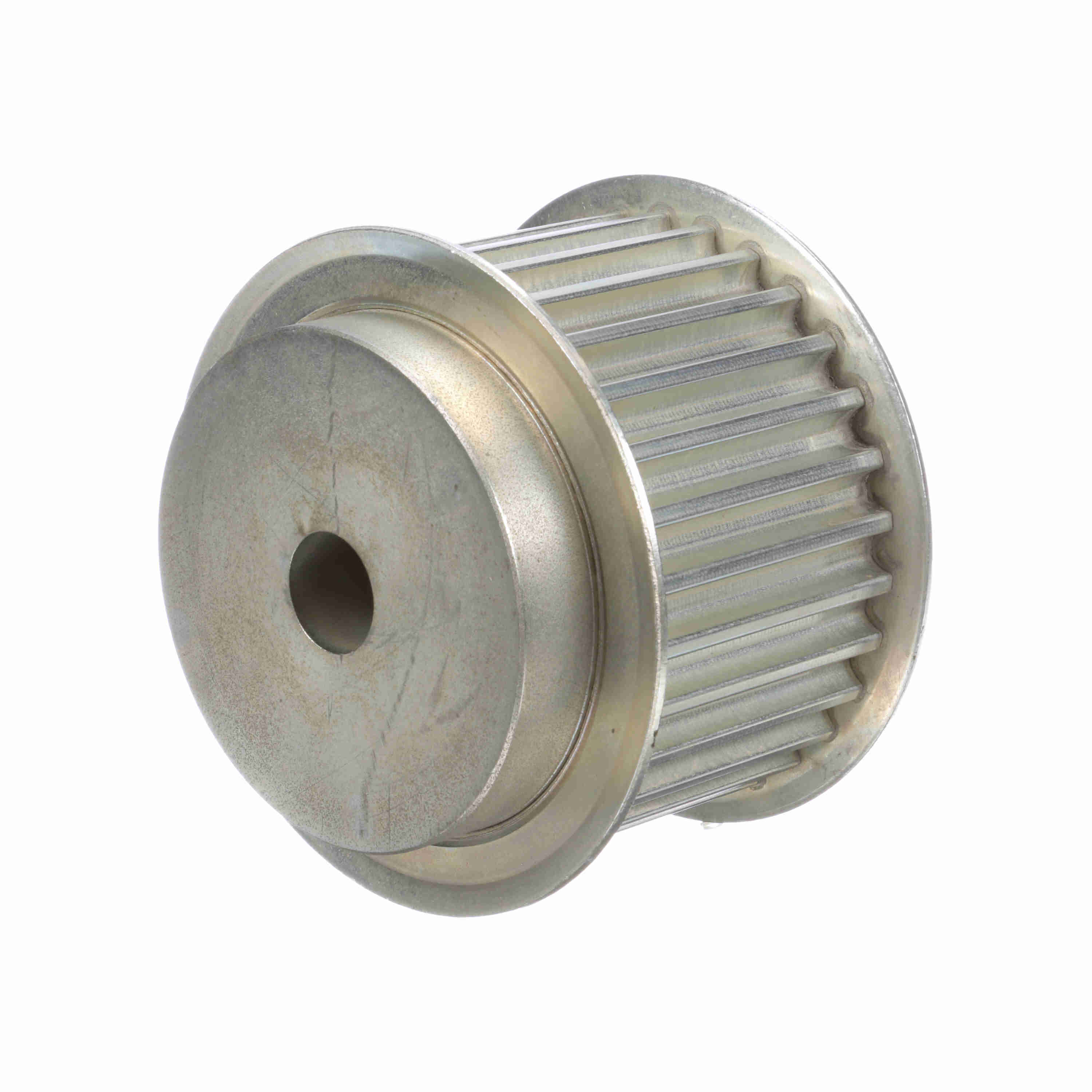

Browning Steel Rough Bore HPT Chain Sprocket - PB14MCS-30-68

Part #:2766855

Catalog #:PB14MCS-30-68

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Chain Synchronous pulley, minimum plain bore
High performance compact design
Well suited for high-torque applications; under 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Product Type:	HPT Chain Sprocket	Bushing:	MPB
Number of teeth:	30	Flange (mm):	146.3802 mm
Width (mm):	68 mm	Bore Type:	Rough Bore
Bore (Max) (mm):	80.9752 mm	Bore (Min) (mm):	25.4 mm
Belt Section:	14M	Pitch Diameter (mm):	133.6802 mm
Outside Diameter (mm):	130.8862 mm	Material:	Steel

General Specifications

UPC:	662460616513	Weight:	18.83 LB
Packaged Length:	6.30 IN	Packaged Width:	6.30 IN
Packaged Height:	4.70 IN	HTC:	8483.50.9080
Country of Origin:	United States of America
