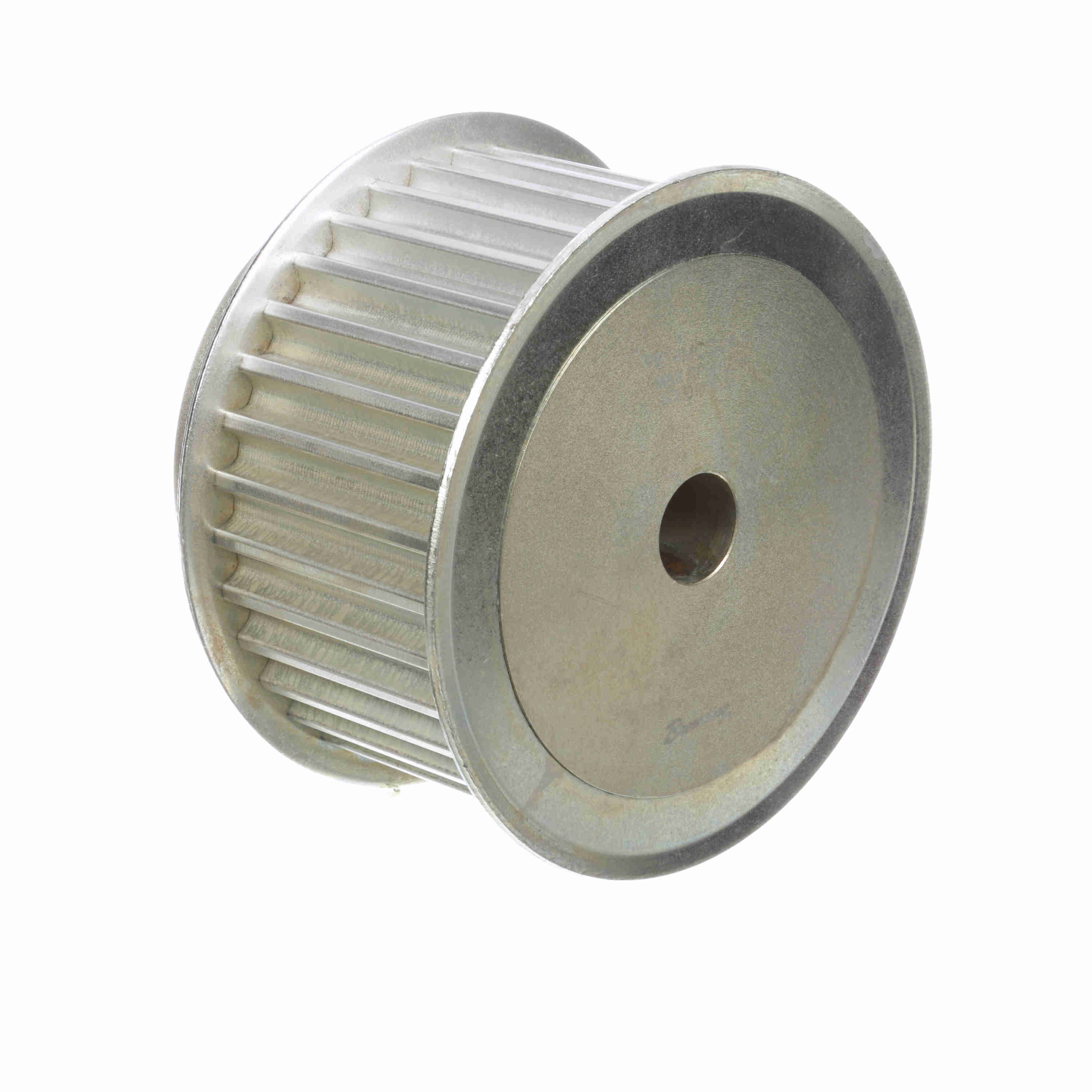

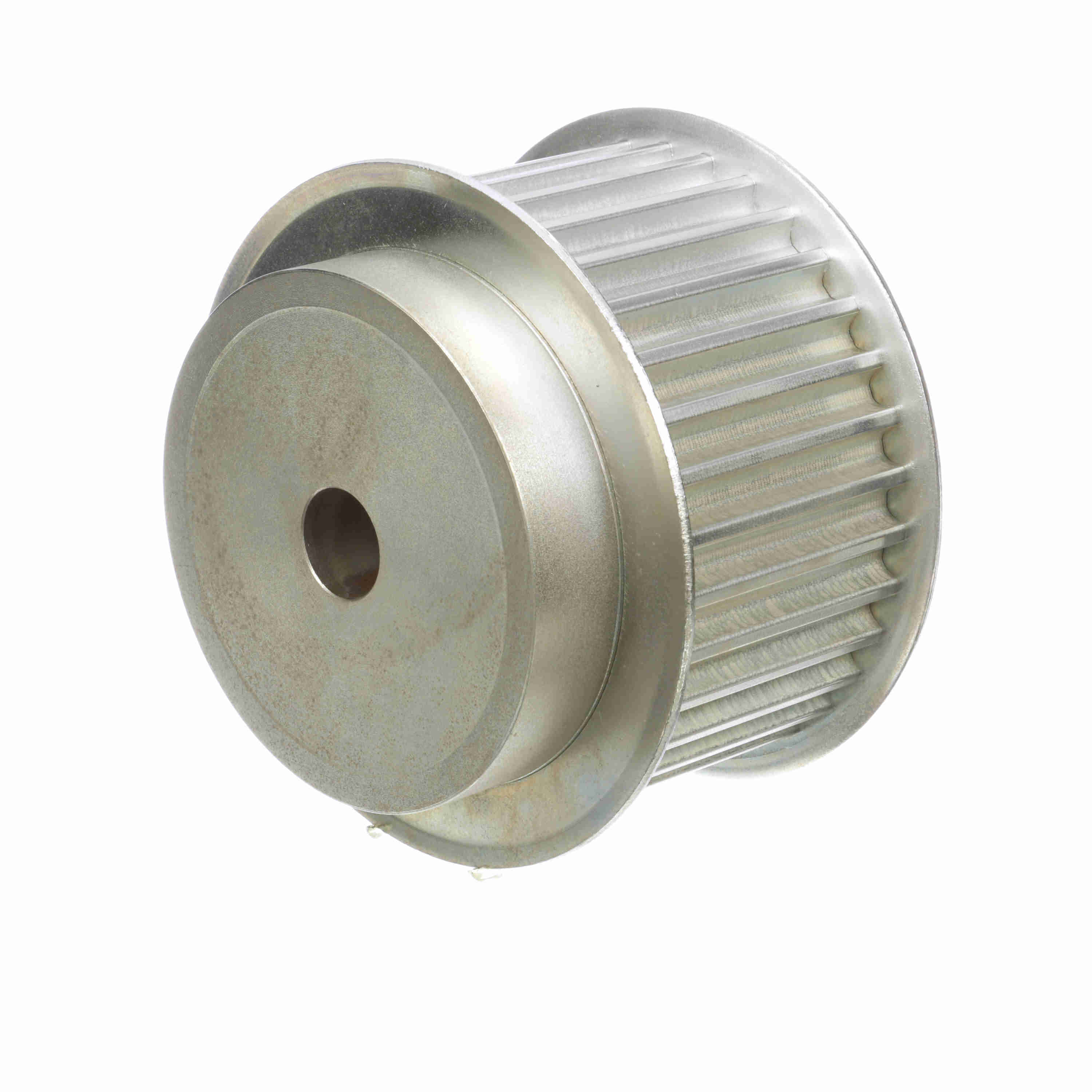

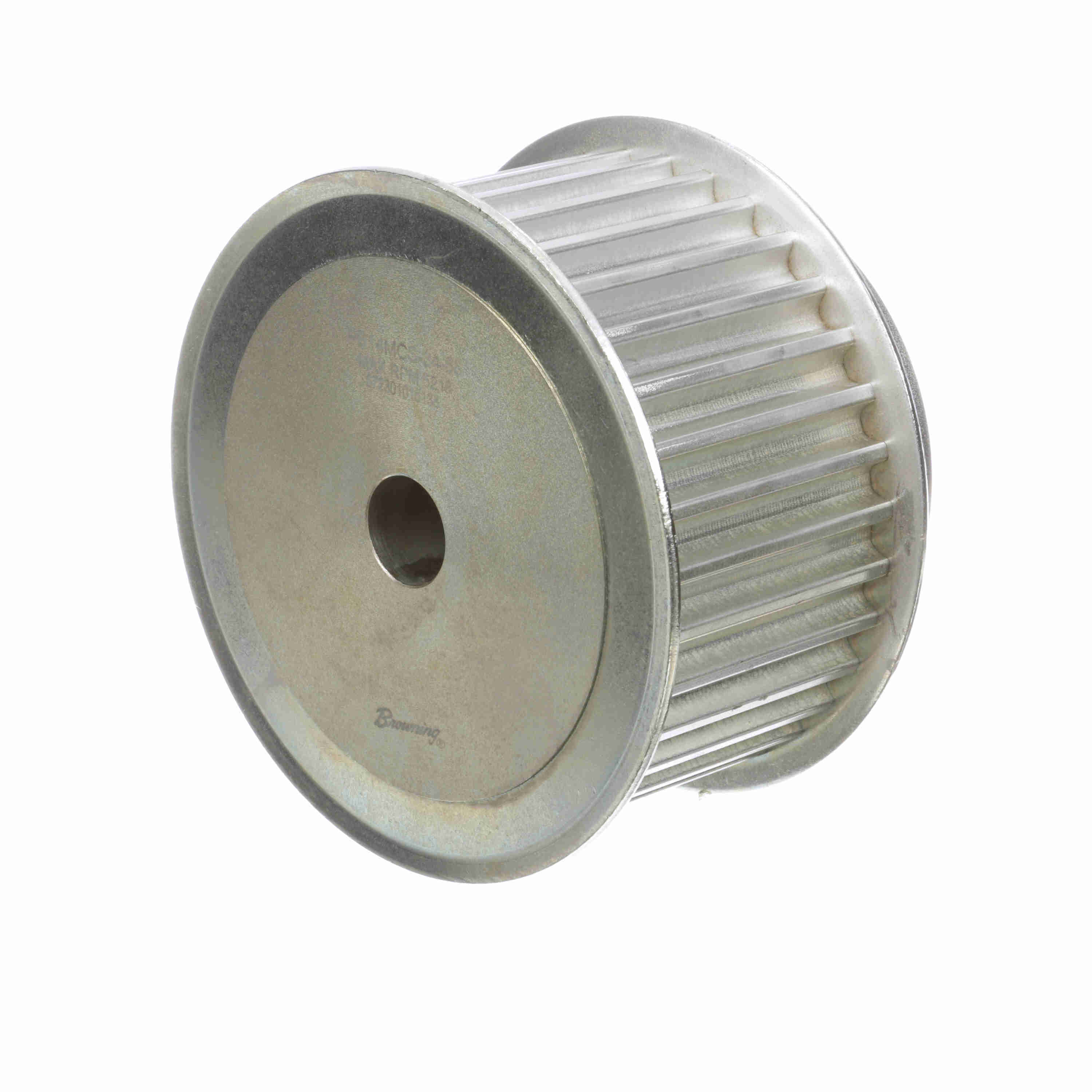

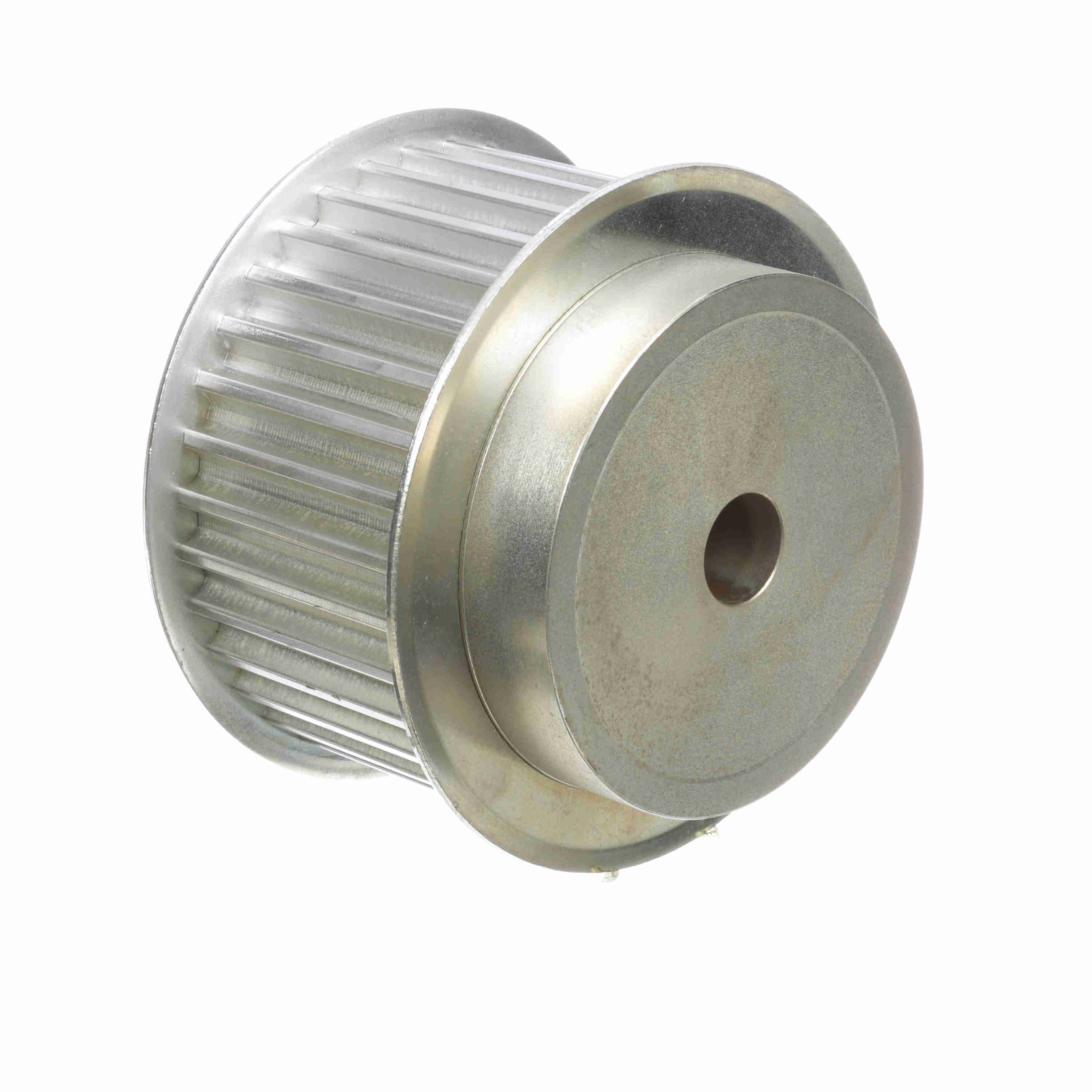

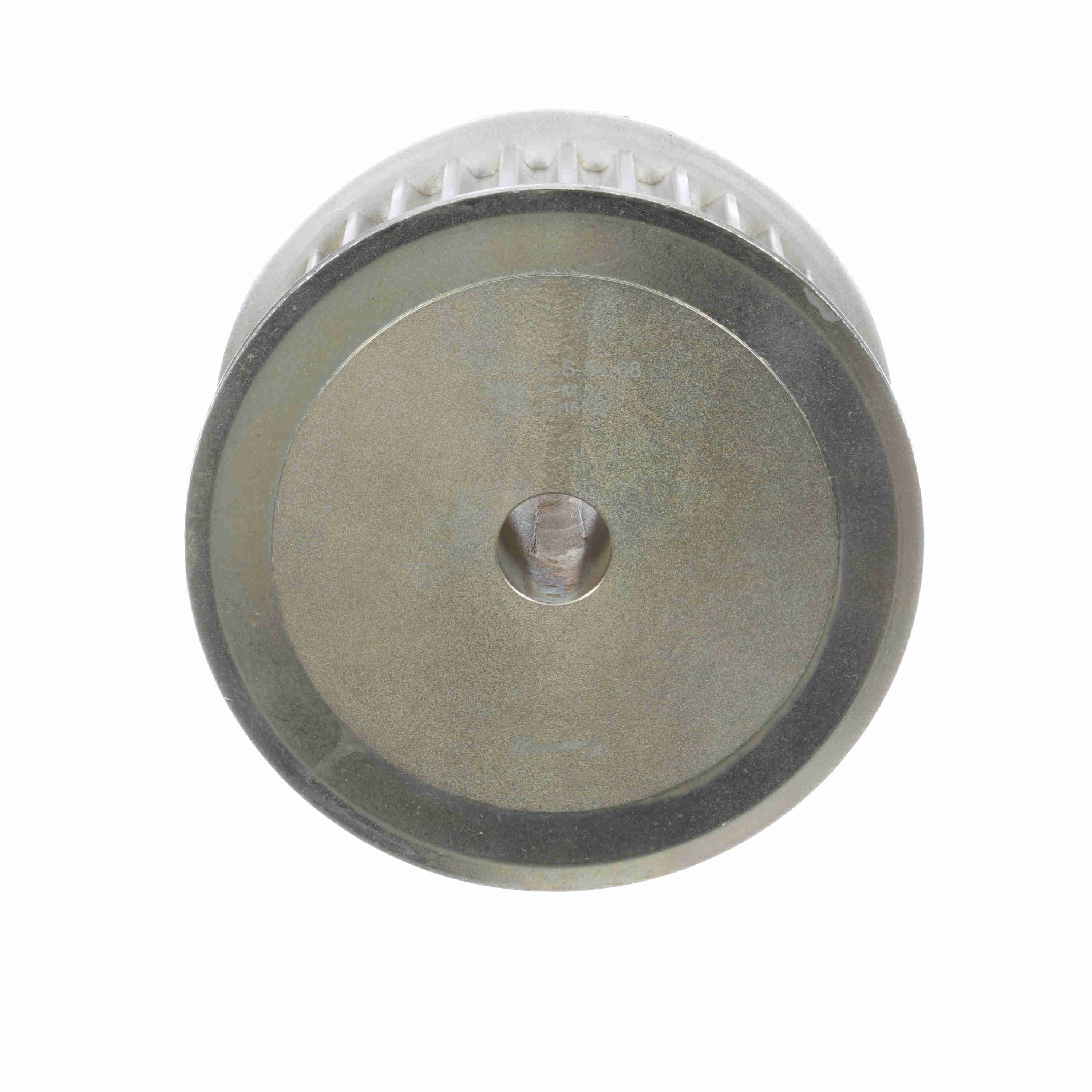

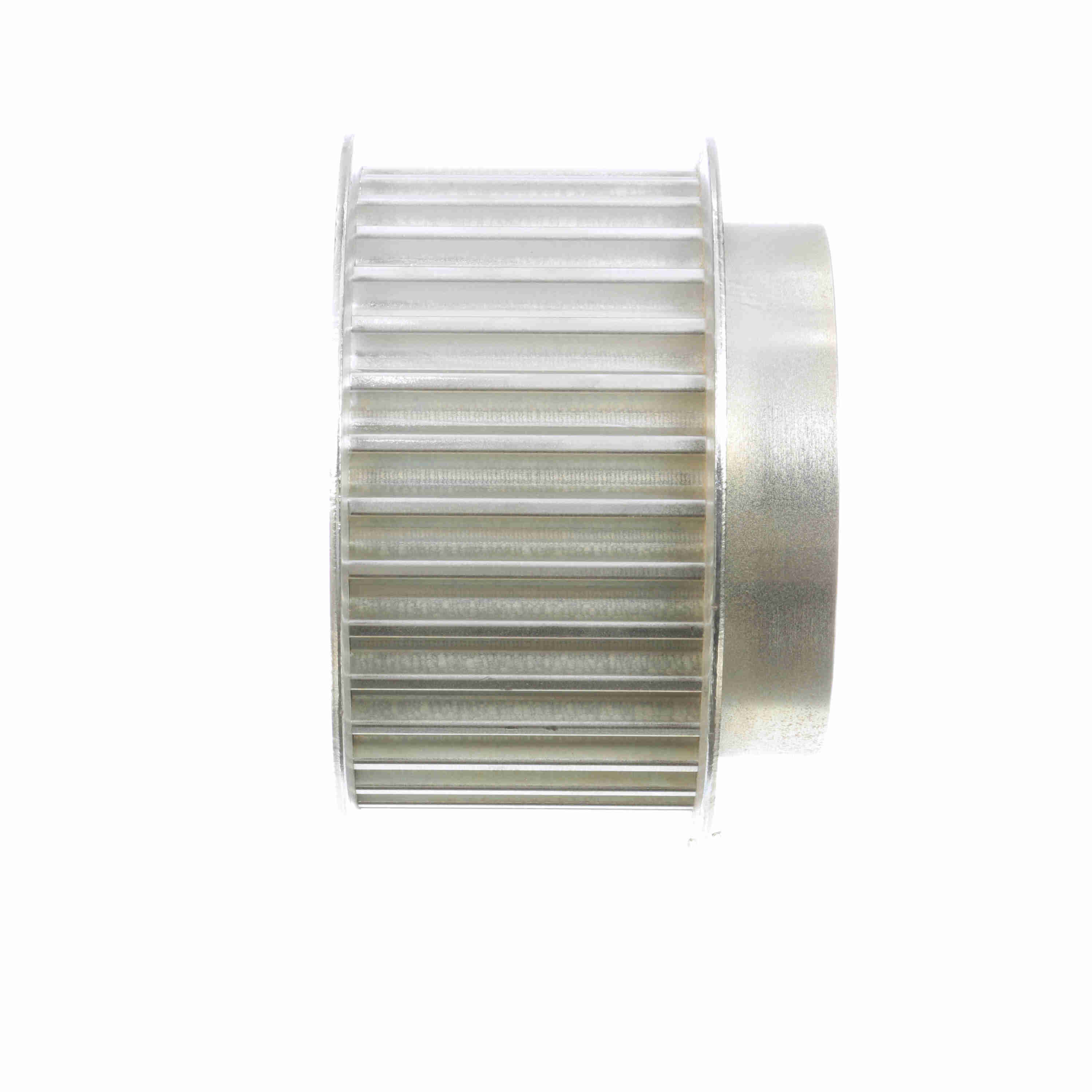

Browning Steel Rough Bore HPT Chain Sprocket - PB14MCS-34-68

Part #:2766939

Catalog #:PB14MCS-34-68

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Chain Synchronous pulley, minimum plain bore
High performance compact design
Well suited for high-torque applications; under 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Flange (mm):	164.211 mm	Width (mm):	68 mm
Product Type:	HPT Chain Sprocket	Bushing:	MPB
Number of teeth:	34	Bore Type:	Rough Bore
Bore (Max) (mm):	88.9 mm	Outside Diameter (mm):	148.717 mm
Bore (Min) (mm):	25.4 mm	Pitch Diameter (mm):	151.511 mm
Material:	Steel	Belt Section:	14M

General Specifications

UPC:	662460616599	Weight:	25.60 LB
Packaged Length:	7.10 IN	Packaged Width:	7.30 IN
Packaged Height:	5.90 IN	HTC:	8483.50.9080
Country of Origin:	United States of America
