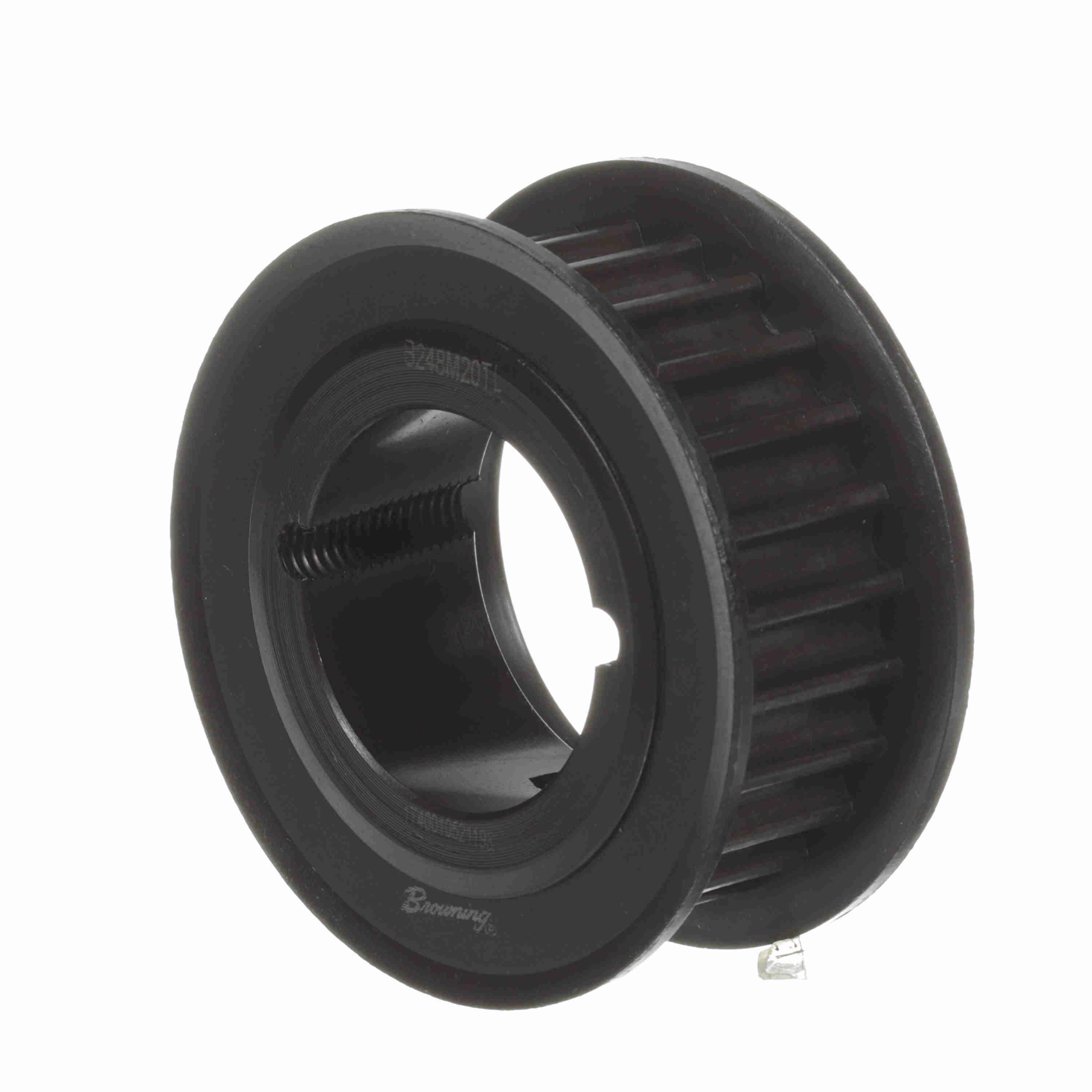

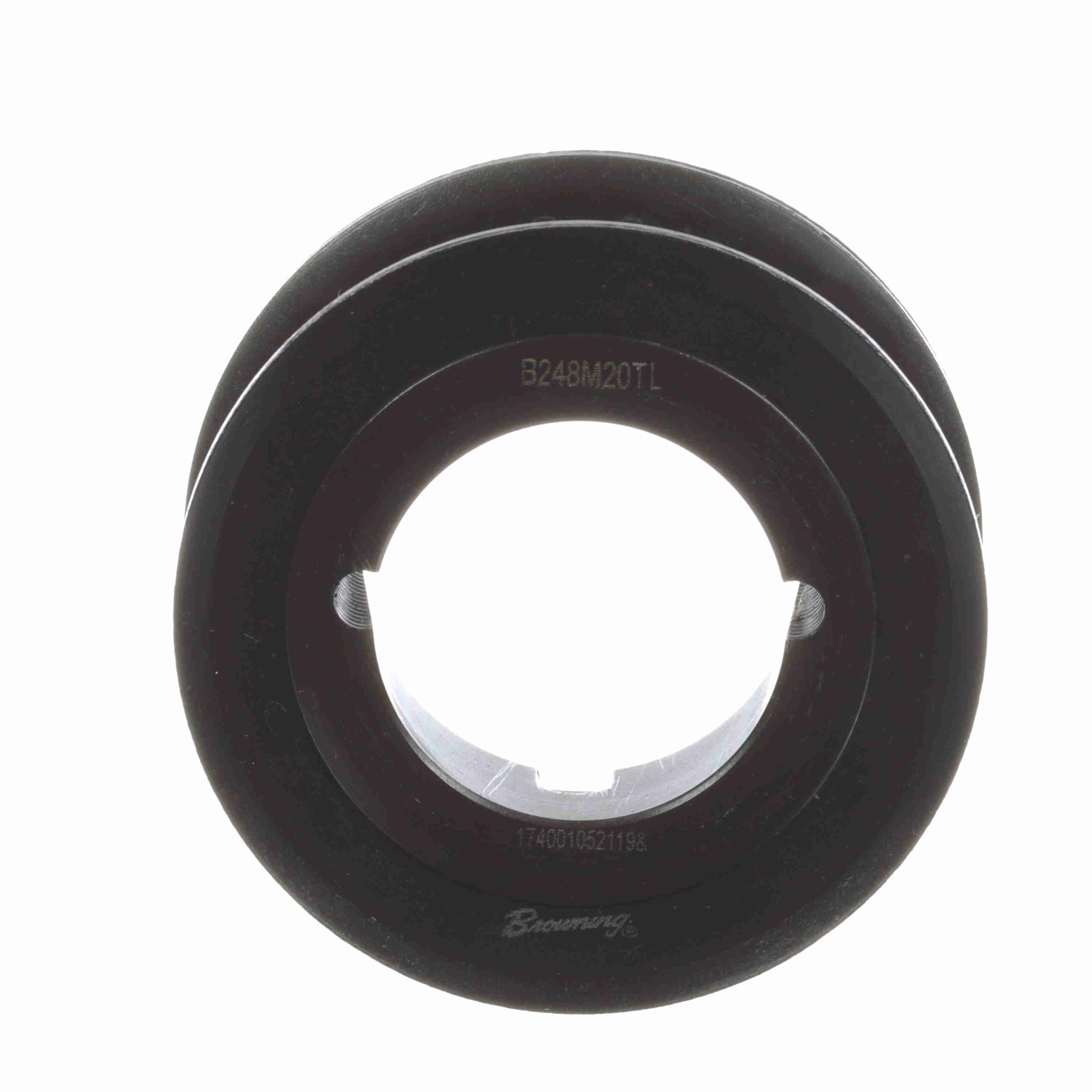

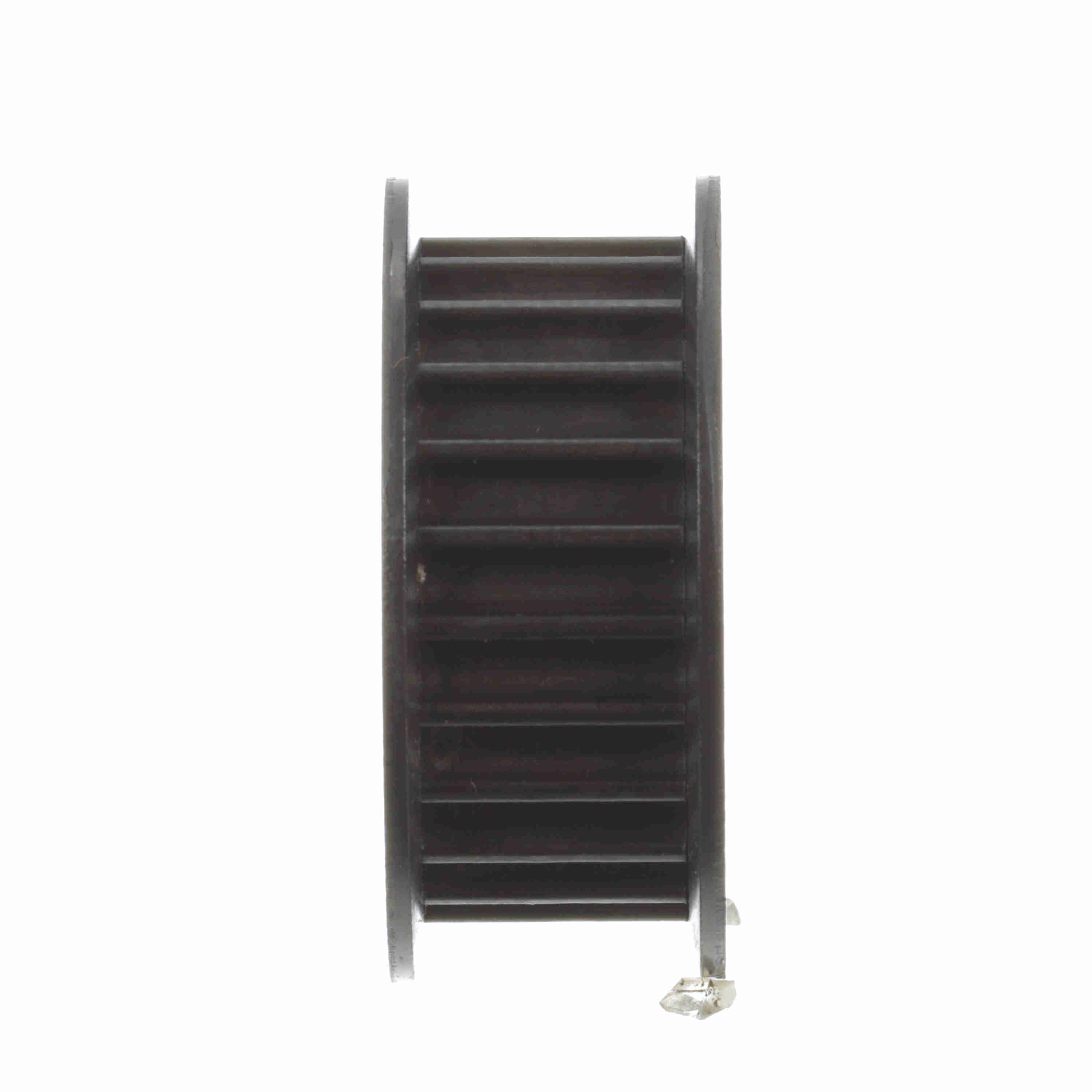

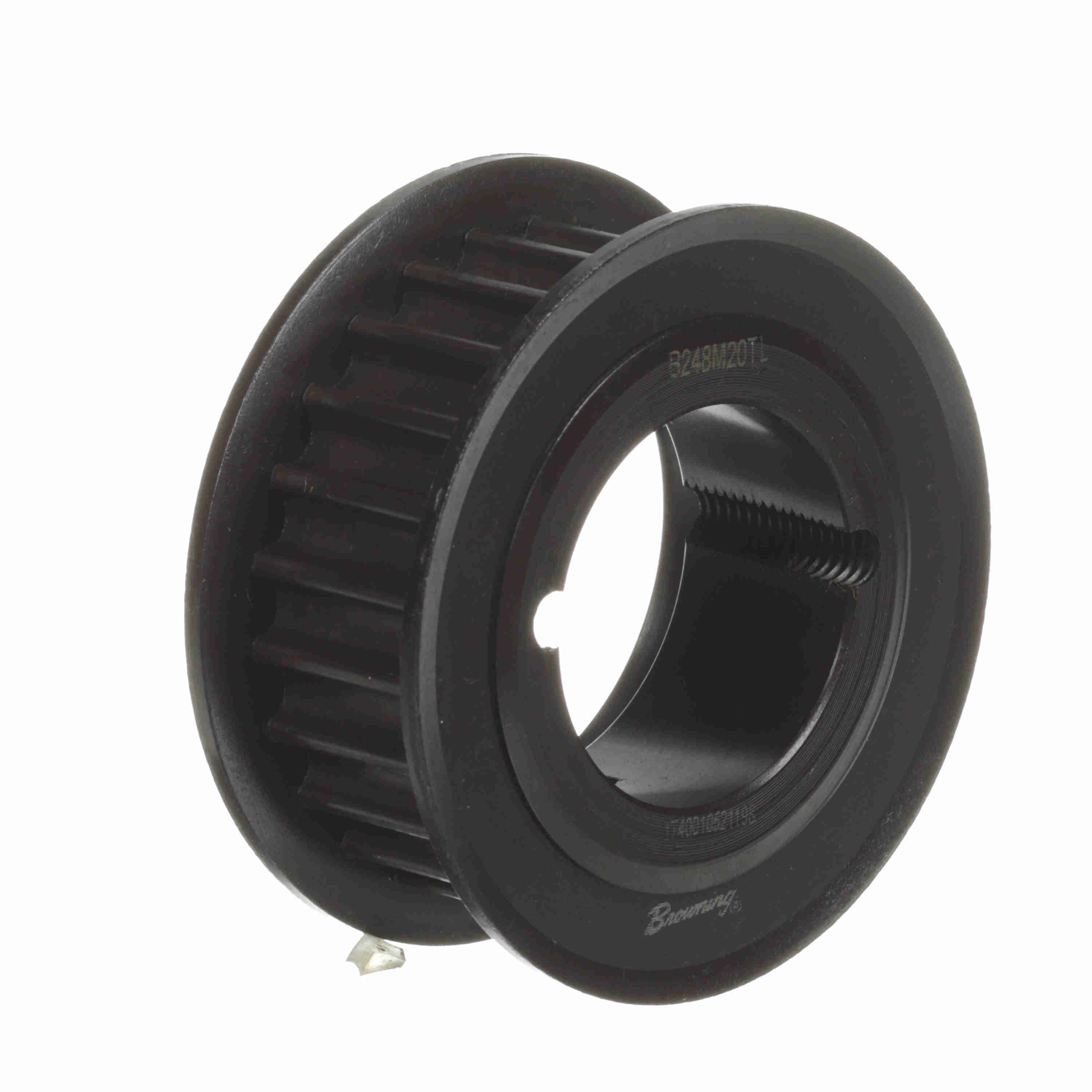

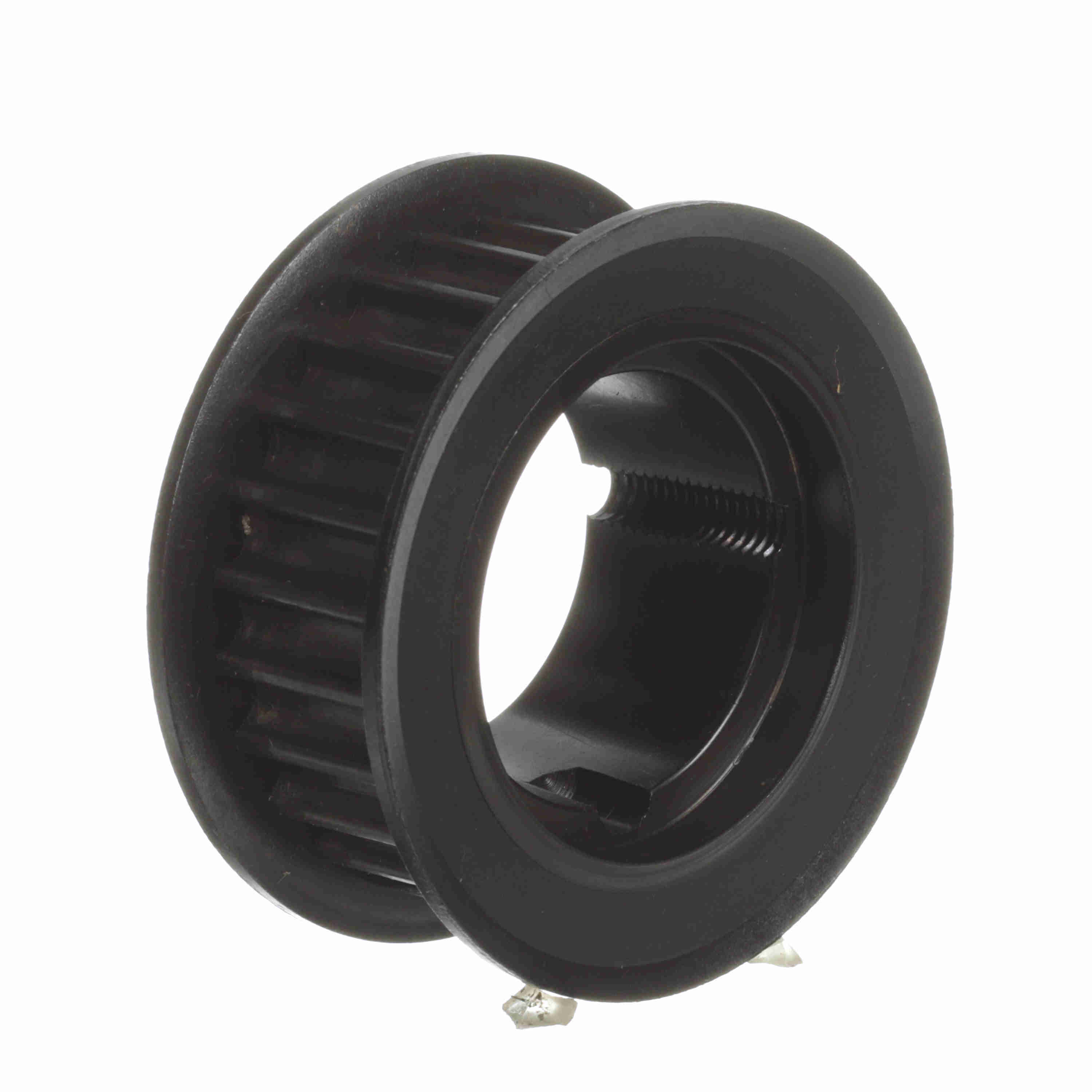

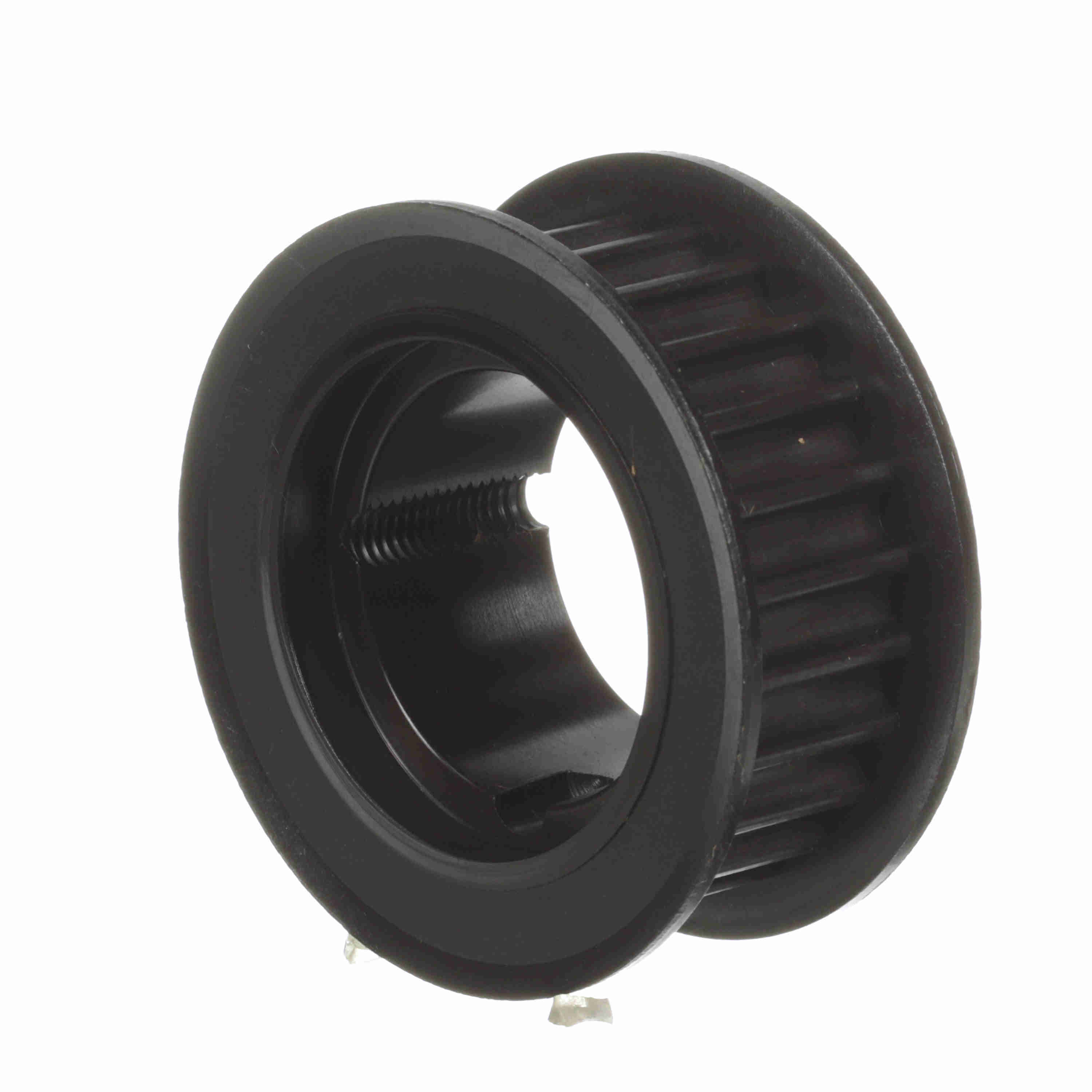

Browning Steel Bushed Bore HPT Sprocket - B248M20TL

Part #:2762482

Catalog #:B248M20TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Flange (mm):	70.0024 mm	Width (mm):	20 mm
Number of teeth:	24	Bushing:	1108
Product Type:	HPT Sprocket	Bushing Type:	Taper Bore
Bore Type:	Bushed	Material:	Steel
Pitch Diameter (mm):	61.1124 mm	Belt Section:	8M
Bore (Max) (mm):	28.575 mm	Outside Diameter (mm):	59.7408 mm
Bore (Min) (mm):	12.7 mm

General Specifications

UPC:	662460609430	Weight:	0.80 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
