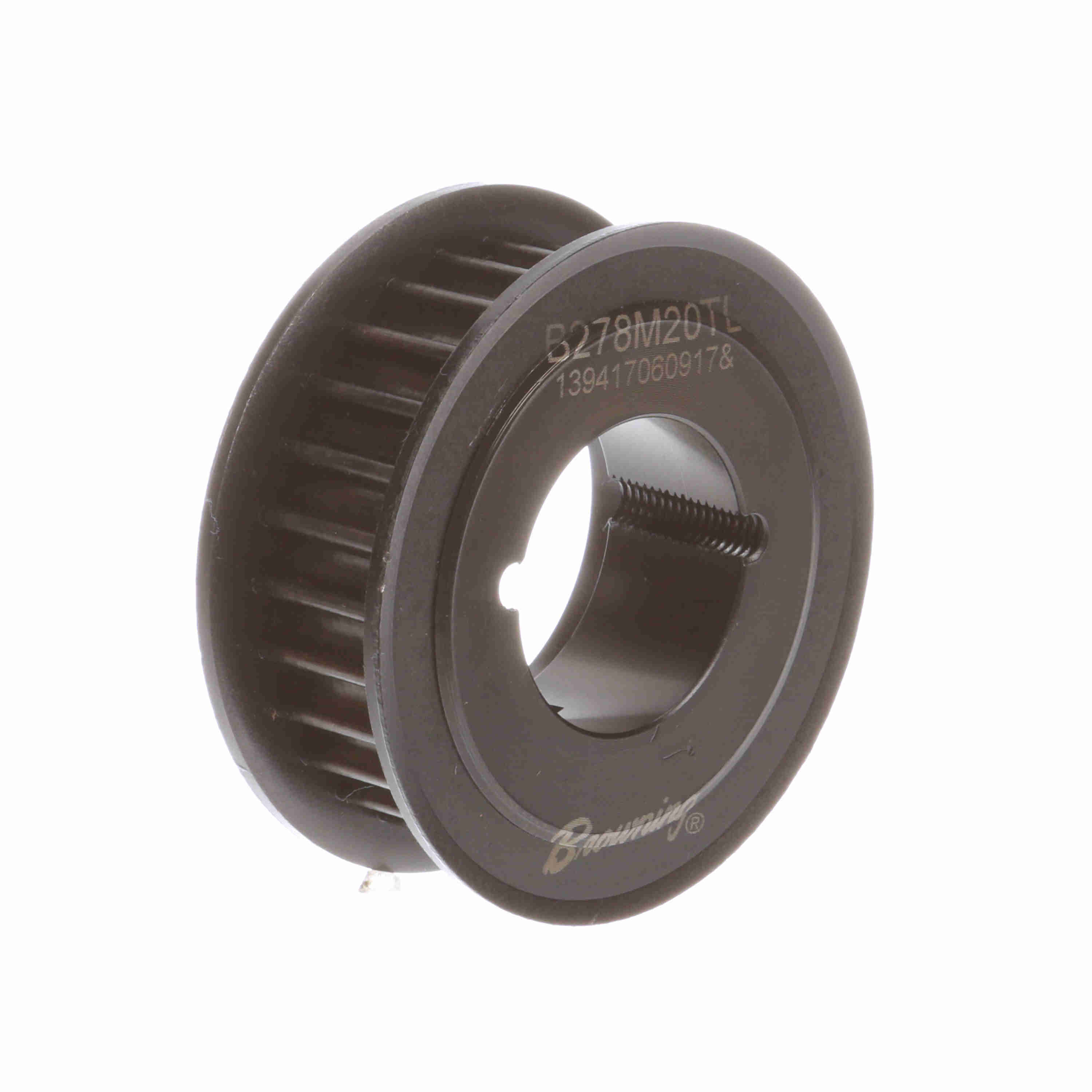

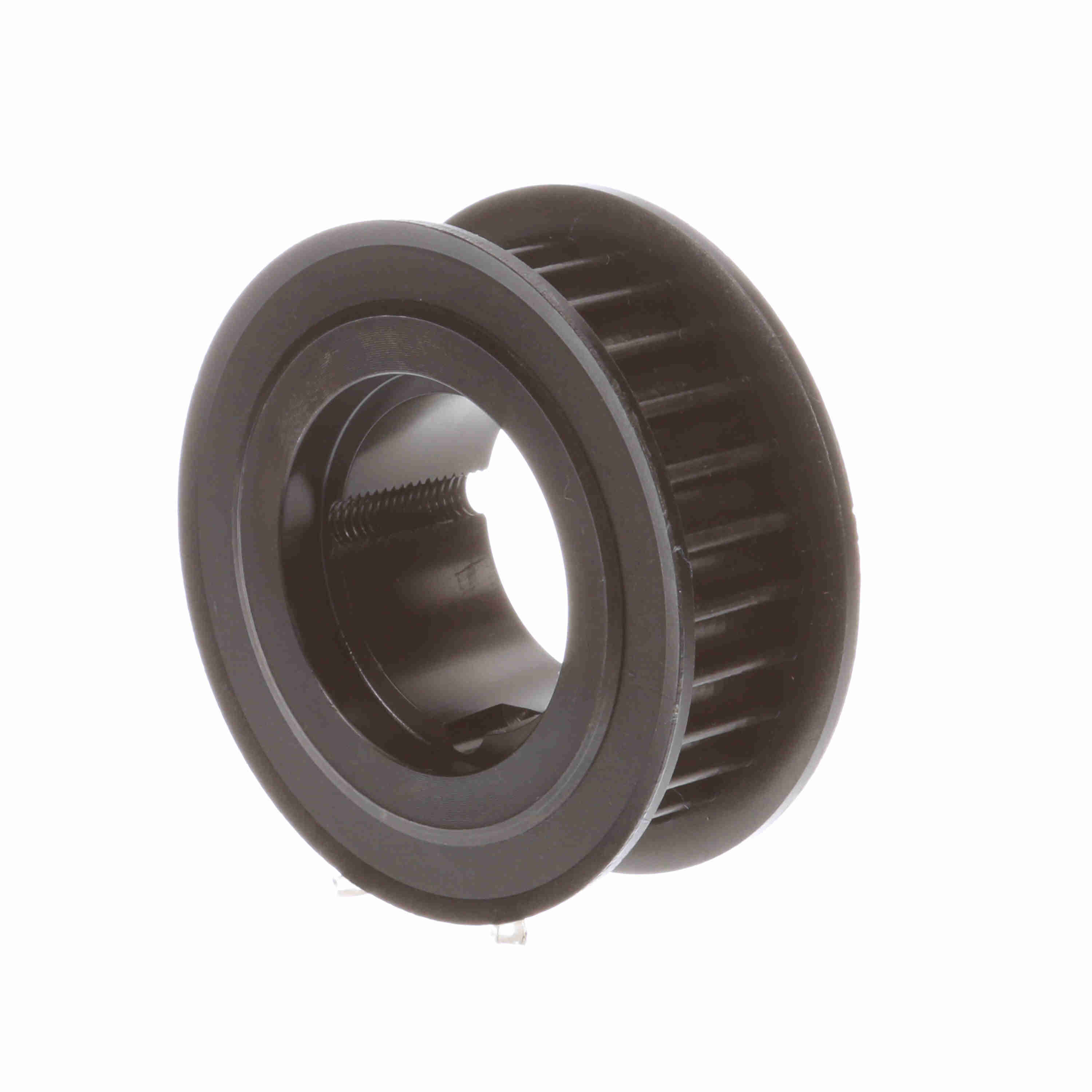

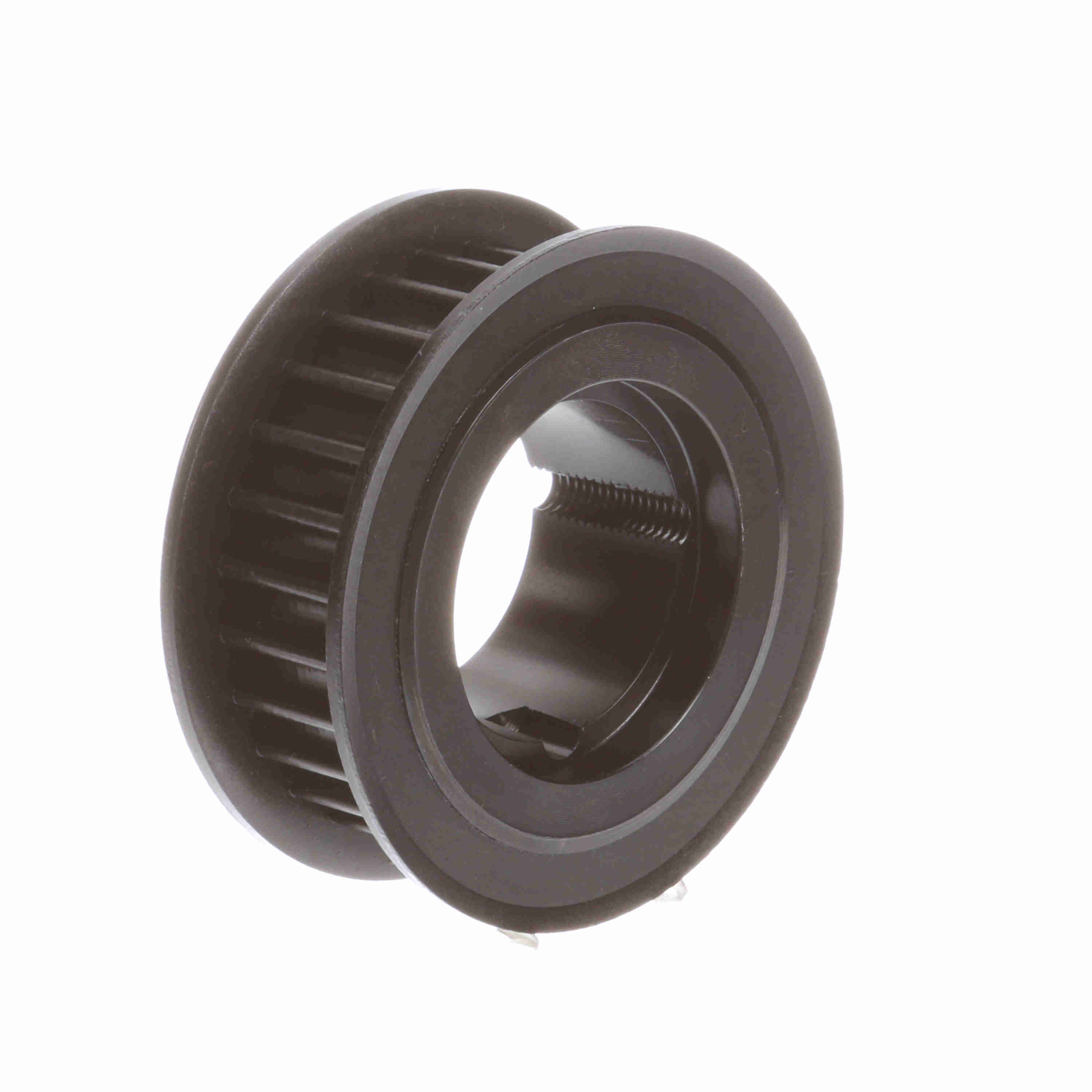

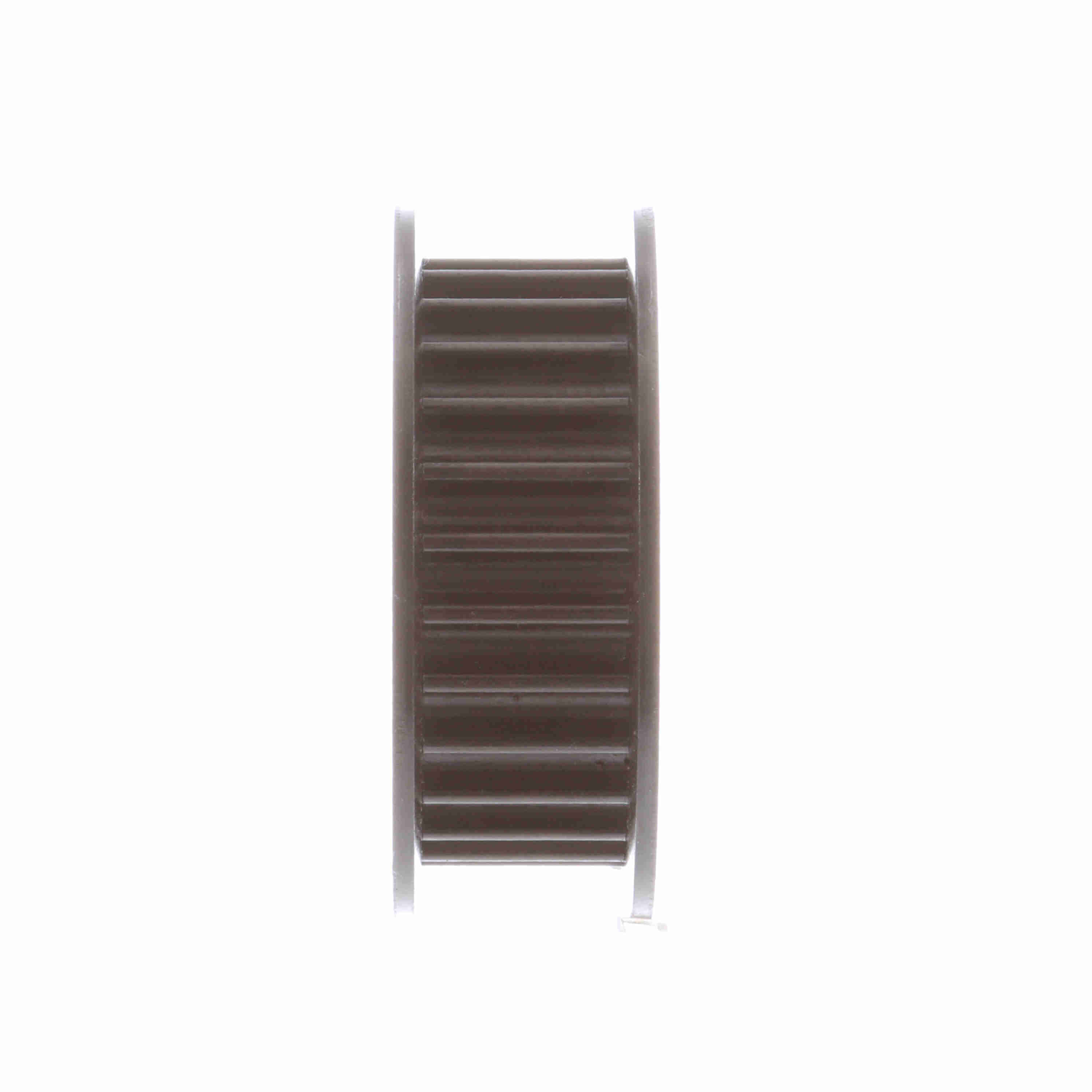

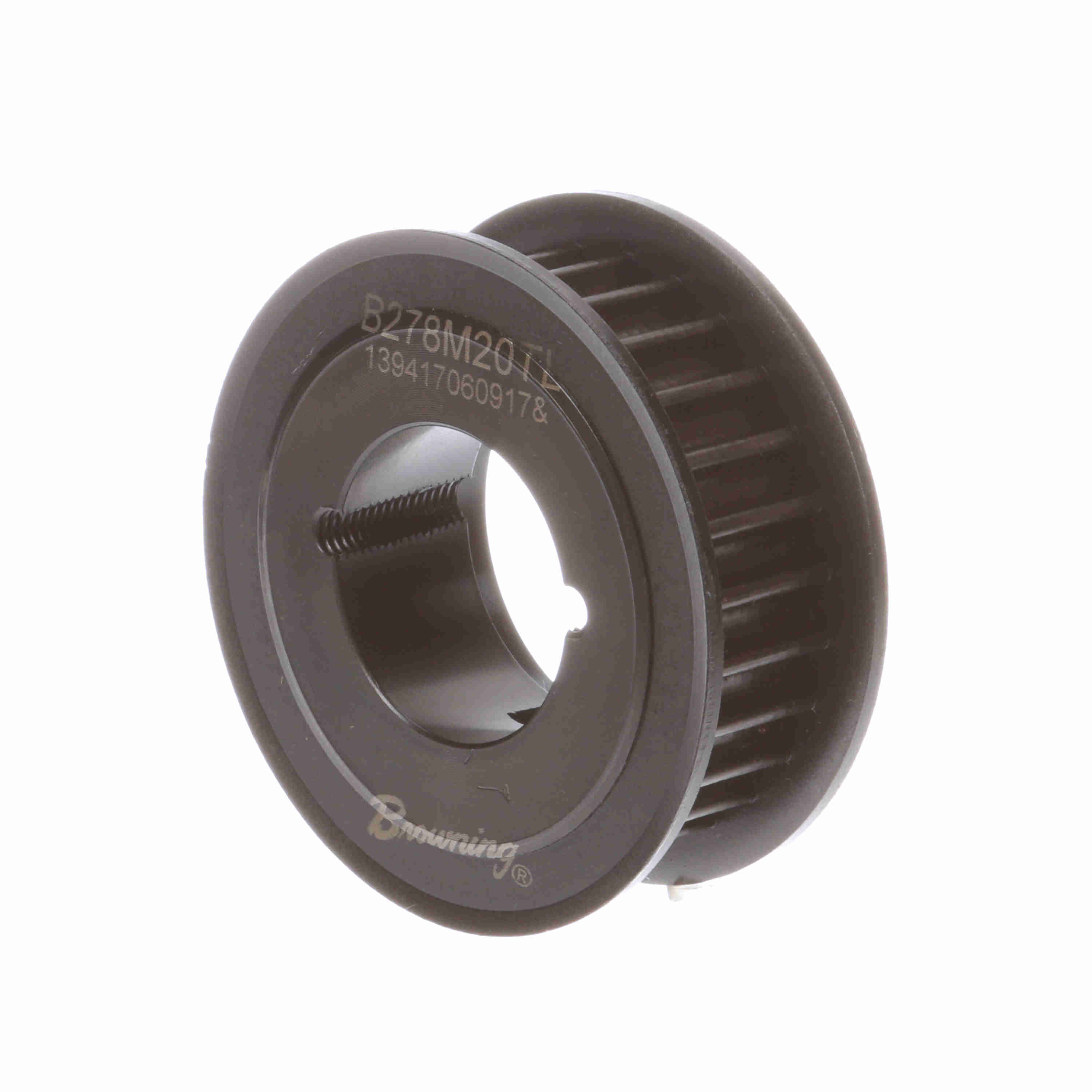

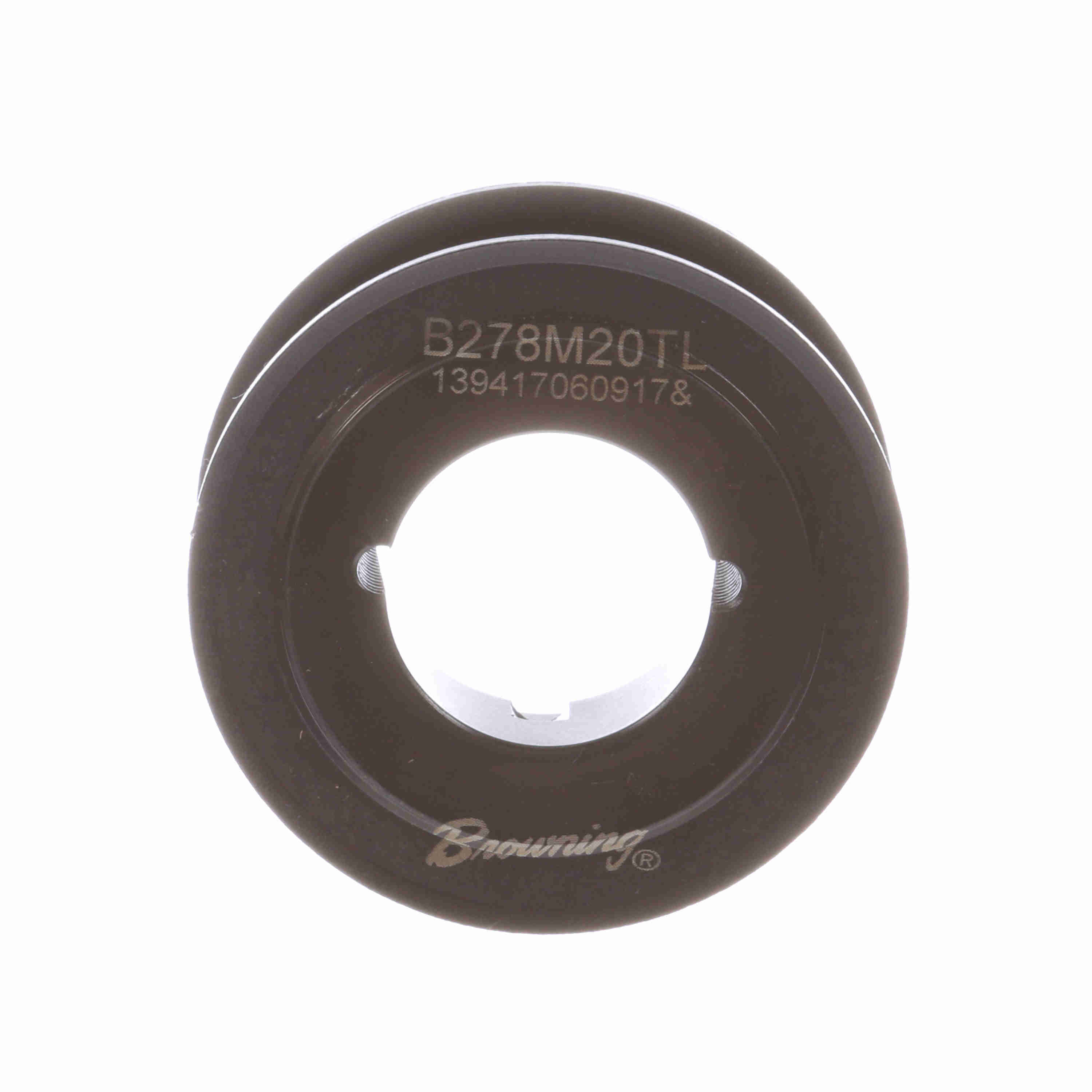

Browning Steel Bushed Bore HPT Sprocket - B278M20TL

Part #:2762516

Catalog #:B278M20TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Number of teeth:	27	Width (mm):	20 mm
Bushing:	1108	Product Type:	HPT Sprocket
Flange (mm):	80.01 mm	Bore Type:	Bushed
Bushing Type:	Taper Bore	Material:	Steel
Bore (Max) (mm):	28.575 mm	Belt Section:	8M
Outside Diameter (mm):	67.3862 mm	Bore (Min) (mm):	12.7 mm
Pitch Diameter (mm):	68.7578 mm

General Specifications

UPC:	662460609461	Weight:	1.10 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
