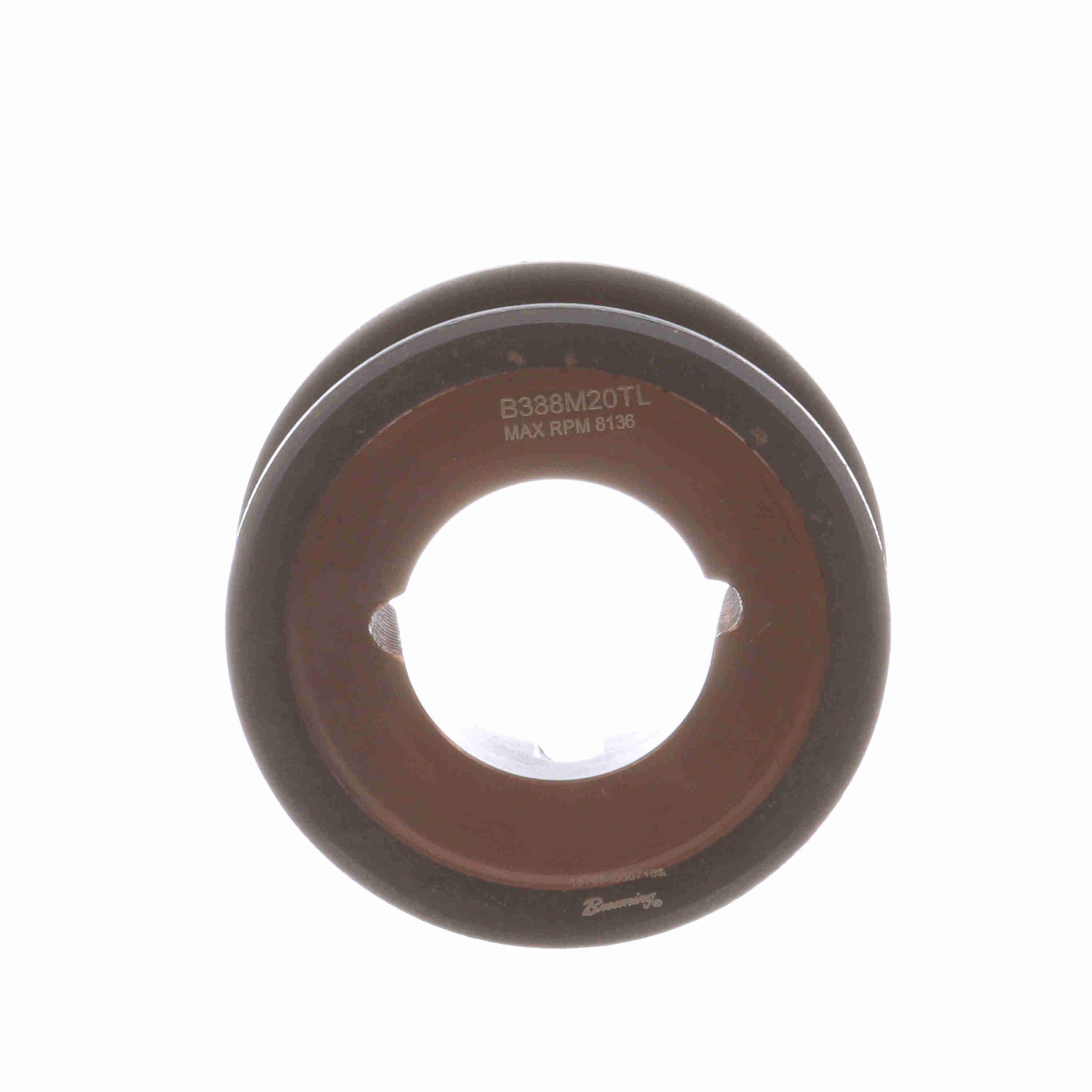

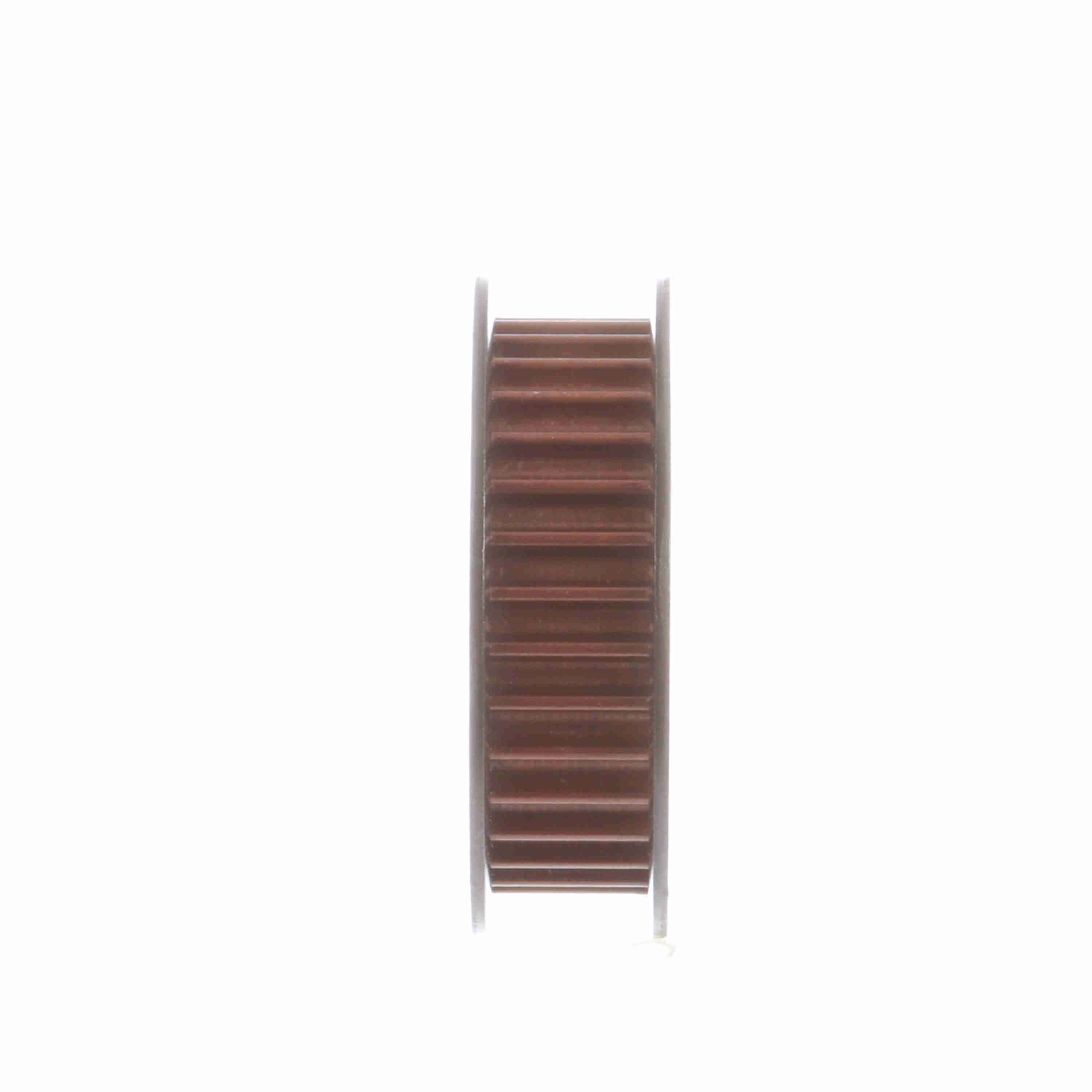

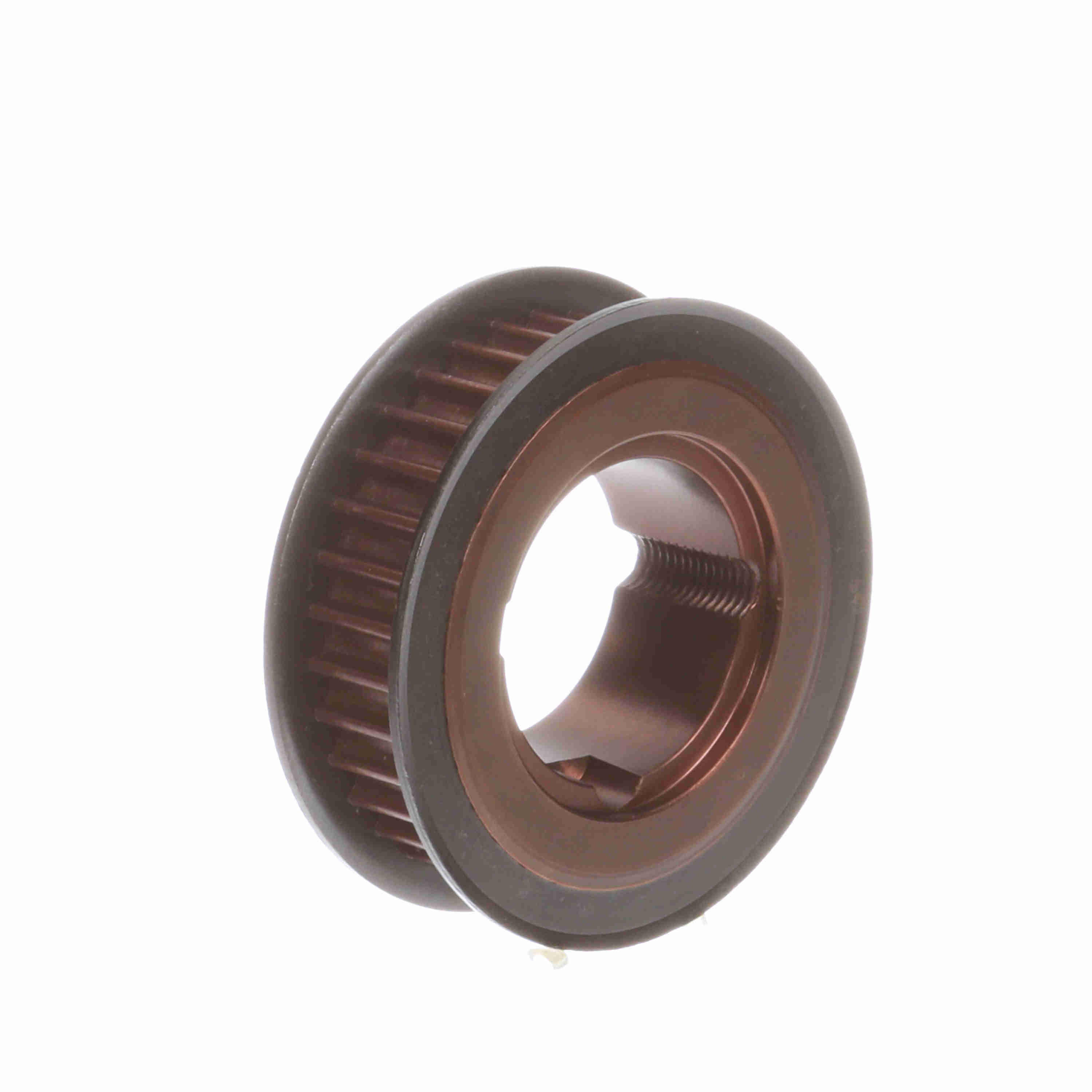

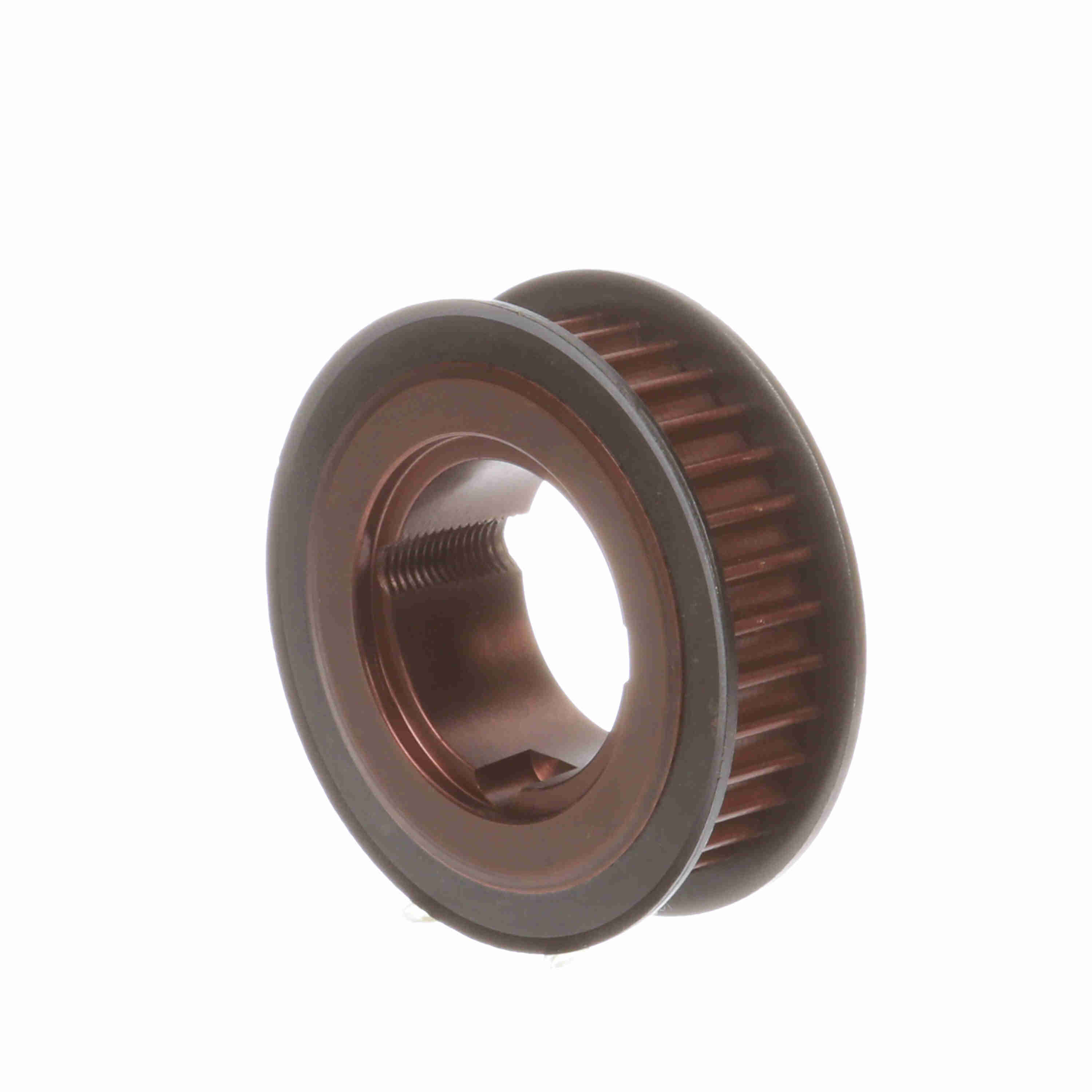

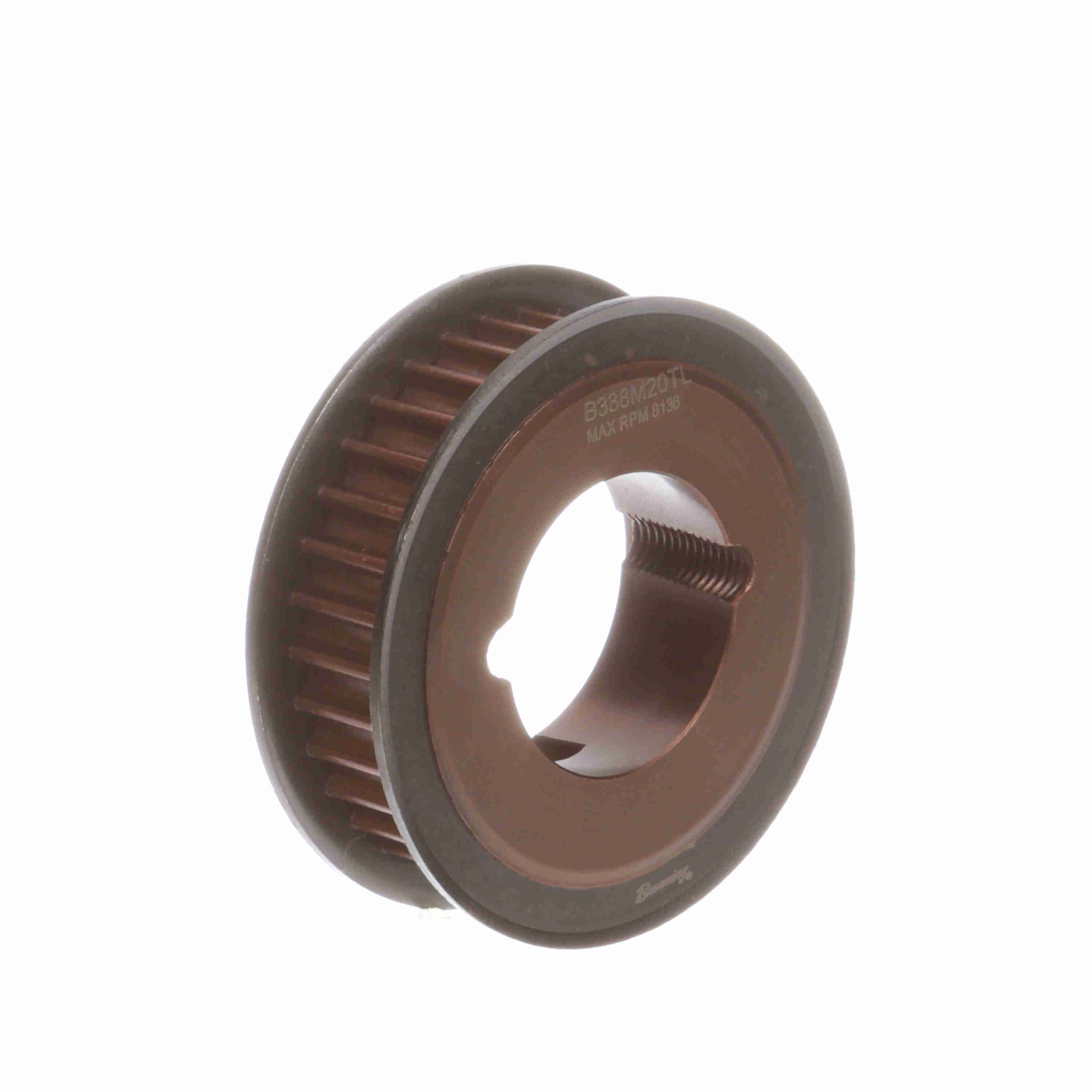

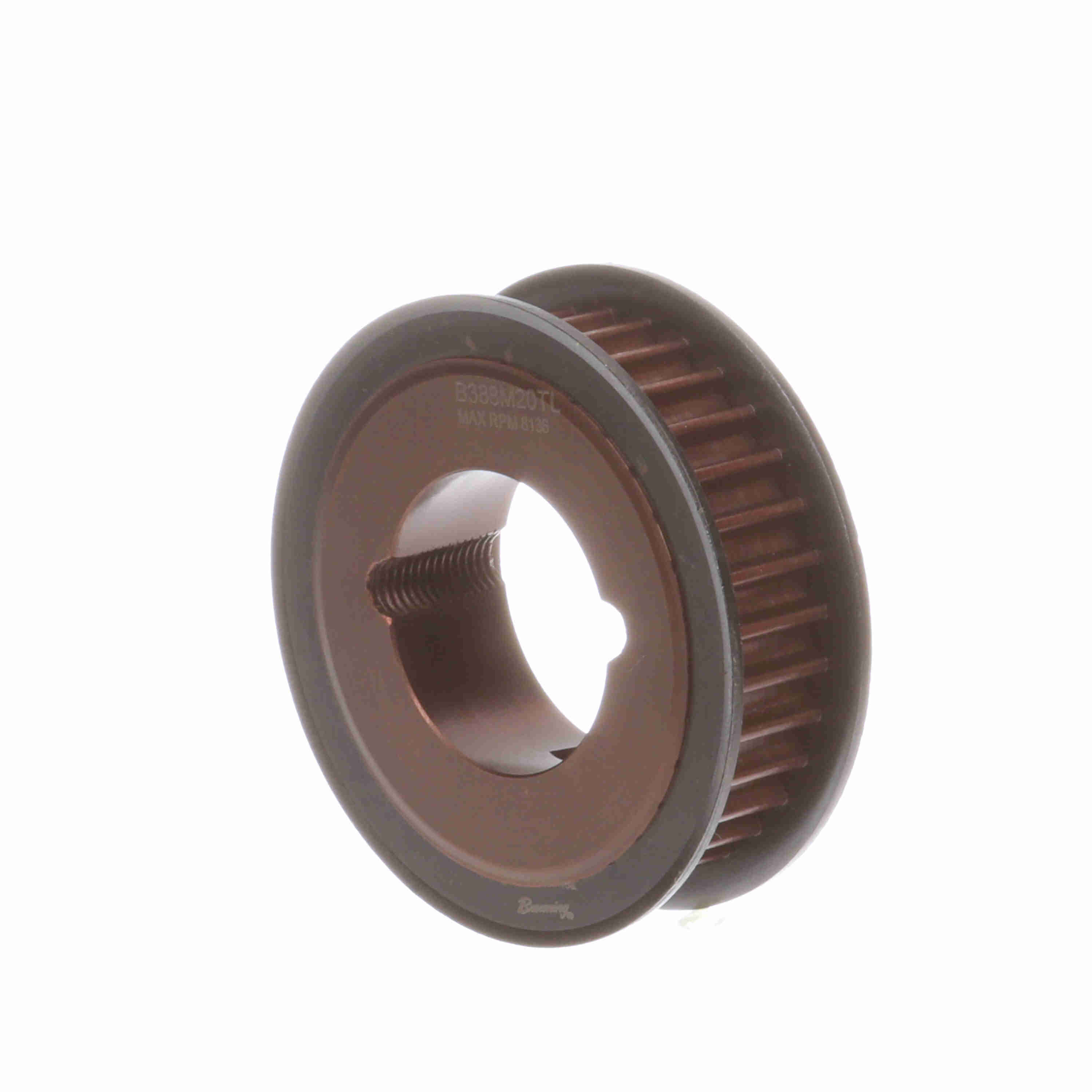

Browning Steel Bushed Bore HPT Sprocket - B338M20TL

Part #:2762573

Catalog #:B338M20TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Number of teeth:	33	Flange (mm):	97.0026 mm
Product Type:	HPT Sprocket	Bushing:	1610
Width (mm):	20 mm	Bushing Type:	Taper Bore
Bore Type:	Bushed	Belt Section:	8M
Pitch Diameter (mm):	84.0486 mm	Outside Diameter (mm):	82.677 mm
Bore (Max) (mm):	41.275 mm	Material:	Steel
Bore (Min) (mm):	12.7 mm

General Specifications

UPC:	662460609522	Weight:	1.40 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
