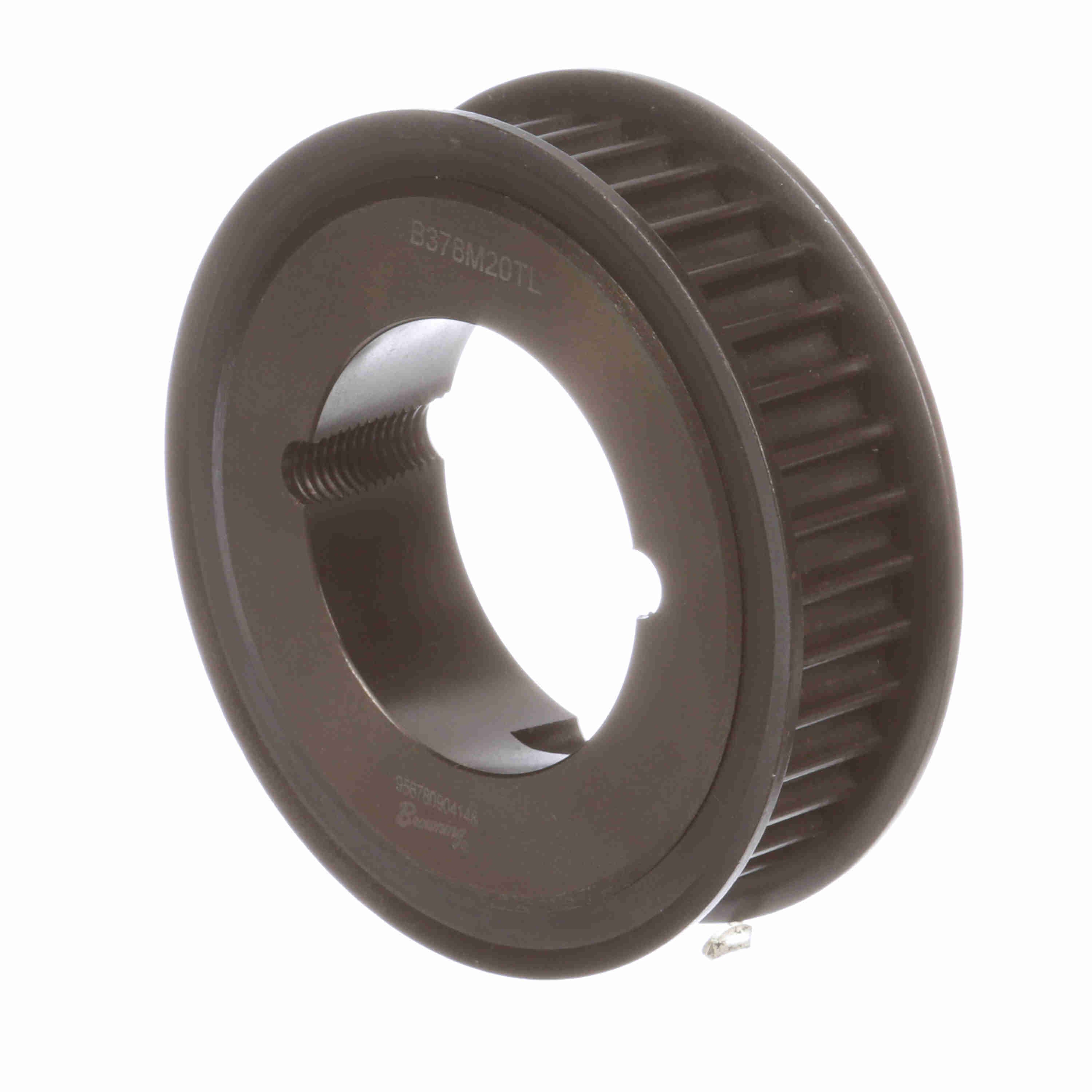

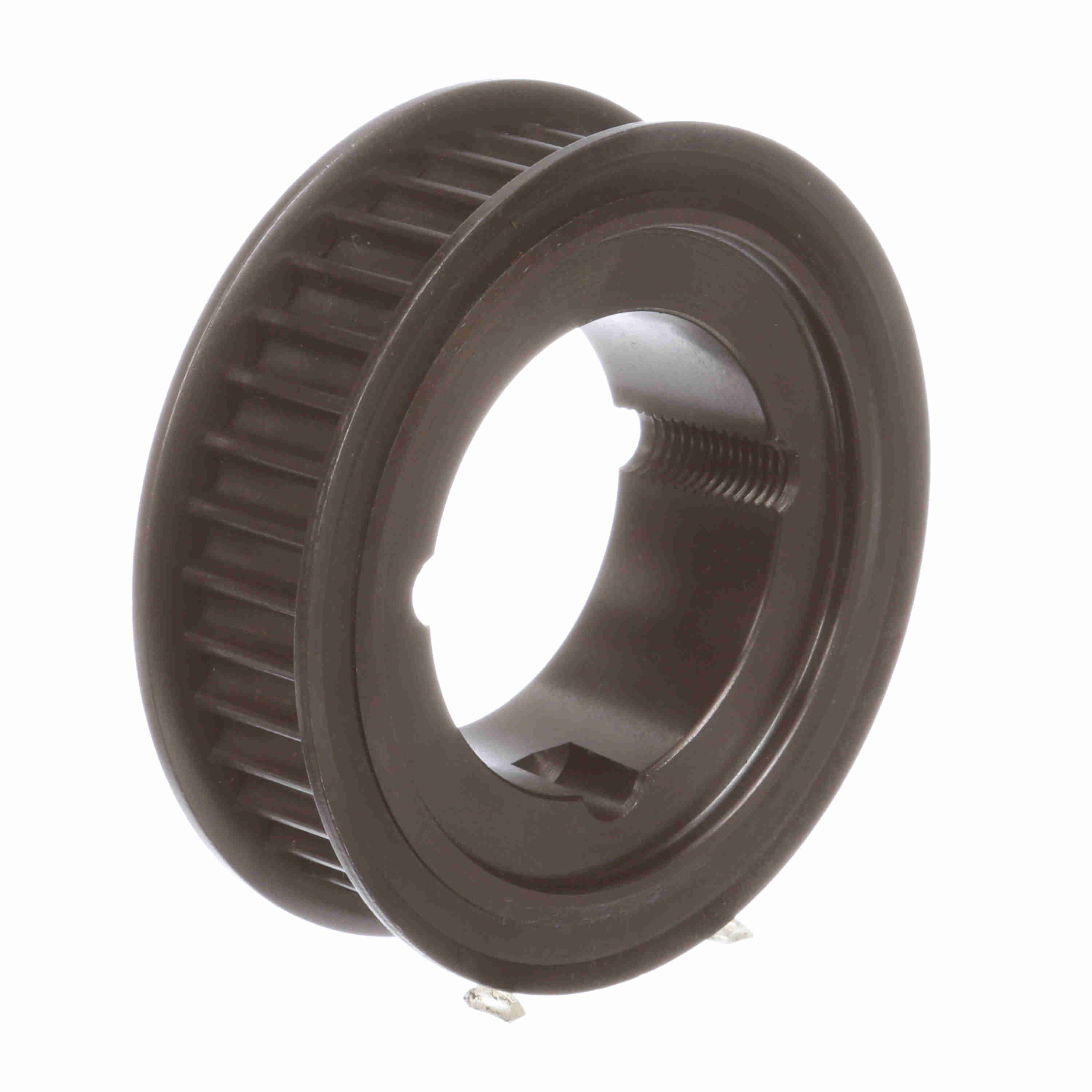

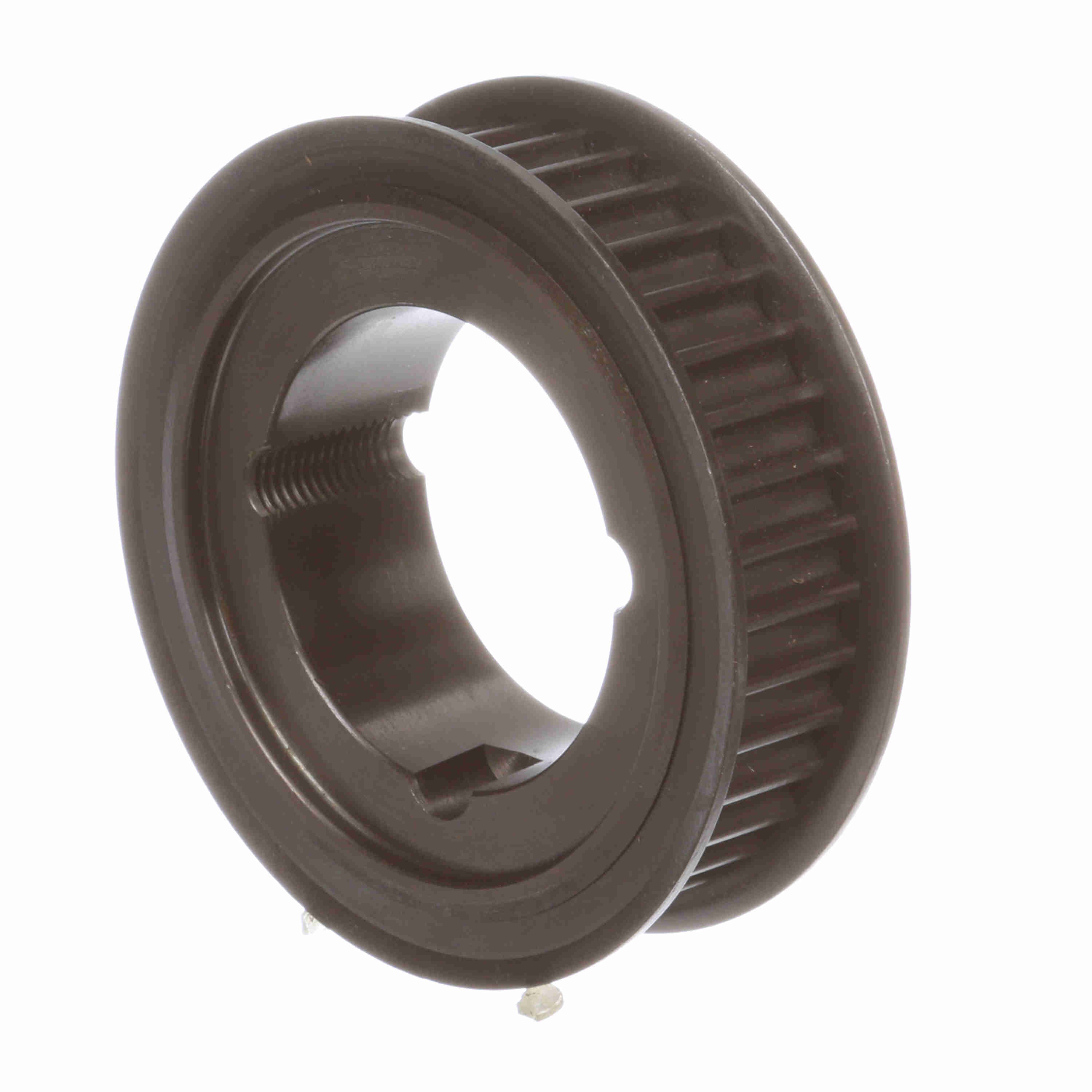

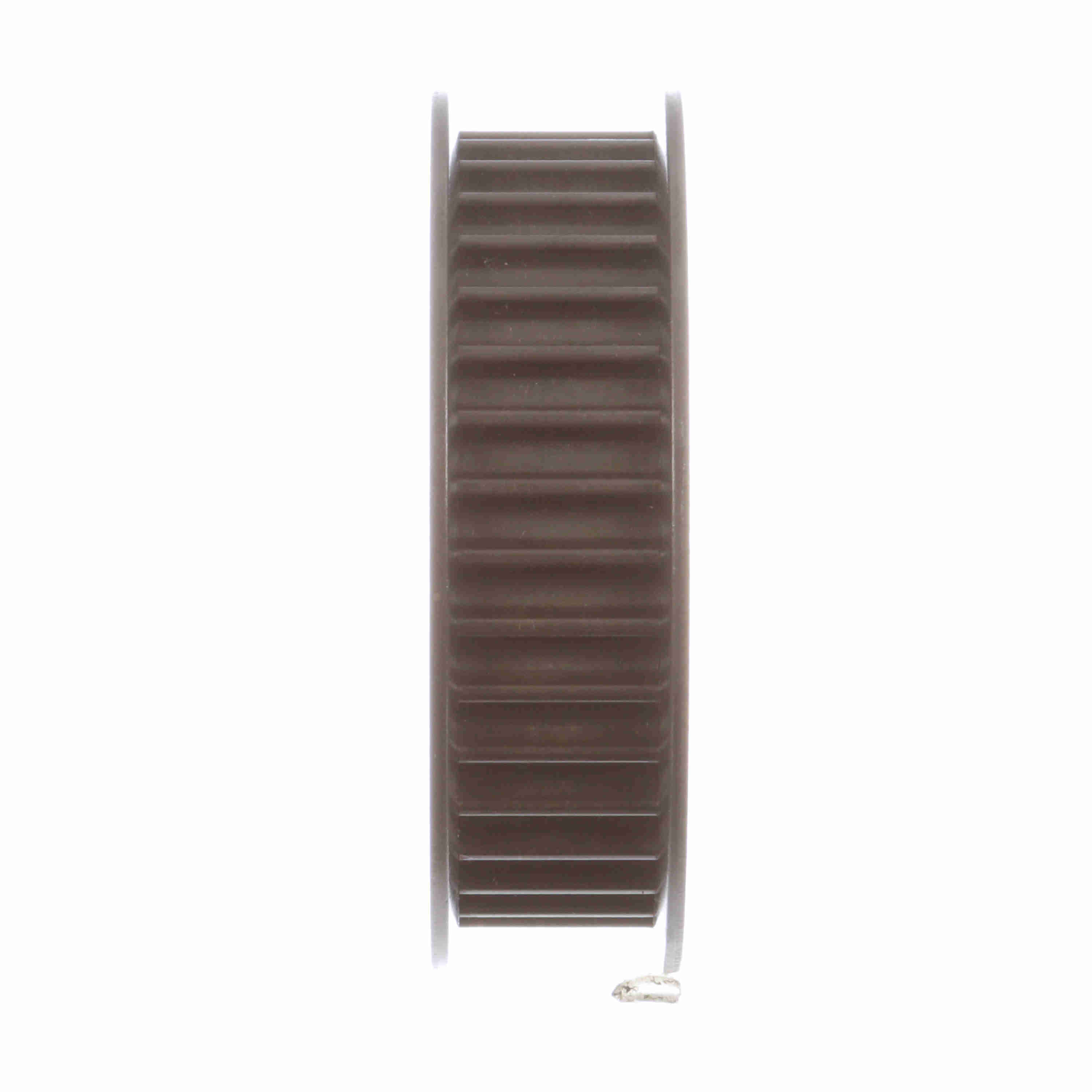

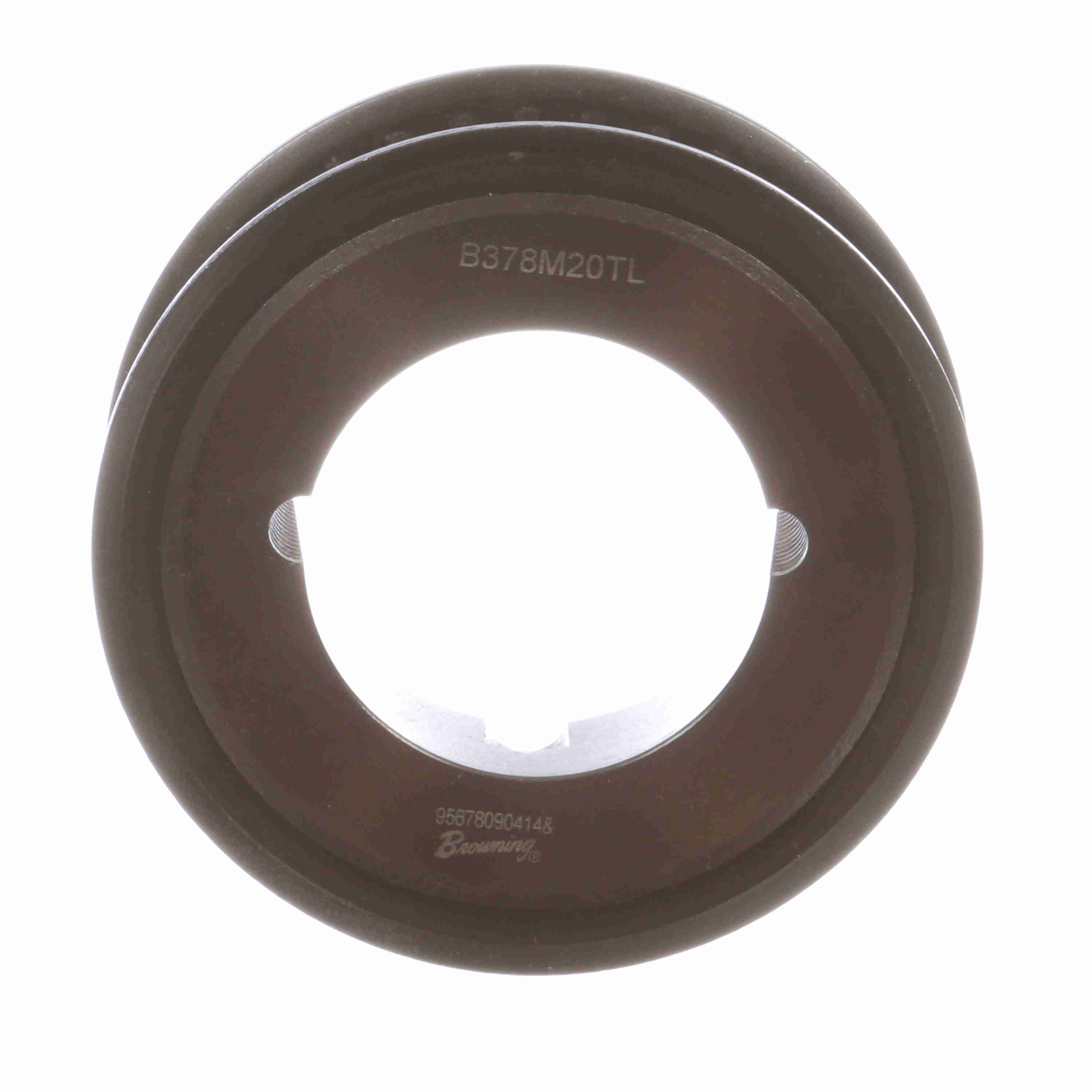

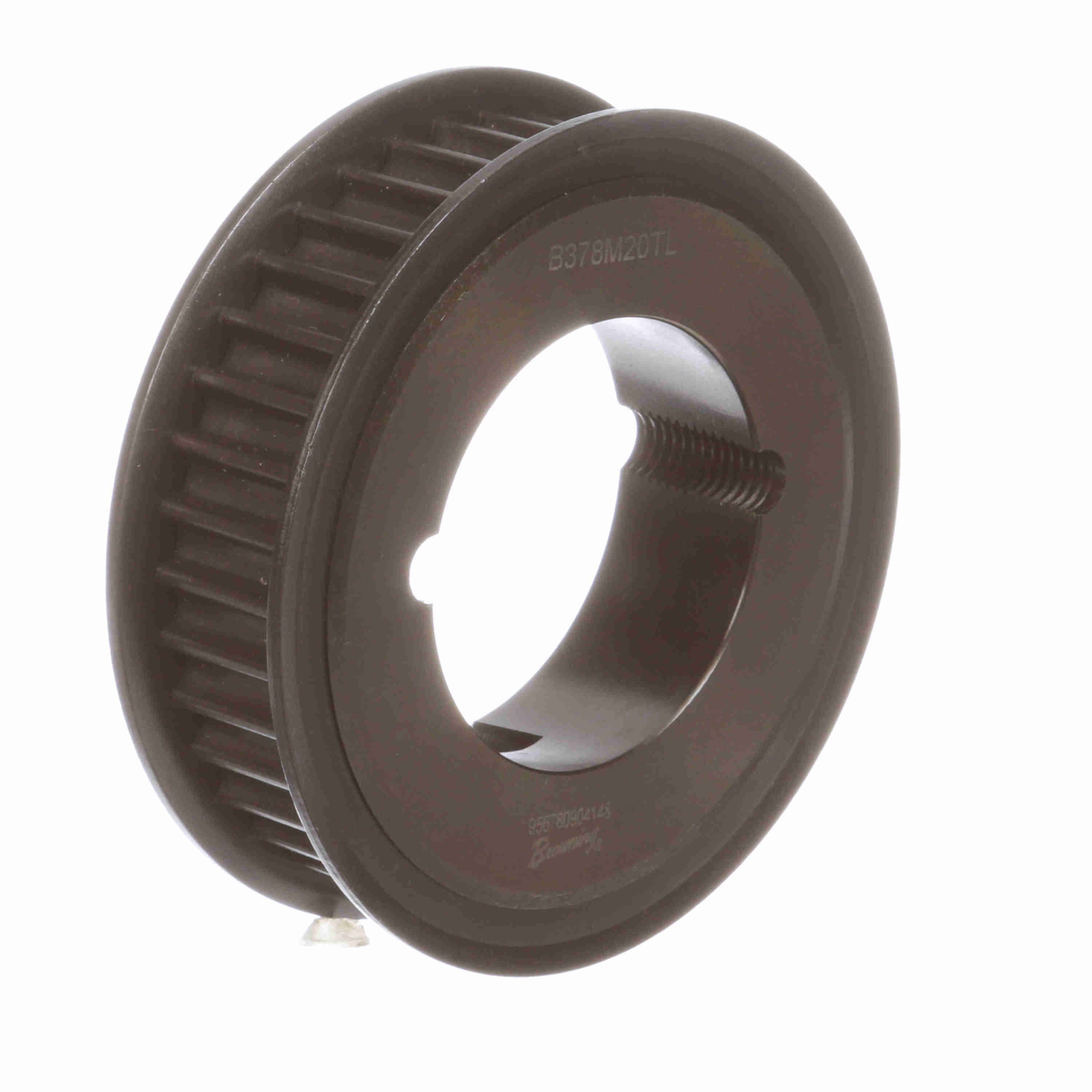

Browning Steel Bushed Bore HPT Sprocket - B378M20TL

Part #:2762615

Catalog #:B378M20TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Flange (mm):	105.5624 mm	Bushing:	1610
Width (mm):	20 mm	Number of teeth:	37
Product Type:	HPT Sprocket	Bushing Type:	Taper Bore
Bore Type:	Bushed	Outside Diameter (mm):	92.8624 mm
Bore (Max) (mm):	41.275 mm	Material:	Steel
Belt Section:	8M	Pitch Diameter (mm):	94.234 mm
Bore (Min) (mm):	12.7 mm

General Specifications

UPC:	662460609560	Weight:	1.70 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
