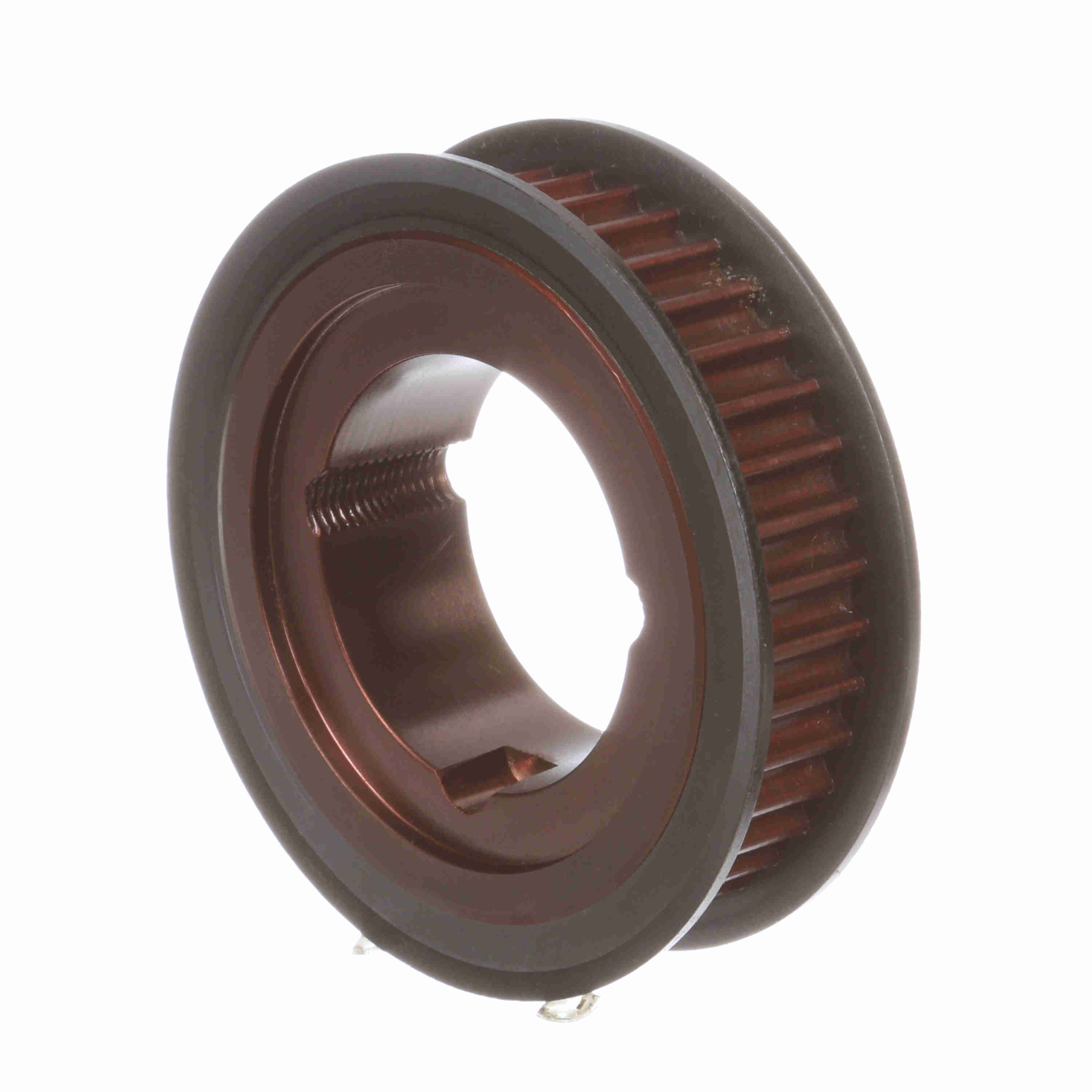

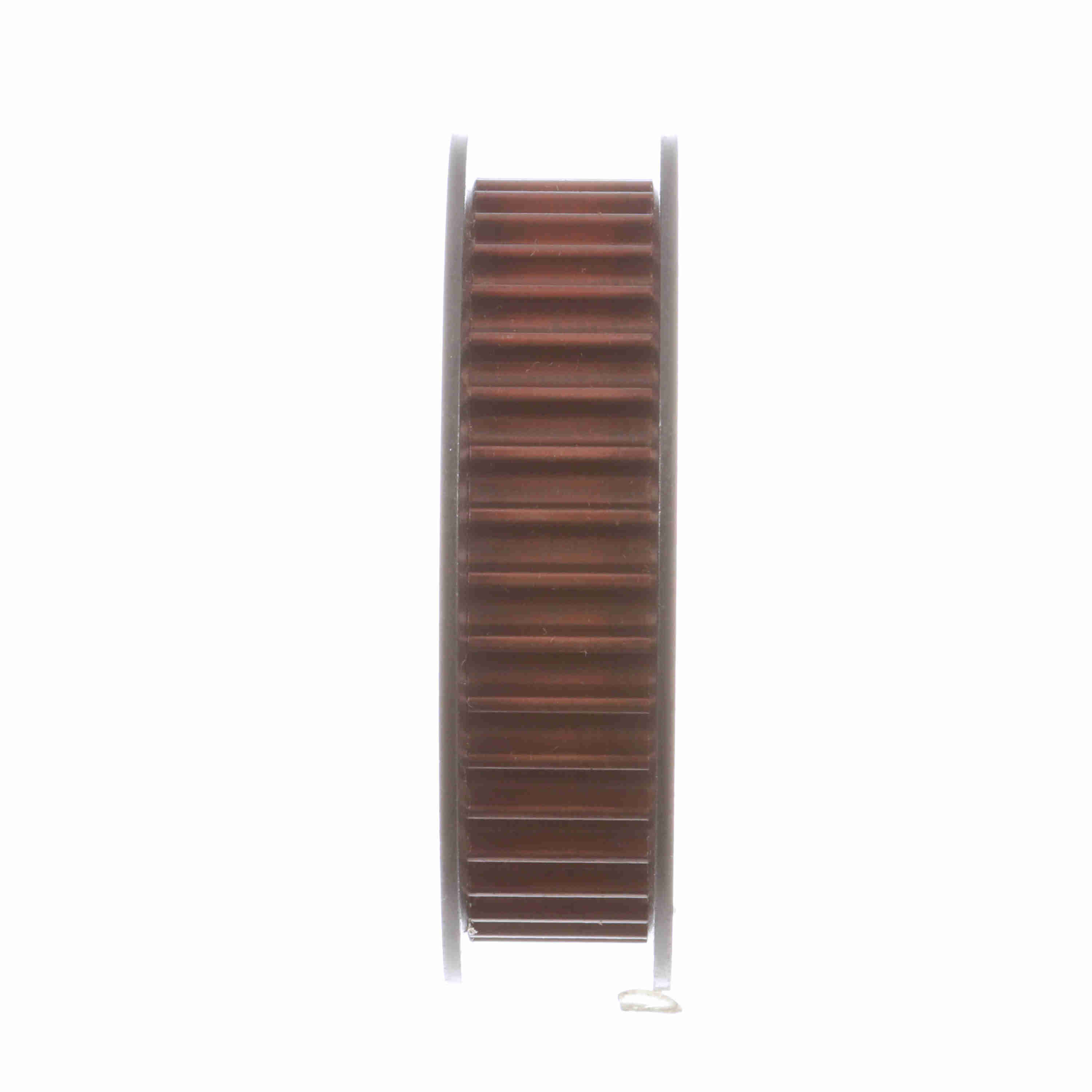

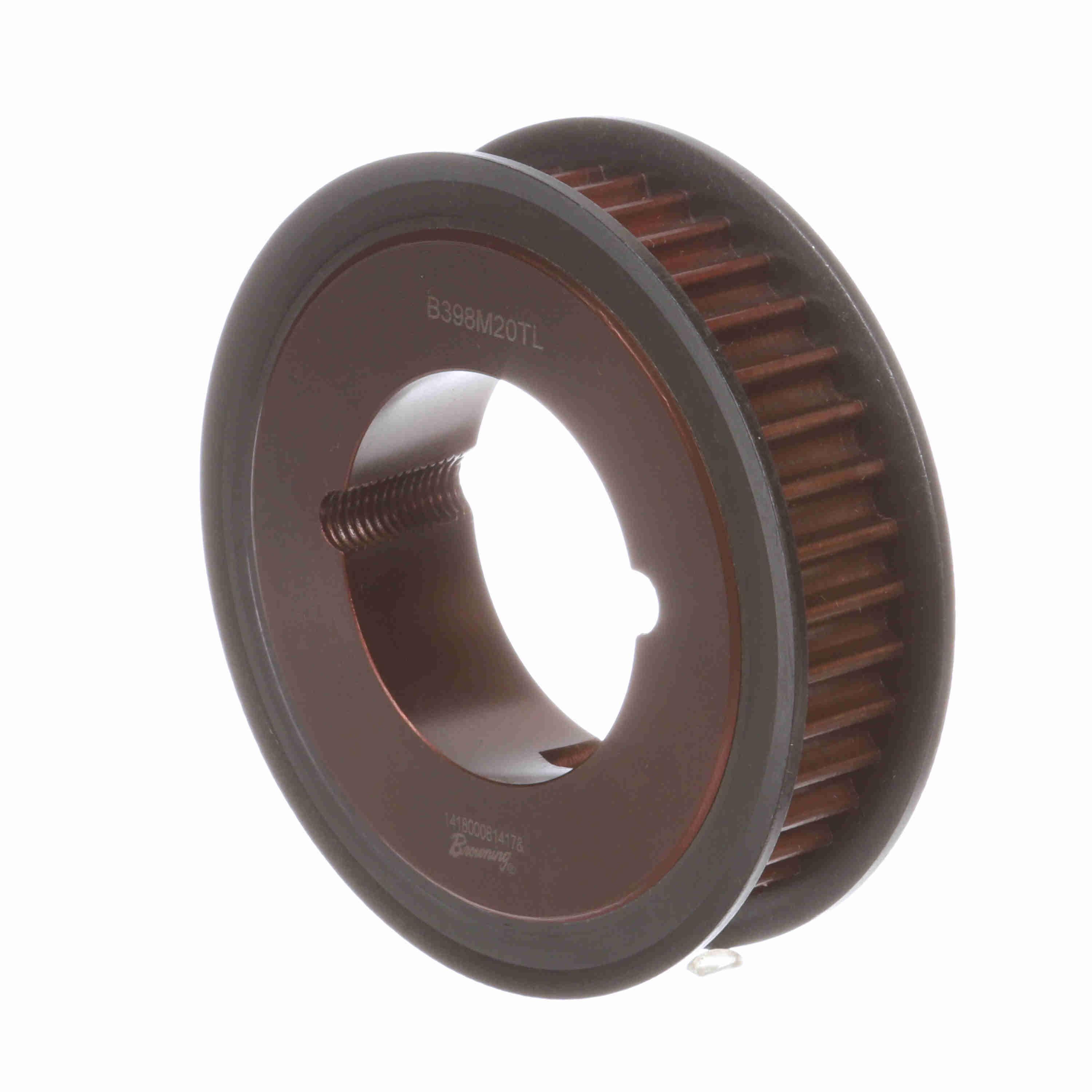

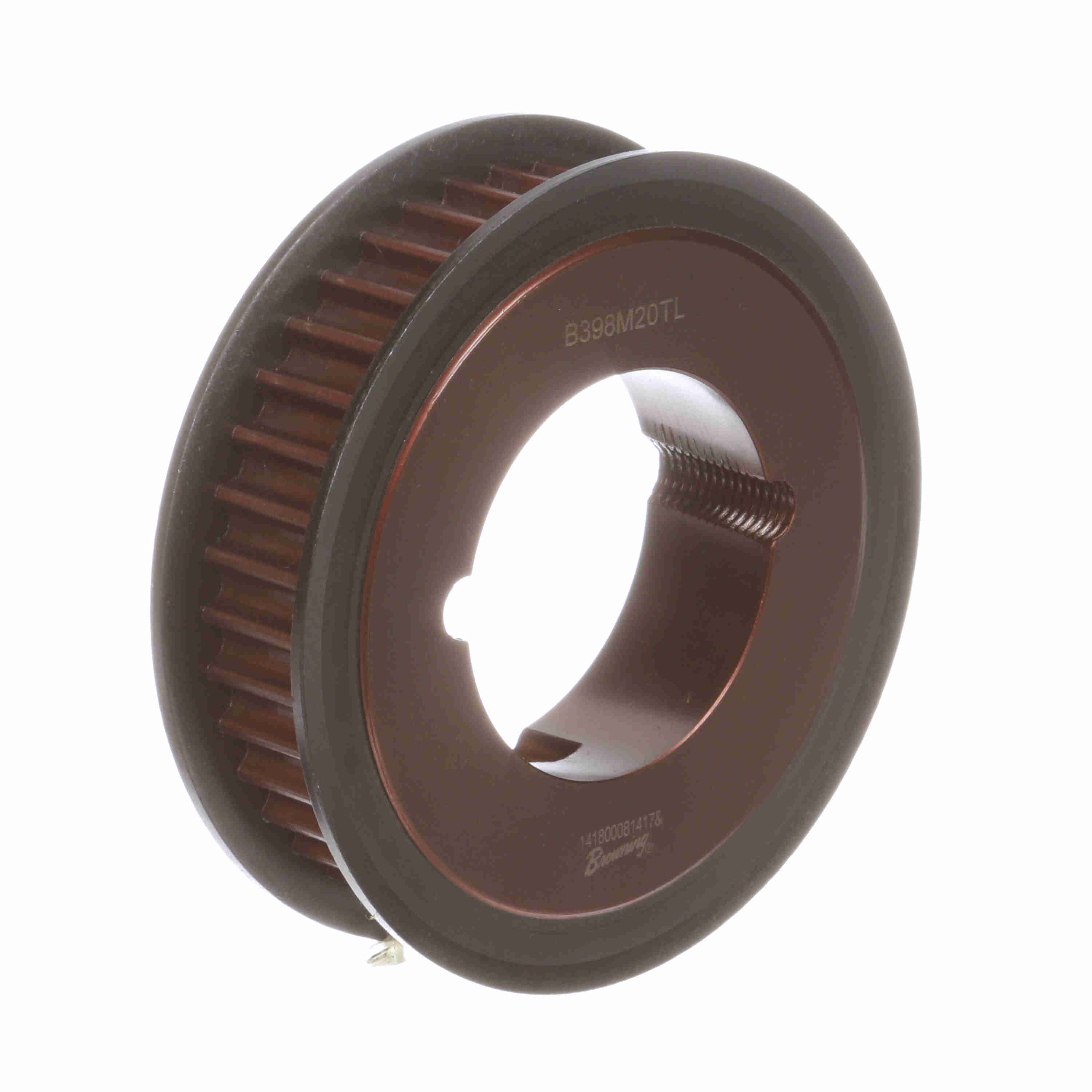

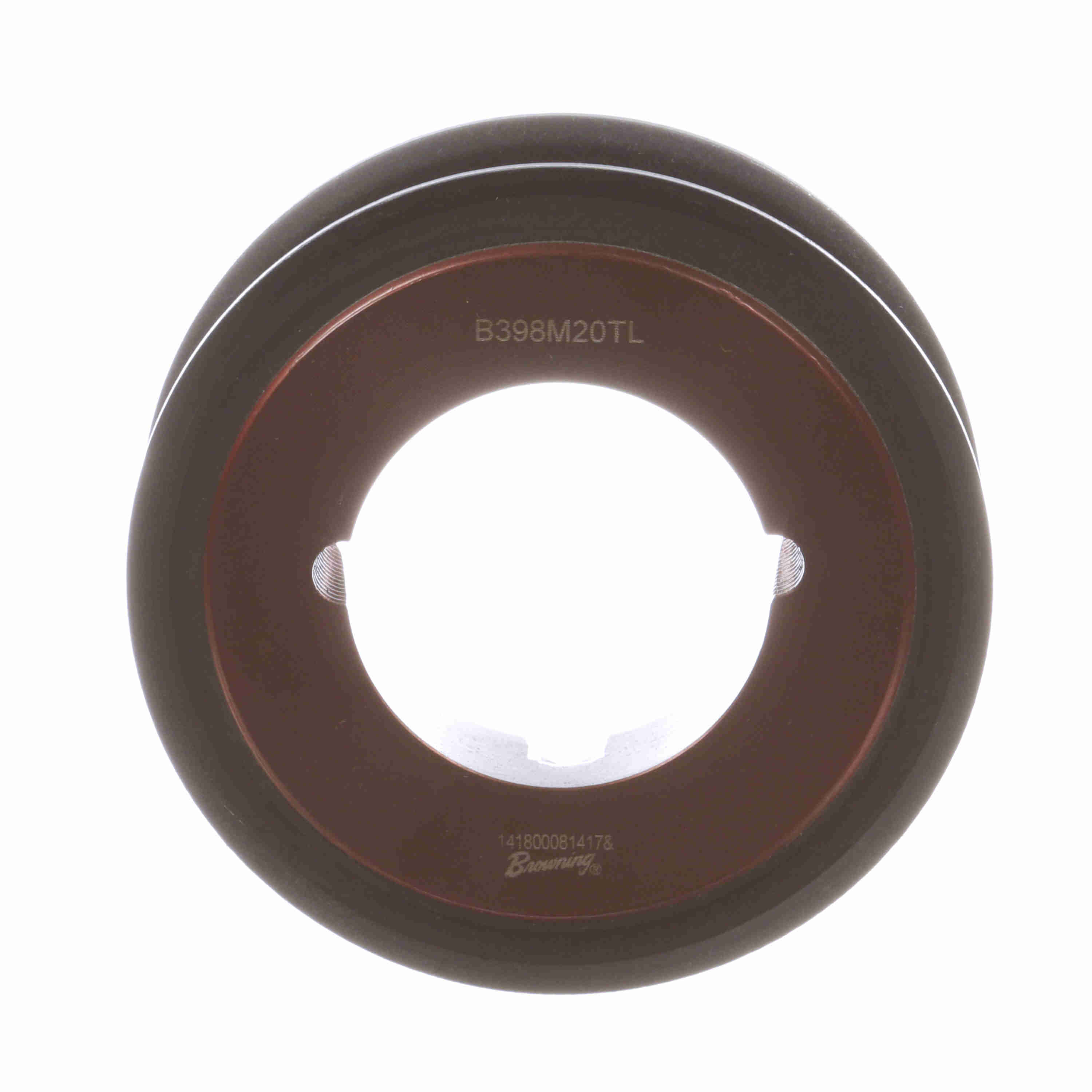

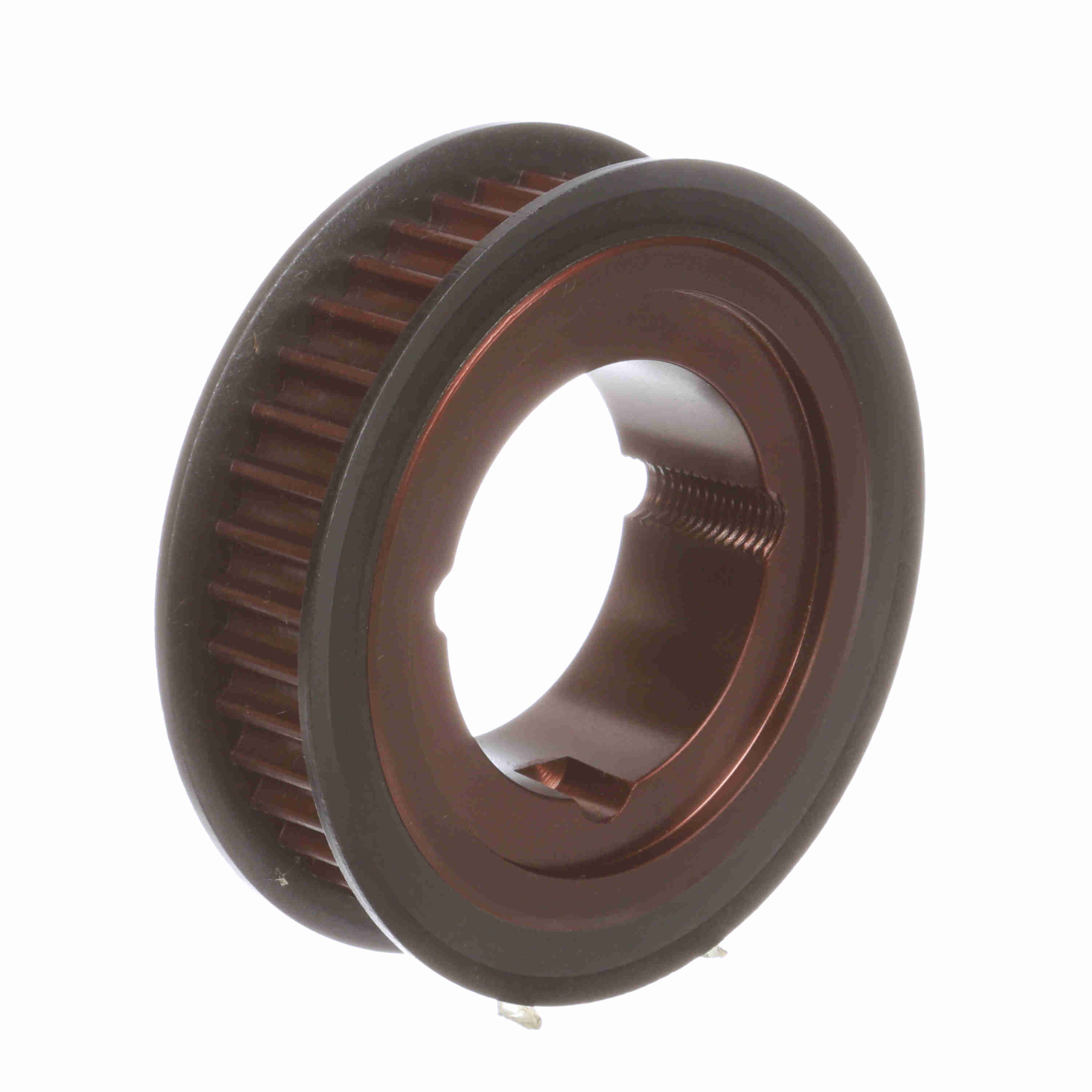

Browning Steel Bushed Bore HPT Sprocket - B398M20TL

Part #:2762631

Catalog #:B398M20TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Flange (mm):	110.0074 mm	Bushing:	1610
Number of teeth:	39	Product Type:	HPT Sprocket
Width (mm):	20 mm	Bore Type:	Bushed
Bushing Type:	Taper Bore	Pitch Diameter (mm):	99.2886 mm
Outside Diameter (mm):	97.917 mm	Belt Section:	8M
Bore (Max) (mm):	41.275 mm	Bore (Min) (mm):	12.7 mm
Material:	Steel

General Specifications

UPC:	662460609584	Weight:	2.00 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
