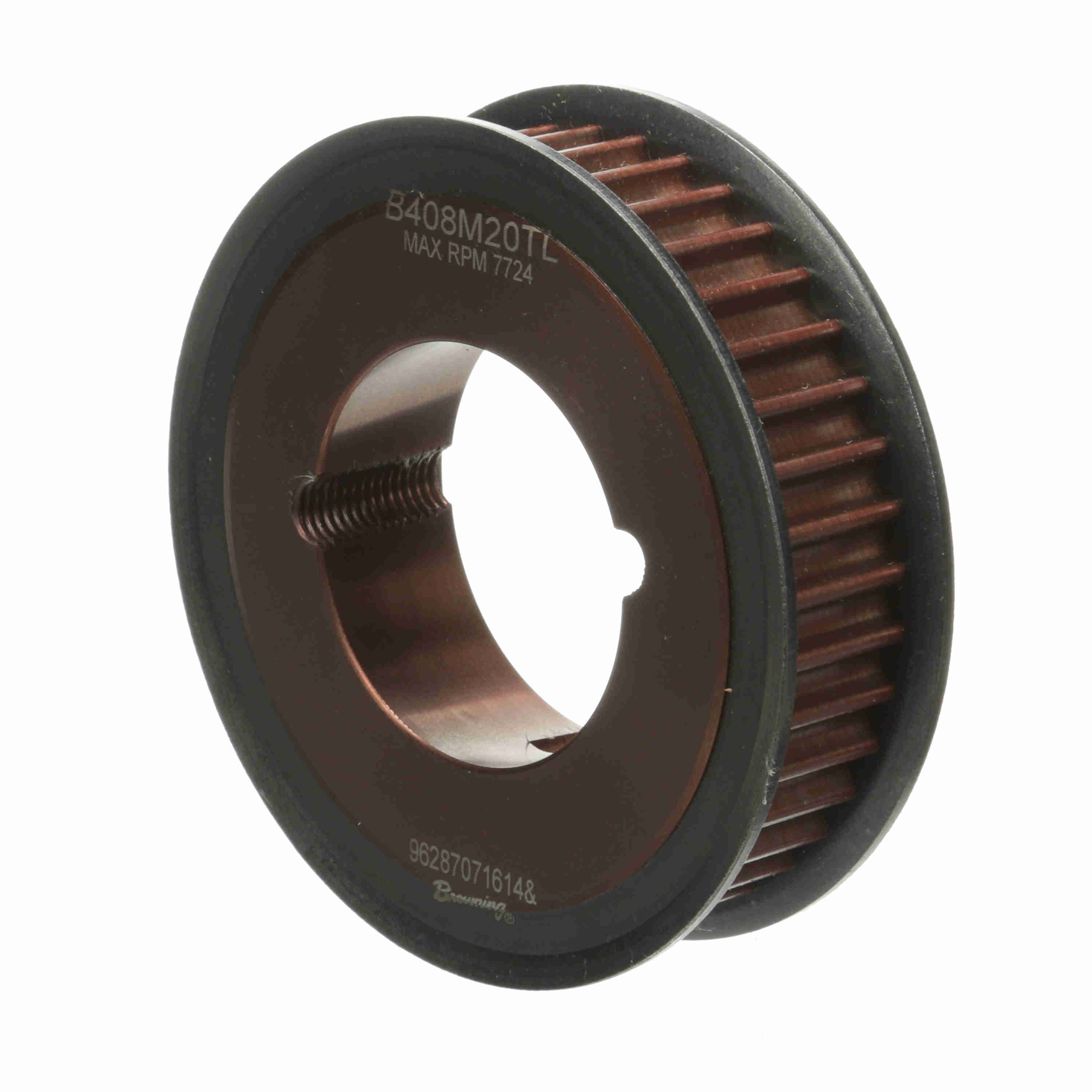

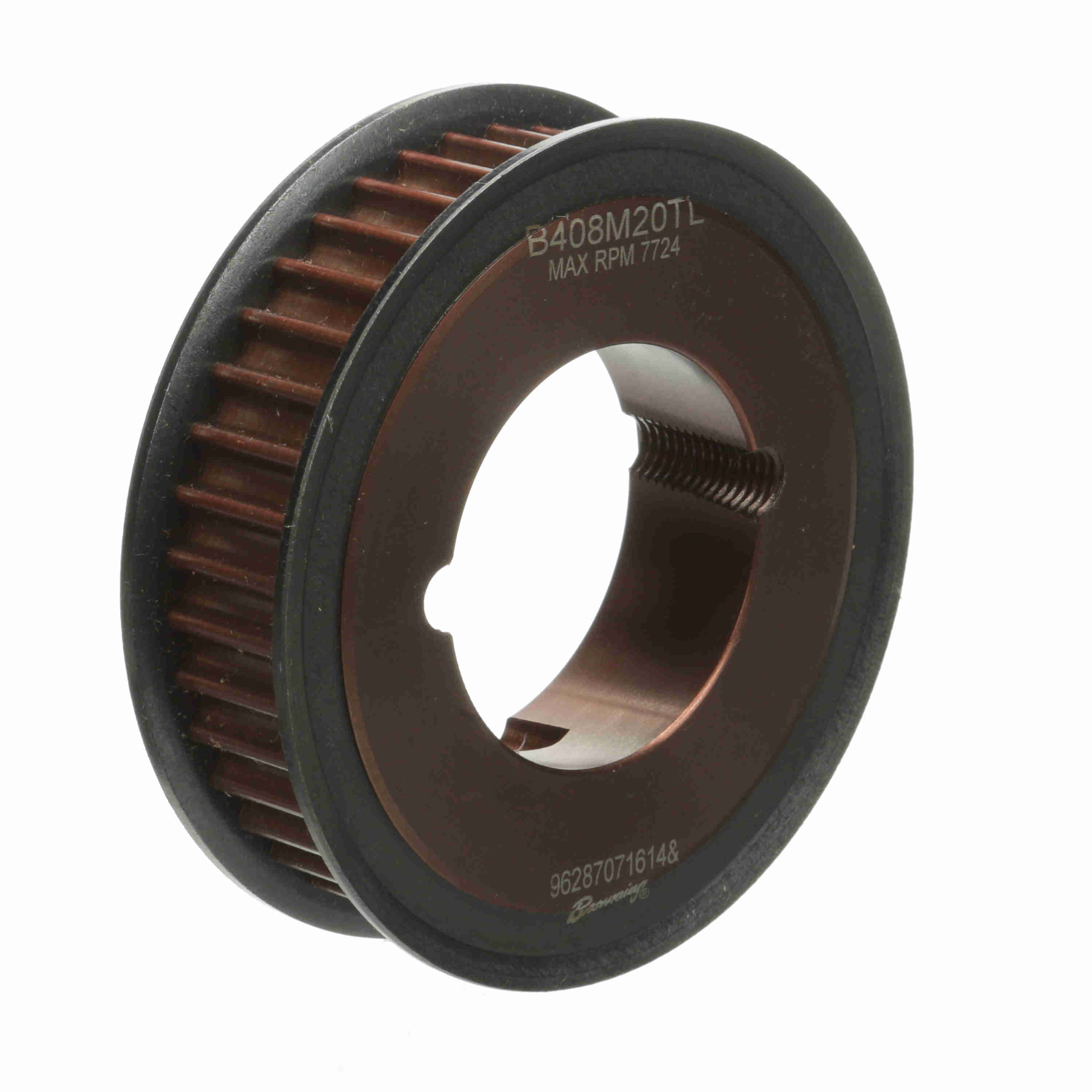

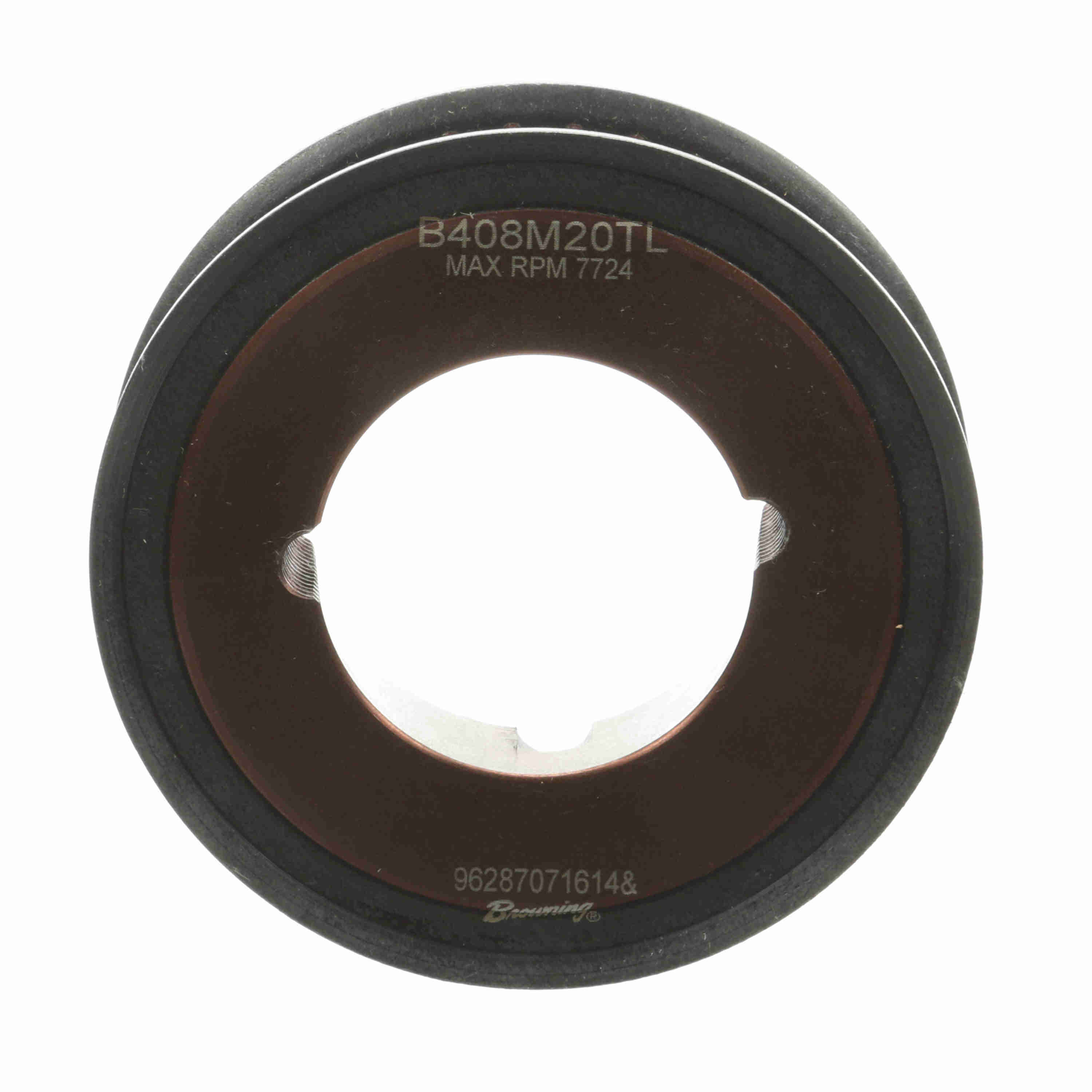

Browning Steel Bushed Bore HPT Sprocket - B408M20TL

Part #:2762649

Catalog #:B408M20TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Flange (mm):	110.0074 mm	Width (mm):	20 mm
Bushing:	2012	Number of teeth:	40
Product Type:	HPT Sprocket	Bushing Type:	Taper Bore
Bore Type:	Bushed	Material:	Steel
Bore (Max) (mm):	50.8 mm	Outside Diameter (mm):	100.4824 mm
Pitch Diameter (mm):	101.854 mm	Bore (Min) (mm):	12.7 mm
Belt Section:	8M

General Specifications

UPC:	662460609591	Weight:	2.75 LB
Packaged Length:	4.70 IN	Packaged Width:	4.50 IN
Packaged Height:	1.90 IN	HTC:	8483.50.9080
Country of Origin:	United States of America
