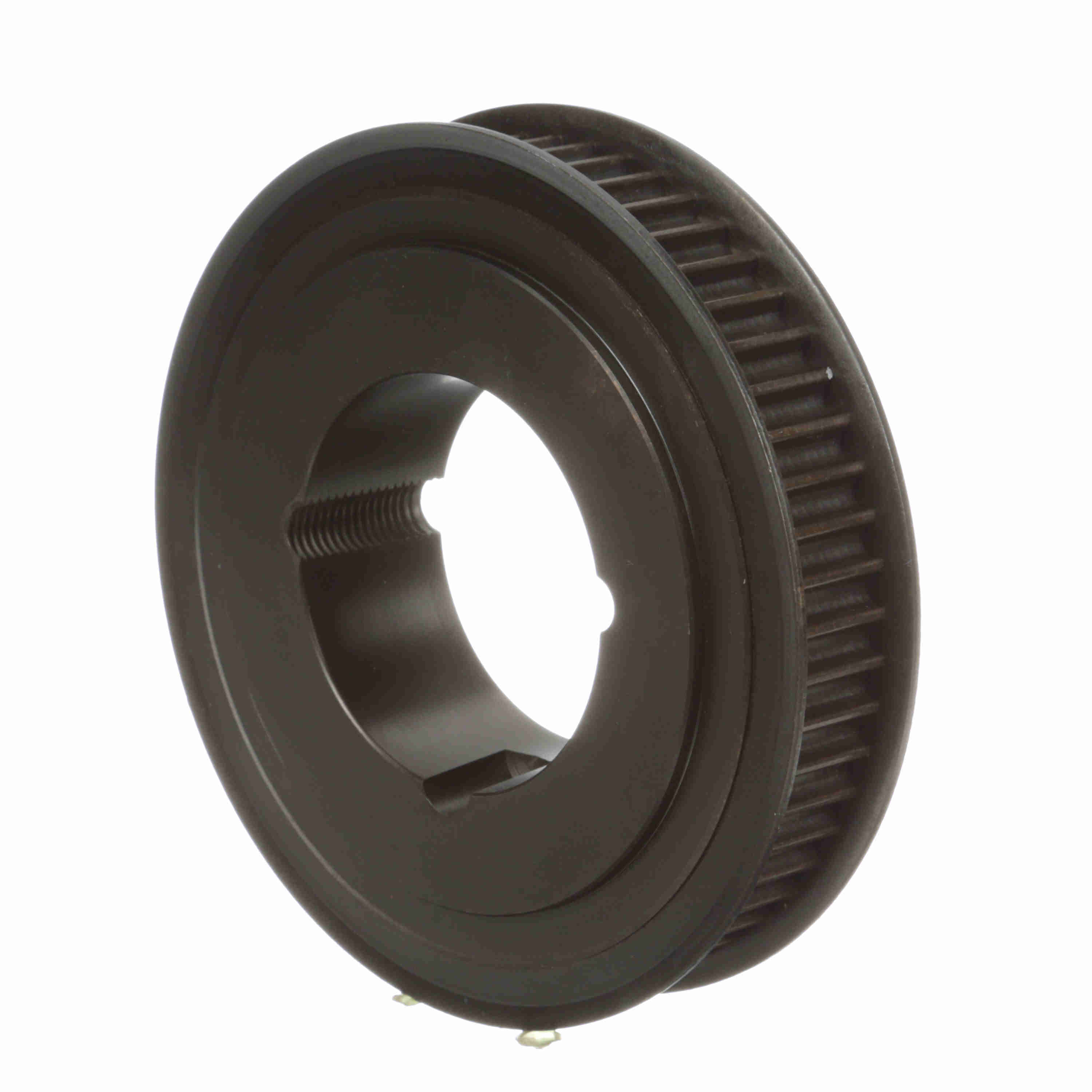

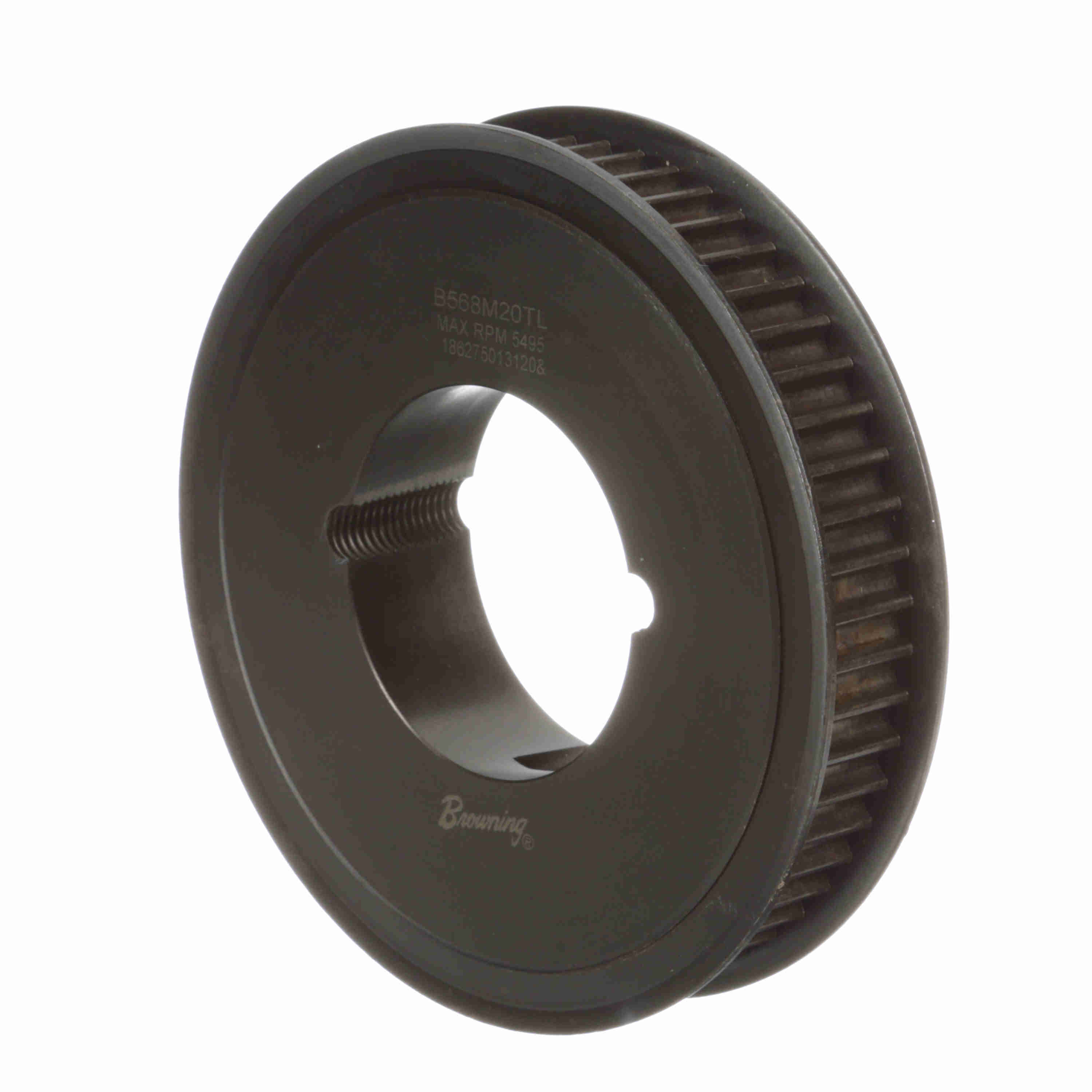

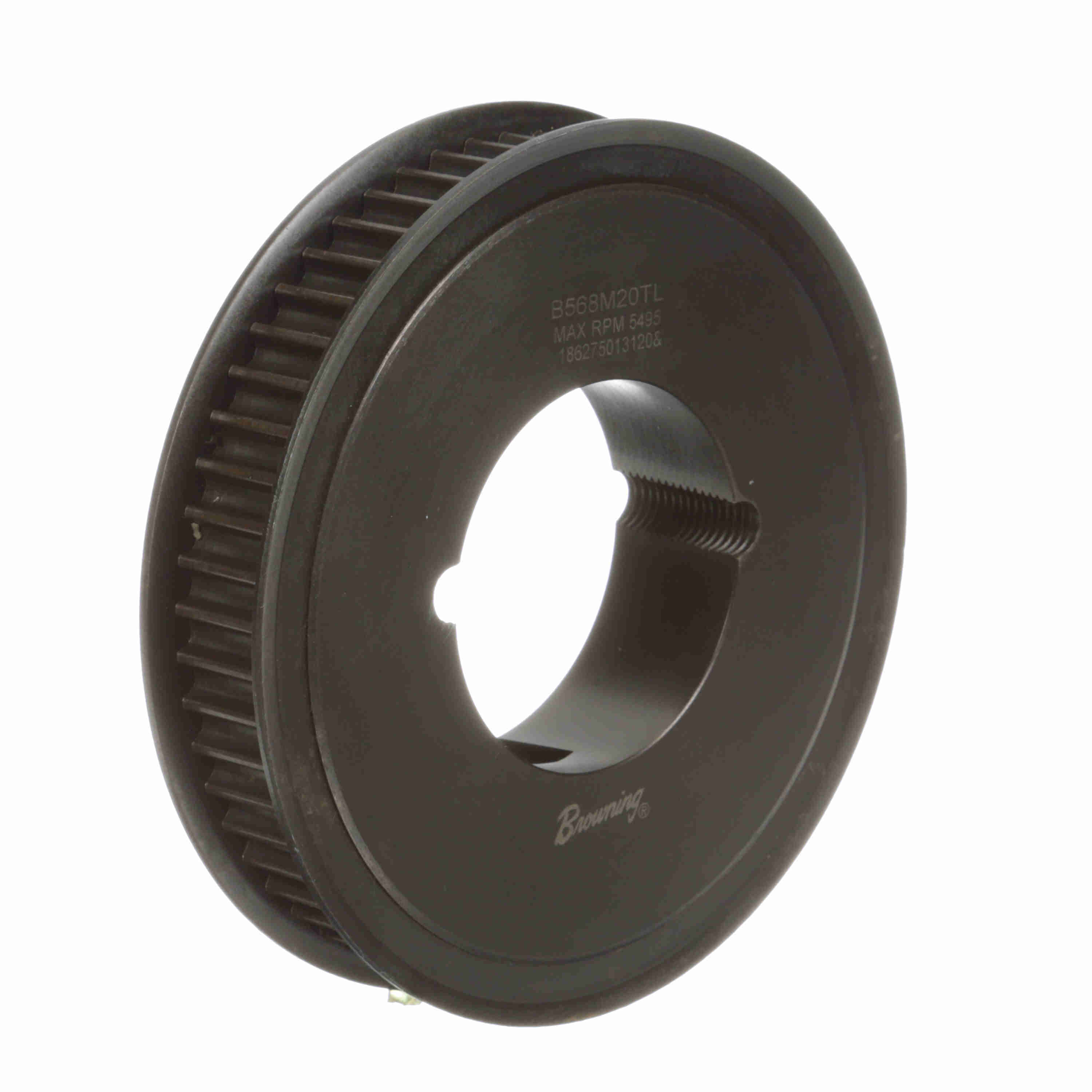

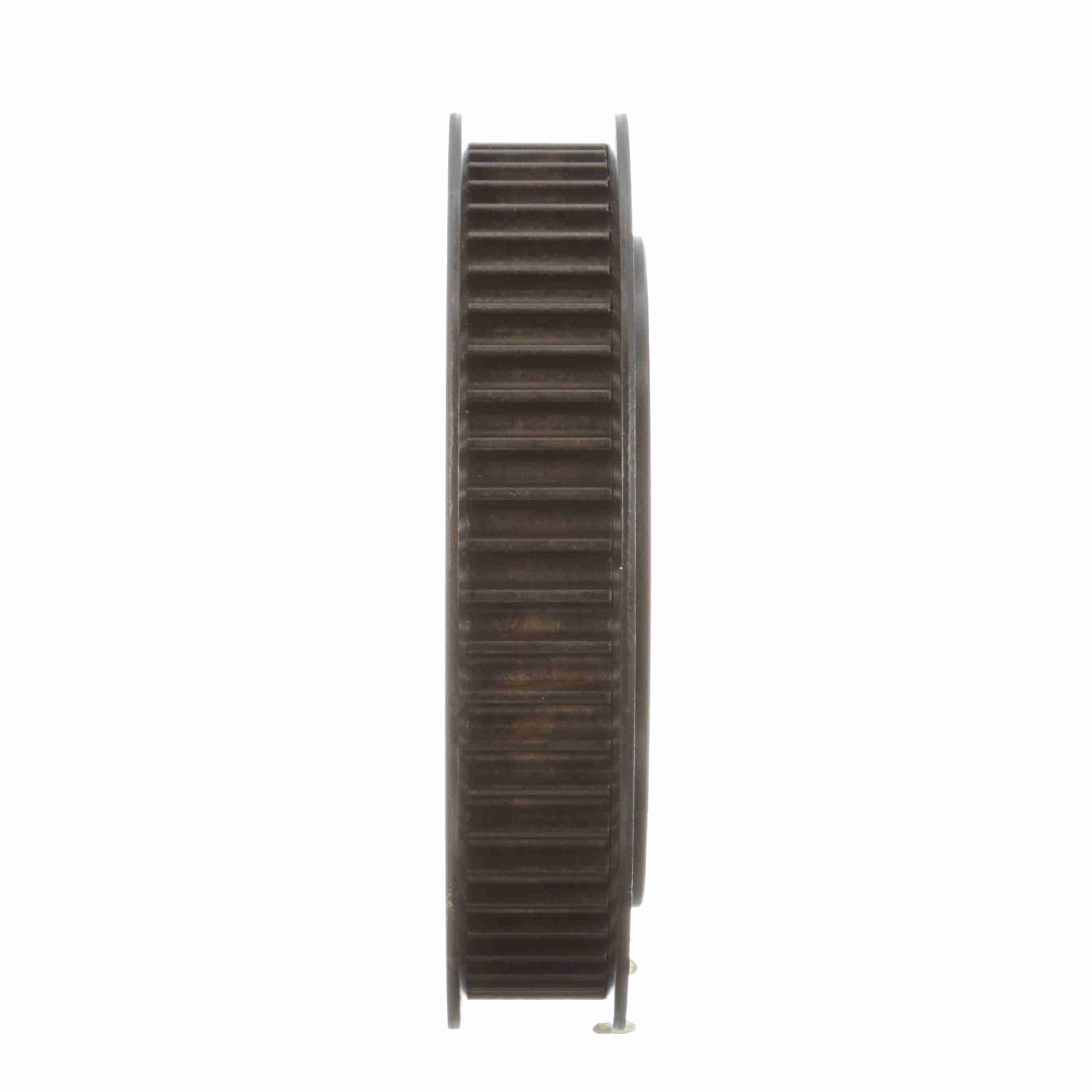

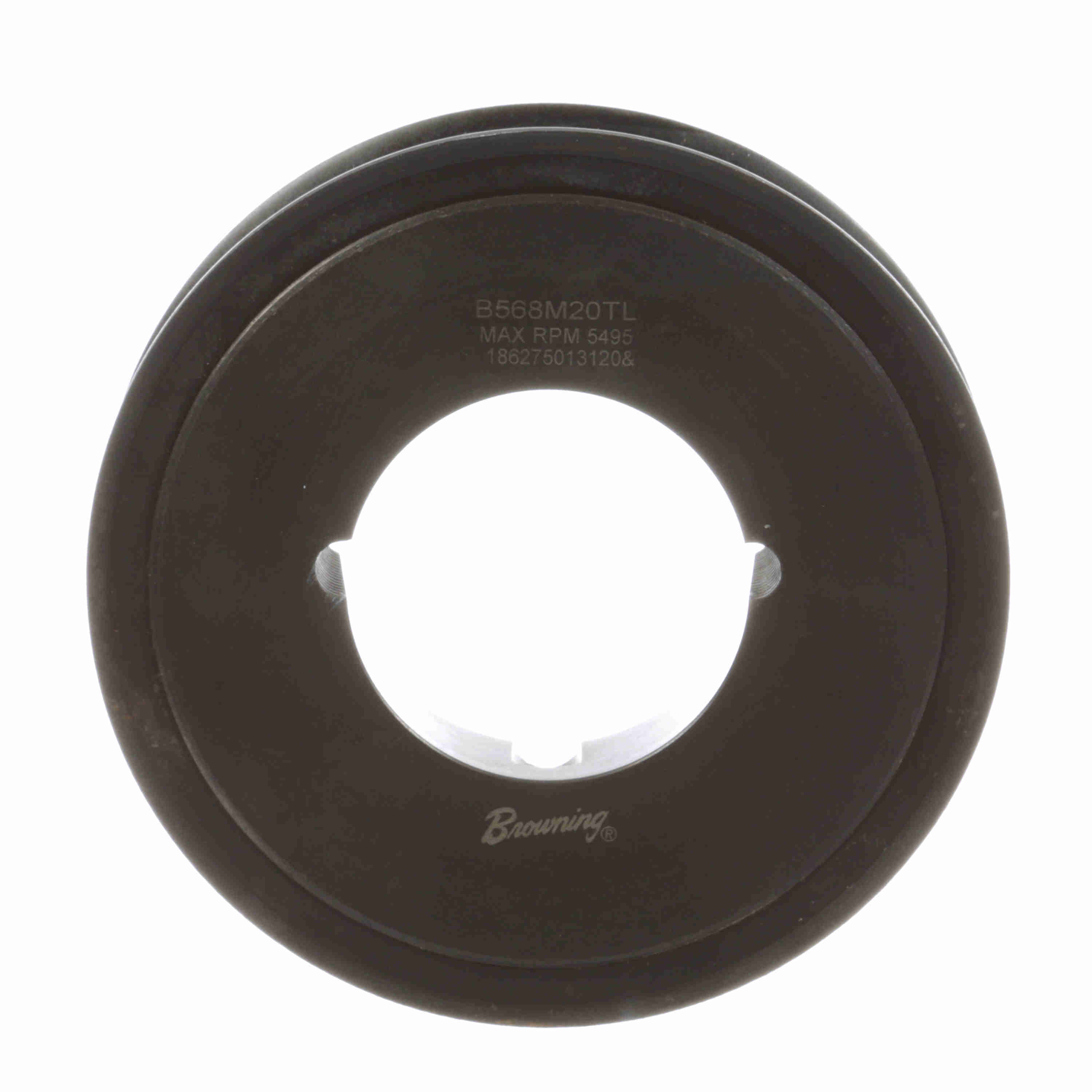

Browning Steel Bushed Bore HPT Sprocket - B568M20TL

Part #:2762714

Catalog #:B568M20TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Width (mm):	20 mm	Flange (mm):	151.003 mm
Product Type:	HPT Sprocket	Number of teeth:	56
Bushing:	2012	Bushing Type:	Taper Bore
Bore Type:	Bushed	Material:	Steel
Belt Section:	8M	Bore (Max) (mm):	50.8 mm
Pitch Diameter (mm):	142.5956 mm	Bore (Min) (mm):	12.7 mm
Outside Diameter (mm):	141.224 mm

General Specifications

UPC:	662460609669	Weight:	5.80 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
