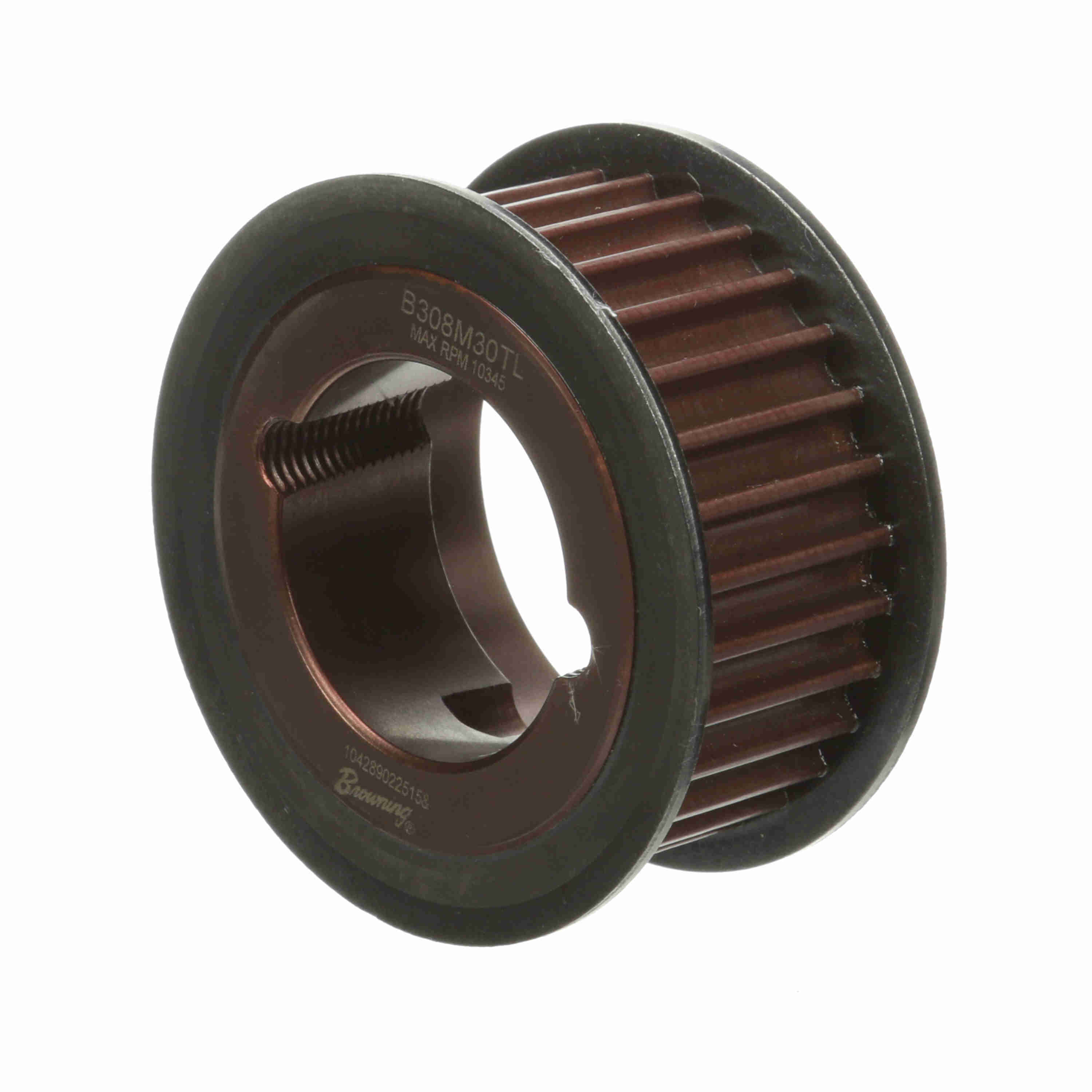

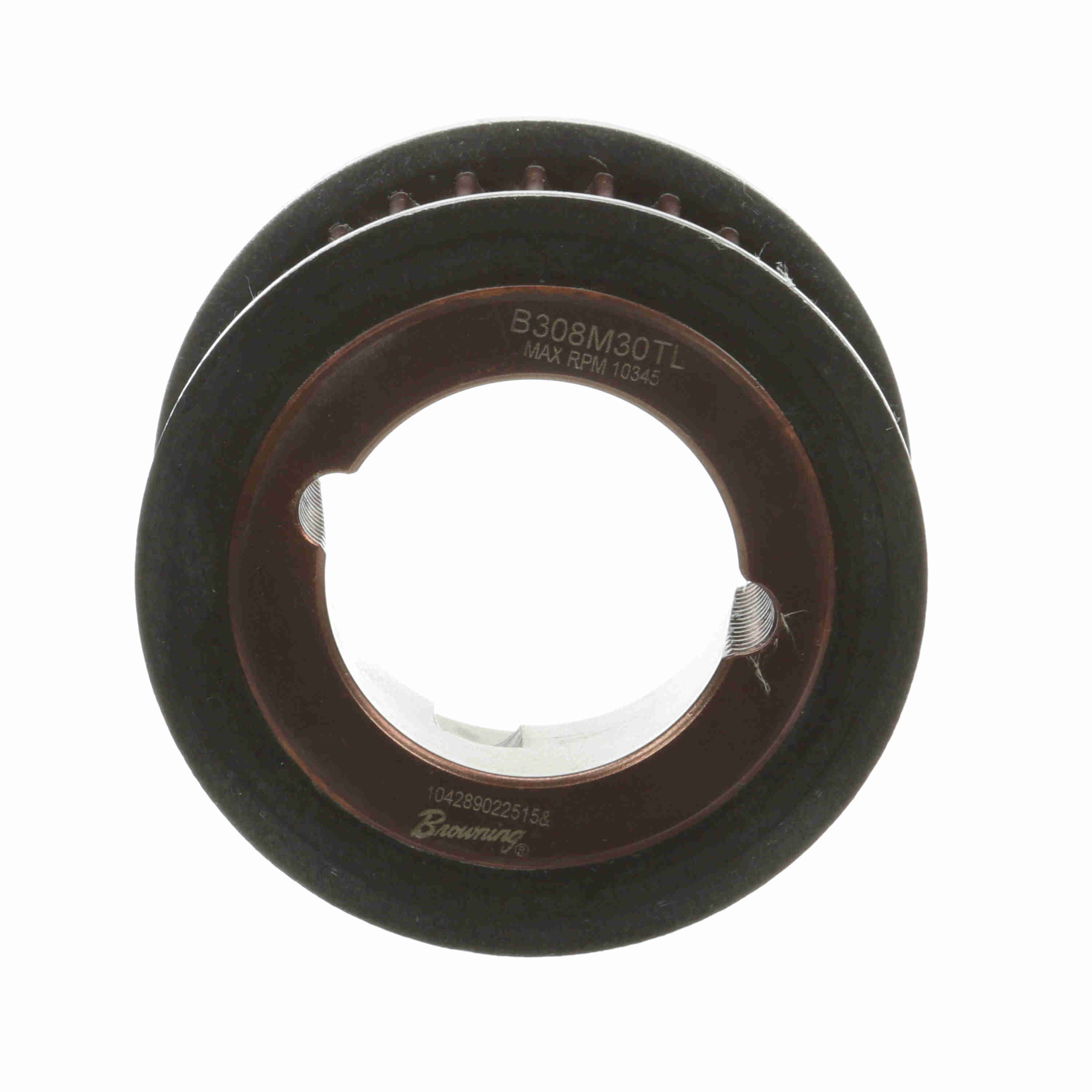

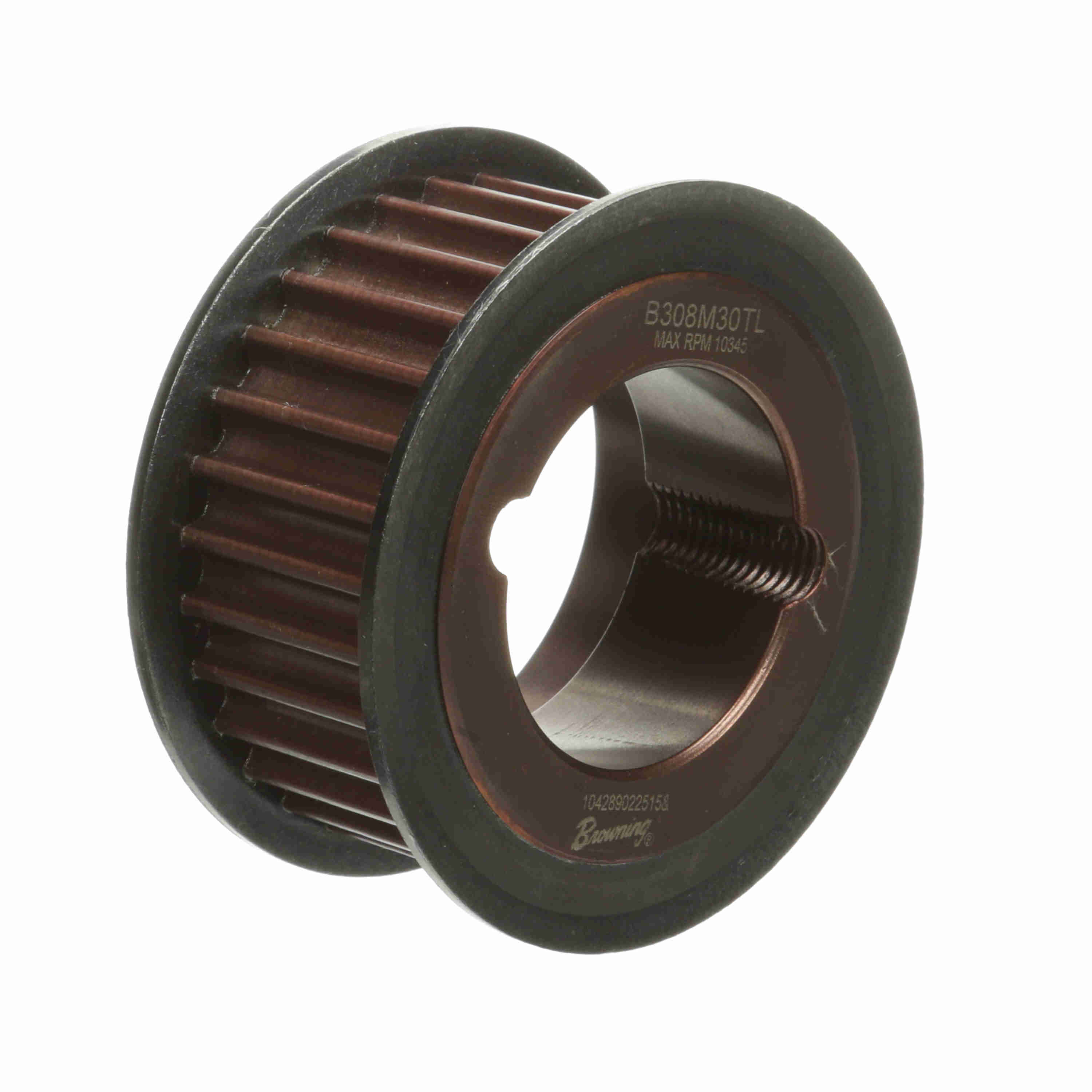

Browning Steel Bushed Bore HPT Sprocket - B308M30TL

Part #:2762854

Catalog #:B308M30TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Flange (mm):	84.9884 mm	Width (mm):	30 mm
Number of teeth:	30	Product Type:	HPT Sprocket
Bushing:	1210	Bore Type:	Bushed
Bushing Type:	Taper Bore	Material:	Steel
Pitch Diameter (mm):	76.4032 mm	Outside Diameter (mm):	75.0316 mm
Bore (Min) (mm):	12.7 mm	Belt Section:	8M
Bore (Max) (mm):	31.75 mm

General Specifications

UPC:	662460609805	Weight:	1.35 LB
Packaged Length:	3.60 IN	Packaged Width:	3.60 IN
Packaged Height:	1.90 IN	HTC:	8483.50.9080
Country of Origin:	United States of America
