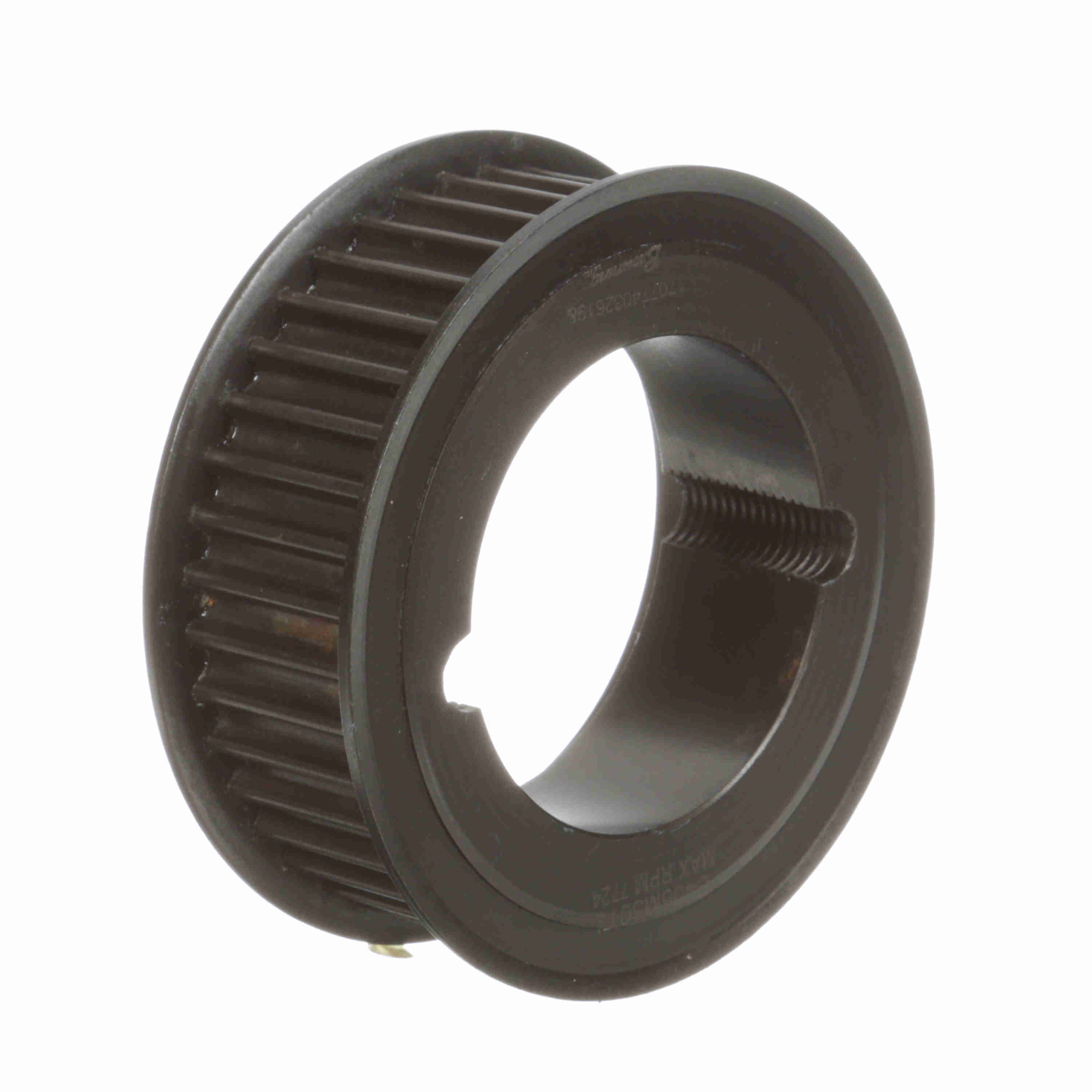

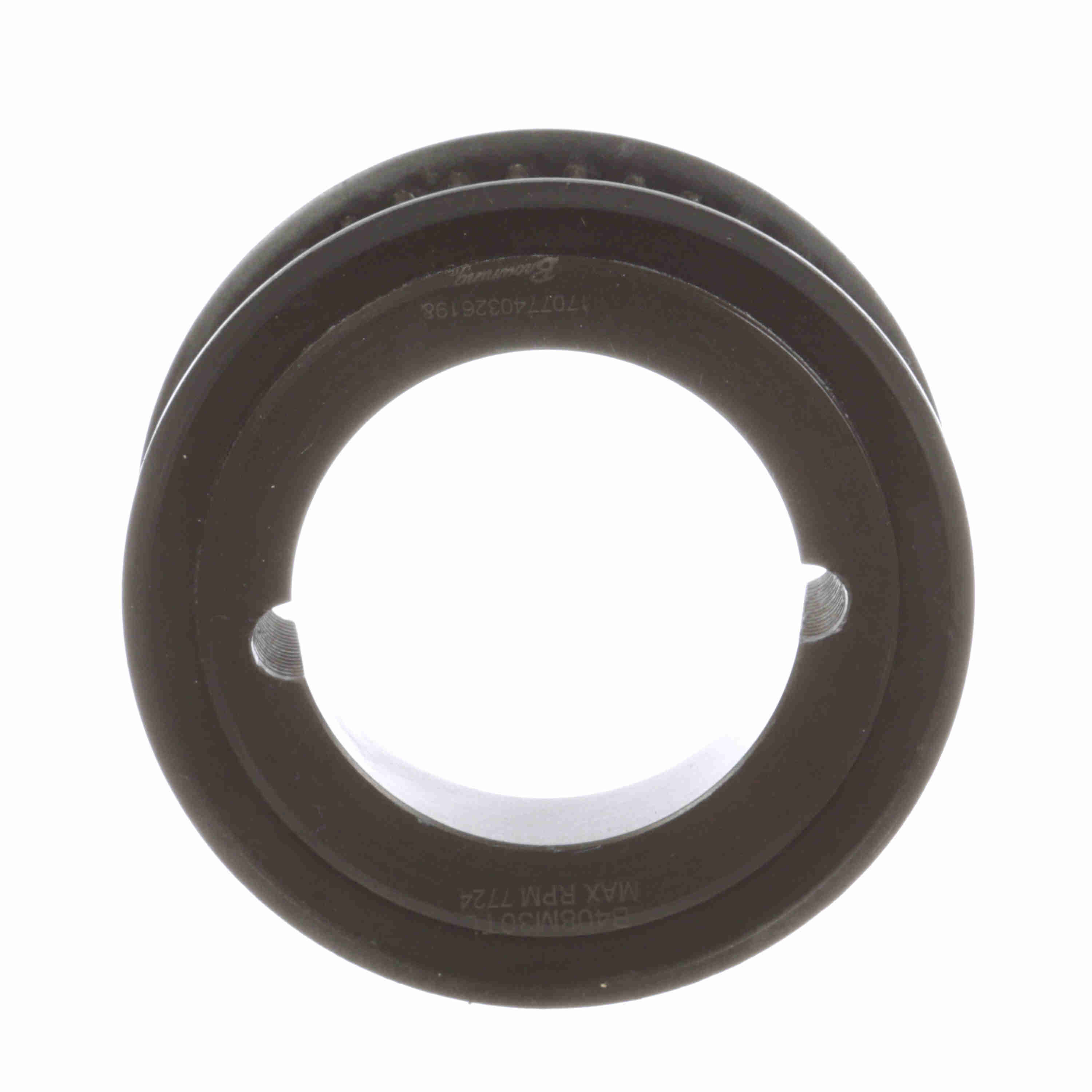

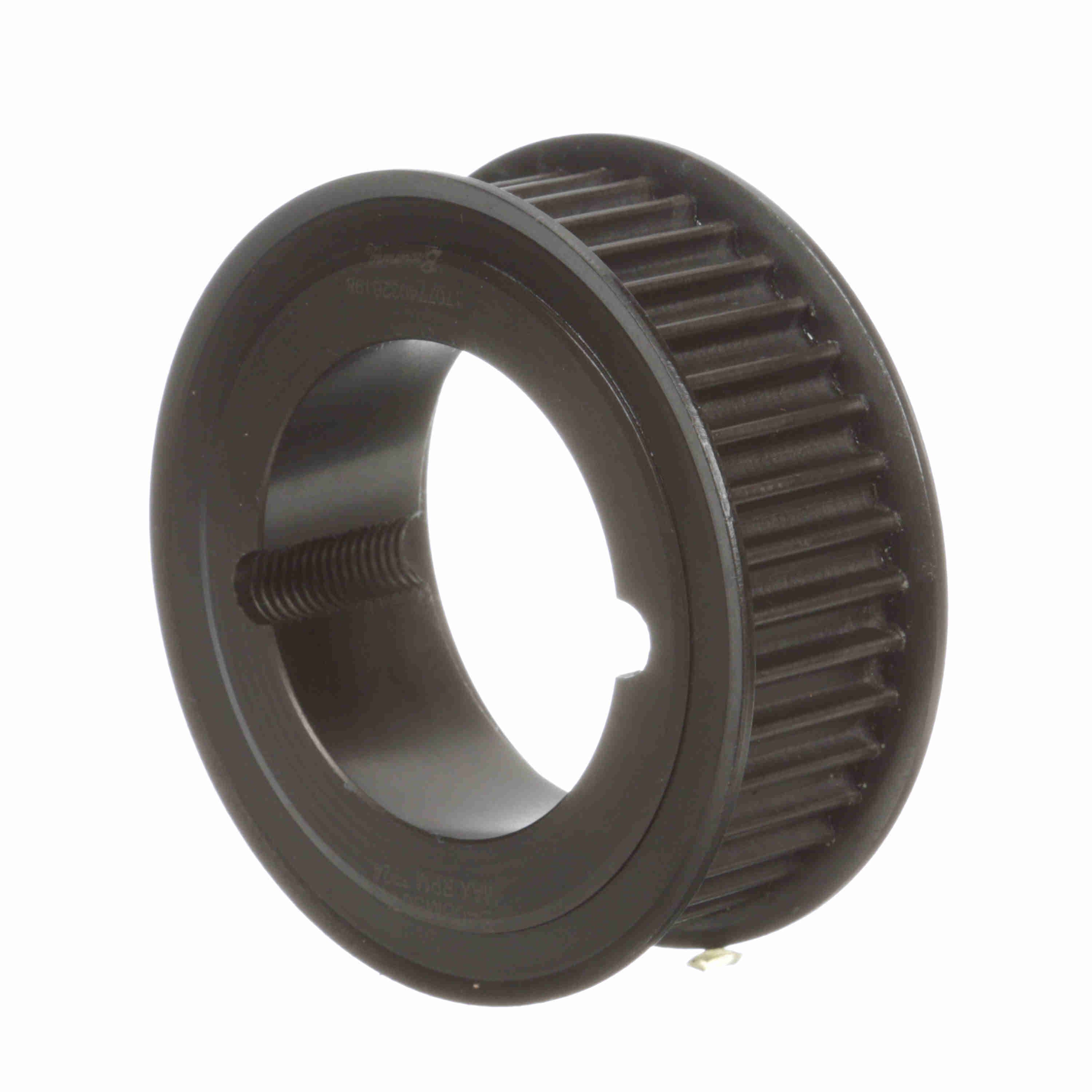

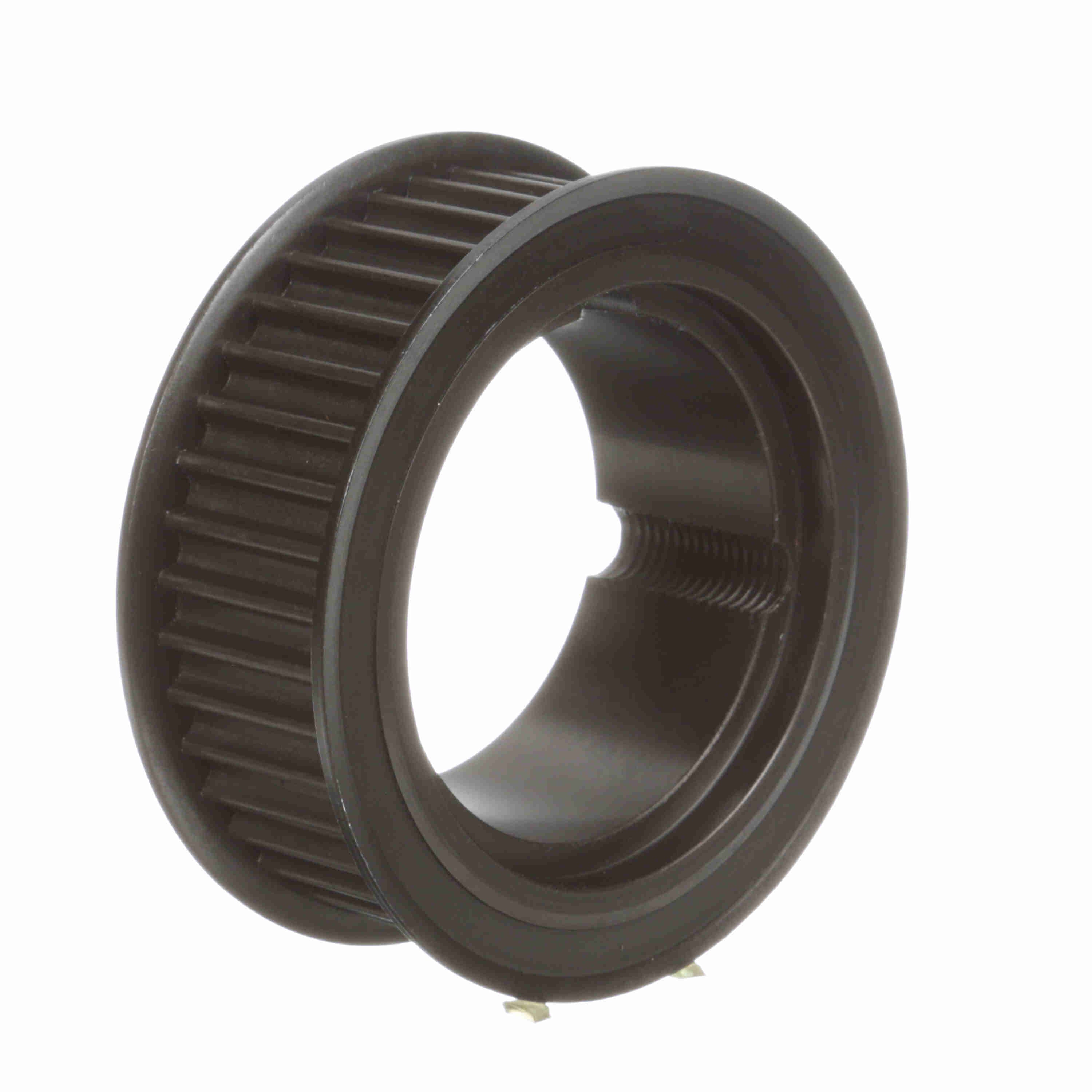

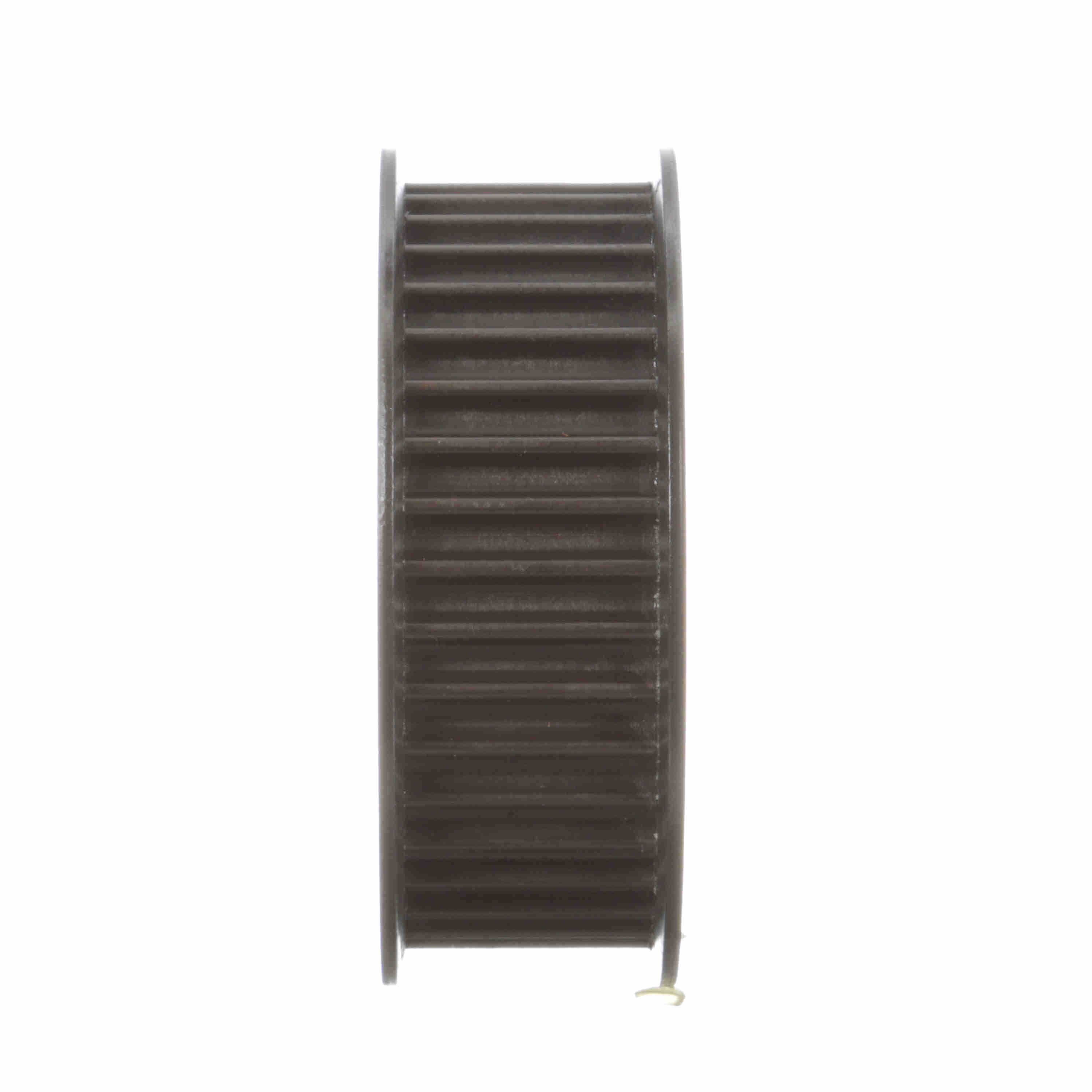

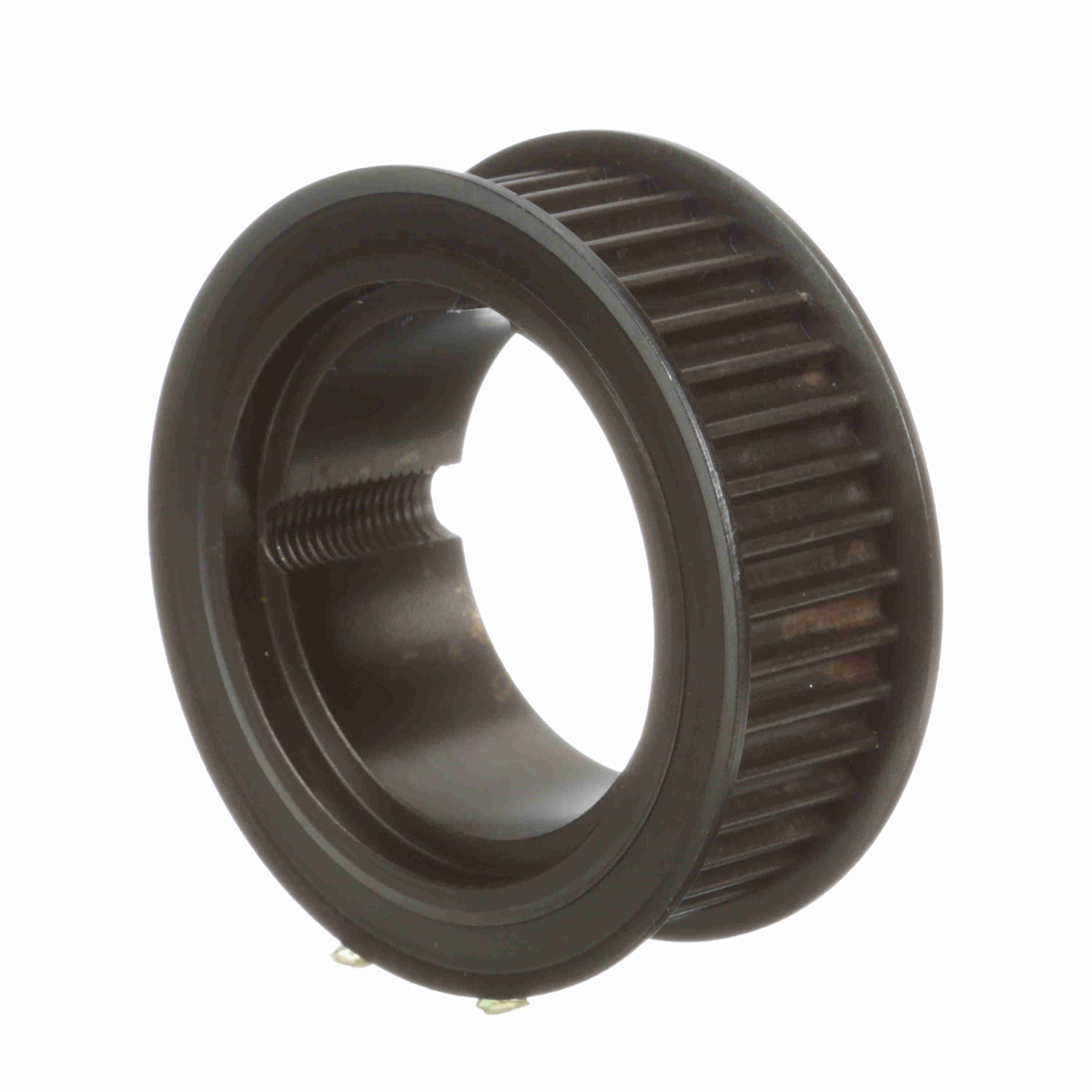

Browning Steel Bushed Bore HPT Sprocket - B408M30TL

Part #:2762953

Catalog #:B408M30TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Product Type:	HPT Sprocket	Bushing:	2012
Flange (mm):	110.0074 mm	Width (mm):	30 mm
Number of teeth:	40	Bushing Type:	Taper Bore
Bore Type:	Bushed	Belt Section:	8M
Material:	Steel	Bore (Max) (mm):	50.8 mm
Outside Diameter (mm):	100.4824 mm	Bore (Min) (mm):	12.7 mm
Pitch Diameter (mm):	101.854 mm

General Specifications

UPC:	662460609904	Weight:	2.35 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
