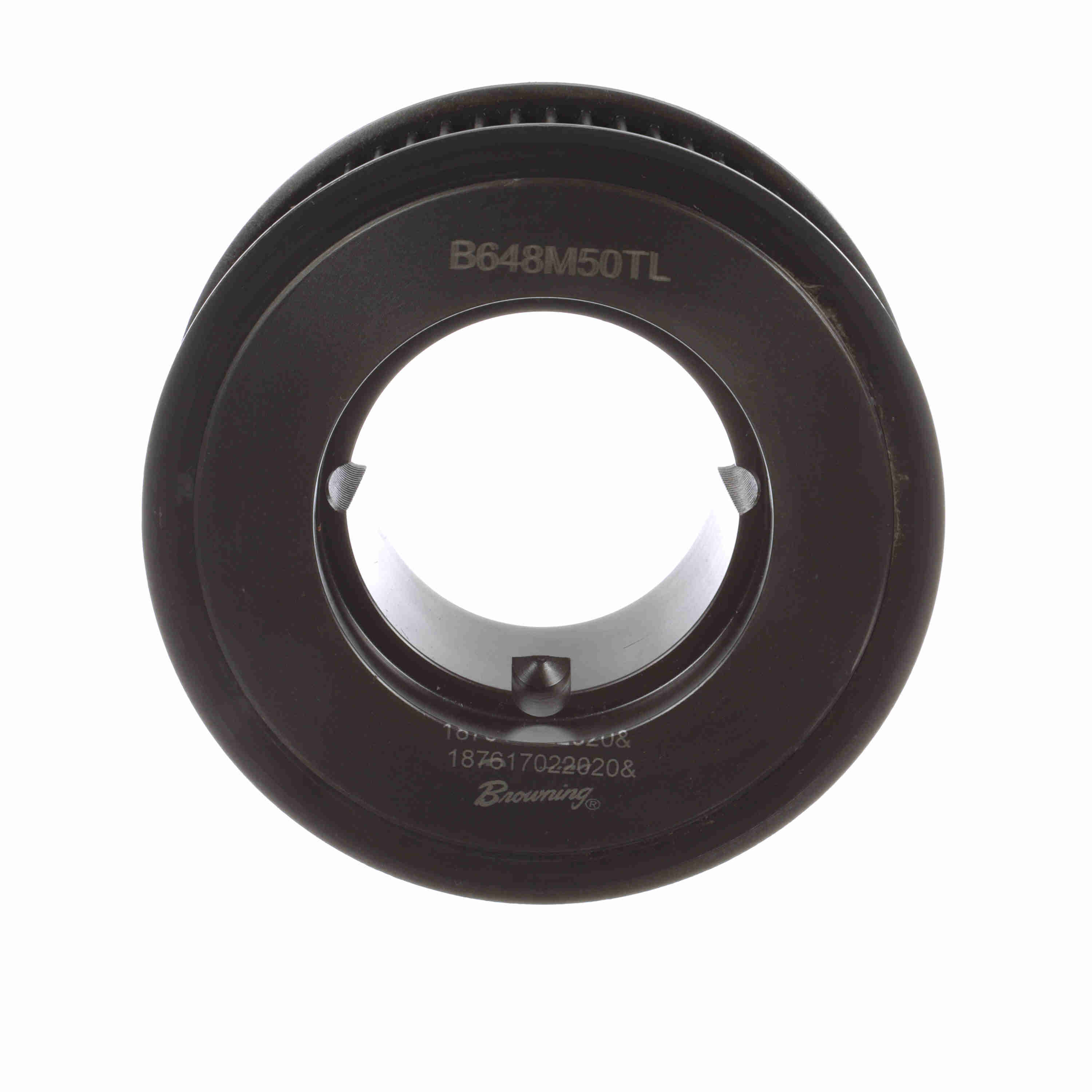

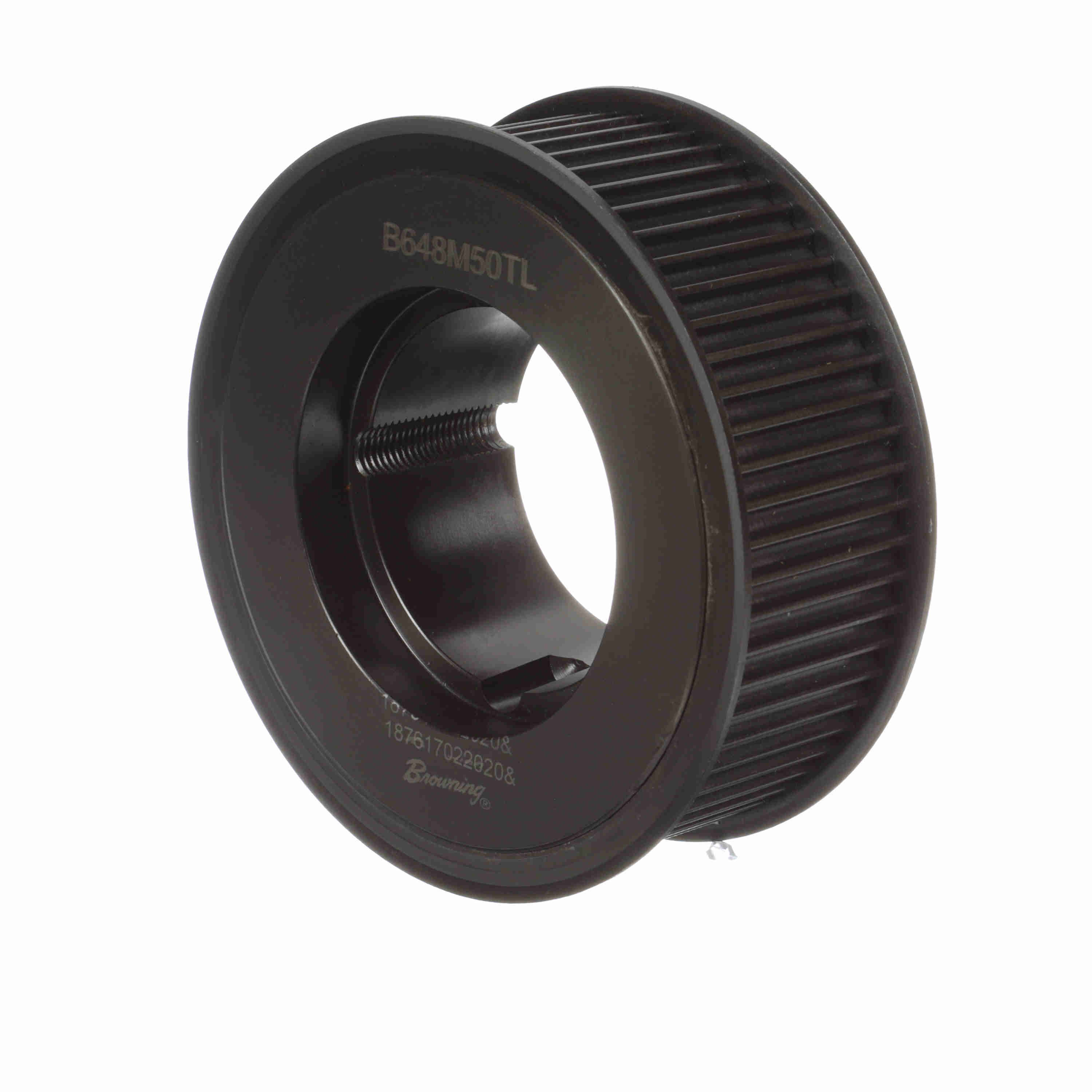

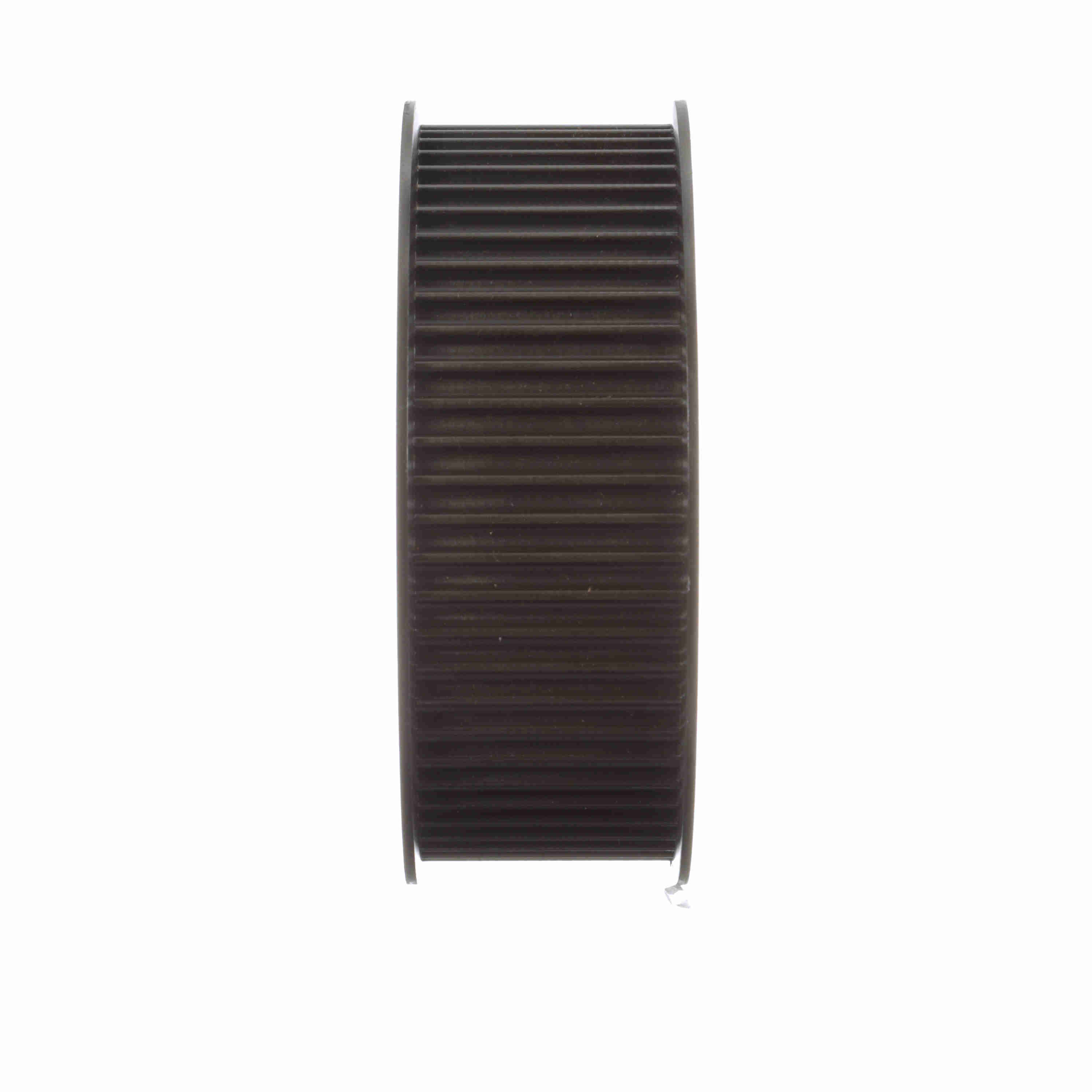

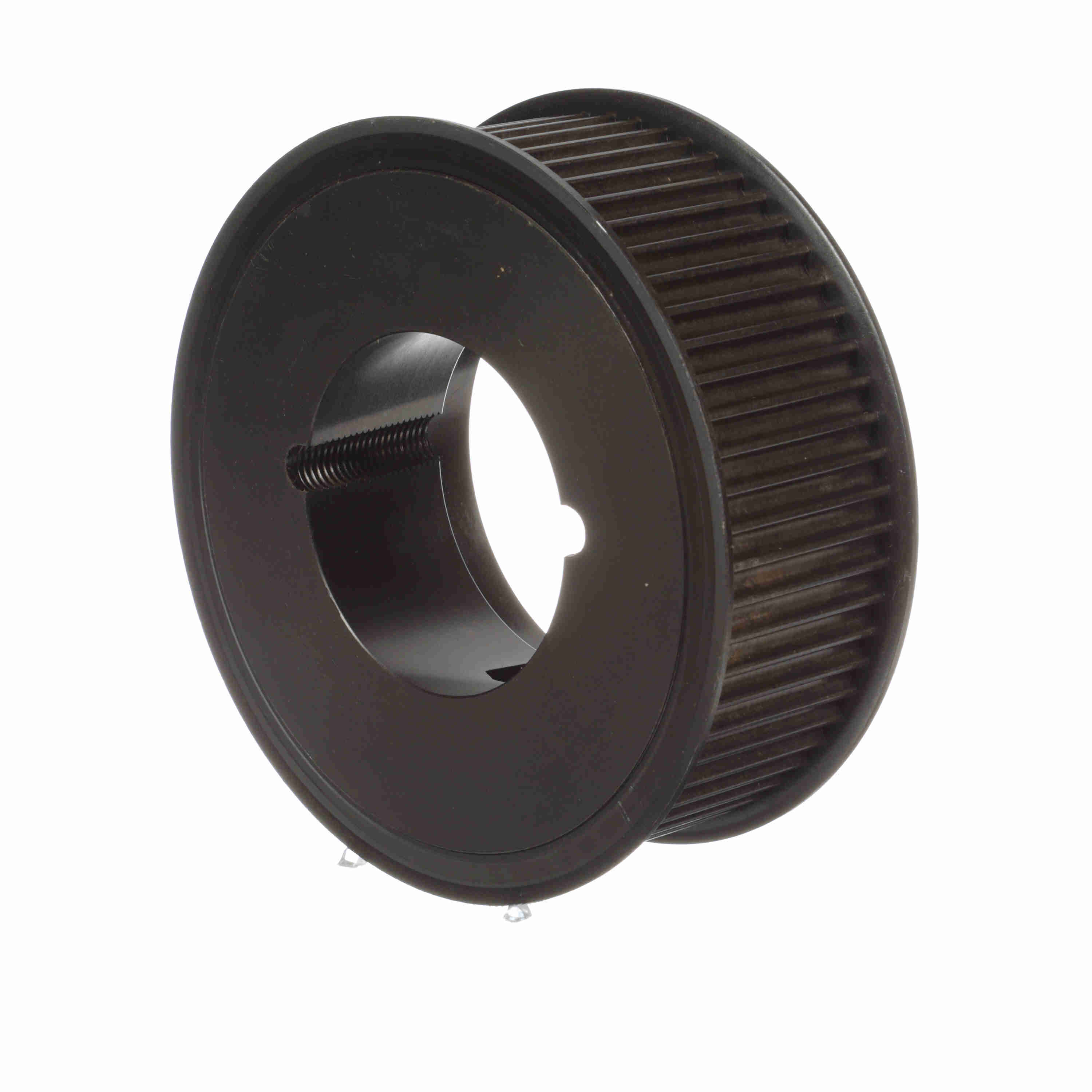

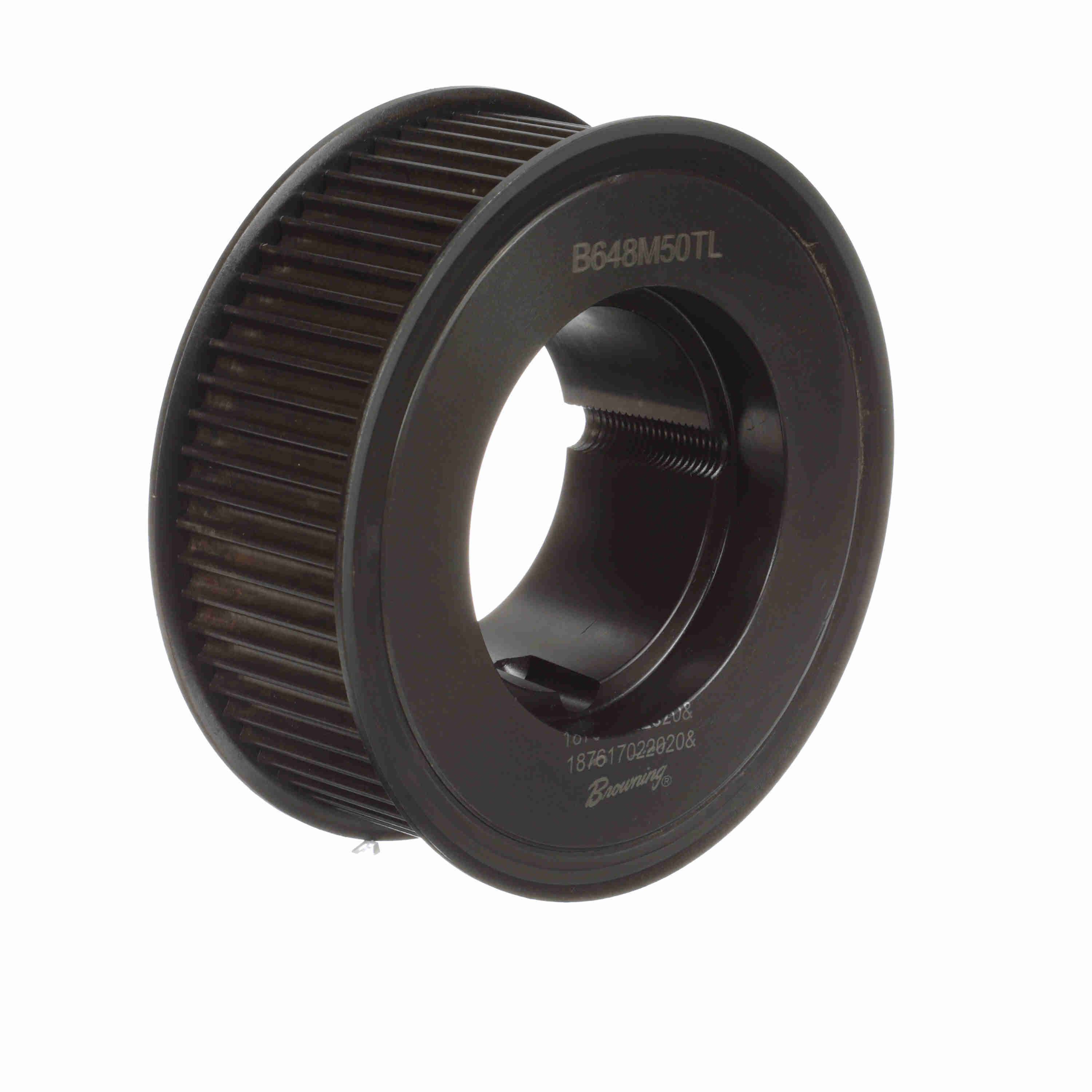

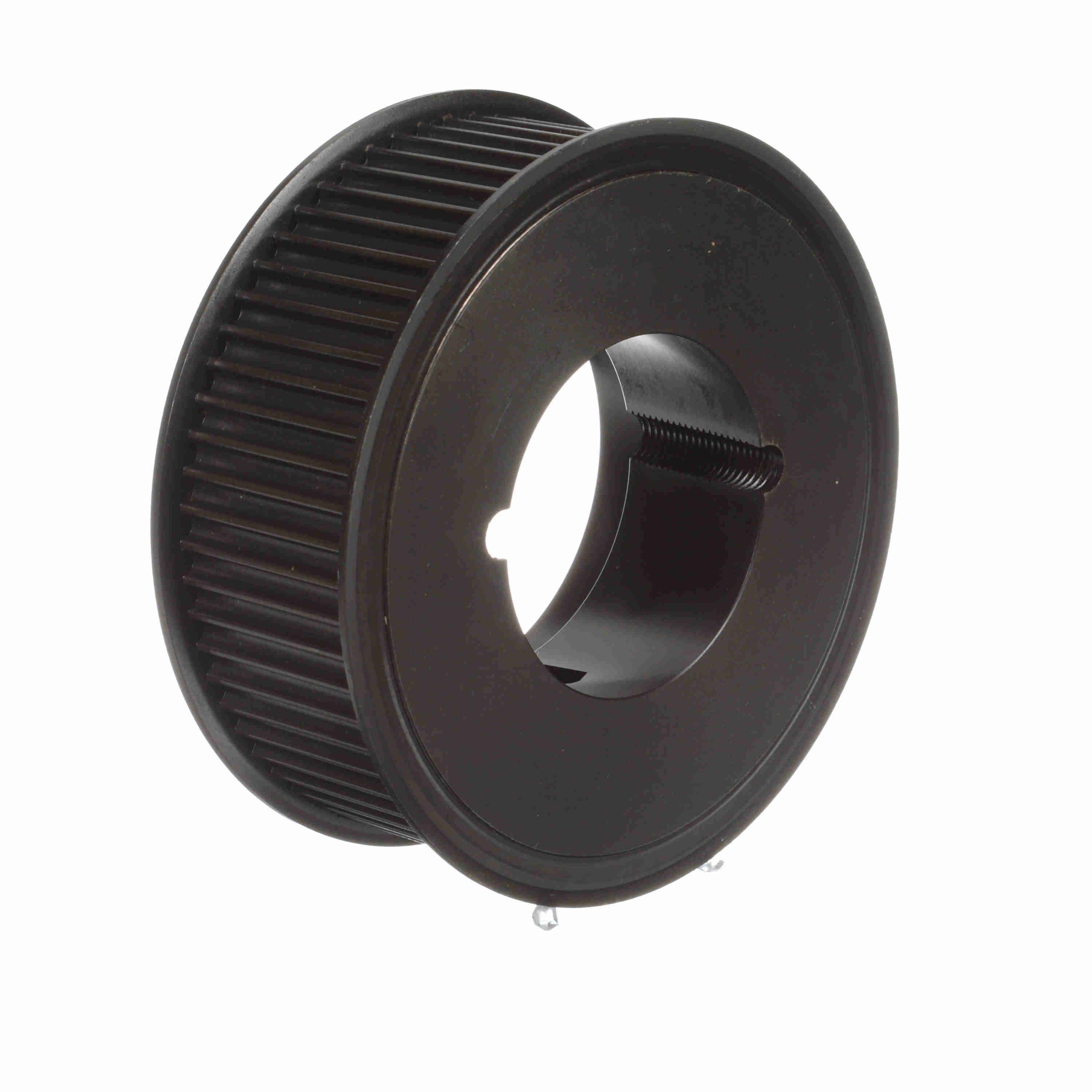

Browning Steel Bushed Bore HPT Sprocket - B648M50TL

Part #:2763209

Catalog #:B648M50TL

Key Features Product Specs

Add to Compare

Sorry, this item is no longer available. Contact engineering ([email protected]) for more information or possible solutions.

Compare Product

KEY FEATURES

HPT Synchronous pulley, bushed to fit taper lock bushing
Ideal for compact drive footprints
Well suited for applications over 500 RPM

How can we improve our Product Information?

Resource Center

Installation Manual

Talk to one of our expert sales professionals about how this brand can efficiently power your business.

Product Specifications

Technical Specifications
General Specifications

Technical Specifications

Width (mm):	50 mm	Flange (mm):	172.0088 mm
Product Type:	HPT Sprocket	Bushing:	2517
Number of teeth:	64	Bore Type:	Bushed
Bushing Type:	Taper Bore	Bore (Min) (mm):	12.7 mm
Material:	Steel	Belt Section:	8M
Bore (Max) (mm):	63.5 mm	Outside Diameter (mm):	161.5948 mm
Pitch Diameter (mm):	162.9664 mm

General Specifications

UPC:	662460610146	Weight:	11.85 LB
HTC:	8483.50.9080	Country of Origin:	United States of America
